KTM 790 Duke (2022-2024)



Updated: 7 January 2025


Brand: Style:
Share:

Specifications and Features

Engine

799 cc Parallel-twin, liquid-cooled

Power

104 hp @ 9000 rpm (A2: 94)

Power to weight ratio

55 HP/100kg (A2: 50)

Torque

87 Nm @ 8000 rpm

Torque to weight ratio

46 Nm/100kg

Transmission

– 6-speed, wet slip/assist clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

14 litres

Length

2109 mm (estimated)

Width

904 mm

Height

1247 mm (estimated)

Weight

– 188 kg wet
– Max load: 242 kg

Seat Height

825 mm

Suspension

– Front: 43 mm inverted fork, 140 mm travel
– Rear: mono-shock, adjustable preload, 150 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 300 mm discs, 4-piston radial calipers
– Rear: 240 mm disc, 2-piston floating caliper
– Cornering ABS available (switchable rear)

Instruments

– 11 cm (4.5") TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, engine temperature, clock

Other

– LED lights
– Riding modes, cornering traction control
– Adjustable hand levers. Optional: cruise control

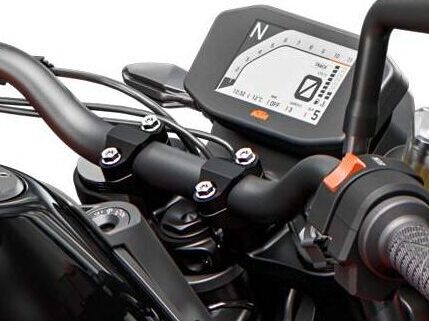

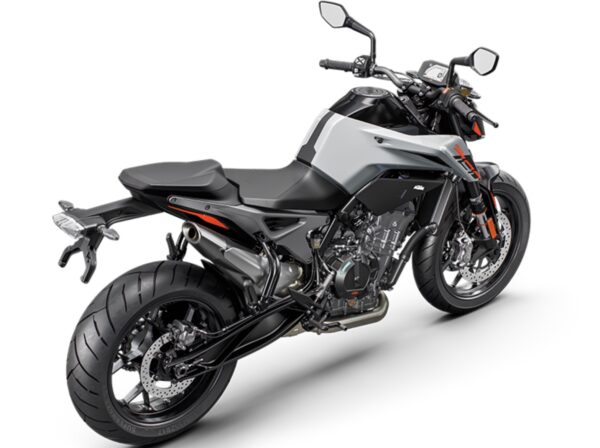

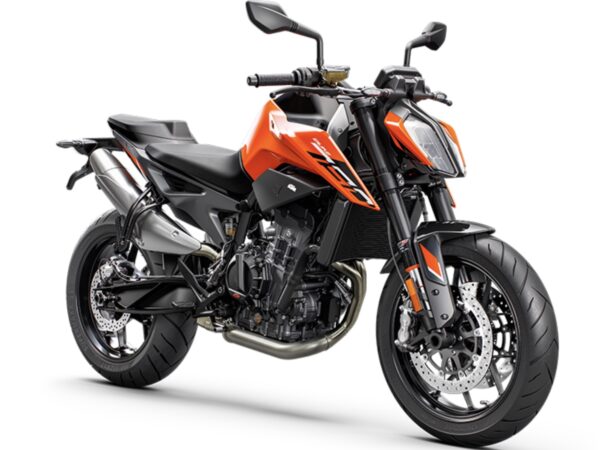

KTM 790 Duke 2022 dashboard KTM 790 Duke 2023 front KTM 790 Duke 2023 back

Motorcycle gifts to celebrate it and support the website:
clutches tshirt
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

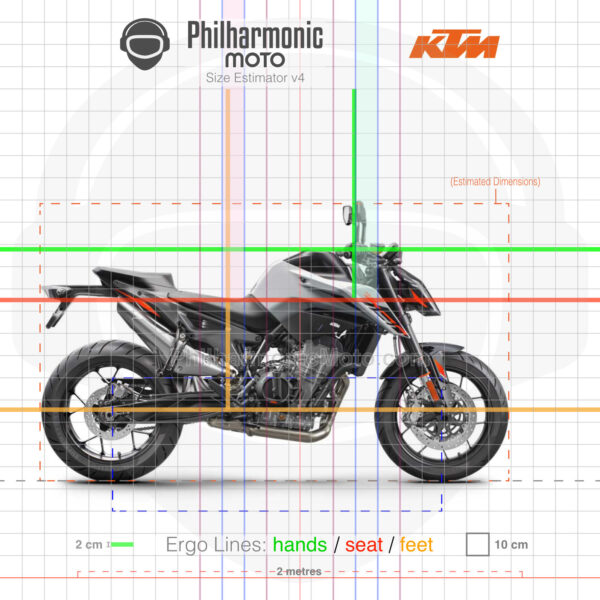

  • Size Estimator (see "About" page to learn more)
