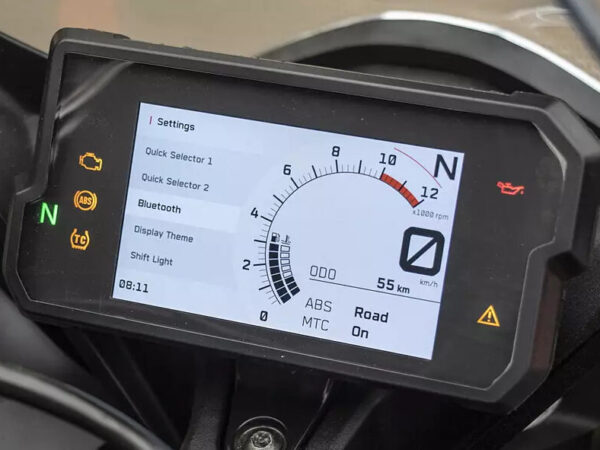

KTM RC390 2022 dashboard

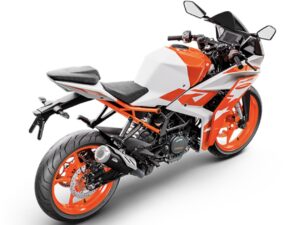

KTM RC 125 2023 front
KTM RC 125 2023 back

KTM RC 125 (2022+)

KTM RC 125 (2022+)

Dimensions shown are from the RC 390, since they appear to be the same bike with different engines and KTM didn’t divulge them for the RC 125.

Dashboard shown is also from the RC390, since they appear to be the same in some markets and KTM didn’t provide a picture of a fancy TFT display. Other markets get an LCD display.


Category: Tag:
Share:

Specifications

Engine

124,7 cc Single-cylinder, liquid-cooled

Power

14,7 hp @ 9250 rpm

Power to weight

9 HP/Kg x 100

Torque

12 Nm @ 8000 rpm

Torque to weight

8 Nm/Kg x 100

Transmission

6-speed, wet multi-plate clutch, chain final drive

Fuel Capacity

13,7 liters

Length

1978 mm (RC 390)

Width

688 mm (RC 390)

Height

1098 mm (RC 390)

Weight

160 kg wet

Seat Height

835 mm

Suspension

– Front: WP Apex 43 mm inverted USD fork, 120 mm travel
– Rear: WP Apex mono-shock, adjustable preload, 150 mm travel

Tyres

– Front: 110/70-17
– Rear: 150/60-17

Brakes

– Front: 320 mm disc, Bybre 4-piston caliper
– Rear: 230 mm disc, 1-piston caliper
– ABS available with rear wheel lift mitigation (switchable rear)

Instruments

TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, clock
– LCD in some markets

Other

LED lights, adjustable clip-on handlebars, foldable foot levers
– no LED lights in some markets
