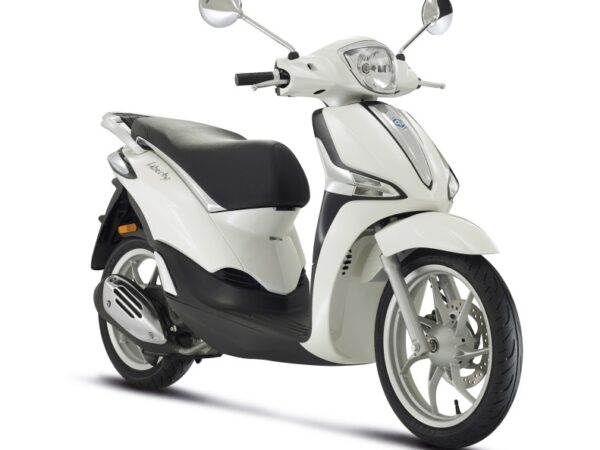

Piaggio Liberty 50 / S 50 (2016-2024)

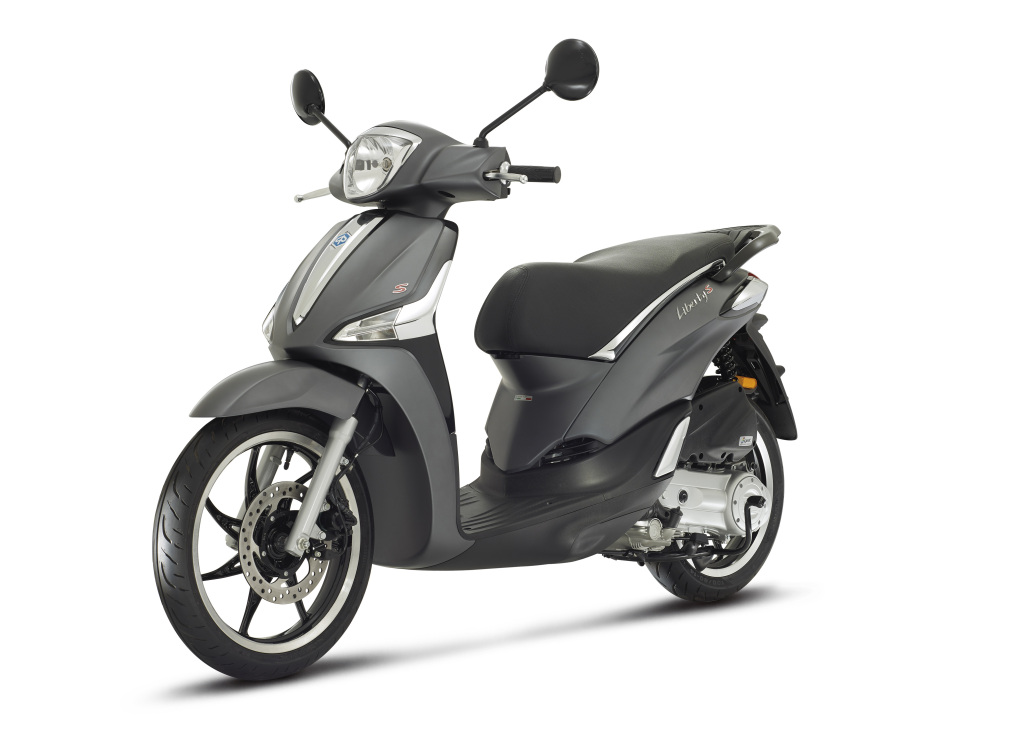

Liberty S 50 has dedicated graphics and details.

Successor

Updated: 2 March 2025


Launch decade: Style: Brand:

Specifications and Features

Length

1945 mm

Width

690 mm

Height

1240 mm (estimated)

Seat Height

780 mm

Weight

– 114 kg wet
– Max load: 290 kg

Engine

50 cc single-cylinder, air-cooled

Power

3 hp @ 7750 rpm

Power to weight ratio

3 HP/100kg

Torque

3 Nm @ 6500 rpm

Torque to weight ratio

3 Nm/100kg

Transmission

– Automatic CVT, centrifugal dry clucth
– Belt final drive

Fuel Capacity

6 litres

Suspension

– Front: telescopic fork, 76 mm travel
– Rear: mono-shock, adjustable preload, 74 mm travel

Tyres

– Front: 90/80-16 (-41 cm)
– Rear: 100/80-14 (-36 cm)

Brakes

– Front: 240 mm disc, 2-piston floating caliper
– Rear: 140 mm drum

Instruments

– Analogue speedometer, LCD display with odometer, fuel gauge, clock

Other

– Centre stand, 17 litres underseat storage, 4 litres front storage. Optional: USB port in front storage, kickstand

Piaggio Liberty 150 2016 dashboard Piaggio Liberty 50 2016 front  placeholder back


10 11
Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

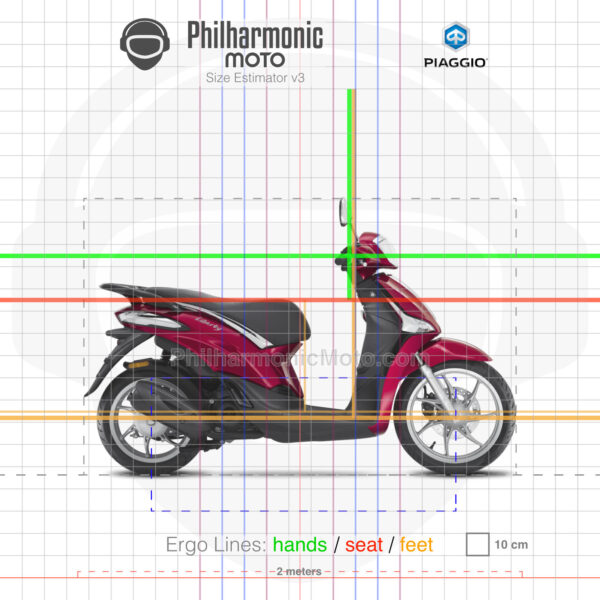

  • Size Estimator (see "About" page to learn more)
