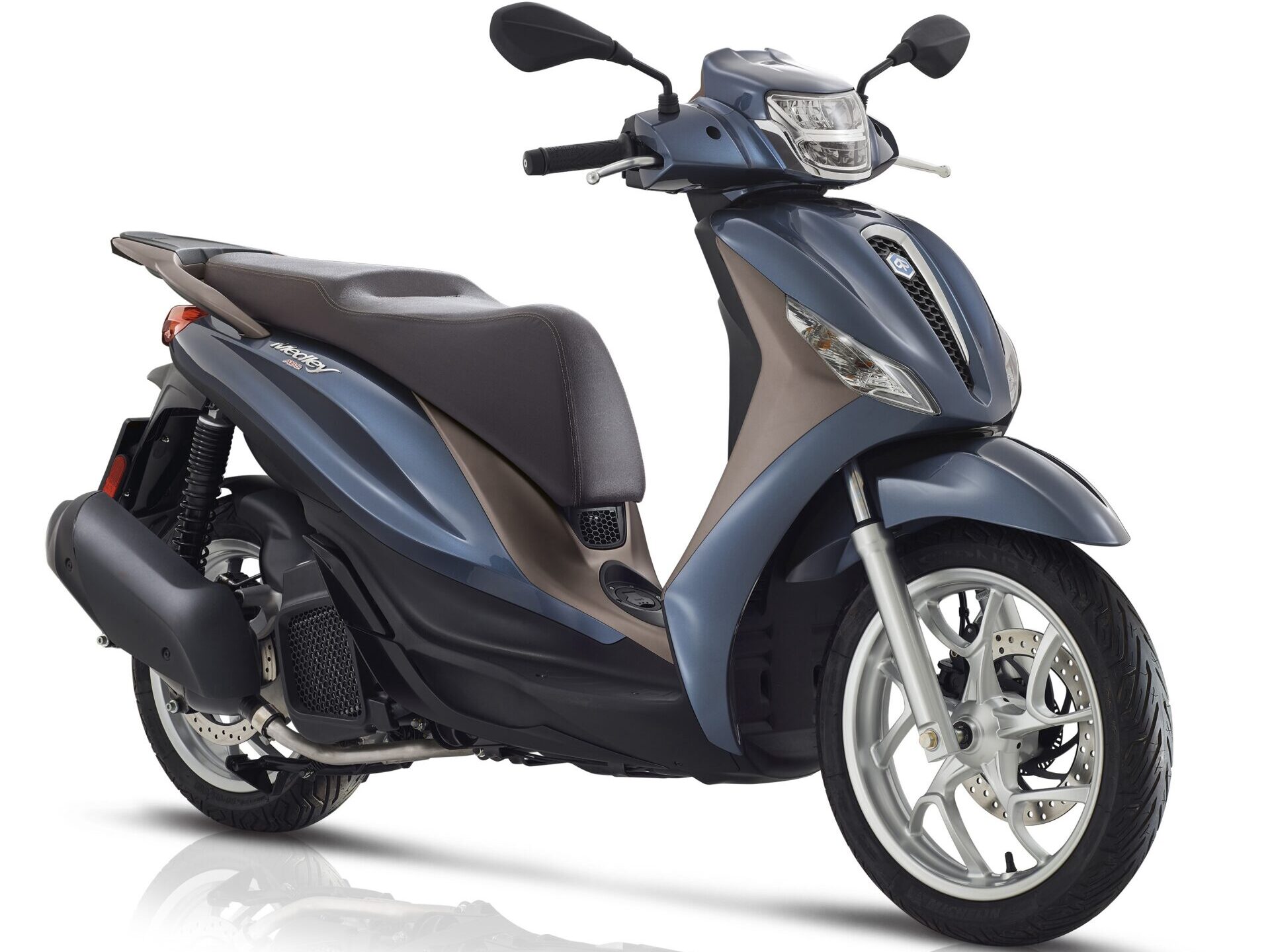

Piaggio Medley 125 / S 125 (2020+)

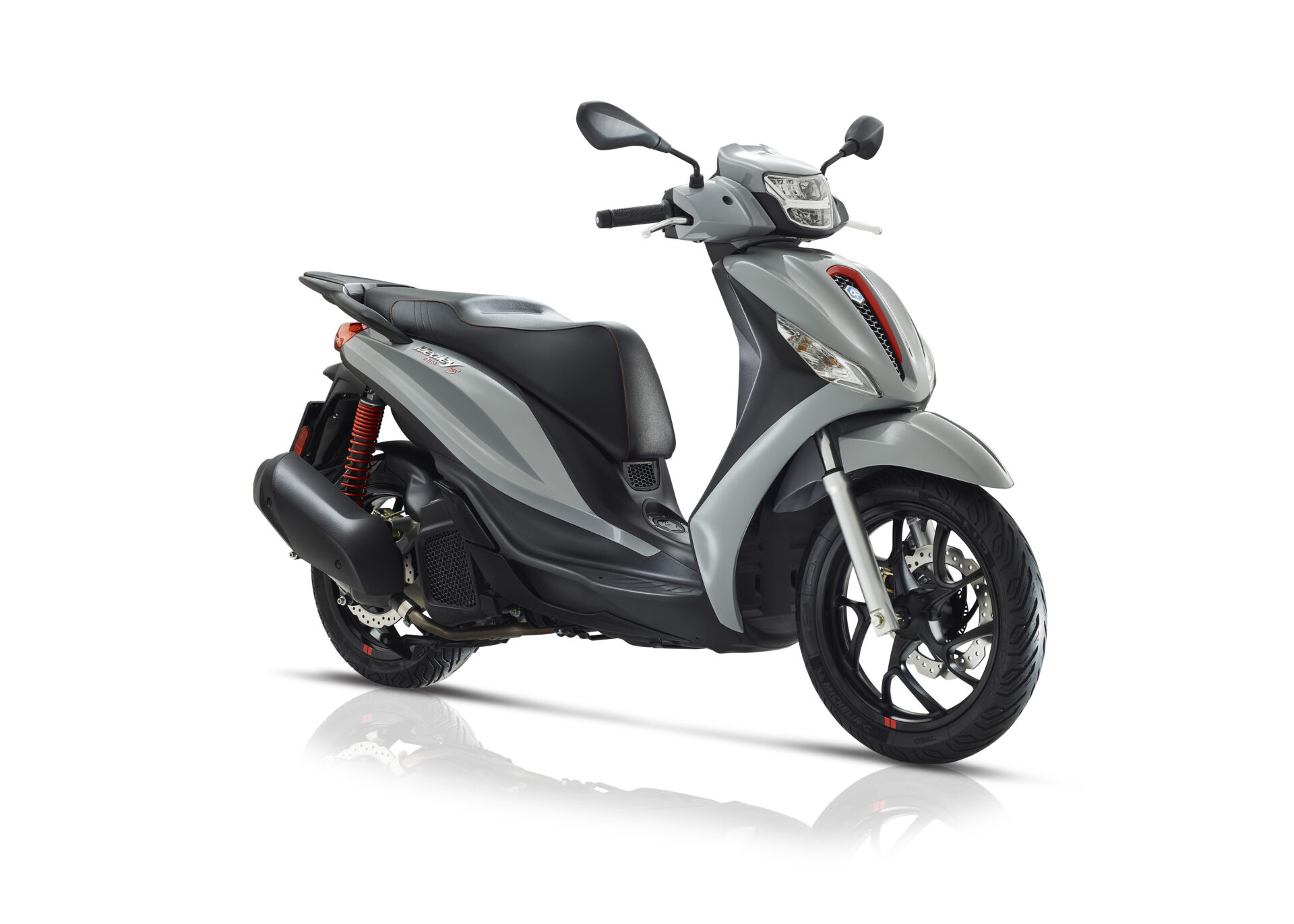

Medley S 125 has dedicated graphics and details.


Brand: Style:
Share:

Specifications and Features

Engine

125 cc single-cylinder, liquid-cooled

Power

15 hp @ 9000 rpm

Power to weight ratio

10 HP/100kg

Torque

12 Nm @ 6500 rpm

Torque to weight ratio

8 Nm/100kg

Transmission

– Automatic CVT, centrifugal dry clucth
– Belt final drive

Fuel Capacity

7 litres

Length

2008 mm (estimated)

Width

Height

1227 mm (estimated)

Weight

144 kg (estimated wet)

Seat Height

799 mm

Suspension

– Front: 33 mm telescopic fork, 88 mm travel
– Rear: twin-shocks, adjustable preload, 76 mm travel

Tyres

– Front: 100/80-16
– Rear: 120/70-14

Brakes

– Front: 260 mm disc, 2-piston floating caliper
– Rear: 240 mm disc, 2-piston floating caliper
– ABS available

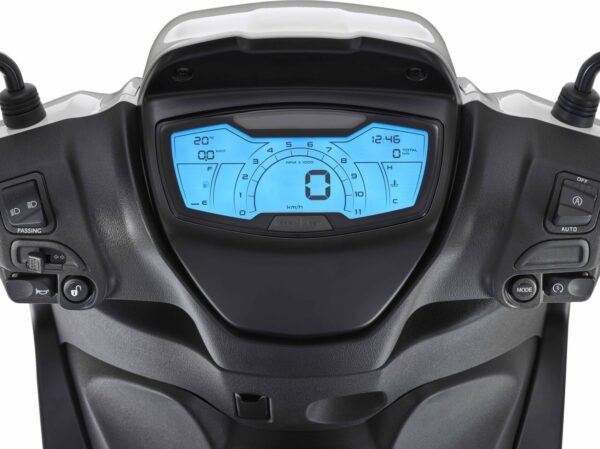

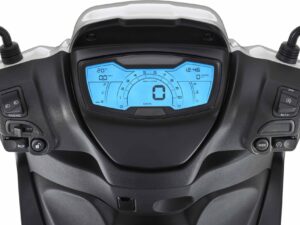

Instruments

– 5.5" LCD display with speedometer, tachometer, odometer, fuel gauge, average and instant consumption, trip meters, average and highest speed, ambient and engine temperature, voltmeter, clock
– Optional: smartphone connectivity, standard on the "S" model

Other

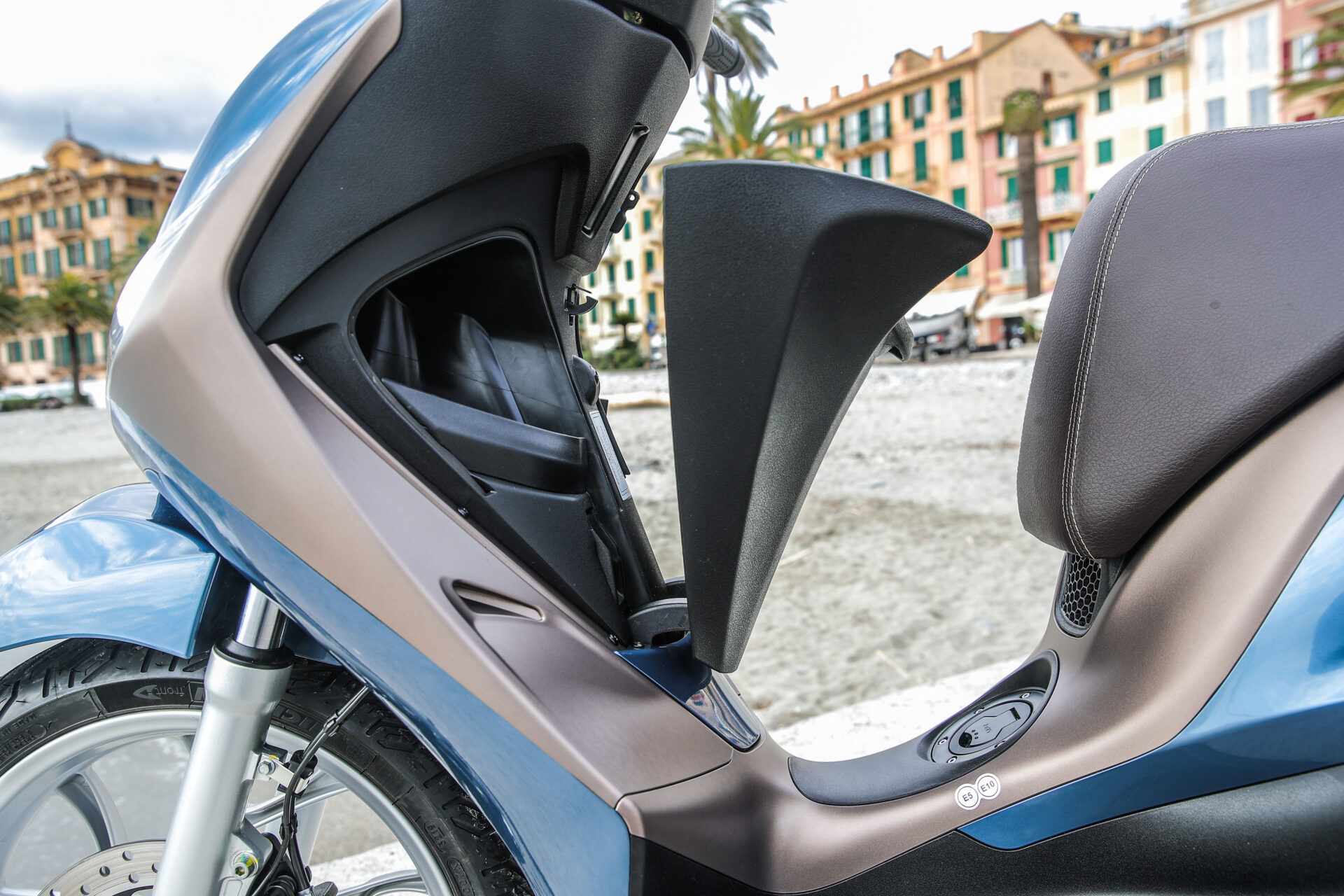

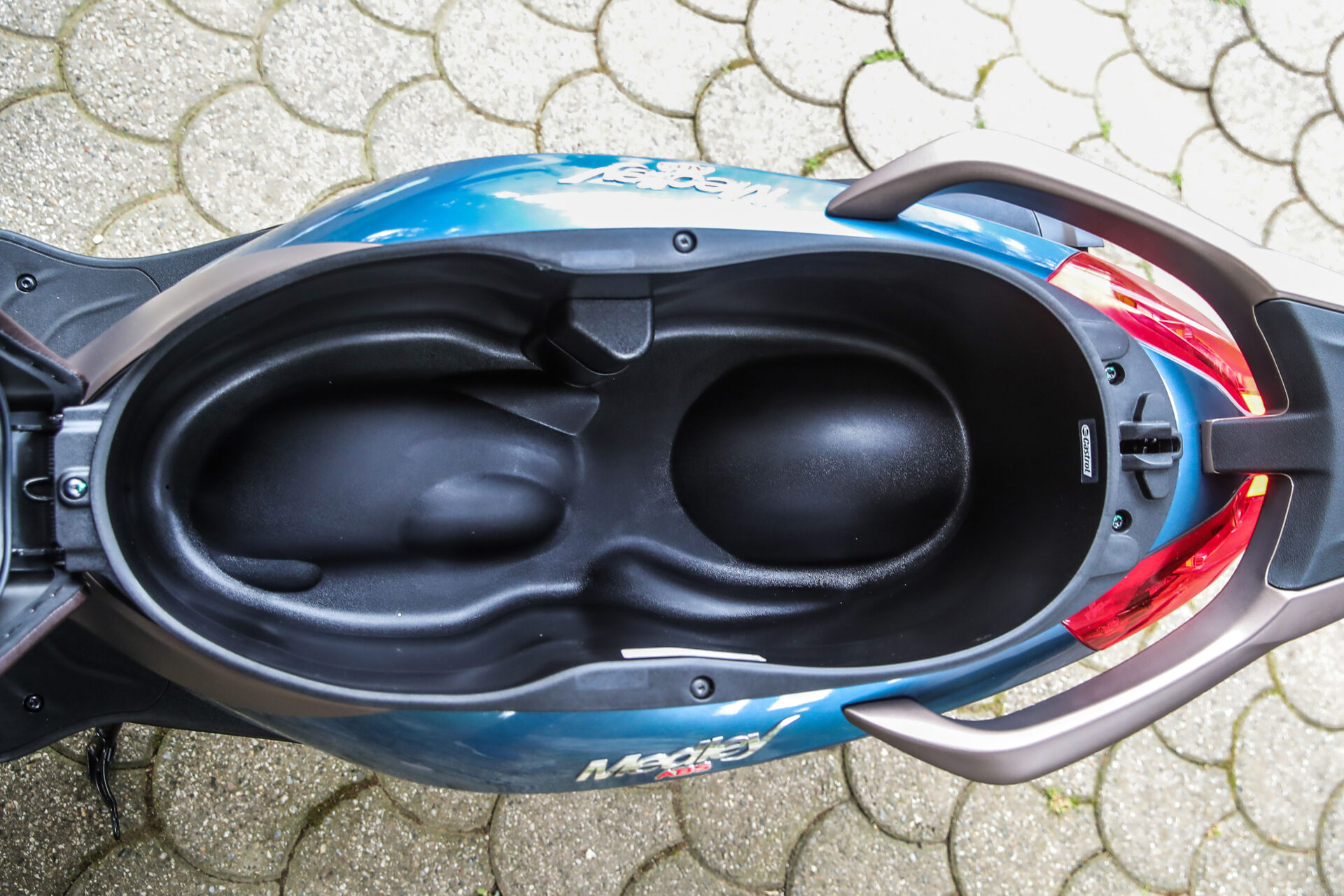

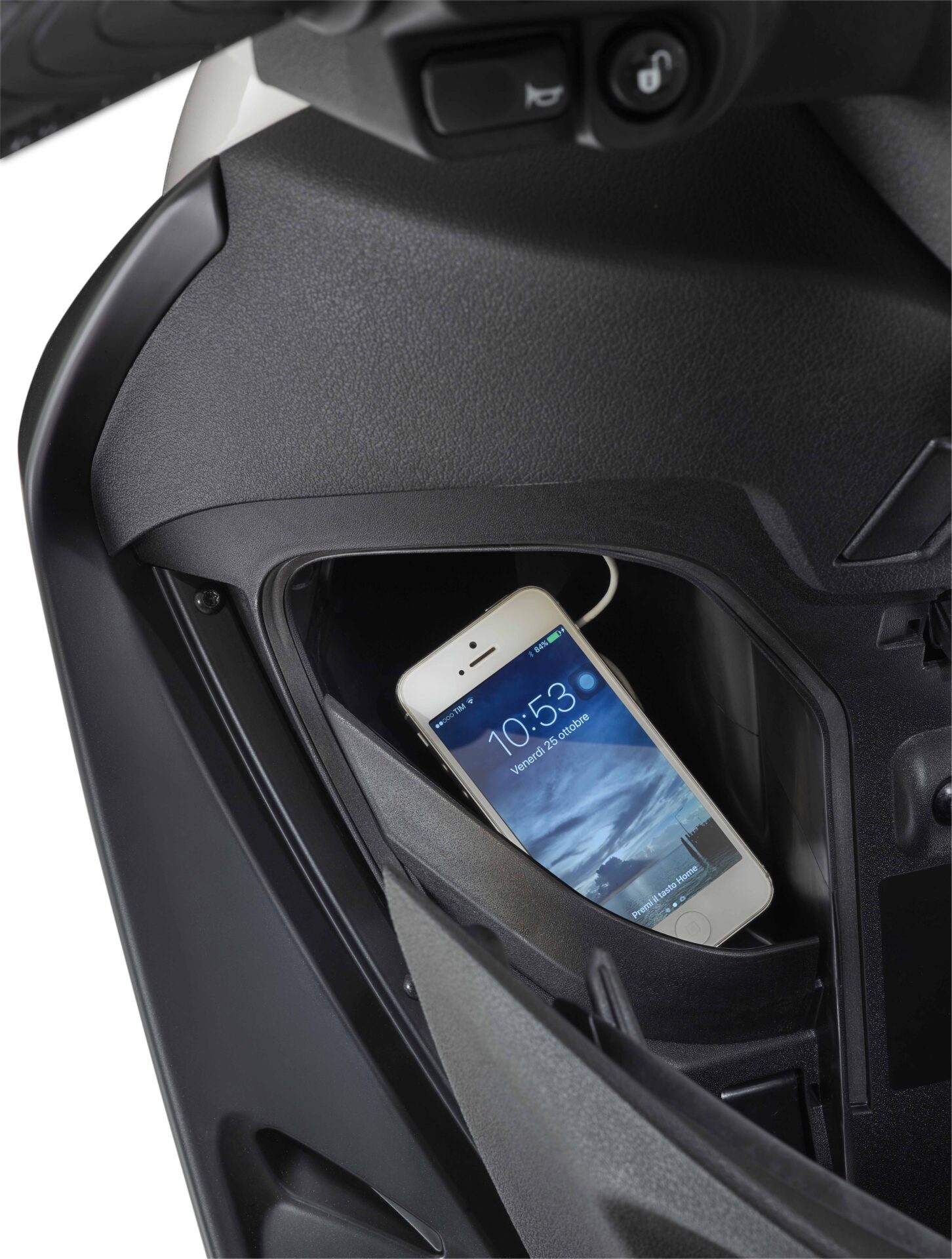

– USB port in front storage, 36 litres underseat storage, centre stand, start-stop system

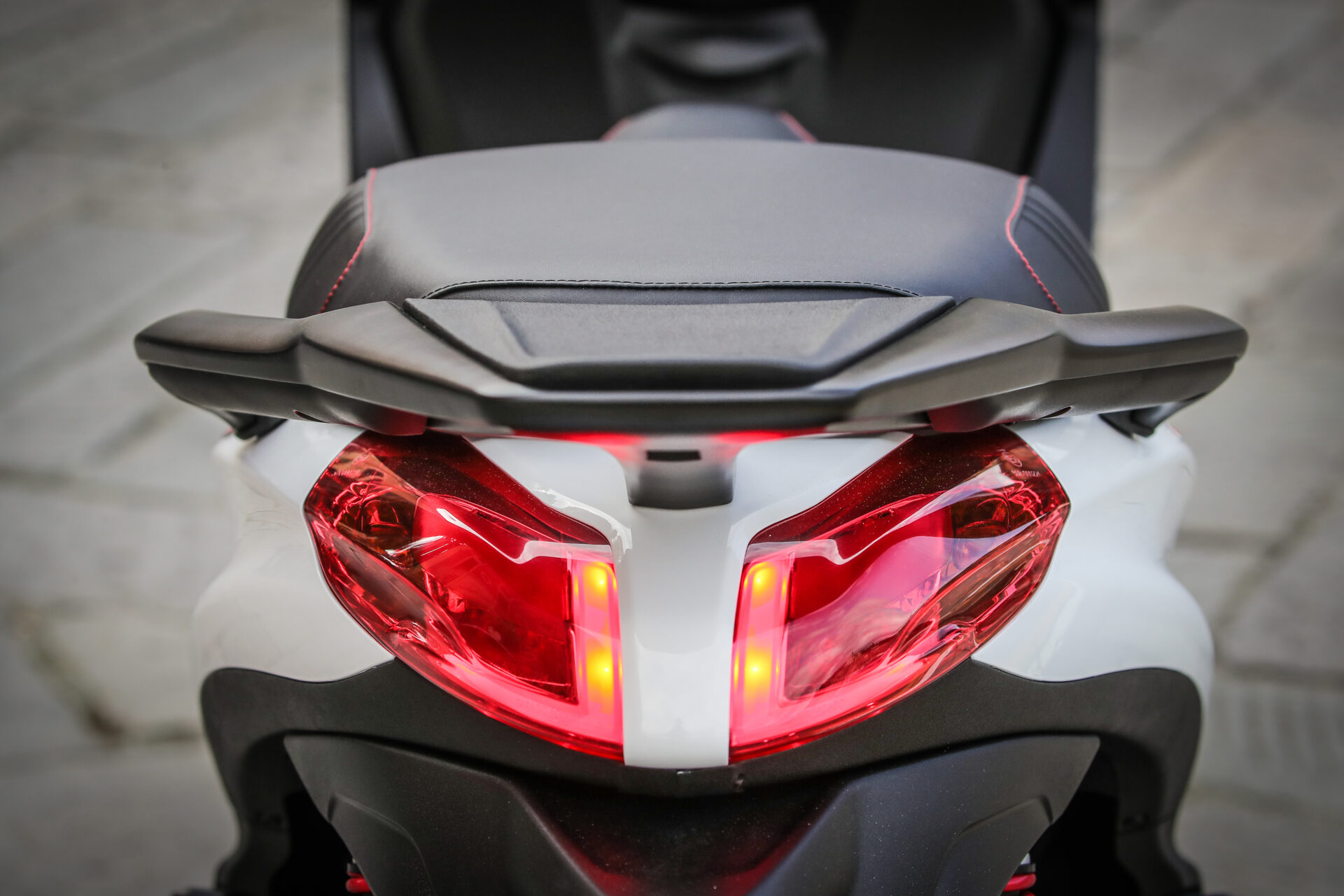

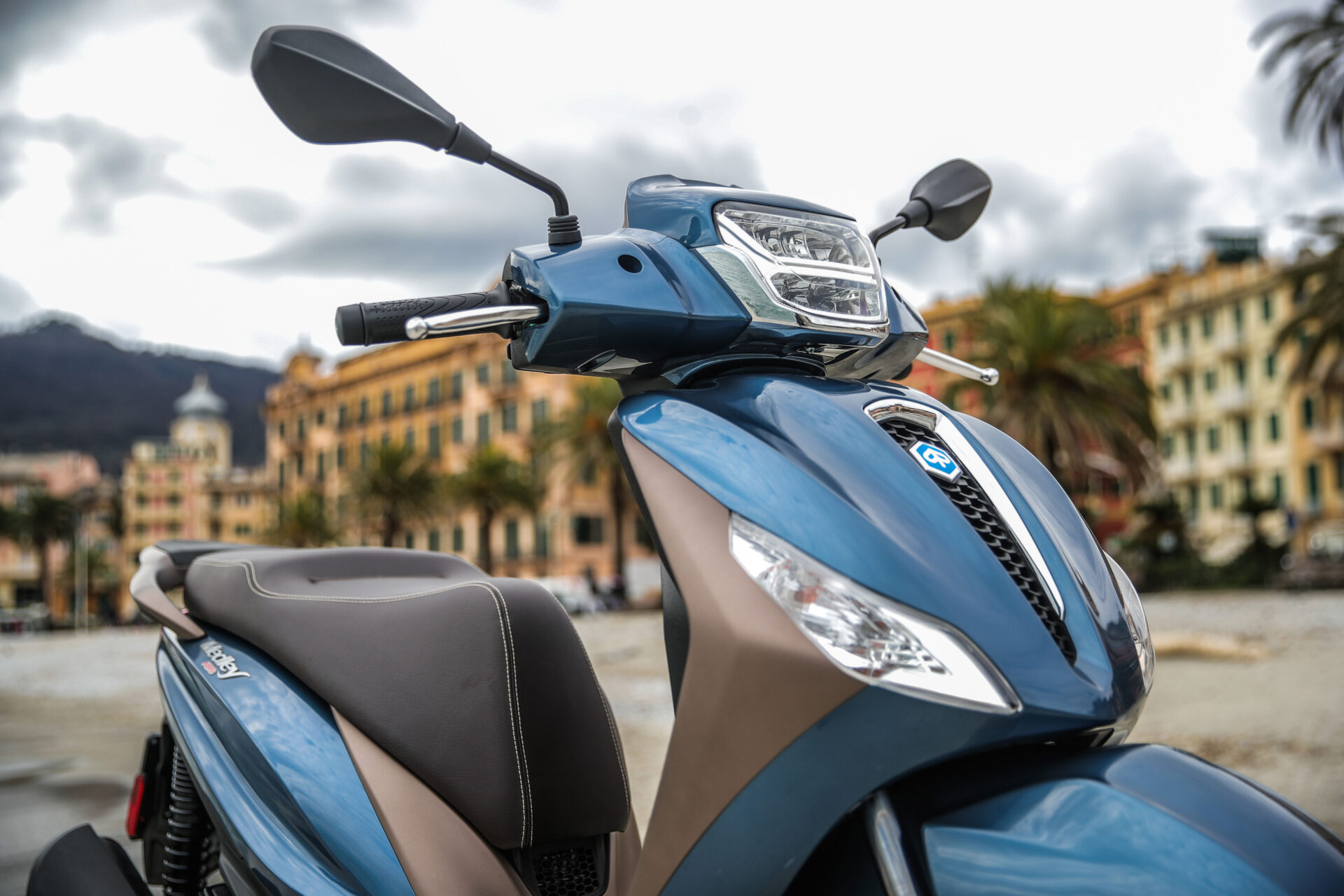

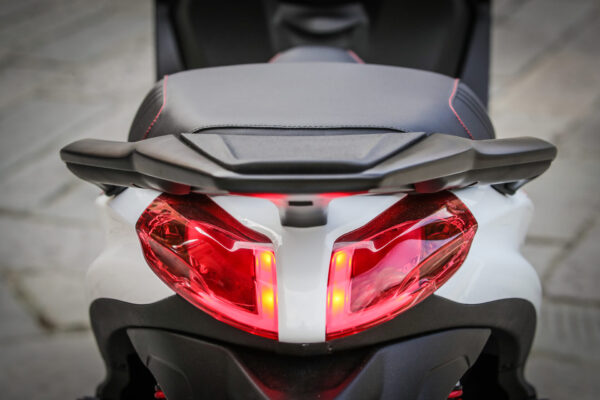

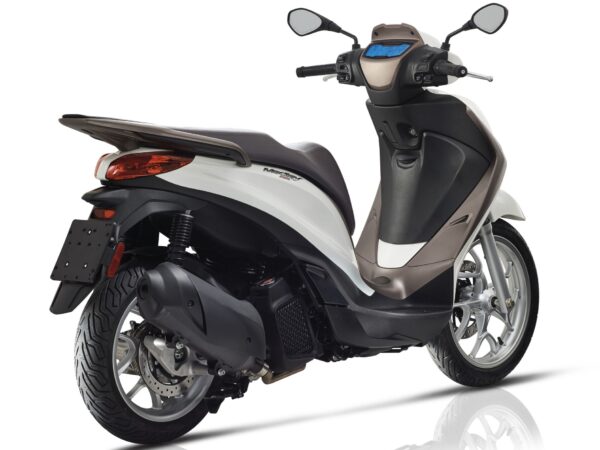

Piaggio Medley 125 150 2020 dashboard Piaggio Medley 125 150 2020 Blu Orione front Piaggio Medley 125 150 2020 Bianca Luna back

T-shirts, mugs, stickers and more:

honda super cub c125 red ride tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

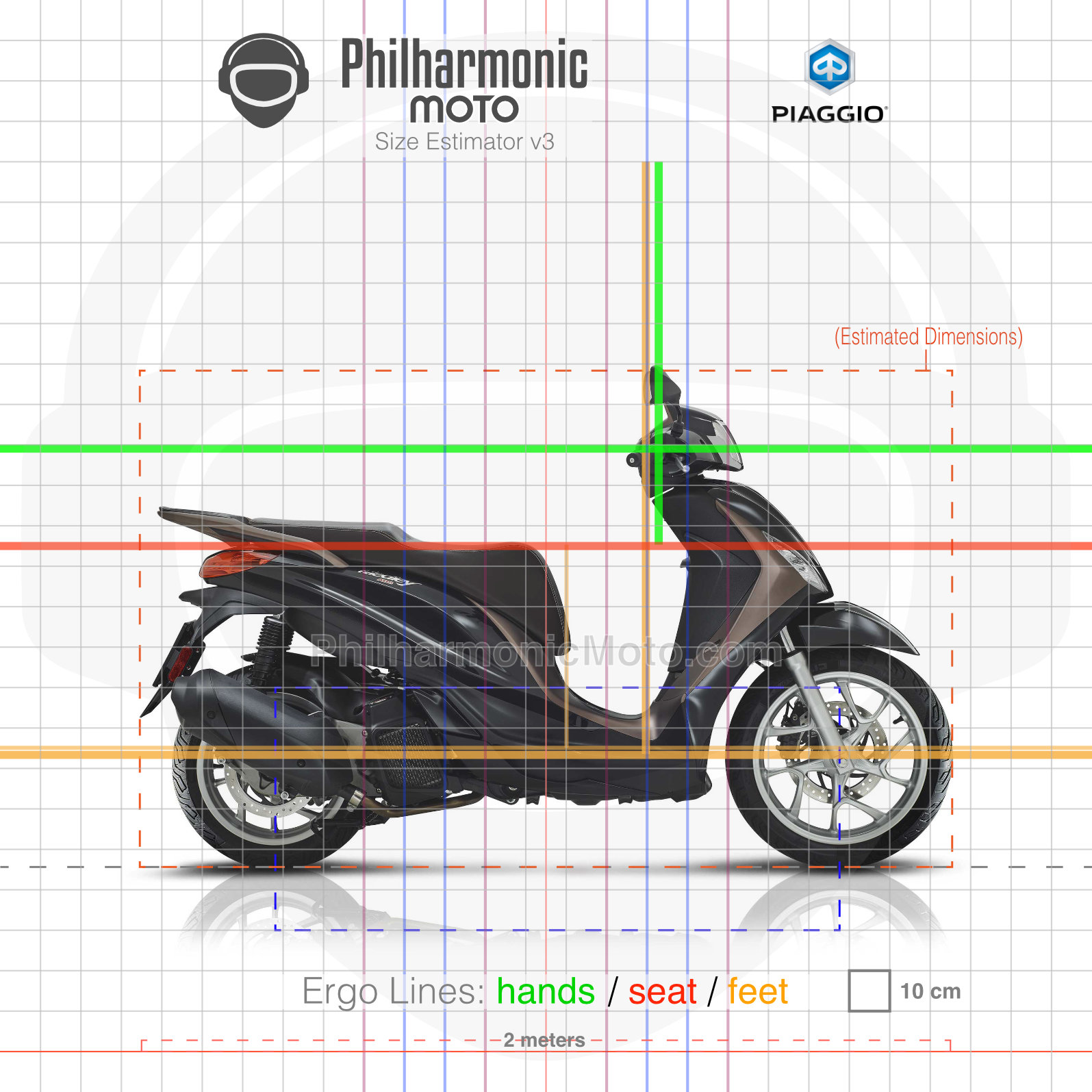

  • Size Estimator (see "About" page to learn more)
