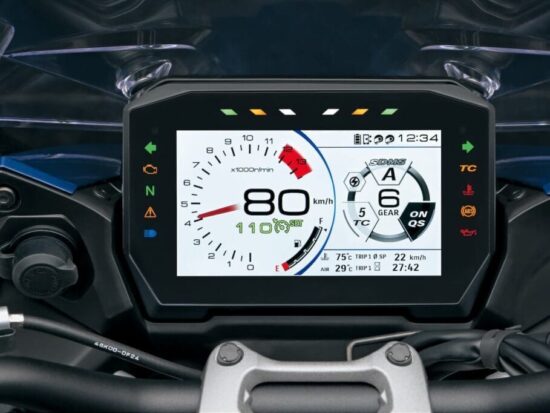

Suzuki GSX-S1000GT 2022 dashboard

Suzuki GSX-S1000GT (2022+)

Suzuki GSX-S1000GT (2022+)



Category: Tag:

Specifications

Engine

999 cc Inline-4, liquid-cooled

Power

150 hp @ 11000 rpm

Torque

106 Nm @ 9250 rpm

Transmission

6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive

Fuel Capacity

19 liters

Length

2140 mm

Width

825 mm

Height

1215 mm

Weight

226 kg wet

Seat Height

810 mm

Suspension

– Front: KYB 43 mm inverted fork, fully adjustable, 120 mm travel
– Rear: mono-shock, adjustable preload and rebound damping, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/50-17

Brakes

– Front: 2×310 mm floating discs, 4-piston radial calipers
– Rear: 240 mm disc, 1-piston caliper
– ABS available

Instruments

TFT display with tachometer, speedometer, coolant temperature, fuel gauge, odometer, gear position, coolant and air temperature, clock, smartphone connectivity

Other

LED lights, Traction control, riding modes, cruise control, easy-start, low rpm assist

Dashboard / Support us

Suzuki GSX-S1000GT 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsSuzuki GSX-S1000GT (2022+) removeKawasaki Ninja 1000SX (2020+) removeSuzuki Hayabusa (2021+) removeSuzuki V-Strom 1050XT (2020-2022) removeSuzuki V-Strom 1050 (2020-2022) removeSuzuki V-Strom 1050 (2023+) remove
NameSuzuki GSX-S1000GT (2022+) removeKawasaki Ninja 1000SX (2020+) removeSuzuki Hayabusa (2021+) removeSuzuki V-Strom 1050XT (2020-2022) removeSuzuki V-Strom 1050 (2020-2022) removeSuzuki V-Strom 1050 (2023+) remove

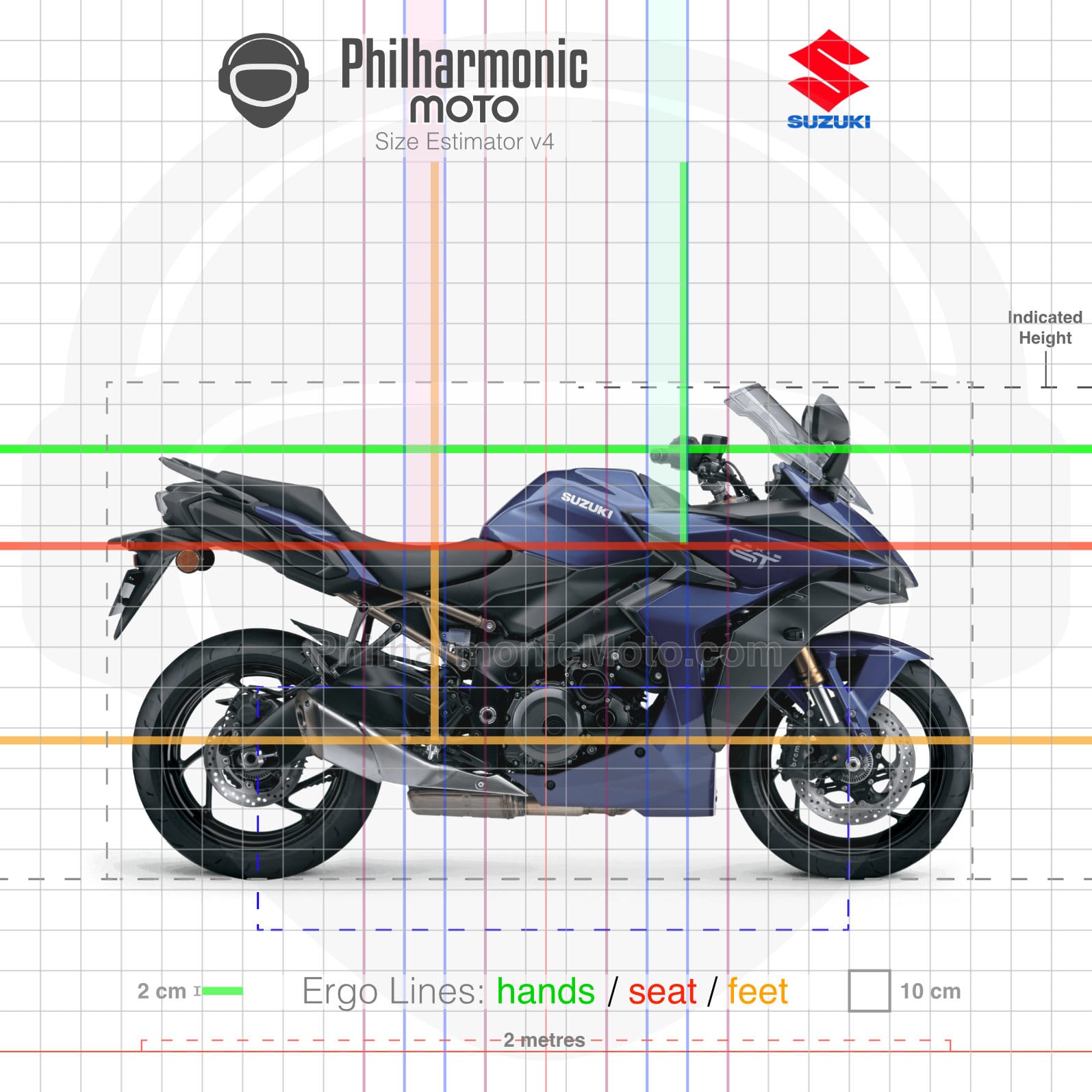

Size Estimator (see "About" page to learn more)Suzuki GSX-S1000GT 2022 Metallic Reflective BlueKawasaki Ninja 1000SX 2023 Emerald Blazed Green Metallic Diablo Black Metallic Graphite GraySuzuki GSX1300R Hayabusa 2023 Metallic Matt Sword Silver Candy Daring RedSuzuki V-Strom 1050XT 2022 Pearl Brilliant White - Glass Blaze OrangeSuzuki V-Strom 1050 2020 Candy Daring Red with Glass Sparkle BlackSuzuki V-Strom 1050 2023 Metallic Reflective Blue - Metallic Matt Black no.2
Length2140 mm2100 mm2180 mm2265 mm2265 mm2265 mm
Width825 mm825 mm735 mm940 mm870 mm940 mm
Height1215 mm1190 mm / 1225 mm (low/high screen position)1165 mm1465/1510 mm (low/high screen position)1470/1515 mm (low/high screen position)1470/1515 mm (low/high screen position)
Seat Height810 mm835 mm805 mm850/870 mm (adjustable)855/875 mm (adjustable)855/875 mm (adjustable)
Weight226 kg wet235 kg wet264 kg wet247 kg wet236 kg wet242 kg wet
Engine999 cc Inline-4, liquid-cooled1043 cc Inline-4, liquid-cooled1340 cc Inline-4, liquid-cooled1037 cc V-Twin, liquid-cooled, 90º crank1037 cc V-Twin, liquid-cooled, 90º crank1037 cc V-Twin, liquid-cooled, 90º crank
Power150 hp @ 11000 rpm142 hp @ 10000 rpm190 hp @ 9700 rpm107,4 hp @ 8500 rpm107,4 hp @ 8500 rpm107,4 hp @ 8500 rpm
Torque106 Nm @ 9250 rpm111 Nm @ 8000 rpm150 Nm @ 7000 rpm100 Nm @ 6000 rpm100 Nm @ 6000 rpm100 Nm @ 6000 rpm
Transmission6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive
Fuel Capacity19 liters19 liters20 liters20 liters20 liters20 liters
Suspension- Front: KYB 43 mm inverted fork, fully adjustable, 120 mm travel - Rear: mono-shock, adjustable preload and rebound damping, 130 mm travel- Front: 41 mm inverted forks, rebound and compression damping and spring preload adjustability, 120 mm travel - Rear: gas-charged shock with piggyback reservoir, rebound damping and remote spring preload adjustability, 144 mm travel- Front: KYB 43 mm diamond-like coated inverted forks, fully adjustable, 120 mm travel - Rear: mono-shock, fully adjustable, 140 mm travel- Front: KYB 43 mm inverted forks, fully adjustable, 160 mm travel - Rear: KYB mono-shock, fully adjustable, remote preload, 160 mm travel- Front: KYB 43 mm inverted forks, fully adjustable, 160 mm travel - Rear: KYB mono-shock, fully adjustable, remote preload, 160 mm travel- Front: KYB 43 mm inverted forks, fully adjustable, 160 mm travel - Rear: KYB mono-shock, fully adjustable, remote preload, 160 mm travel
Tyres- Front: 120/70-17 - Rear: 190/50-17- Front: 120/70-17 - Rear: 190/50-17- Front: 120/70-17 - Rear: 190/50-17- Front: 110/80-19 - Rear: 150/70-17- Front: 110/80-19 - Rear: 150/70-17- Front: 110/80-19 - Rear: 150/70-17
Brakes- Front: 2x310 mm floating discs, 4-piston radial calipers - Rear: 240 mm disc, 1-piston caliper - ABS available- Front: Dual semi-floating 300 mm discs, Radial-mount, monobloc, opposed 4-piston calipers - Rear: 250 mm disc, single-piston caliper - cornering ABS available- Front: 2x320 mm discs, 4-piston Brembo Stylema radial calipers - Rear: 260 mm disc, 1-piston Nissin caliper - cornering ABS available- Front: 310 mm floating discs, Tokico monobloc 2-piston radial calipers - Rear: 260 mm disc, 1-piston caliper - switchable cornering ABS available- Front: 310 mm floating discs, Tokico monobloc 2-piston radial calipers - Rear: 260 mm disc, 1-piston caliper - ABS available- Front: 310 mm floating discs, Tokico monobloc 2-piston radial calipers - Rear: 260 mm disc, 1-piston caliper - switchable cornering ABS available
InstrumentsTFT display with tachometer, speedometer, coolant temperature, fuel gauge, odometer, gear position, coolant and air temperature, clock, smartphone connectivityTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clock- Analogue tachometer, speedometer, coolant temperature, fuel gauge, - TFT display with odometer, real-time display of the lean angle, front and rear brake pressure, rate of acceleration and throttle position, gear position, air temperature, clockInverted LCD display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant and air temperature, fuel consumption, fuel gauge, clockTFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clockTFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clock, day/night mode
OtherLED lights, Traction control, riding modes, cruise control, easy-start, low rpm assistLED headlights, cornering traction control, riding modes, smartphone connectivity, cruise controlLED lights, cornering Traction control, riding modes, hill hold, launch control, engine brake control, wheelie control, cruise control, easy-start, low rpm assistLED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboard, 12v socket under seat, cruise control, hill-hold, centre standLED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboardLED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboard, 12v socket under seat, cruise control, hill-hold
