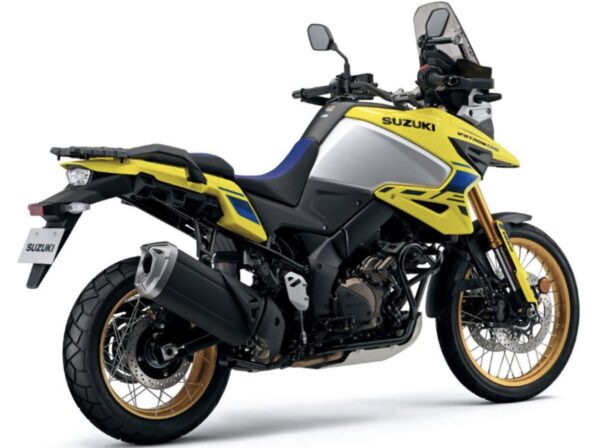

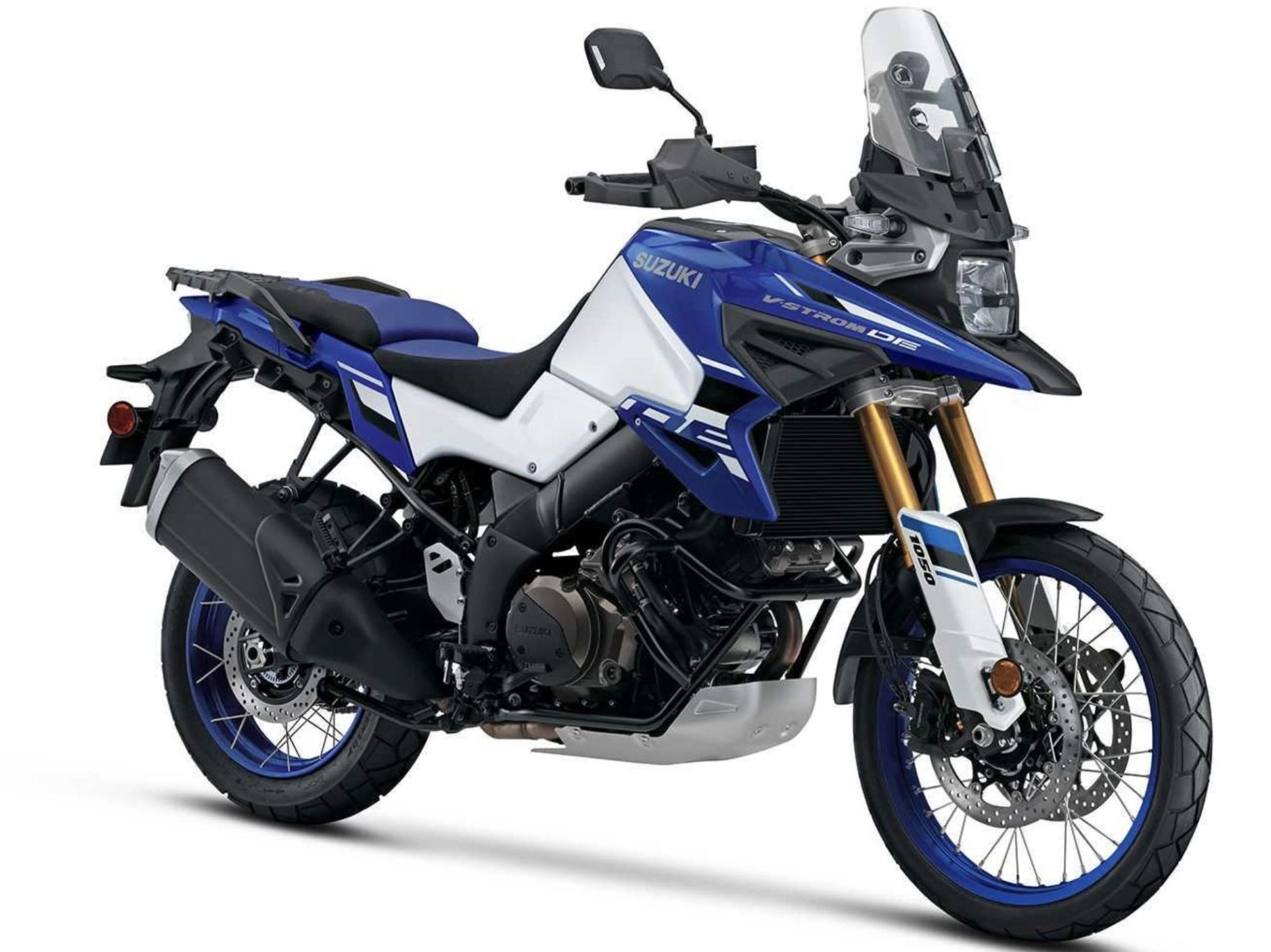

Suzuki V-Strom 1050DE (2023+)

Suzuki V-Strom 1050DE (2023+)

Vstrom DL1050 DE

Category: Tag:

Specifications

Engine

1037 cc V-Twin, liquid-cooled, 90º crank

Power

107,4 hp @ 8500 rpm

Torque

100 Nm @ 6000 rpm

Transmission

6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive

Fuel Capacity

20 liters

Length

2390 mm

Width

960 mm

Height

1505 mm

Weight

252 kg wet

Seat Height

880 mm

Suspension

– Front: KYB 43 mm inverted forks, fully adjustable, 170 mm travel
– Rear: KYB mono-shock, fully adjustable, remote preload, 168 mm travel

Tyres

– Front: 90/90-21
– Rear: 150/70-17

Brakes

– Front: 310 mm floating discs, Tokico monobloc 2-piston radial calipers
– Rear: 260 mm disc, 1-piston caliper
– switchable cornering ABS available

Instruments

TFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clock, day/night mode

Other

LED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboard, 12v socket under seat, centre stand, cruise control, hill-hold

Dashboard / Support us

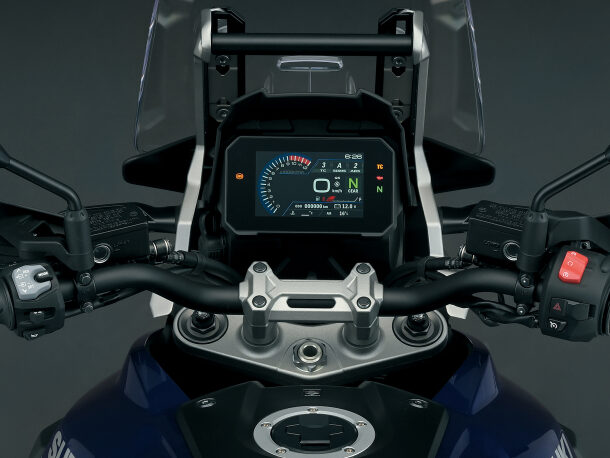

Suzuki V-Strom 1050DE 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsSuzuki V-Strom 1050DE (2023+) removeKawasaki KLR650 (2022+) removeSuzuki V-Strom 800DE (2023+) removeBMW F 750 GS Sport (2018+) removeBMW F 750 GS (2018+) removeSuzuki V-Strom 650 (2017+) remove
NameSuzuki V-Strom 1050DE (2023+) removeKawasaki KLR650 (2022+) removeSuzuki V-Strom 800DE (2023+) removeBMW F 750 GS Sport (2018+) removeBMW F 750 GS (2018+) removeSuzuki V-Strom 650 (2017+) remove

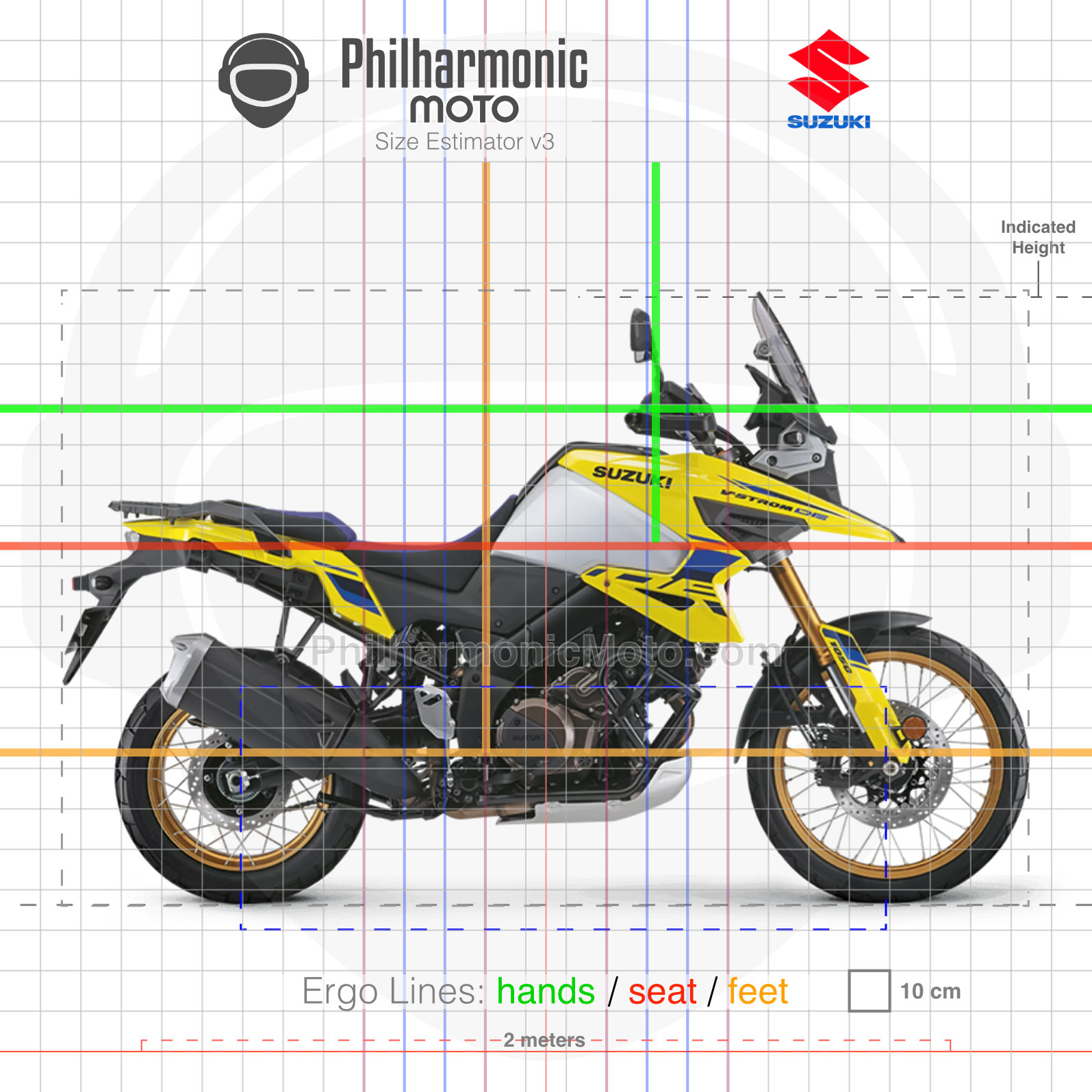

Size Estimator (see "About" page to learn more)Suzuki V-Strom 1050DE 2023 Champion Yellow no.2 - Metallic Matt Sword SilverKawasaki KLR650 2023 Candy Lime GreenSuzuki V-Strom 800DE 2023 Glass Matt Mechanical GreyBMW F 750 GS Sport 2023 Light White Racing Blue Metallic Racing RedBMW F 750 GS 2023 Light WhiteSuzuki V-Strom 650 2022 Pearl Brilliant White
Length2390 mm2280 mm2345 mm2255 mm2255 mm2275 mm
Width960 mm970 mm975 mm922 mm922 mm835 mm
Height1505 mm1430 mm / 1465 mm (low/high screen position)1310 mm1225 mm1225 mm1405 mm
Seat Height880 mm870 mm855 mm815 mm815 mm830 mm
Weight252 kg wet210 kg wet230 kg wet227 kg wet227 kg wet213 kg wet
Engine1037 cc V-Twin, liquid-cooled, 90º crank652 cc Single-cylinder, liquid-cooled776 cc Parallel Twin, liquid-cooled, 270º crank853 cc Parallel-twin, liquid-cooled853 cc Parallel-twin, liquid-cooled645 cc V-Twin, liquid-cooled
Power107,4 hp @ 8500 rpm39 hp @ 6000 rpm84,3 hp @ 8500 rpm77 hp @ 7500 rpm77 hp @ 7500 rpm71 hp @ 8800 rpm
Torque100 Nm @ 6000 rpm51,5 Nm @ 4500 rpm78 Nm @ 6800 rpm83 Nm @ 6000 rpm83 Nm @ 6000 rpm62 Nm @ 6500 rpm
Transmission6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive5-speed, Wet multi-plate clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive
Fuel Capacity20 liters23 liters20 liters15 liters15 liters20 liters
Suspension- Front: KYB 43 mm inverted forks, fully adjustable, 170 mm travel - Rear: KYB mono-shock, fully adjustable, remote preload, 168 mm travel- Front: 41 mm telescopic forks, 200 mm travel - Rear: Uni Trak, single shock, adjustable preload and rebound damping, 202 mm travel- Front: Showa 43 mm inverted forks, fully adjustable, 220 mm travel - Rear: Showa mono-shock, fully adjustable, 220 mm travel- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel- Front: 43 mm telescopic forks, adjustable preload, 150 mm travel - Rear: mono-shock, adjustable preload and rebound, 159 mm travel
Tyres- Front: 90/90-21 - Rear: 150/70-17- Front: 90/90-21 - Rear: 130/80-17- Front: 90/90-21 - Rear: 150/70-17- Front: 110/80-19 - Rear: 150/70-17- Front: 110/80-19 - Rear: 150/70-17- Front: 110/80-19 - Rear: 150/70-17
Brakes- Front: 310 mm floating discs, Tokico monobloc 2-piston radial calipers - Rear: 260 mm disc, 1-piston caliper - switchable cornering ABS available- Front: 300 mm disc, 2-piston caliper - Rear: 240 mm disc, 2-piston caliper - ABS available- Front: 310 mm discs, 2-piston Nissin calipers - Rear: 260 mm disc, 1-piston Nissin caliper - switchable ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 310 mm discs, 2-piston calipers - Rear: 260 mm disc, single-piston caliper - ABS available
InstrumentsTFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clock, day/night modeLCD display with speedometer, odometer, fuel gauge, dual trip meters, clockTFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockAnalogue tachometer, LCD display with odometer, dual trip meter, traction control modes, gear position, coolant and ambient temperature, fuel consumption, fuel gauge, and clock
OtherLED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboard, 12v socket under seat, centre stand, cruise control, hill-hold-LED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboardLED lights, riding modes, traction control, engine brake control, USB port, mobile phone connectivity, self-canceling indicators, navigation preparation, tire pressure monitor, cruise control, heated grips, luggage rackLED lights, riding modes, traction control, USB port, mobile phone connectivity, self-canceling indicatorsLED tail light, Traction control, easy-start, low rpm assist
