Triumph Scrambler 1200 XE dashboard

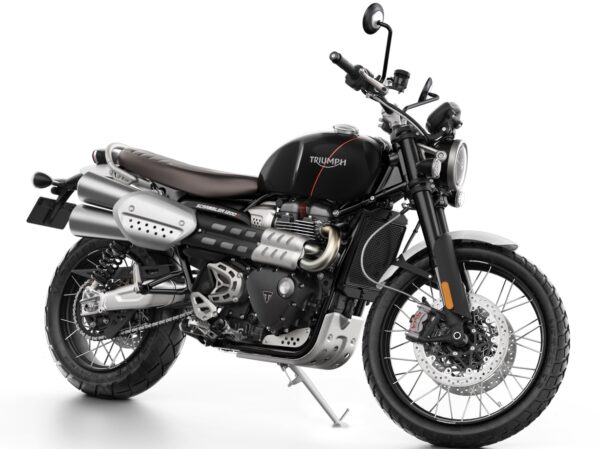

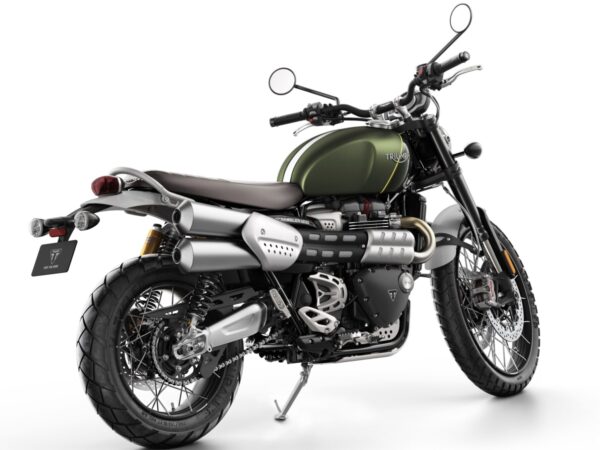

Triumph Scrambler 1200 XC (2019+)

Triumph Scrambler 1200 XC (2019+)

Category: Tag:

Specifications

Engine

1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank

Power

89 hp @ 7400 rpm

Torque

110 Nm @ 3950 rpm

Transmission

6-speed, Wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

16 liters

Length

2285 mm

Width

840 mm

Height

1200 mm

Weight

230 kg wet

Seat Height

840 mm

Suspension

– Front: Showa 45 mm fully adjustable USD forks, 200 mm travel
– Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 200 mm travel.

Tyres

– Front: 90/90-21
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 320 mm discs, Brembo monoblock calipers
– Rear: 255 mm disc, Brembo 2-piston floating caliper
– switchable ABS available

Instruments

TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock

Other

Led lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, USB under seat

Dashboard / Support us

Triumph Scrambler 1200 XE dashboard



Scrambler 1200 t-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Scrambler 1200 XC (2019+) removeTriumph Tiger 900 Rally (2020+) removeTriumph Bonneville T100 (2017-2020) removeTriumph Thruxton RS (2020+) removeTriumph Speed Twin (2021-2022) removeTriumph Tiger 900 Rally Pro (2020+) remove
NameTriumph Scrambler 1200 XC (2019+) removeTriumph Tiger 900 Rally (2020+) removeTriumph Bonneville T100 (2017-2020) removeTriumph Thruxton RS (2020+) removeTriumph Speed Twin (2021-2022) removeTriumph Tiger 900 Rally Pro (2020+) remove

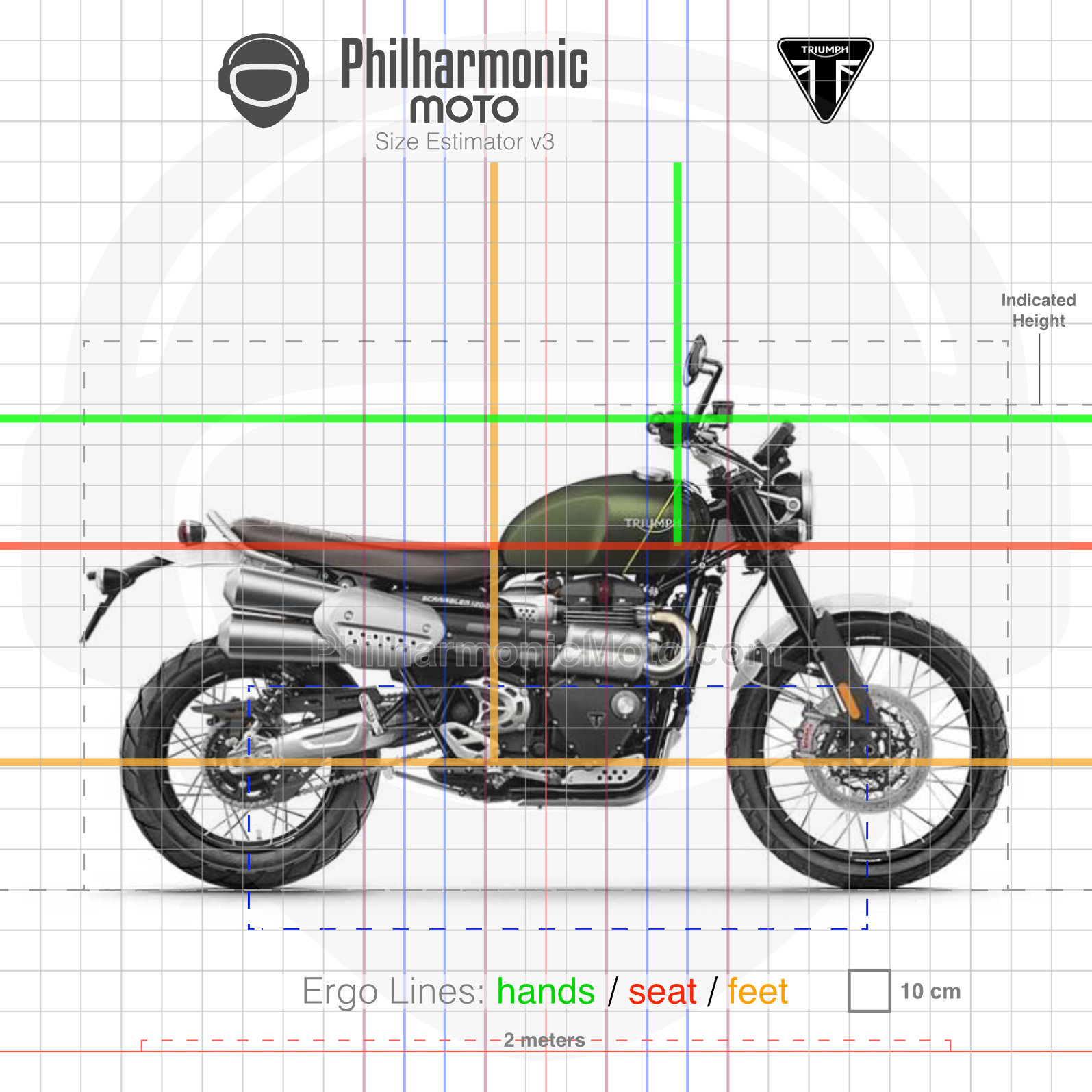

Size Estimator (see "About" page to learn more)Triumph Scrambler 1200 XC 2019 Khaki Green and Brooklands GreenTriumph Tiger 900 Rally 2020 Pure WhiteTriumph Bonneville T100 2017 blue whiteTriumph Thruxton RS 2020 Matt Storm Grey and Matt Silver IceTriumph Speed Twin 2021 Red HopperTriumph Tiger 900 Rally Pro 2020 Matt Khaki
Length2285 mm2254 mm (estimated)2170 mm2105 mm2099 mm2254 mm (estimated)
Width840 mm935 mm780 mm745 mm778 mm (handlebars)935 mm
Height1200 mm1452 mm / 1502 mm (low/high screen position)1100 mm1030 mm1097 mm1452 mm / 1502 mm (low/high screen position)
Seat Height840 mm850-870 mm (adjustable)790 mm810 mm809 mm850-870 mm (adjustable)
Weight230 kg wet196 kg dry232 kg wet197 kg wet216 kg wet201 kg dry
Engine1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank888 cc Inline Triple, liquid-cooled900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1200 cc Parallel Twin, liquid-cooled, 270º crank1200 cc Parallel Twin, liquid-cooled, 270º crank888 cc Inline Triple, liquid-cooled
Power89 hp @ 7400 rpm93,9 hp @ 8750 rpm54 hp @ 5900 rpm103 hp @ 7500 rpm98,6 hp @ 7250 rpm93,9 hp @ 8750 rpm
Torque110 Nm @ 3950 rpm87 Nm @ 7250 rpm80 Nm @ 3230 rpm112 Nm @ 4250 rpm112 Nm @ 4250 rpm87 Nm @ 7250 rpm
Transmission6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive5-speed, Wet multi-plate assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive
Fuel Capacity16 liters20 liters14,5 liters14,5 liters14,5 liters20 liters
Suspension- Front: Showa 45 mm fully adjustable USD forks, 200 mm travel - Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 200 mm travel.- Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel - Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel- Front: KYB 41 mm cartridge forks, 120 mm travel - Rear: KYB twin shocks, adjustable preload, 120 mm travel– Front: Showa 43 mm inverted forks, fully adjustable, 120 mm travel – Rear: Öhlins twin shocks with Piggyback reservoir, fully adjustable, 120 mm travel– Front: 43 mm USD Marzocchi fork, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel– Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel – Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel
Tyres- Front: 90/90-21 - Rear: 150/70-17 - Tubeless- Front: 90/90-21 - Rear: 150/70-17 - Tubeless- Front: 100/90-18 - Rear: 150/70-17- Front: 120/70-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 160/60-17– Front: 90/90-21 – Rear: 150/70-17 – Tubeless
Brakes- Front: 320 mm discs, Brembo monoblock calipers - Rear: 255 mm disc, Brembo 2-piston floating caliper - switchable ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 310 mm floating disc, Nissin 2-piston floating caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - ABS available- Front: Brembo 310 mm floating discs, Brembo 2-piston radial monobloc calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 320 mm discs, Brembo M50 radial monobloc 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available
InstrumentsTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average & current fuel consumptionAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherLed lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, USB under seatLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated gripsLed taillight, adjustable brake and clutch levers, switchable traction controlLed tail light, switchable traction control, riding modes, USB under seatLED lights, switchable traction control, riding modes, USB under seatLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre stand
