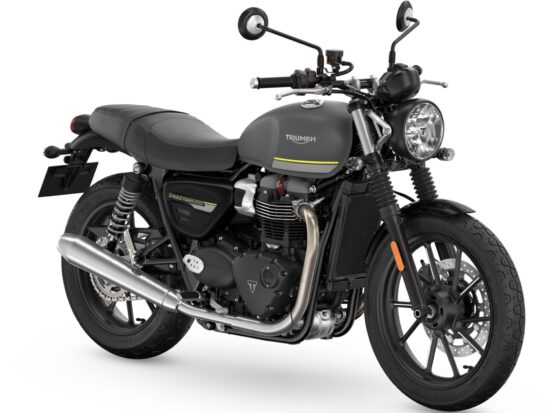

Triumph Speed Twin 900 (2023+)

Triumph Speed Twin 900 (2023+)

Previously known as “Street Twin”, which I think is a better name.


Category: Tags: ,

Specifications

Engine

900 cc Parallel Twin, liquid cooled, 270º crank

Power

64 hp @ 7500 rpm

Torque

80 Nm @ 3800 rpm

Transmission

5-speed, Wet multi-plate assist clutch, chain final drive

Fuel Capacity

12 liters

Length

2090 mm

Width

780 mm

Height

1110 mm

Weight

216 kg wet

Seat Height

765 mm

Suspension

– Front: 41 mm cartridge forks, 120 mm travel
– Rear: twin shocks, adjustable preload, 120 mm travel

Tyres

– Front: 100/90-18
– Rear: 150/70-17

Brakes

– Front: 310 mm floating disc, Brembo 4-piston caliper
– Rear: 255 mm disc, Nissin 2-piston floating caliper
– ABS available

Instruments

Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computer

Other

LED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socket

Dashboard / Support us

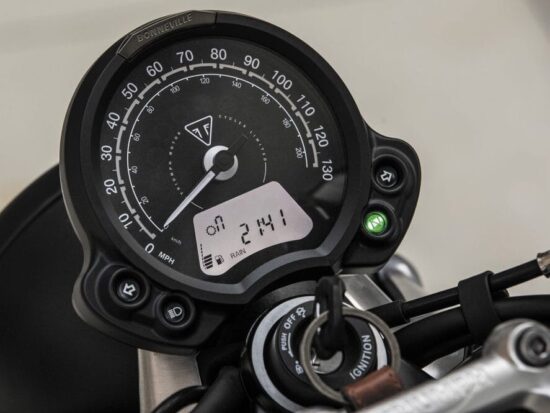

Triumph Street Twin 2019 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Speed Twin 900 (2023+) removeTriumph Speed Twin 1200 (2023+) removeTriumph Street Scrambler (2021-2022) removeTriumph Thruxton RS (2020+) removeRoyal Enfield Continental GT (2018+) removeTriumph Tiger Sport 660 (2022+) remove
NameTriumph Speed Twin 900 (2023+) removeTriumph Speed Twin 1200 (2023+) removeTriumph Street Scrambler (2021-2022) removeTriumph Thruxton RS (2020+) removeRoyal Enfield Continental GT (2018+) removeTriumph Tiger Sport 660 (2022+) remove
Size Estimator (see "About" page to learn more)Triumph Speed Twin 900 2023 Jet BlackTriumph Speed Twin 1200 2023 Matte Baja OrangeTriumph Street Scrambler 2021 Urban GreyTriumph Thruxton RS 2020 Matt Storm Grey and Matt Silver IceRoyal Enfield Continental GT 2022 Rocker RedTriumph Tiger Sport 660 2022 Korosi Red Graphite
Length2090 mm2099 mm2125 mm2105 mm2119 mm2071 mm
Width780 mm778 mm (handlebars)835 mm745 mm745 mm834 mm
Height1110 mm1097 mm1180 mm1030 mm1067 mm1315 mm / 1398 mm (low/high screen position)
Seat Height765 mm809 mm790 mm810 mm820 mm835 mm
Weight216 kg wet216 kg wet223 kg wet197 kg wet212 kg wet206 kg wet
Engine900 cc Parallel Twin, liquid cooled, 270º crank1200 cc Parallel Twin, liquid-cooled, 270º crank900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1200 cc Parallel Twin, liquid-cooled, 270º crank648 cc Parallel Twin, air cooled660cc Inline Triple, liquid cooled, 12 valve DOHC, 240º crank angle
Power64 hp @ 7500 rpm98,6 hp @ 7250 rpm64 hp @ 7250 rpm103 hp @ 7500 rpm47 hp @ 7150 rpm80 hp @ 10250 rpm
Torque80 Nm @ 3800 rpm112 Nm @ 4250 rpm80 Nm @ 3250 rpm112 Nm @ 4250 rpm52 Nm @ 5250 rpm64 Nm @ 6250 rpm
Transmission5-speed, Wet multi-plate assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive5-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, X-ring chain final drive
Fuel Capacity12 liters14,5 liters12 liters14,5 liters12,5 liters17,2 liters
Suspension- Front: 41 mm cartridge forks, 120 mm travel - Rear: twin shocks, adjustable preload, 120 mm travel– Front: 43 mm USD Marzocchi fork, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel- Front: 41 mm cartridge forks, 120 mm travel - Rear: Twin RSUs, pre-load adjustment, 120 mm travel– Front: Showa 43 mm inverted forks, fully adjustable, 120 mm travel – Rear: Öhlins twin shocks with Piggyback reservoir, fully adjustable, 120 mm travel- Front: 41 mm fork, 110 mm travel - Rear: twin-shocks, 88 mm travel- Front: Showa 41mm upside down separate function cartridge forks, 150mm travel - Rear: Showa mono-shock RSU, with remote hydraulic preload adjustment, 150mm travel
Tyres- Front: 100/90-18 - Rear: 150/70-17- Front: 120/70-17 - Rear: 160/60-17- Front: 100/90-19 - Rear: 150/70-17- Front: 120/70-17 - Rear: 160/60-17- Front: 100/90-18 - Rear: 130/70-18- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 310 mm floating disc, Brembo 4-piston caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 320 mm discs, Brembo M50 radial monobloc 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 310 mm floating disc, Brembo 4-piston fixed axial caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - switchable ABS available- Front: Brembo 310 mm floating discs, Brembo 2-piston radial monobloc calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 320 mm disc - Rear: 240 mm disc - ABS available- Front: twin 310mm discs, Nissin two-piston sliding calipers - Rear: 255mm disc, Nissin single-piston sliding caliper - ABS available
InstrumentsAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computerAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionAnalogue speedometer and tachometer, LCD display with odometer, fuel gauge, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherLED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socketLED lights, switchable traction control, riding modes, USB under seatLed taillight, adjustable brake and clutch levers, riding modes, switchable traction control, USB under seatLed tail light, switchable traction control, riding modes, USB under seat-LED lights, Riding modes, traction control
Dashboard / Support usTriumph Street Twin 2019 dashboard   T-shirts, mugs, stickers and more: Triumph Speed Twin 2021 dashboard   T-shirts, mugs, stickers and more: Triumph Street Scrambler 2021 dashboard   T-shirts, mugs, stickers and more: Triumph Thruxton RS 2020 dashboard   T-shirts, mugs, stickers and more: Royal Enfield Interceptor 650 2018 dashboard   T-shirts, mugs, stickers and more: Triumph Tiger Sport 660 dashboard   Tiger Sport 660 t-shirts, mugs, stickers and more:
