Triumph Street Twin 2019 dashboard

Triumph Street Twin (2019-2022)

Triumph Street Twin (2019-2022)

Category: Tags: ,

Specifications

Engine

900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank

Power

64 hp @ 7500 rpm

Torque

80 Nm @ 3800 rpm

Transmission

5-speed, Wet multi-plate assist clutch, chain final drive

Fuel Capacity

12 liters

Length

2090 mm

Width

785 mm

Height

1114 mm

Weight

215 kg wet

Seat Height

760 mm

Suspension

– Front: KYB 41mm cartridge forks, 120 mm travel
– Rear: KYB twin shocks with adjustable preload, 120 mm travel

Tyres

– Front: 100/90-18
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 310mm disc, Brembo 4-piston caliper
– Rear: 255mm disc, Nissin 2-piston floating caliper
– ABS available

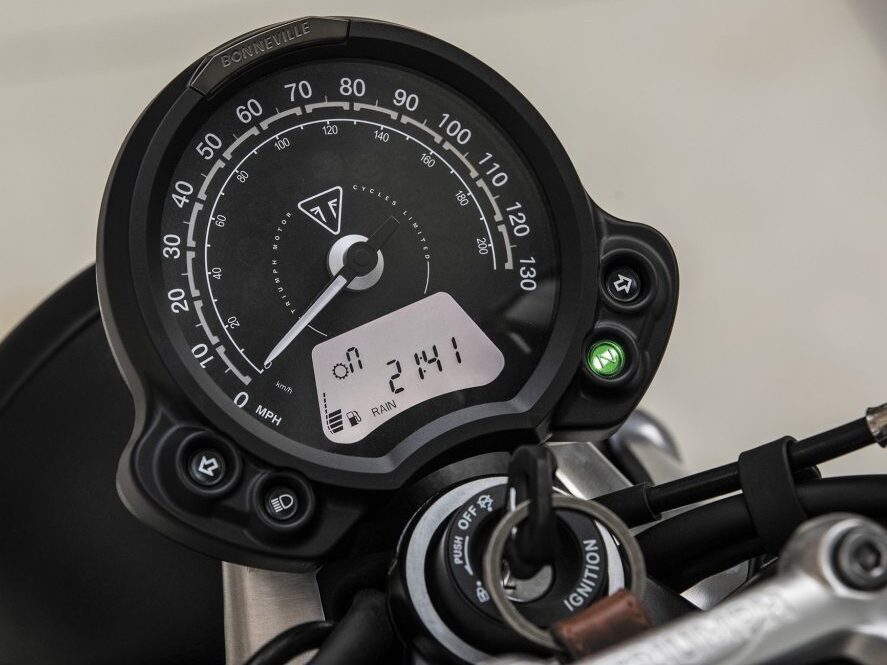

Instruments

Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computer

Other

LED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socket

Dashboard / Support us

Triumph Street Twin 2019 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Street Twin (2019-2022) removeKawasaki W800 (2020+) removeTriumph Scrambler 1200 XC (2019+) removeTriumph Street Triple R (2023+) removeTriumph Speed Twin (2021-2022) removeTriumph Trident 660 (2020+) remove
NameTriumph Street Twin (2019-2022) removeKawasaki W800 (2020+) removeTriumph Scrambler 1200 XC (2019+) removeTriumph Street Triple R (2023+) removeTriumph Speed Twin (2021-2022) removeTriumph Trident 660 (2020+) remove

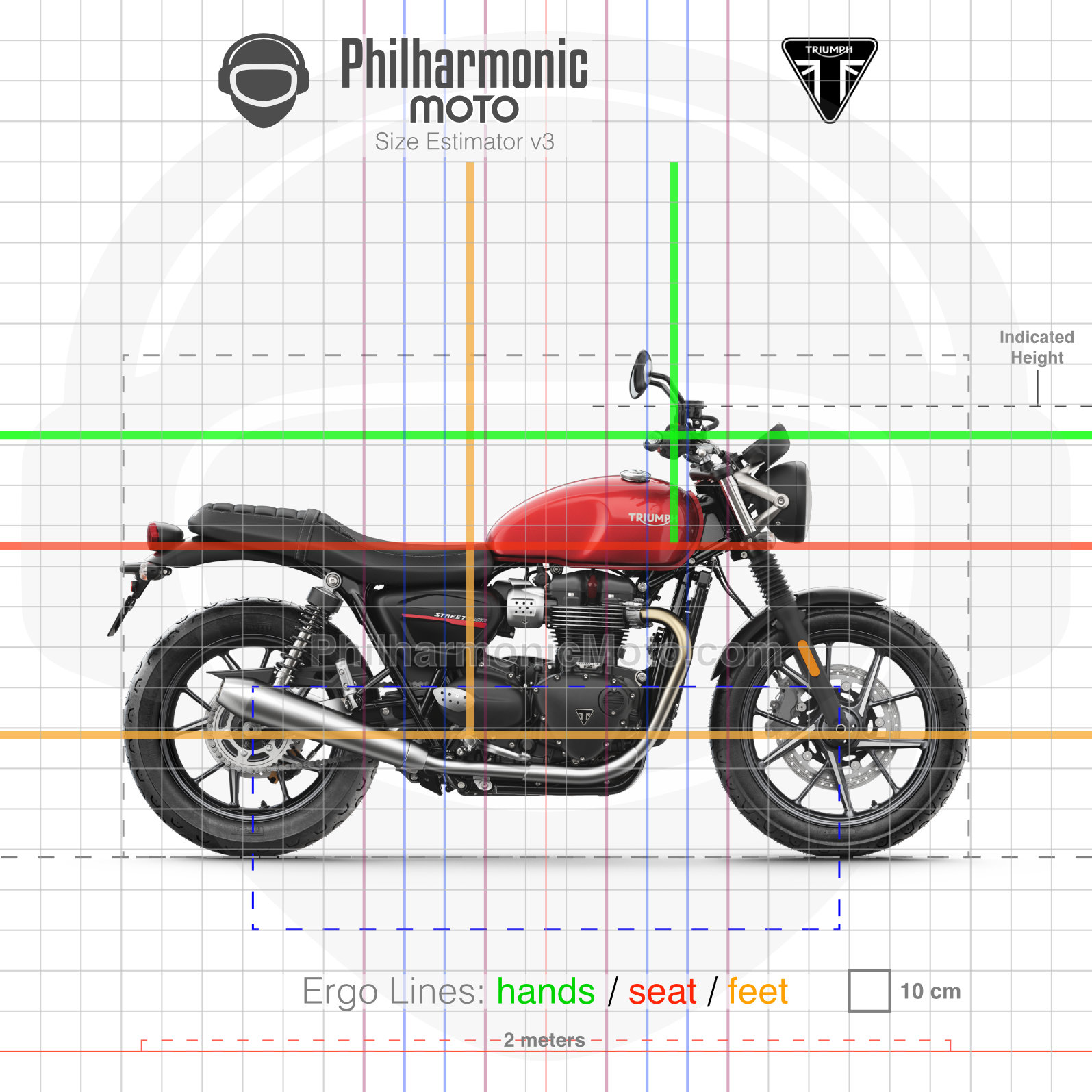

Size Estimator (see "About" page to learn more)Kawasaki W800 2022 redTriumph Scrambler 1200 XC 2019 Khaki Green and Brooklands GreenTriumph Street Triple R 2023 Crystal WhiteTriumph Speed Twin 2021 Red HopperTriumph Tridend 660 2020 Silver Ice Diablo Black
Length2090 mm2190 mm2285 mm2055 mm2099 mm2020 mm
Width785 mm790 mm840 mm792 mm (handlebars)778 mm (handlebars)795 mm
Height1114 mm1075 mm1200 mm1047 mm1097 mm1089 mm
Seat Height760 mm790 mm840 mm826 mm809 mm805 mm
Weight215 kg wet221 kg wet230 kg wet189 kg wet216 kg wet189 kg wet
Engine900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank773cc Parallel Twin, air-cooled1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank765 cc Inline Triple, liquid cooled1200 cc Parallel Twin, liquid-cooled, 270º crank660 cc Inline Triple, liquid cooled
Power64 hp @ 7500 rpm47,3 hp @ 6000 rpm89 hp @ 7400 rpm118,4 hp @ 11500 rpm98,6 hp @ 7250 rpm80 hp @ 10250 rpm
Torque80 Nm @ 3800 rpm62,9 Nm @ 4800 rpm110 Nm @ 3950 rpm80 Nm @ 9500 rpm112 Nm @ 4250 rpm64 Nm @ 6250 rpm
Transmission5-speed, Wet multi-plate assist clutch, chain final drive5-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity12 liters15 liters16 liters15 liters14,5 liters14 liters
Suspension- Front: KYB 41mm cartridge forks, 120 mm travel - Rear: KYB twin shocks with adjustable preload, 120 mm travel- Front: 41 mm telescopic forks, 107 mm travel - Rear: twin-shocks, adjustable preload, 130 mm travel- Front: Showa 45 mm fully adjustable USD forks, 200 mm travel - Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 200 mm travel.- Front: Showa 41 mm separate function inverted forks, fully adjustable, 115 mm travel - Rear: Showa mono-shock with piggyback reservoir, fully adjustable, 133,5 mm travel– Front: 43 mm USD Marzocchi fork, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel- Front: Showa 41 mm separate function inverted forks, 120 mm travel - Rear: Showa mono-shock RSU, preload adjustable, 133,5 mm travel
Tyres- Front: 100/90-18 - Rear: 150/70-17 - Tubeless- Front: 100/90-19M/C 57H - Rear: 130/80-18M/C 66H- Front: 90/90-21 - Rear: 150/70-17 - Tubeless- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 310mm disc, Brembo 4-piston caliper - Rear: 255mm disc, Nissin 2-piston floating caliper - ABS available- Front: 320 mm disc, dual-piston caliper - Rear: 270 mm disc, dual-piston caliper - ABS available- Front: 320 mm discs, Brembo monoblock calipers - Rear: 255 mm disc, Brembo 2-piston floating caliper - switchable ABS available- Front: 310 mm floating discs, Brembo 4-piston radial monobloc calipers - Rear: 255 mm disc, Brembo single-piston caliper - cornering ABS available- Front: 320 mm discs, Brembo M50 radial monobloc 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 310 cm discs, Nissin 2-piston sliding calipers - Rear: 255 cm disc, Nissin 1-piston sliding caliper - ABS available
InstrumentsAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computerAnalogue speedometer and tachometer, digital odometer, trip meterTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherLED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socketLED headlight, centre standLed lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, USB under seatLED lights, Riding modes, cornering traction control, wheelie controlLED lights, switchable traction control, riding modes, USB under seatLED lights, Riding modes, switchable traction control
