Triumph Tiger 1200 GT Explorer (2022+)

Triumph Tiger 1200 GT Explorer (2022+)




Category: Tag:

Specifications

Engine

1160 cc Inline Triple, liquid-cooled

Power

148 hp @ 9000 rpm

Torque

130 Nm @ 7000 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive

Fuel Capacity

30 liters

Length

2256 mm

Width

982 mm

Height

1436 mm / 1497 mm (low/high screen position)

Weight

255 kg wet

Seat Height

850-870 mm (adjustable)

Suspension

– Front: Showa 49 mm USD inverted fork, semi-active damping, 200 mm travel
– Rear: Showa mono-shock, semi-active damping, automatic electronic preload adjustment, 200 mm travel

Tyres

– Front: 120/70-19
– Rear: 150/70-18

Brakes

– Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc radial calipers
– Rear: 282 mm disc, Brembo 1-piston caliper
– cornering ABS available

Instruments

7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock

Other

LED lights, adaptive cornering lights, Riding modes, cornering traction control, smartphone connectivity, cruise control, heated grips, heated seats, illuminated switches, under seat storage with USB charger, TPMS, LED fog lights, centre stand, fully keyless, blind spot radar detection, hill hold

Dashboard / Support us

Triumph Tiger 1200 GT Explorer 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Tiger 1200 GT Explorer (2022+) removeTriumph Bonneville T120 (2021+) removeTriumph Speed Twin 900 (2023+) removeTriumph Trident 660 (2020+) removeTriumph Tiger 900 GT (2020+) removeTriumph Tiger 900 Rally (2020+) remove
NameTriumph Tiger 1200 GT Explorer (2022+) removeTriumph Bonneville T120 (2021+) removeTriumph Speed Twin 900 (2023+) removeTriumph Trident 660 (2020+) removeTriumph Tiger 900 GT (2020+) removeTriumph Tiger 900 Rally (2020+) remove

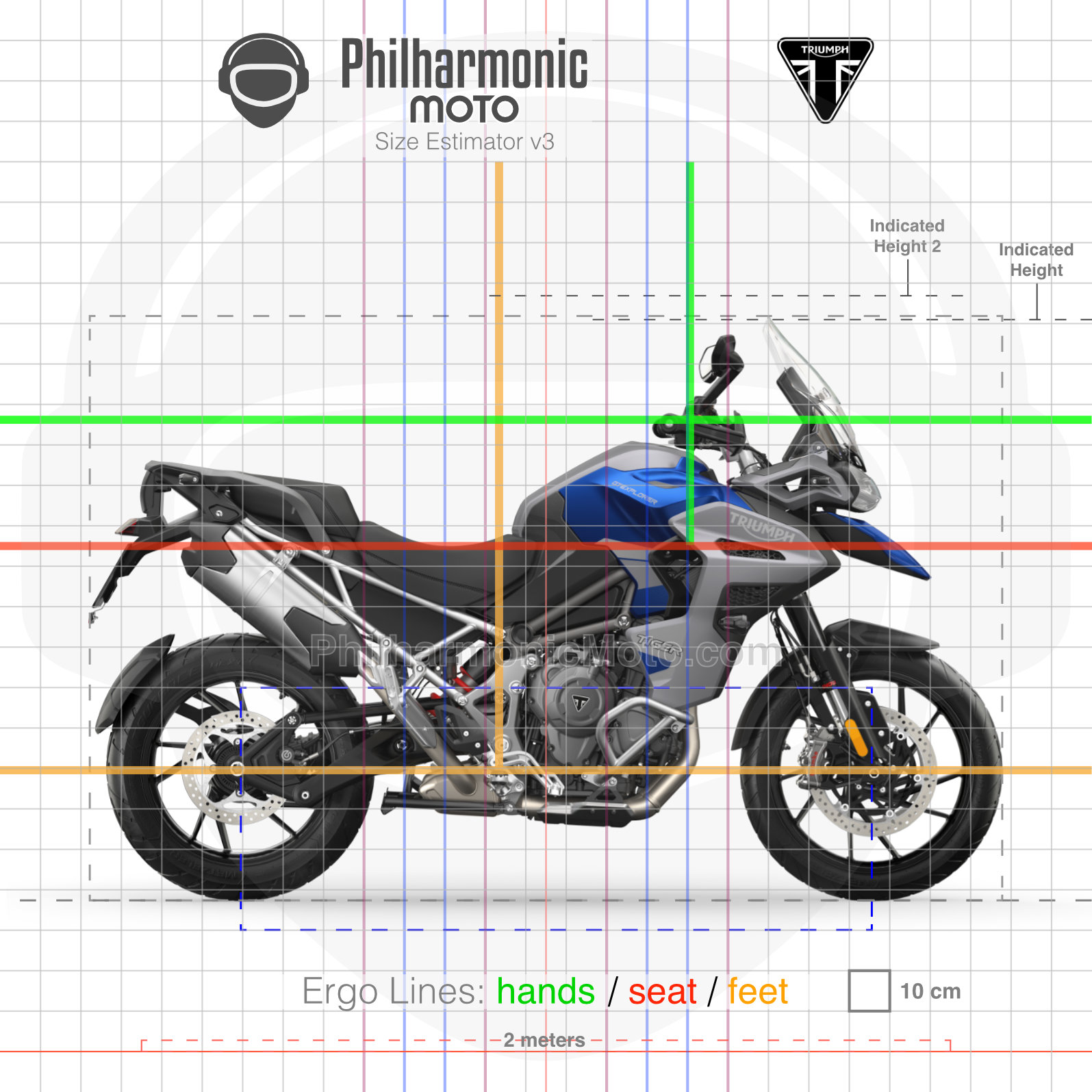

Size Estimator (see "About" page to learn more)Triumph Tiger 1200 GT Explorer 2022 Lucerne BlueTriumph Bonneville T120 2021 Cobalt Blue and Silver IceTriumph Speed Twin 900 2023 Jet BlackTriumph Tridend 660 2020 Silver Ice Diablo BlackTriumph Tiger 900 GT 2020 Korosi RedTriumph Tiger 900 Rally 2020 Pure White
Length2256 mm2170 mm2090 mm2020 mm2229 mm (estimated)2254 mm (estimated)
Width982 mm780 mm780 mm795 mm930 mm935 mm
Height1436 mm / 1497 mm (low/high screen position)1100 mm1110 mm1089 mm1410 mm / 1460 mm (low/high screen position)1452 mm / 1502 mm (low/high screen position)
Seat Height850-870 mm (adjustable)790 mm765 mm805 mm810-830 mm (adjustable)850-870 mm (adjustable)
Weight255 kg wet236 kg wet216 kg wet189 kg wet194 kg dry196 kg dry
Engine1160 cc Inline Triple, liquid-cooled1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank900 cc Parallel Twin, liquid cooled, 270º crank660 cc Inline Triple, liquid-cooled888 cc Inline Triple, liquid-cooled888 cc Inline Triple, liquid-cooled
Power148 hp @ 9000 rpm78 hp @ 6550 rpm64 hp @ 7500 rpm80 hp @ 10250 rpm93,9 hp @ 8750 rpm93,9 hp @ 8750 rpm
Torque130 Nm @ 7000 rpm105 Nm @ 3500 rpm80 Nm @ 3800 rpm64 Nm @ 6250 rpm87 Nm @ 7250 rpm87 Nm @ 7250 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive5-speed, Wet multi-plate assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity30 liters14,5 liters12 liters14 liters20 liters20 liters
Suspension– Front: Showa 49 mm USD inverted fork, semi-active damping, 200 mm travel – Rear: Showa mono-shock, semi-active damping, automatic electronic preload adjustment, 200 mm travel– Front: 41 mm cartridge forks – Rear: Twin RSUs, with pre-load adjustment- Front: 41 mm cartridge forks, 120 mm travel - Rear: twin shocks, adjustable preload, 120 mm travel- Front: Showa 41 mm separate function inverted fork, 120 mm travel - Rear: Showa mono-shock RSU, adjustable preload, 133,5 mm travel- Front: 45 mm inverted fork, manual rebound and compression damping adjustment, 180mm travel - Rear: mono-shock, manual preload and rebound damping adjustment, 170 mm travel- Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel - Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel
Tyres– Front: 120/70-19 – Rear: 150/70-18- Front: 100/90-18 - Rear: 150/70-17- Front: 100/90-18 - Rear: 150/70-17- Front: 120/70-17 - Rear: 180/55-17- Front: 100/90-19 - Rear: 150/70-17- Front: 90/90-21 - Rear: 150/70-17 - Tubeless
Brakes- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc radial calipers - Rear: 282 mm disc, Brembo 1-piston caliper - cornering ABS available- Front: 310 mm discs, Brembo 2-piston calipers - Rear: 255 mm disc, Nissin 2-piston caliper - ABS available- Front: 310 mm floating disc, Brembo 4-piston caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 310 mm discs, Nissin 2-piston sliding calipers - Rear: 255 mm disc, Nissin 1-piston sliding caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available
Instruments7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computerTFT display with digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherLED lights, adaptive cornering lights, Riding modes, cornering traction control, smartphone connectivity, cruise control, heated grips, heated seats, illuminated switches, under seat storage with USB charger, TPMS, LED fog lights, centre stand, fully keyless, blind spot radar detection, hill holdLed tail light, switchable traction control, riding modes, USB under seat, cruise controlLED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socketLED lights, Riding modes, switchable traction controlLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated gripsLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated grips
Dashboard / Support usTriumph Tiger 1200 GT Explorer 2022 dashboard   T-shirts, mugs, stickers and more: Triumph Bonneville T120 2021 dashboard   T120 t-shirts, mugs, stickers and more: Triumph Street Twin 2019 dashboard   T-shirts, mugs, stickers and more: Triumph Tridend 660 2020 dashboard   Trident 660 t-shirts, mugs, stickers and more: Triumph Tiger 900 GT 2020 dashboard   T-shirts, mugs, stickers and more: Triumph Tiger 900 Rally 2020 dashboard   T-shirts, mugs, stickers and more:
