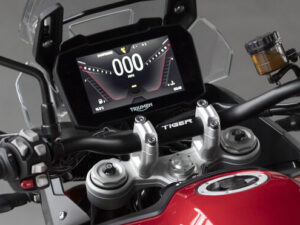

Triumph Tiger 900 GT 2020 dashboard

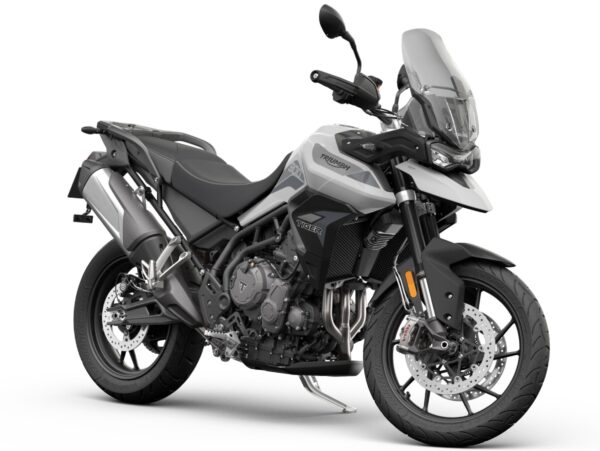

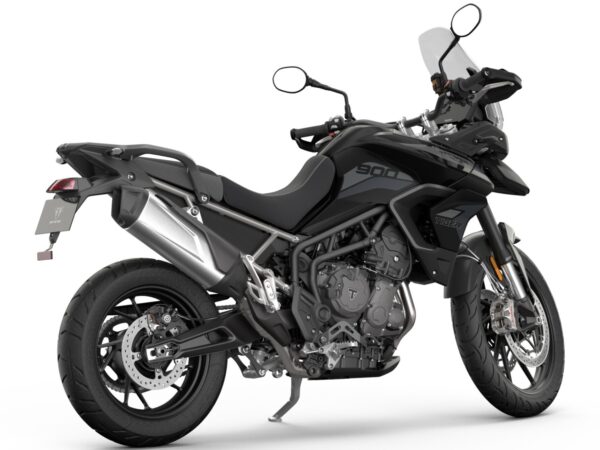

Triumph Tiger 900 GT (2020+)

Triumph Tiger 900 GT (2020+)




Category: Tag:

Specifications

Engine

888 cc Inline Triple, liquid-cooled

Power

93,9 hp @ 8750 rpm

Torque

87 Nm @ 7250 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

20 liters

Length

2229 mm (estimated)

Width

930 mm

Height

1410 mm / 1460 mm (low/high screen position)

Weight

194 kg dry

Seat Height

810-830 mm (adjustable)

Suspension

– Front: 45 mm inverted fork, manual rebound and compression damping adjustment, 180mm travel
– Rear: mono-shock, manual preload and rebound damping adjustment, 170 mm travel

Tyres

– Front: 100/90-19
– Rear: 150/70-17

Brakes

– Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers
– Rear: 255 mm disc, Brembo 1-piston sliding caliper
– cornering ABS available

Instruments

7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock

Other

LED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated grips

Dashboard / Support us

Triumph Tiger 900 GT 2020 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Tiger 900 GT (2020+) removeTriumph Tiger 850 Sport (2021+) removeTriumph Speed Twin (2021-2022) removeTriumph Bonneville Bobber (2021+) removeTriumph Bonneville T120 (2021+) removeTriumph Speed Triple 1200 RR (2022+) remove
NameTriumph Tiger 900 GT (2020+) removeTriumph Tiger 850 Sport (2021+) removeTriumph Speed Twin (2021-2022) removeTriumph Bonneville Bobber (2021+) removeTriumph Bonneville T120 (2021+) removeTriumph Speed Triple 1200 RR (2022+) remove

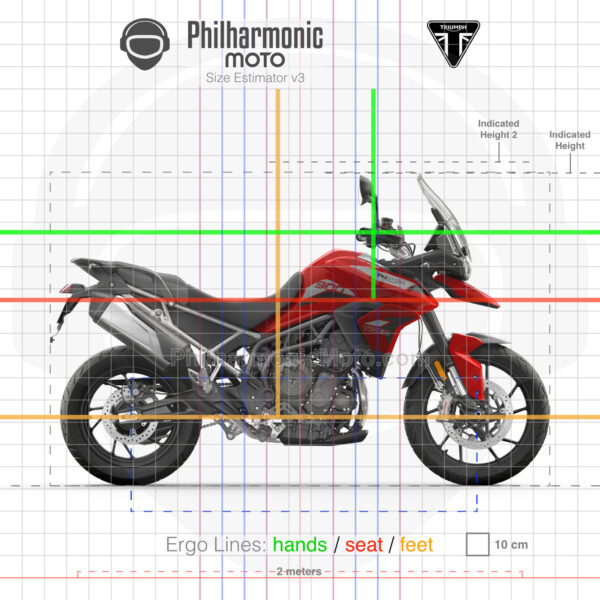

Size Estimator (see "About" page to learn more)Triumph Tiger 900 GT 2020 Korosi RedTriumph Tiger 850 Sport 2021 Graphite and Diablo RedTriumph Speed Twin 2021 Red HopperTriumph Bonneville Bobber 2021 Cordovan RedTriumph Bonneville T120 2021 Cobalt Blue and Silver IceTriumph Speed Triple 1200 RR 2022 Red Hopper and Storm Grey
Length2229 mm (estimated)2248 mm2099 mm2220 mm2170 mm2085 mm
Width930 mm830 mm778 mm (handlebars)800 mm780 mm758 mm (handlebars)
Height1410 mm / 1460 mm (low/high screen position)1410 mm / 1460 mm (low/high screen position)1097 mm1024-1055 mm1100 mm1120 mm
Seat Height810-830 mm (adjustable)810-830 mm (adjustable)809 mm690-700 mm790 mm830 mm
Weight194 kg dry192 kg dry216 kg wet251 kg wet236 kg wet199 kg wet
Engine888 cc Inline Triple, liquid-cooled888 cc Inline Triple, liquid-cooled1200 cc Parallel Twin, liquid-cooled, 270º crank1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1160 cc Inline Triple, liquid cooled
Power93,9 hp @ 8750 rpm84 hp @ 8500 rpm98,6 hp @ 7250 rpm76 hp @ 6100 rpm78 hp @ 6550 rpm177,6 hp @ 10750 rpm
Torque87 Nm @ 7250 rpm82 Nm @ 6500 rpm112 Nm @ 4250 rpm106 Nm @ 4000 rpm105 Nm @ 3500 rpm125 Nm @ 9000 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive
Fuel Capacity20 liters20 liters14,5 liters12 liters14,5 liters15,5 liters
Suspension- Front: 45 mm inverted fork, manual rebound and compression damping adjustment, 180mm travel - Rear: mono-shock, manual preload and rebound damping adjustment, 170 mm travel- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel– Front: 43 mm USD Marzocchi fork, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel- Front: Showa 47 mm cartridge forks - Rear: mono-shock RSU with linkage– Front: 41 mm cartridge forks – Rear: Twin RSUs, with pre-load adjustment- Front: Öhlins 43 mm inverted USD forks, fully adjustable, S-EC 2.0 OBTi system electronic compression/rebound damping, 120 mm travel - Rear: Öhlins mono-shock RSU, Öhlins S-EC 2.0 OBTi system electronic compression/rebound damping, 120 mm travel - "semi-active suspension"
Tyres- Front: 100/90-19 - Rear: 150/70-17- Front: 100/90-19 - Rear: 150/70-17- Front: 120/70-17 - Rear: 160/60-17- Front: MT90B16 - Rear: 150/80-16- Front: 100/90-18 - Rear: 150/70-17- Front: 120/70-17 - Rear: 190/55-17
Brakes- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available- Front: 320 mm discs, Brembo M50 radial monobloc 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 310 mm discs, Brembo 2-piston calipers - Rear: 255 mm disc, Nissin single-piston caliper - ABS available- Front: 310 mm discs, Brembo 2-piston calipers - Rear: 255 mm disc, Nissin 2-piston caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial monobloc calipers, radial master cylinder with separate reservoir, span & ratio adjustable - Rear: 220 mm disc, Brembo 2-piston caliper, Rear master cylinder with separate reservoir - cornering ABS available
Instruments7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated gripsLED lights, Riding modes, switchable traction control, 12v power socketLED lights, switchable traction control, riding modes, USB under seatLed lights, switchable traction control, riding modes, USB under seat, adjustable seating and foot peg positionLed tail light, switchable traction control, riding modes, USB under seat, cruise controlLED lights, Riding modes, switchable cornering traction control, wheelie control, adjustable levers, full keyless system, illuminated switches, cruise control, smartphone connectivity
