Triumph Tiger 900 GT Pro (2020+)

Triumph Tiger 900 GT Pro (2020+)




Category: Tag:

Specifications

Engine

888 cc Inline Triple, liquid-cooled

Power

93,9 hp @ 8750 rpm

Torque

87 Nm @ 7250 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive

Fuel Capacity

20 liters

Length

2229 mm (estimated)

Width

930 mm

Height

1410 mm / 1460 mm (low/high screen position)

Weight

198 kg dry

Seat Height

810-830 mm (adjustable)

Suspension

– Front: 45 mm inverted fork, manual rebound and compression damping adjustment, 180mm travel
– Rear: mono-shock, electronically adjustable preload and rebound damping, 170 mm travel

Tyres

– Front: 100/90-19
– Rear: 150/70-17

Brakes

– Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers
– Rear: 255 mm disc, Brembo 1-piston sliding caliper
– cornering ABS available

Instruments

7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock

Other

LED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre stand

Dashboard / Support us

Triumph Tiger 900 GT 2020 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Tiger 900 GT Pro (2020+) removeTriumph Speed Triple 1200 RS (2021+) removeTriumph Scrambler 1200 XC (2019+) removeTriumph Speed Twin (2019-2020) removeTriumph Tiger 900 (2020) removeTriumph Thruxton RS (2020+) remove
NameTriumph Tiger 900 GT Pro (2020+) removeTriumph Speed Triple 1200 RS (2021+) removeTriumph Scrambler 1200 XC (2019+) removeTriumph Speed Twin (2019-2020) removeTriumph Tiger 900 (2020) removeTriumph Thruxton RS (2020+) remove

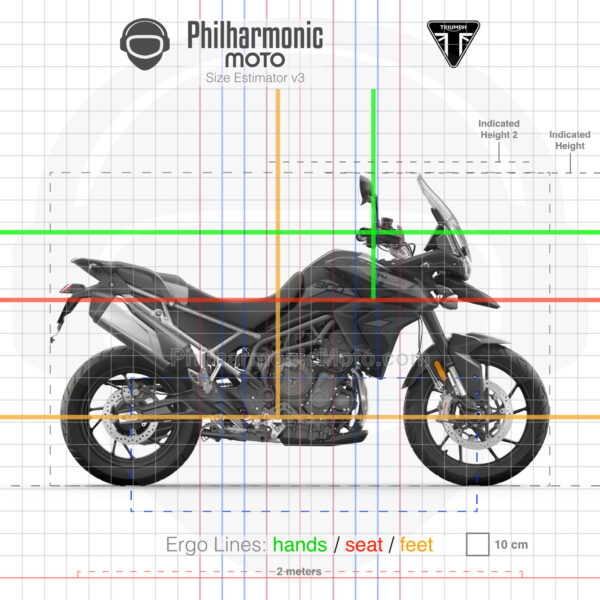

Size Estimator (see "About" page to learn more)Triumph Tiger 900 GT Pro 2020 Sapphire BlackTriumph Speed Triple 1200 RS 2021 Matt Silver IceTriumph Scrambler 1200 XC 2019 Khaki Green and Brooklands GreenTriumph Speed Twin 2019 Silver IceTriumph Tiger 900 2020 Pure WhiteTriumph Thruxton RS 2020 Matt Storm Grey and Matt Silver Ice
Length2229 mm (estimated)2090 mm2285 mm2078 mm (estimated)2229 mm (estimated)2105 mm
Width930 mm792 mm (handlebars)840 mm760 mm (handlebars)830 mm745 mm
Height1410 mm / 1460 mm (low/high screen position)1089 mm1200 mm1110 mm1410 mm / 1460 mm (low/high screen position)1030 mm
Seat Height810-830 mm (adjustable)830 mm840 mm807 mm810-830 mm (adjustable)810 mm
Weight198 kg dry198 kg wet230 kg wet196 kg wet192 kg dry197 kg wet
Engine888 cc Inline Triple, liquid-cooled1160 cc Inline Triple, liquid cooled1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1200 cc Parallel Twin, liquid-cooled, 270º crank888 cc Inline Triple, liquid-cooled1200 cc Parallel Twin, liquid-cooled, 270º crank
Power93,9 hp @ 8750 rpm177,5 hp @ 10750 rpm89 hp @ 7400 rpm96 hp @ 6750 rpm93,9 hp @ 8750 rpm103 hp @ 7500 rpm
Torque87 Nm @ 7250 rpm125 Nm @ 9000 rpm110 Nm @ 3950 rpm112 Nm @ 4950 rpm87 Nm @ 7250 rpm112 Nm @ 4250 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity20 liters15,5 liters16 liters14,5 liters20 liters14,5 liters
Suspension- Front: 45 mm inverted fork, manual rebound and compression damping adjustment, 180mm travel - Rear: mono-shock, electronically adjustable preload and rebound damping, 170 mm travel- Front: Öhlins 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: Öhlins mono-shock, fully adjustable, 120 mm travel- Front: Showa 45 mm fully adjustable USD forks, 200 mm travel - Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 200 mm travel.– Front: 41 mm cartridge forks, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel– Front: Showa 43 mm inverted forks, fully adjustable, 120 mm travel – Rear: Öhlins twin shocks with Piggyback reservoir, fully adjustable, 120 mm travel
Tyres- Front: 100/90-19 - Rear: 150/70-17- Front: 120/70-17 - Rear: 190/55-17- Front: 90/90-21 - Rear: 150/70-17 - Tubeless- Front: 120/70-17 - Rear: 160/60-17- Front: 100/90-19 - Rear: 150/70-17- Front: 120/70-17 - Rear: 160/60-17
Brakes- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial monobloc calipers, radial master cylinder with separate reservoir, span & ratio adjustable - Rear: 220 mm disc, Brembo 2-piston caliper, Rear master cylinder with separate reservoir - cornering ABS available- Front: 320 mm discs, Brembo monoblock calipers - Rear: 255 mm disc, Brembo 2-piston floating caliper - switchable ABS available- Front: 305 mm discs, Brembo 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available- Front: Brembo 310 mm floating discs, Brembo 2-piston radial monobloc calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available
Instruments7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption
OtherLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre standLED lights, Riding modes, switchable cornering traction control, wheelie control, adjustable levers, full keyless system, illuminated switches, cruise control, smartphone connectivityLed lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, USB under seatLed tail light and indicators, switchable traction control, riding modes, USB under seatRiding modes, traction controlLed tail light, switchable traction control, riding modes, USB under seat
