Triumph Tiger 900 Rally 2020 dashboard

Triumph Tiger 900 Rally (2020+)

Triumph Tiger 900 Rally (2020+)




Category: Tag:

Specifications

Engine

888 cc Inline Triple, liquid-cooled

Power

93,9 hp @ 8750 rpm

Torque

87 Nm @ 7250 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

20 liters

Length

2254 mm (estimated)

Width

935 mm

Height

1452 mm / 1502 mm (low/high screen position)

Weight

196 kg dry

Seat Height

850-870 mm (adjustable)

Suspension

– Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel
– Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel

Tyres

– Front: 90/90-21
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers
– Rear: 255 mm disc, Brembo 1-piston sliding caliper
– cornering ABS available

Instruments

7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock

Other

LED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated grips

Dashboard / Support us

Triumph Tiger 900 Rally 2020 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Tiger 900 Rally (2020+) removeTriumph Trident 660 (2020+) removeTriumph Tiger 900 (2020) removeTriumph Tiger Sport 660 (2022+) removeTriumph Street Scrambler (2021-2022) removeTriumph Speed Triple 1200 RS (2021+) remove
NameTriumph Tiger 900 Rally (2020+) removeTriumph Trident 660 (2020+) removeTriumph Tiger 900 (2020) removeTriumph Tiger Sport 660 (2022+) removeTriumph Street Scrambler (2021-2022) removeTriumph Speed Triple 1200 RS (2021+) remove

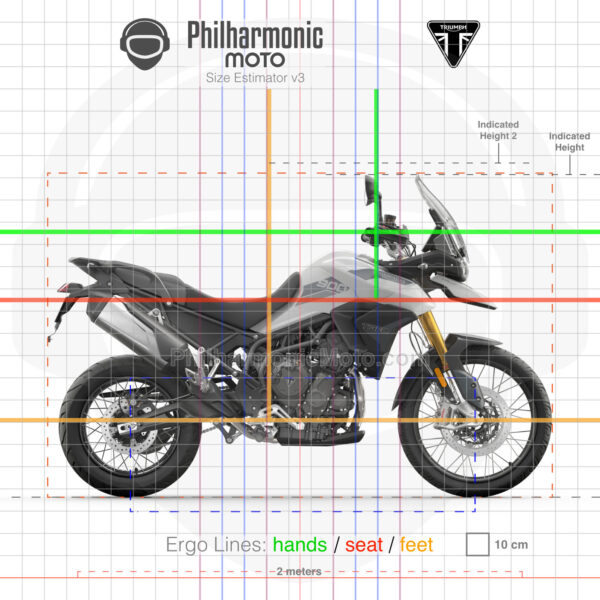

Size Estimator (see "About" page to learn more)Triumph Tiger 900 Rally 2020 Pure WhiteTriumph Tridend 660 2020 Silver Ice Diablo BlackTriumph Tiger 900 2020 Pure WhiteTriumph Tiger Sport 660 2022 Korosi Red GraphiteTriumph Street Scrambler 2021 Urban GreyTriumph Speed Triple 1200 RS 2021 Matt Silver Ice
Length2254 mm (estimated)2020 mm2229 mm (estimated)2071 mm2125 mm2090 mm
Width935 mm795 mm830 mm834 mm835 mm792 mm (handlebars)
Height1452 mm / 1502 mm (low/high screen position)1089 mm1410 mm / 1460 mm (low/high screen position)1315 mm / 1398 mm (low/high screen position)1180 mm1089 mm
Seat Height850-870 mm (adjustable)805 mm810-830 mm (adjustable)835 mm790 mm830 mm
Weight196 kg dry189 kg wet192 kg dry206 kg wet223 kg wet198 kg wet
Engine888 cc Inline Triple, liquid-cooled660 cc Inline Triple, liquid cooled888 cc Inline Triple, liquid-cooled660cc Inline Triple, liquid cooled, 12 valve DOHC, 240º crank angle900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1160 cc Inline Triple, liquid cooled
Power93,9 hp @ 8750 rpm80 hp @ 10250 rpm93,9 hp @ 8750 rpm80 hp @ 10250 rpm64 hp @ 7250 rpm177,5 hp @ 10750 rpm
Torque87 Nm @ 7250 rpm64 Nm @ 6250 rpm87 Nm @ 7250 rpm64 Nm @ 6250 rpm80 Nm @ 3250 rpm125 Nm @ 9000 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, X-ring chain final drive5-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive
Fuel Capacity20 liters14 liters20 liters17,2 liters12 liters15,5 liters
Suspension- Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel - Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel- Front: Showa 41 mm separate function inverted forks, 120 mm travel - Rear: Showa mono-shock RSU, preload adjustable, 133,5 mm travel- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel- Front: Showa 41mm upside down separate function cartridge forks, 150mm travel - Rear: Showa mono-shock RSU, with remote hydraulic preload adjustment, 150mm travel- Front: 41 mm cartridge forks, 120 mm travel - Rear: Twin RSUs, pre-load adjustment, 120 mm travel- Front: Öhlins 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: Öhlins mono-shock, fully adjustable, 120 mm travel
Tyres- Front: 90/90-21 - Rear: 150/70-17 - Tubeless- Front: 120/70-17 - Rear: 180/55-17- Front: 100/90-19 - Rear: 150/70-17- Front: 120/70-17 - Rear: 180/55-17- Front: 100/90-19 - Rear: 150/70-17- Front: 120/70-17 - Rear: 190/55-17
Brakes- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 310 cm discs, Nissin 2-piston sliding calipers - Rear: 255 cm disc, Nissin 1-piston sliding caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available- Front: twin 310mm discs, Nissin two-piston sliding calipers - Rear: 255mm disc, Nissin single-piston sliding caliper - ABS available- Front: 310 mm floating disc, Brembo 4-piston fixed axial caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - switchable ABS available- Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial monobloc calipers, radial master cylinder with separate reservoir, span & ratio adjustable - Rear: 220 mm disc, Brembo 2-piston caliper, Rear master cylinder with separate reservoir - cornering ABS available
Instruments7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated gripsLED lights, Riding modes, switchable traction controlRiding modes, traction controlLED lights, Riding modes, traction controlLed taillight, adjustable brake and clutch levers, riding modes, switchable traction control, USB under seatLED lights, Riding modes, switchable cornering traction control, wheelie control, adjustable levers, full keyless system, illuminated switches, cruise control, smartphone connectivity
Dashboard / Support usTriumph Tiger 900 Rally 2020 dashboard   T-shirts, mugs, stickers and more: Triumph Tridend 660 2020 dashboard   Trident 660 t-shirts, mugs, stickers and more: Triumph Tiger 900 2020 dashboard   T-shirts, mugs, stickers and more: Triumph Tiger Sport 660 dashboard   Tiger Sport 660 t-shirts, mugs, stickers and more: Triumph Street Scrambler 2021 dashboard   T-shirts, mugs, stickers and more: Triumph Speed Triple 1200 RS 2021 dashboard   T-shirts, mugs, stickers and more:
