Yamaha FZ1-S Fazer (2006-2016)

Brand: Style:
Share:

Specifications

Engine

998 cc Inline-4, liquid-cooled

Power

150 hp @ 11000 rpm

Power to weight ratio

68 HP/100kg

Torque

106 Nm @ 8000 rpm

Torque to weight ratio

48 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

18 liters

Length

2140 mm

Width

770 mm

Height

1205 mm

Weight

220 kg wet

Seat Height

815 mm

Suspension

– Front: 43 mm inverted fork, fully adjustable, 130 mm travel
– Rear: mono-shock, fully adjustable, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/50-17

Brakes

– Front: 320 mm discs, 4-piston calipers
– Rear: 245 mm disc, 1-piston caliper
– ABS available

Instruments

Analogue tachometer, LCD display with speedometer, odometer, fuel gauge, trip meters, engine temperature, clock

Other

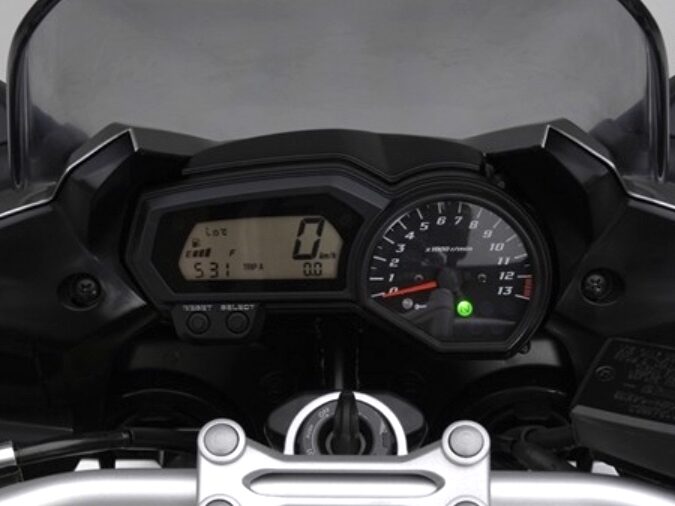

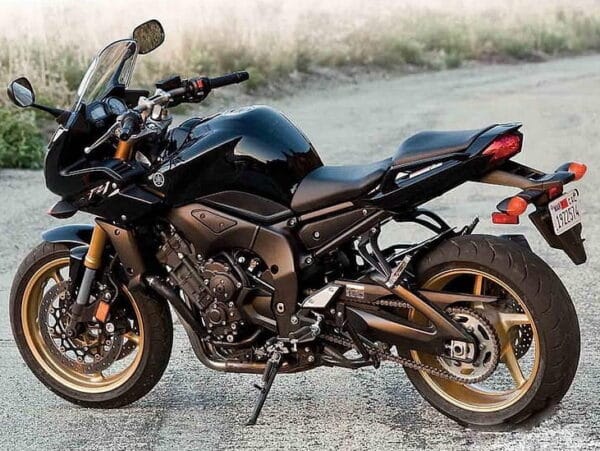

Yamaha FZ1-S Fazer 2010 dashboard Yamaha FZ1-S Fazer 2014 front Yamaha FZ1-S Fazer 2015 back
