Yamaha FZS600 Fazer (2002-2003)

Fazer 600

Predecessor

Updated: 25 June 2025


Position: Style: Brand:

Specifications and Features

Length

2080 mm

Width

710 mm

Height

1170 mm

Seat Height

790 mm

Weight

– 214 kg wet
– Max load: 183 kg

Engine

599 cc Inline-4, liquid-cooled, carbureted

Power

95 hp @ 11500 rpm

Power to weight ratio

44 HP/100kg

Torque

61 Nm @ 9500 rpm

Torque to weight ratio

29 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

22 litres

Suspension

– Front: 41 mm telescopic fork, adjustable preload, 120 mm travel
– Rear: mono-shock, adjustable preload, 120 mm travel

Tyres

– Front: 110/70-17
– Rear: 160/60-17

Brakes

– Front: 298 mm discs, 4-piston calipers
– Rear: 245 mm disc, 2-piston caliper

Instruments

– Analogue speedometer, tachometer and fuel gauge, LCD displays with odometer, dual trip meters, clock

Other

– Adjustable brake lever, centre stand

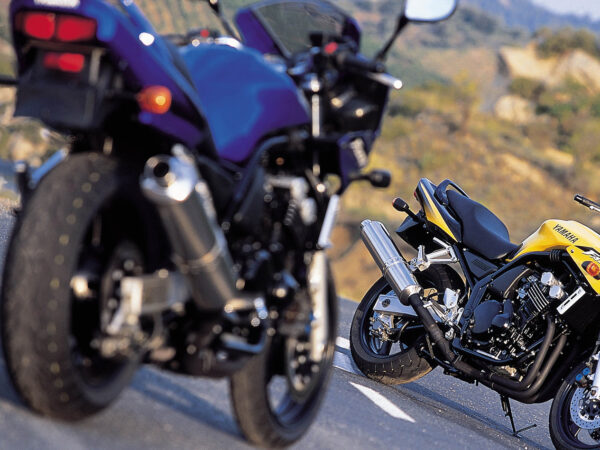

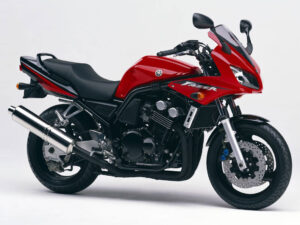

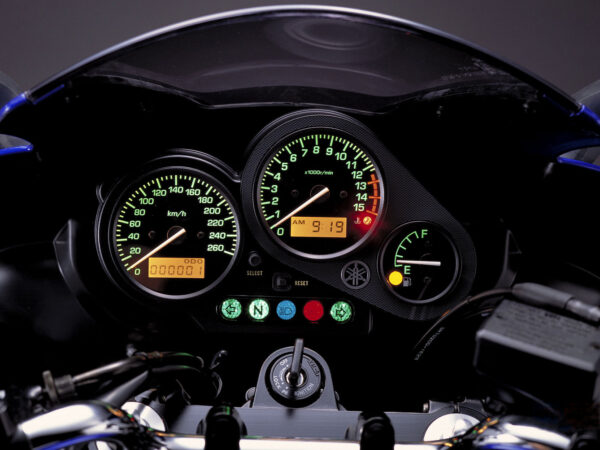

Yamaha FZS600 Fazer 2002 dashboard Yamaha FZS600 Fazer 2003 red front Yamaha FZS600 Fazer 2002 blue back

Motorcycle gifts to celebrate it and support the website:
ride agency color hoodie
Click here to learn more.


27 27
Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

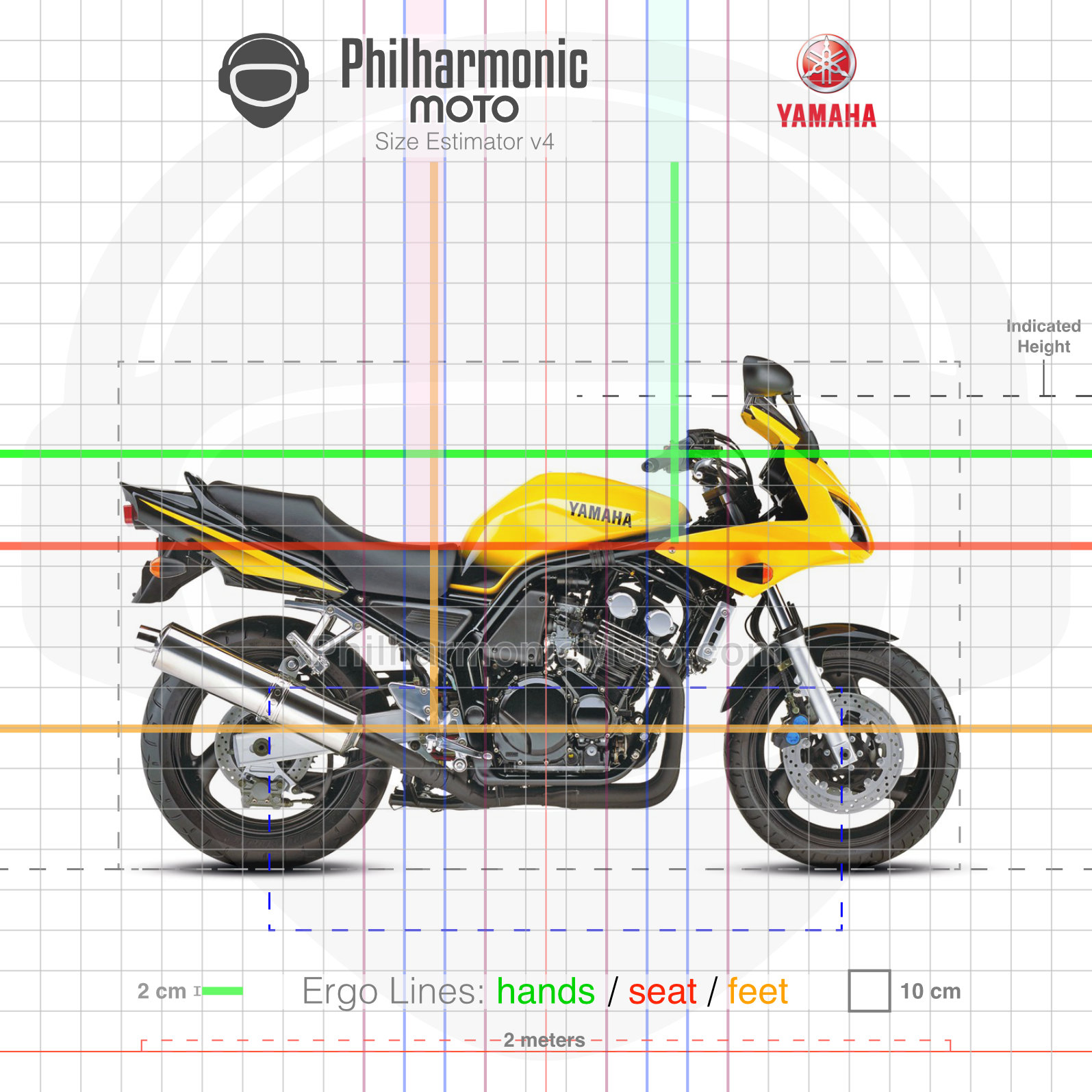

  • Size Estimator (see "About" page to learn more)
