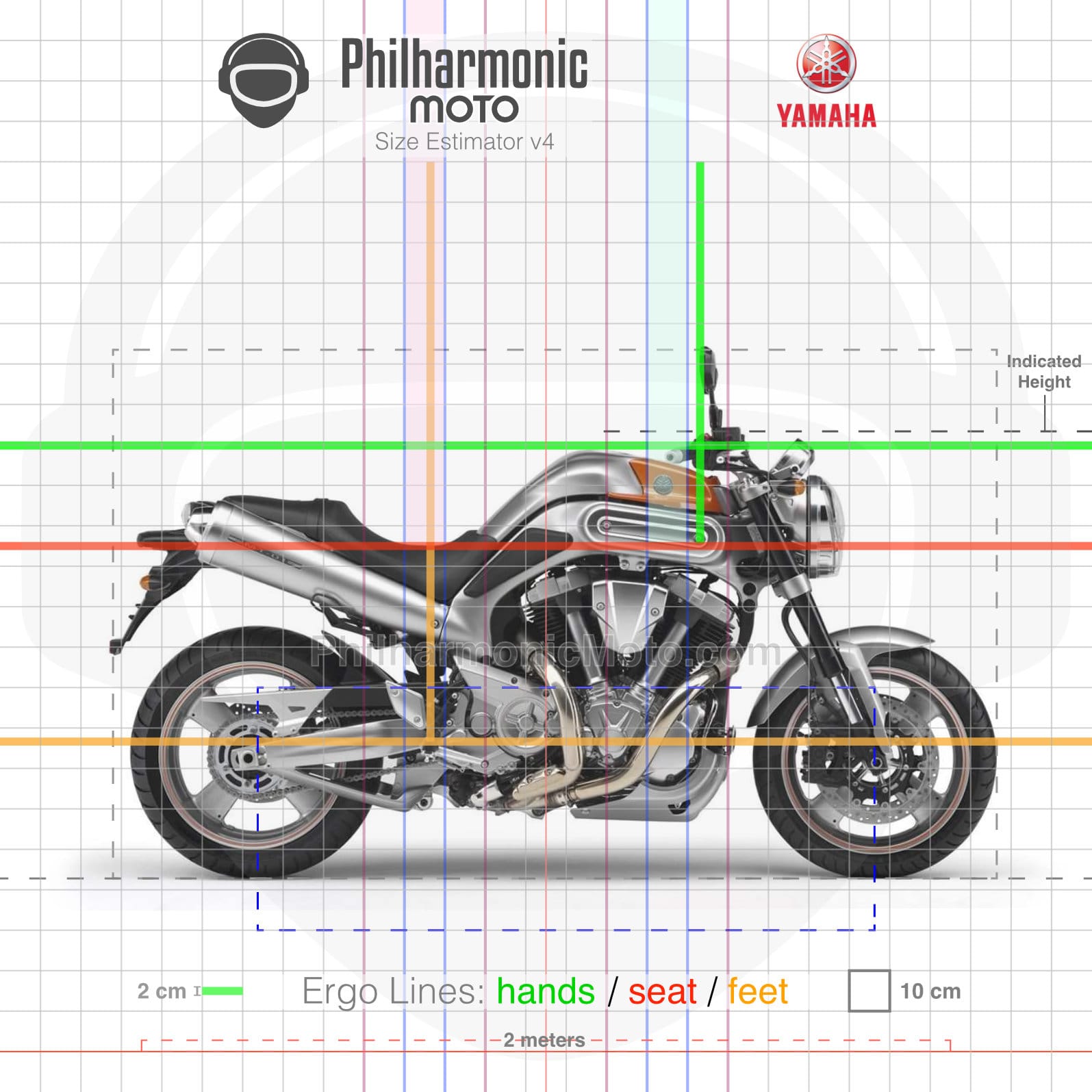

Yamaha MT-01 2008 silver orange sev3
Yamaha MT-01 2008 silver orange sev3

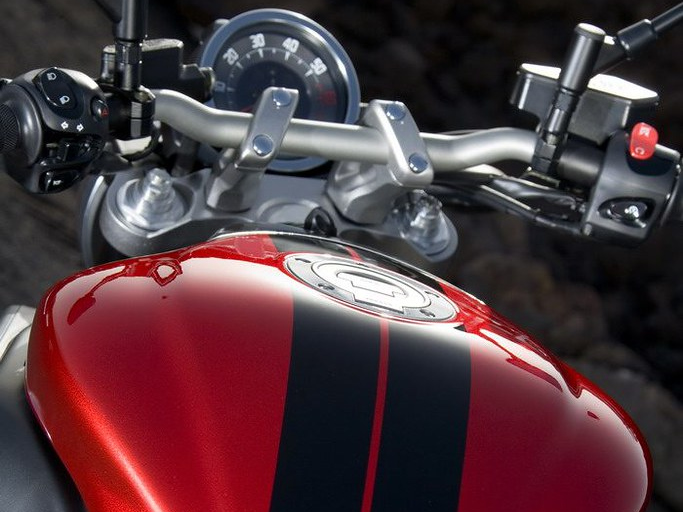

Yamaha MT-01 2007 red black cockpit

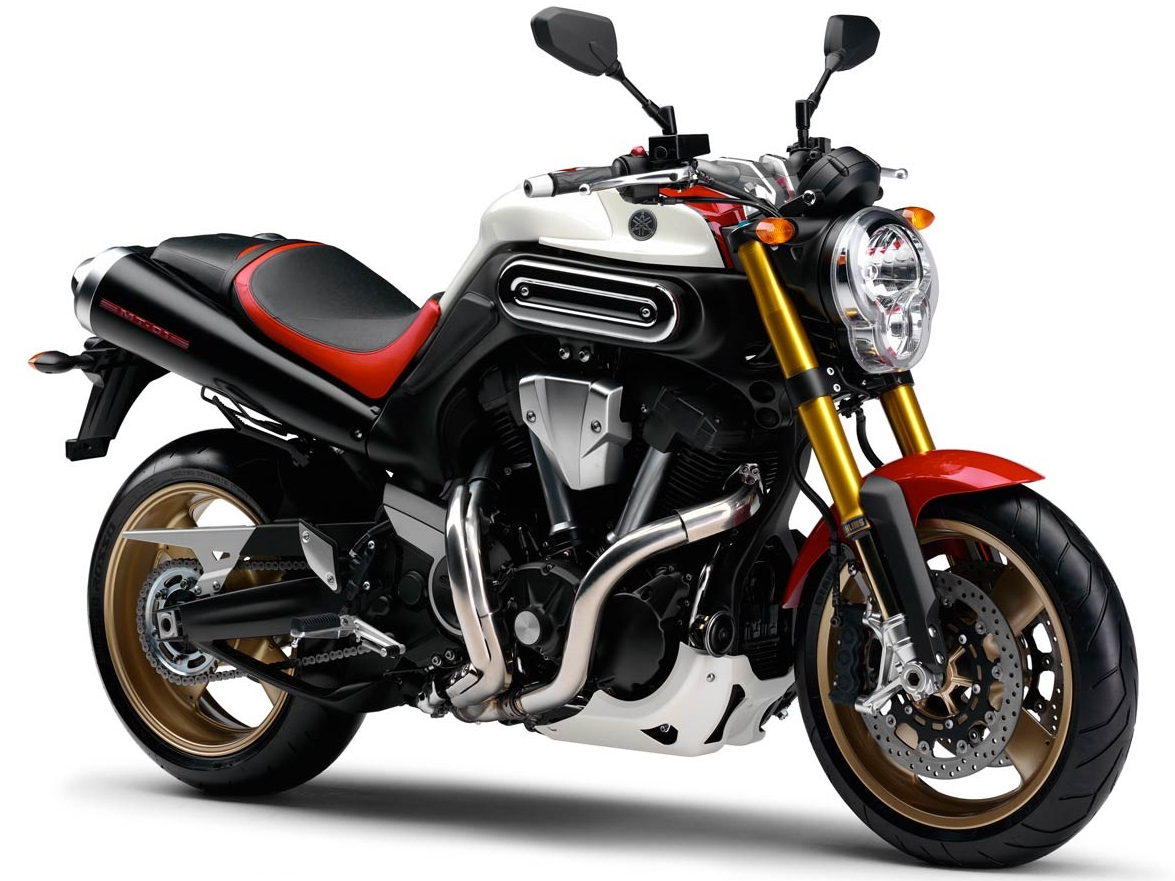

Yamaha MT-01 SP 2009 red white front

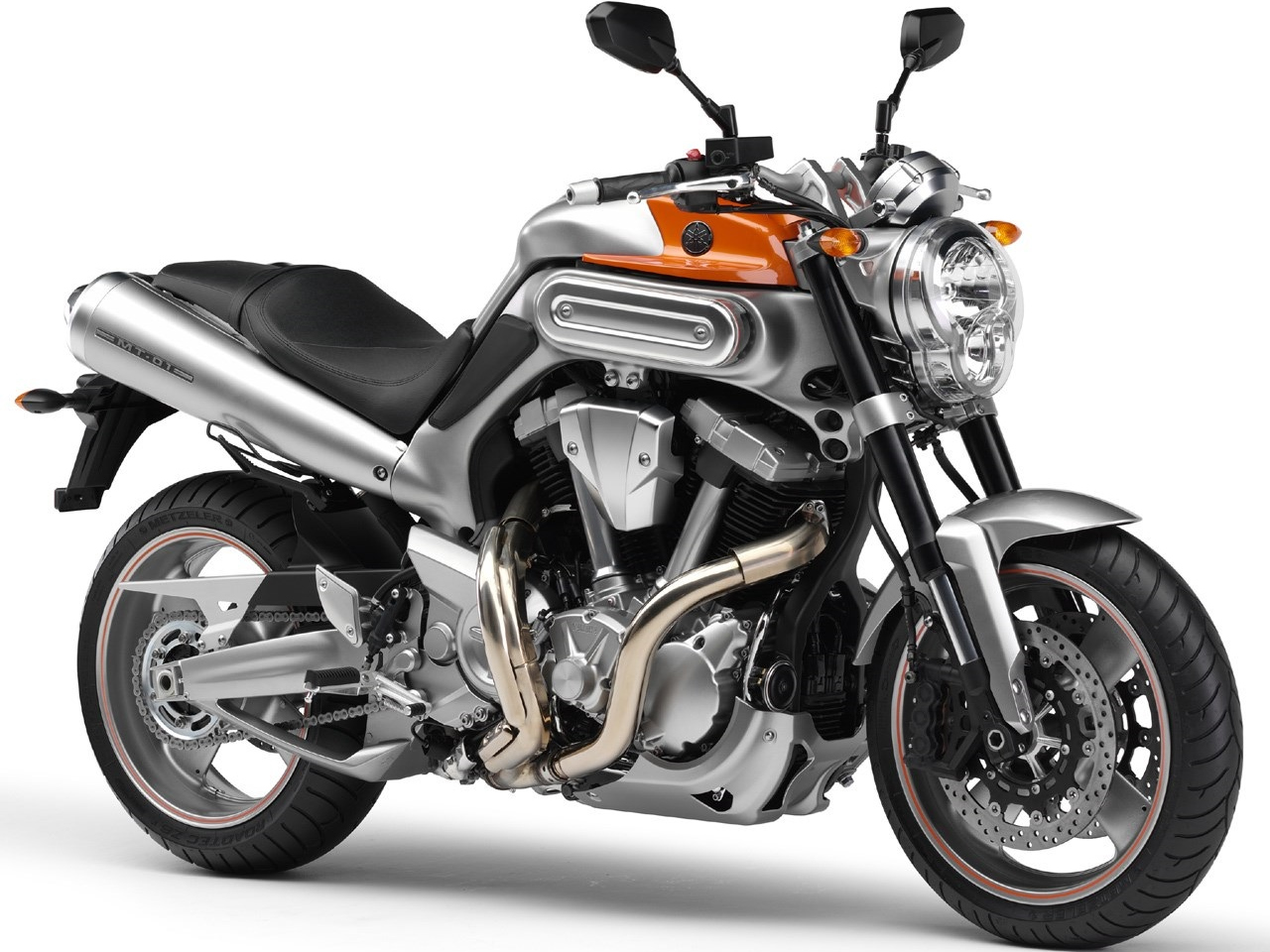

Yamaha MT-01 2008 silver orange front
Yamaha MT-01 (2005-2012) - Image 5

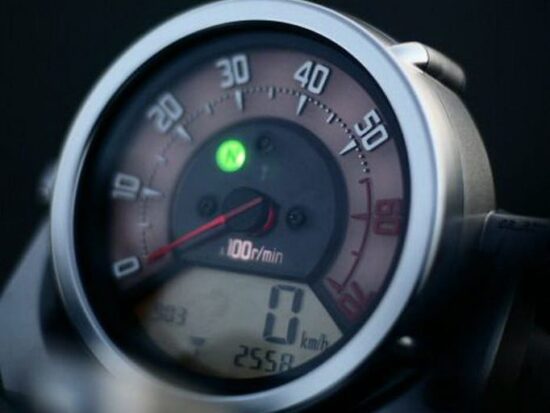

Yamaha MT-01 2007 dashboard
Yamaha MT-01 (2005-2012) - Image 7
Yamaha MT-01 2007 red black front

Yamaha MT-01 (2005-2012)

MT01 SP was a 2009 limited edition with Öhlins suspension.

Updated: 1 April 2024

Launch decade: Style: Brand:

Specifications and Features

Length

2185 mm

Width

790 mm

Height

1105 mm

Seat Height

825 mm

Weight

– 265 kg wet
– Max load: 199 kg

Engine

1670 cc V-twin, air-cooled

Power

90 hp @ 4750 rpm

Power to weight ratio

34 HP/100kg

Torque

150 Nm @ 3750 rpm

Torque to weight ratio

57 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

15 litres

Suspension

– Front: 43 mm inverted fork, fully adjustable, 120 mm travel
– Rear: mono-shock, fully adjustable, 117 mm travel

Tyres

– Front: 120/70-17 (-43 cm)
– Rear: 190/50-17 (-43 cm)

Brakes

– Front: 320 mm discs, 4-piston radial calipers (2007+: 310 mm, 6-piston)
– Rear: 267 mm disc, 2-piston caliper

Instruments

– Analogue tachometer, LCD display with speedometer, odometer, trip meter, reserve trip, clock

Other

– LED taillight
– Adjustable hand levers
