Yamaha MT-03 (2006-2013)

MT03 660

Updated: 4 April 2024


Share:

Specifications and Features

Engine

660 cc Single-cylinder, liquid-cooled

Power

48 hp @ 6250 rpm

Power to weight ratio

25 HP/100kg

Torque

56 Nm @ 5500 rpm

Torque to weight ratio

29 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

15 litres

Length

2070 mm

Width

860 mm

Height

1115 mm

Weight

– 192 kg wet
– Max load: 186 kg

Seat Height

805 mm

Suspension

– Front: telescopic fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/70-17

Brakes

– Front: 298 mm discs, 2-piston calipers
– Rear: 245 mm disc, 1-piston caliper

Instruments

– Analogue tachometer, LCD display with speedometer, odometer, trip meter, reserve trip, clock

Other

– Adjustable brake lever

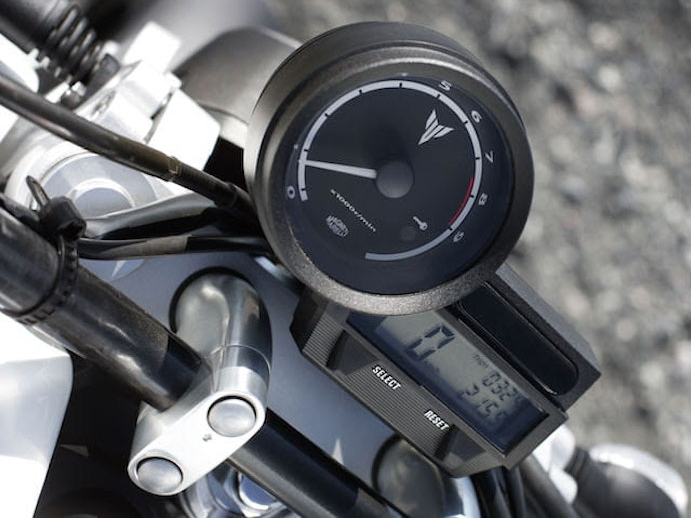

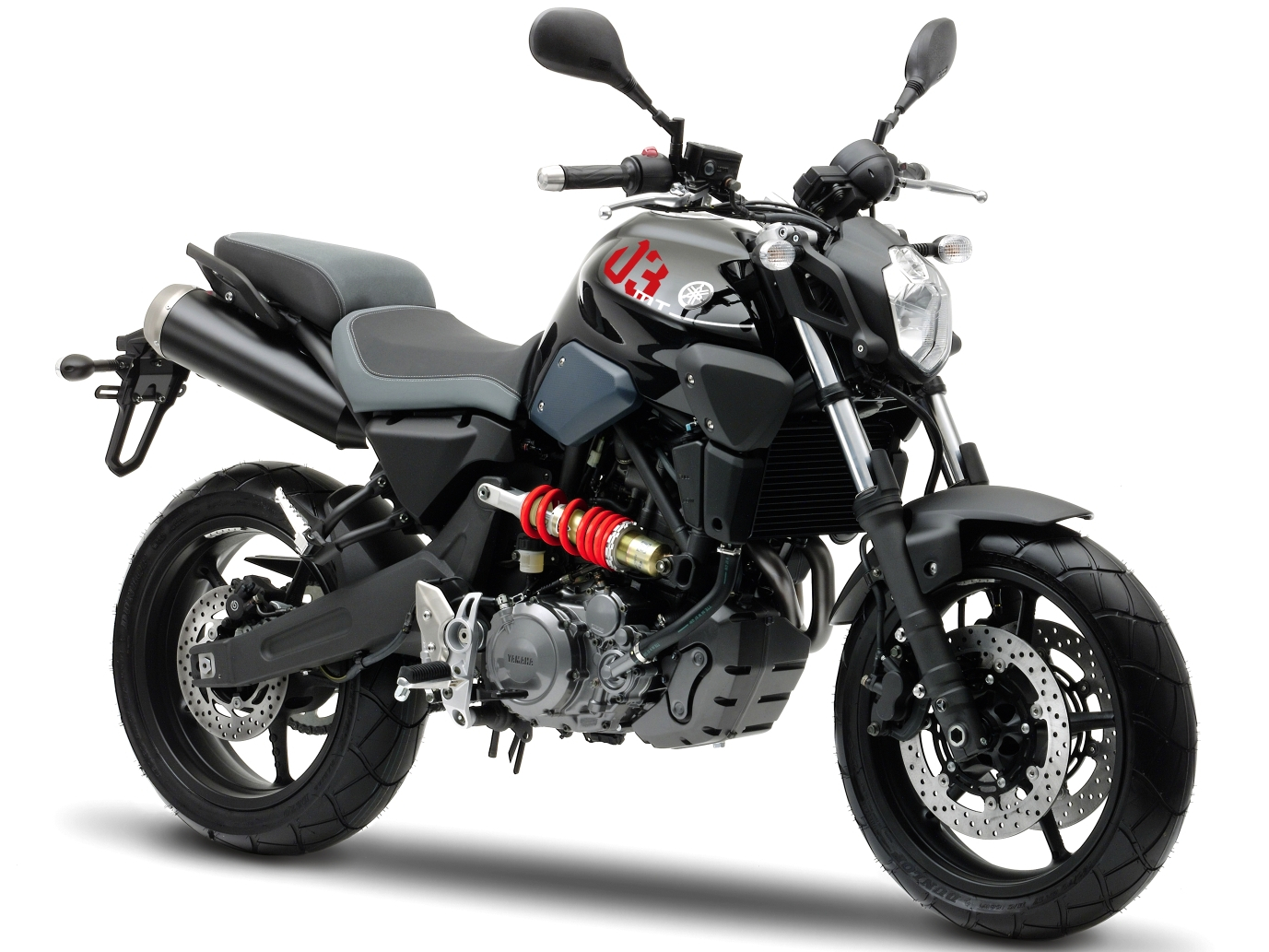

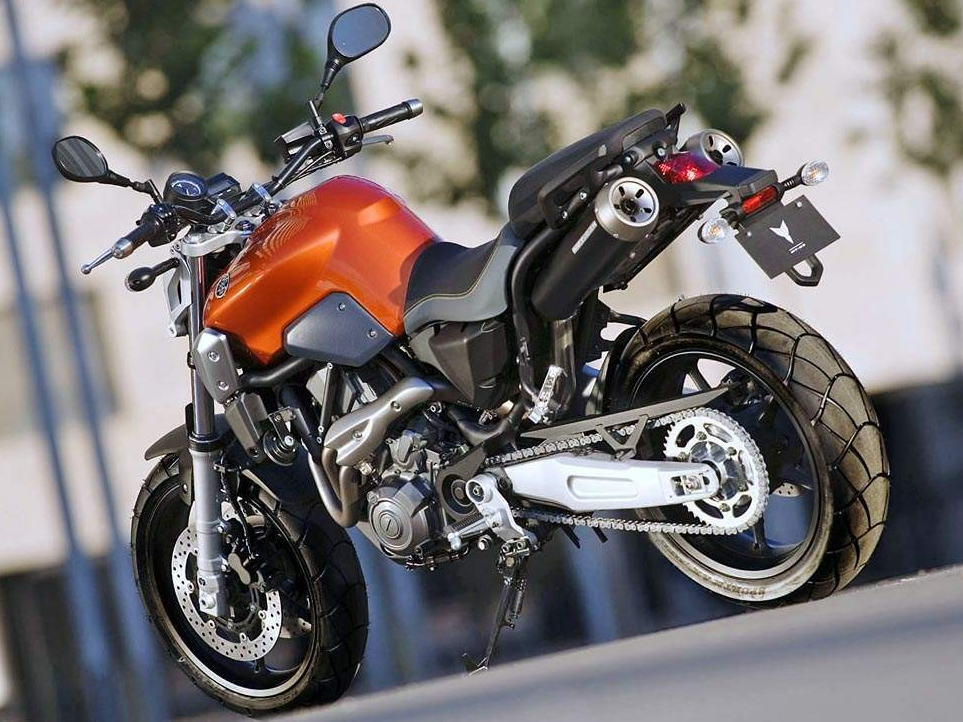

Yamaha MT-03 2006 dashboard Yamaha MT-03 2012 grey front Yamaha MT-03 2007 orange back
