Yamaha MT-03 (2020-2024)

MT03

Updated: 17 June 2024


Style: Brand:
Share:

Specifications and Features

Engine

321 cc Parallel-twin, liquid-cooled

Power

41 hp @ 10750 rpm

Power to weight ratio

24 HP/100kg

Torque

30 Nm @ 9000 rpm

Torque to weight ratio

18 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

14 litres

Length

2090 mm

Width

755 mm

Height

1070 mm

Weight

– 168 kg wet
– Max load: 160 kg

Seat Height

780 mm

Suspension

– Front: KYB 37 mm inverted fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 125 mm travel

Tyres

– Front: 110/70-17
– Rear: 140/70-17

Brakes

– Front: 298 mm disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available

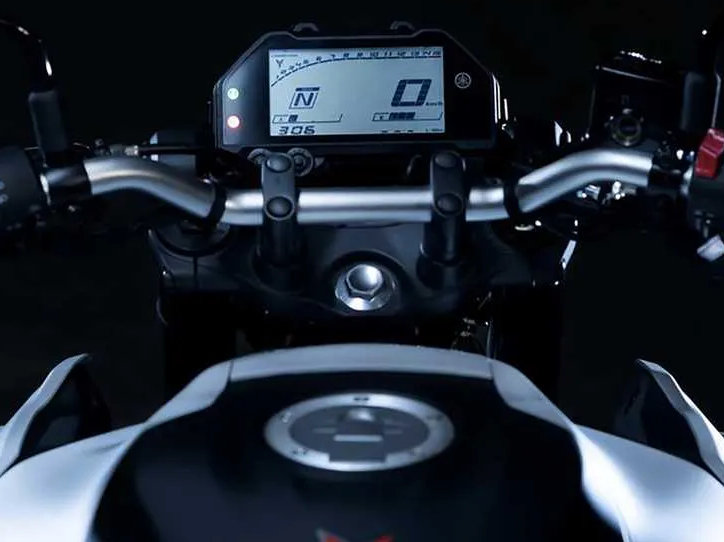

Instruments

– 12 cm (4.7", measured) LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, instant and average consumption, engine temperature, clock, adjustable shift-up indicator

Other

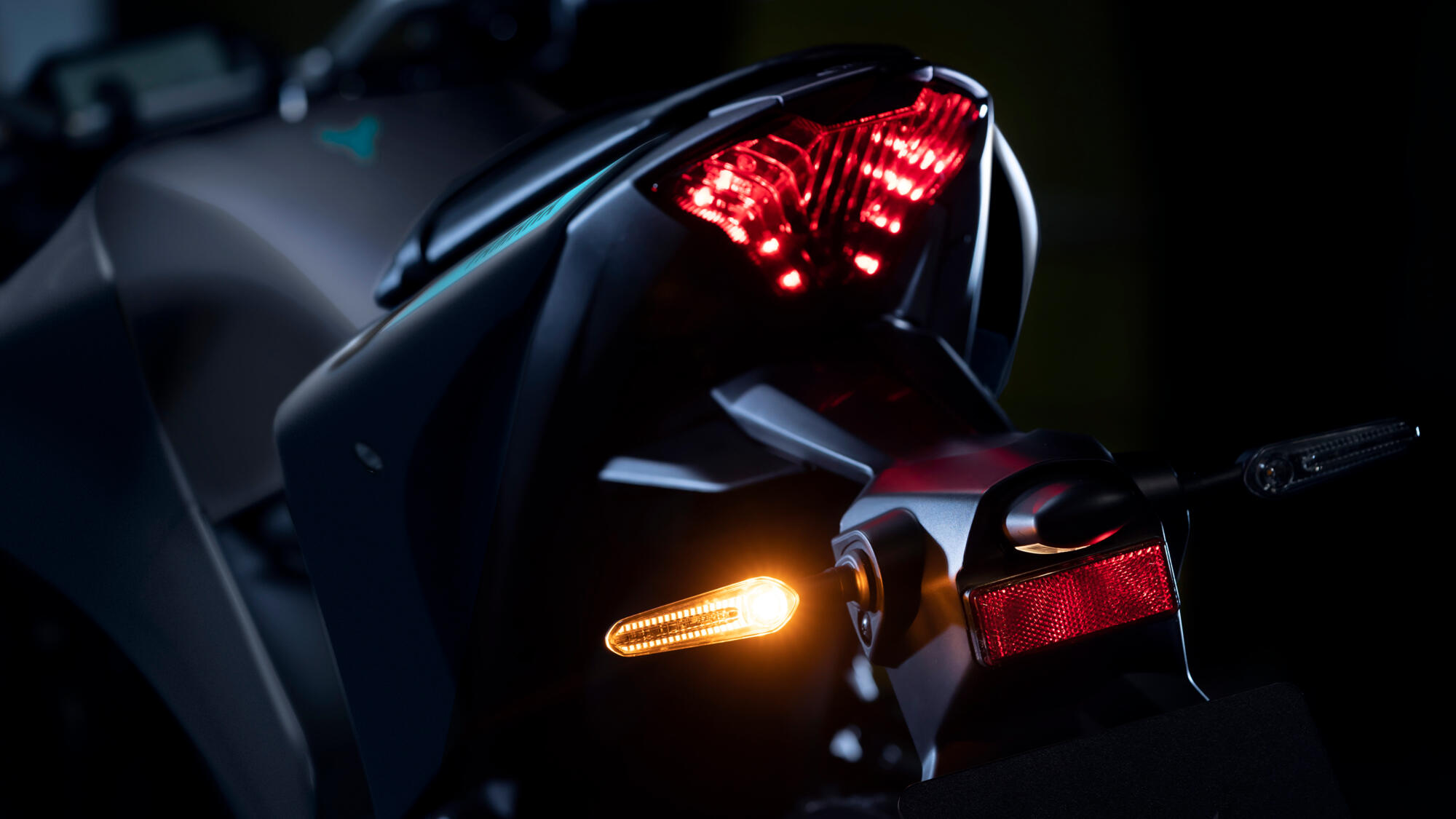

– LED lights

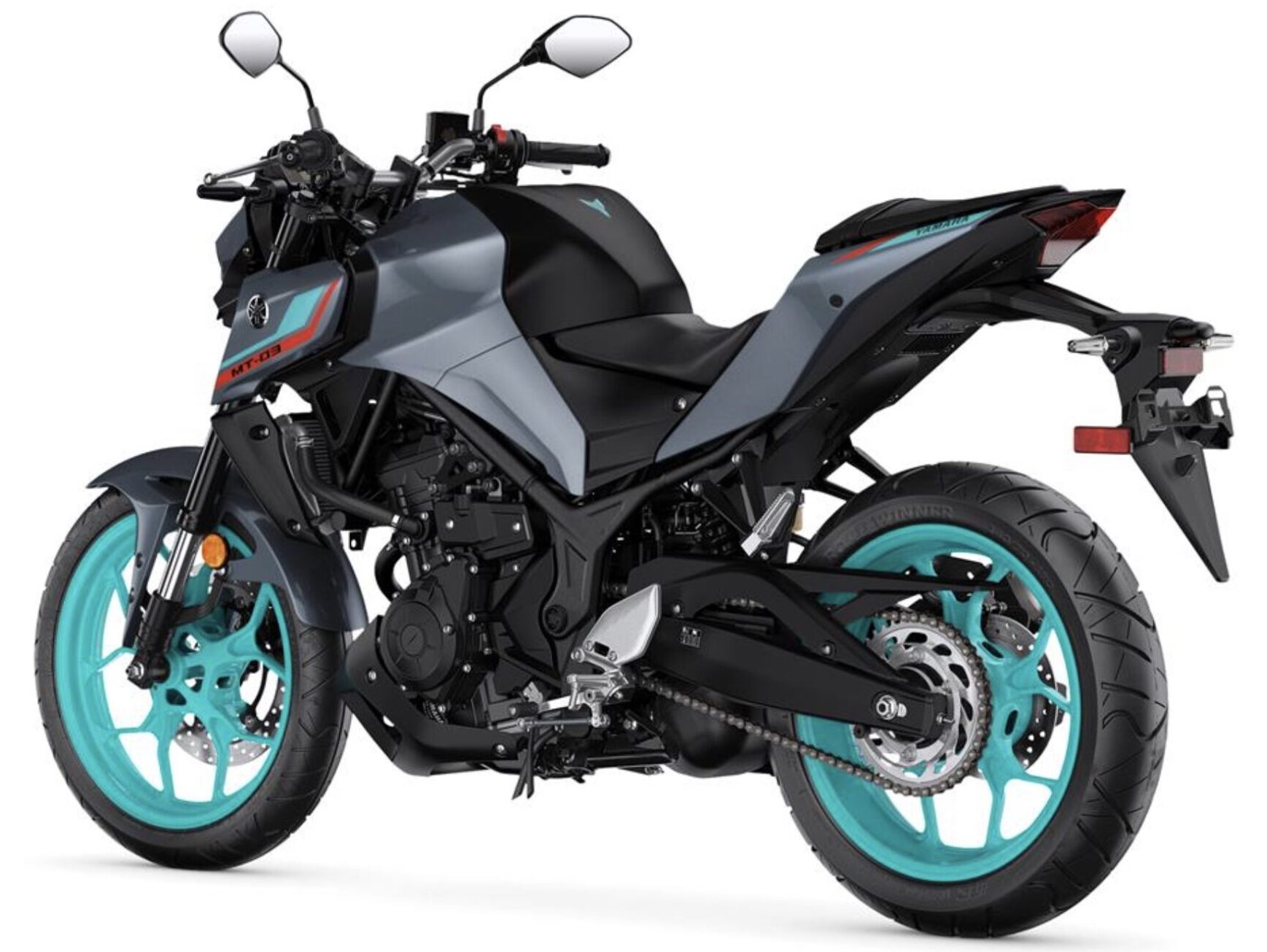

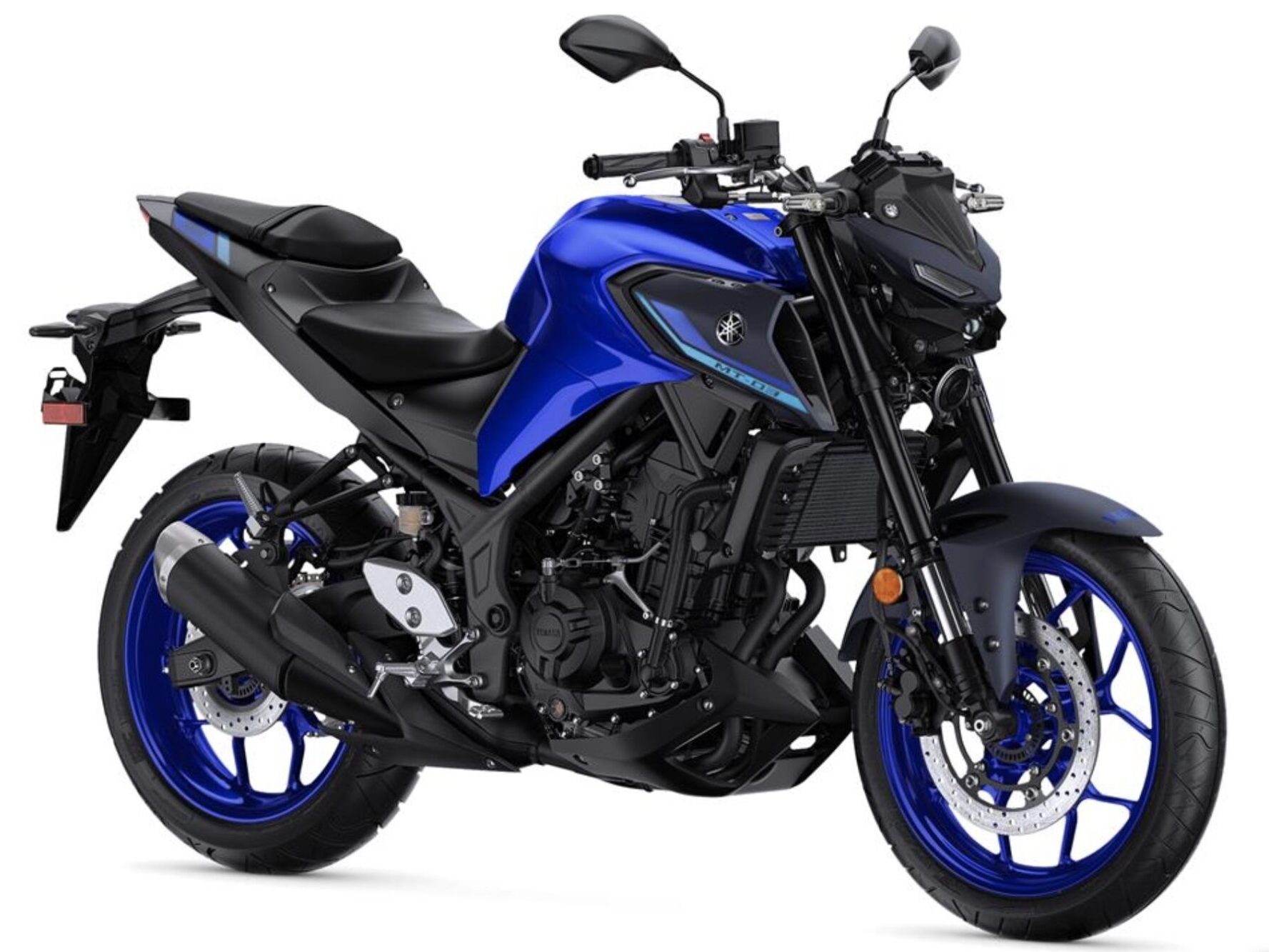

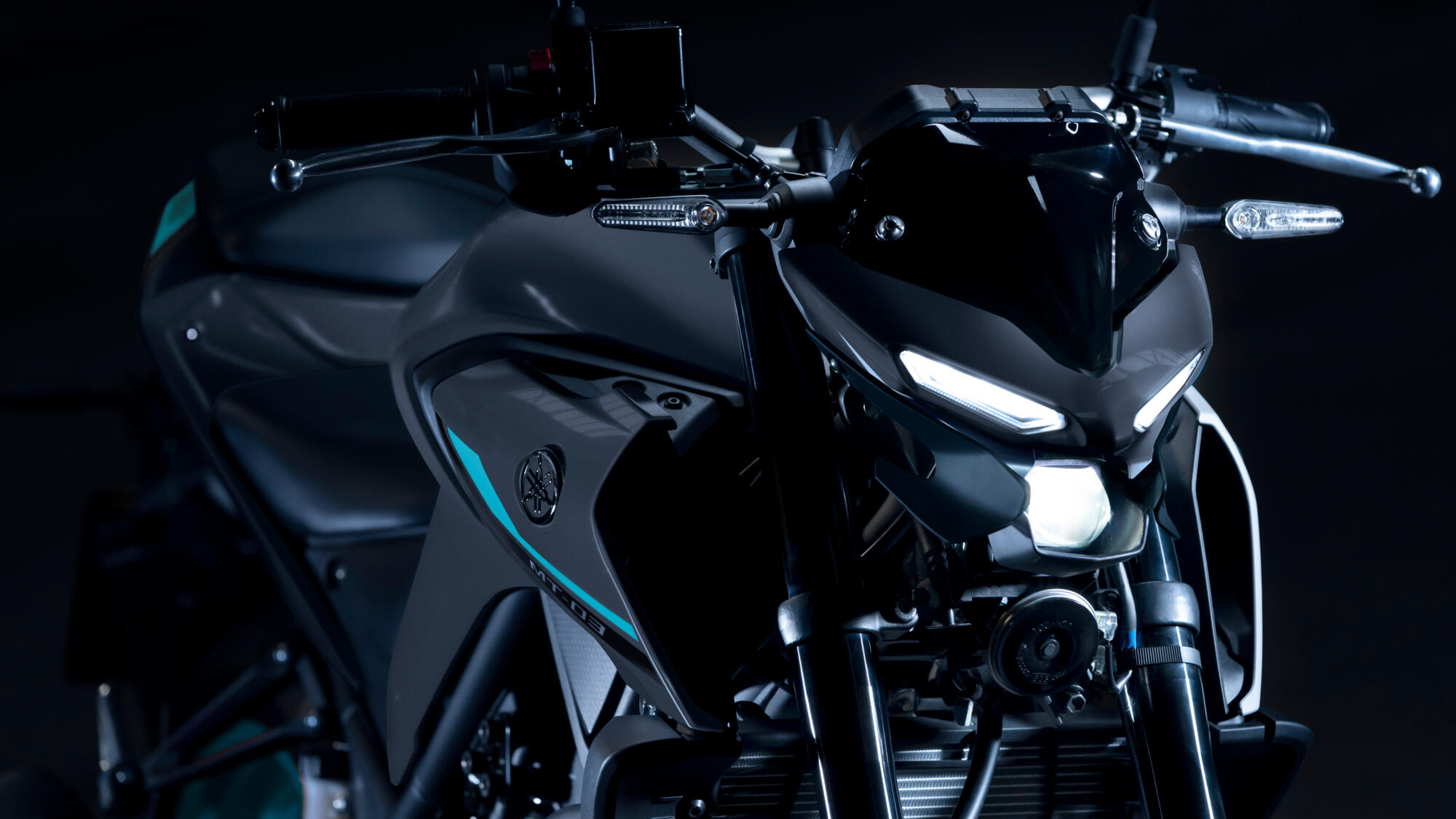

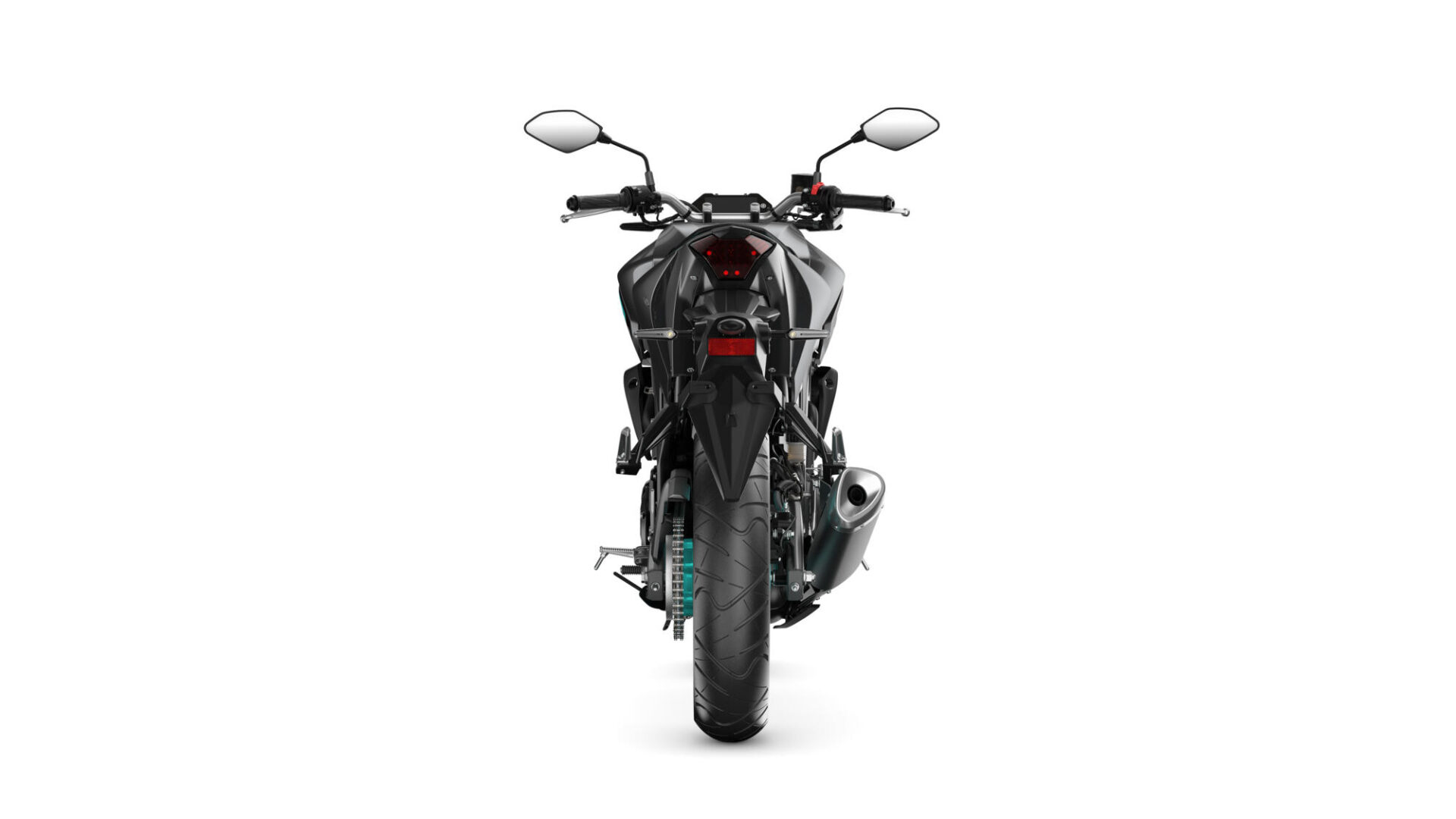

Yamaha MT-03 2020+ dashboard Yamaha MT-03 2022 front Yamaha MT-03 2022 back
