Yamaha MT-07 / FZ-07 (2014-2017)

FZ-07: North America, 2015 to 2017. MT07, FZ07.


Brand: Style:
Share:

Specifications and Features

Engine

689 cc Parallel-twin, liquid-cooled, 270º crank

Power

74 hp @ 9000 rpm

Power to weight ratio

41 HP/100kg

Torque

68 Nm @ 6500 rpm

Torque to weight ratio

38 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2085 mm

Width

745 mm

Height

1090 mm

Weight

– 179 kg wet
– Max load: 172 kg

Seat Height

805 mm

Suspension

– Front: 41 mm telescopic fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 282 mm discs, monobloc 4-piston calipers
– Rear: 245 mm disc, Nissin 1-piston caliper
– ABS available

Instruments

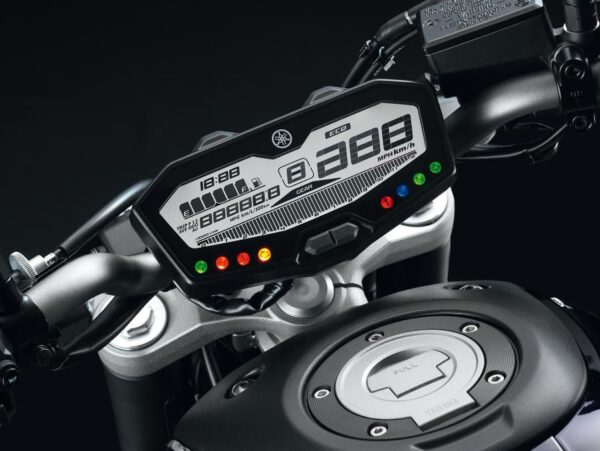

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, fuel reserve trip meter, instant and average consumption, engine and ambient temperature, dual trip meters, clock

Other

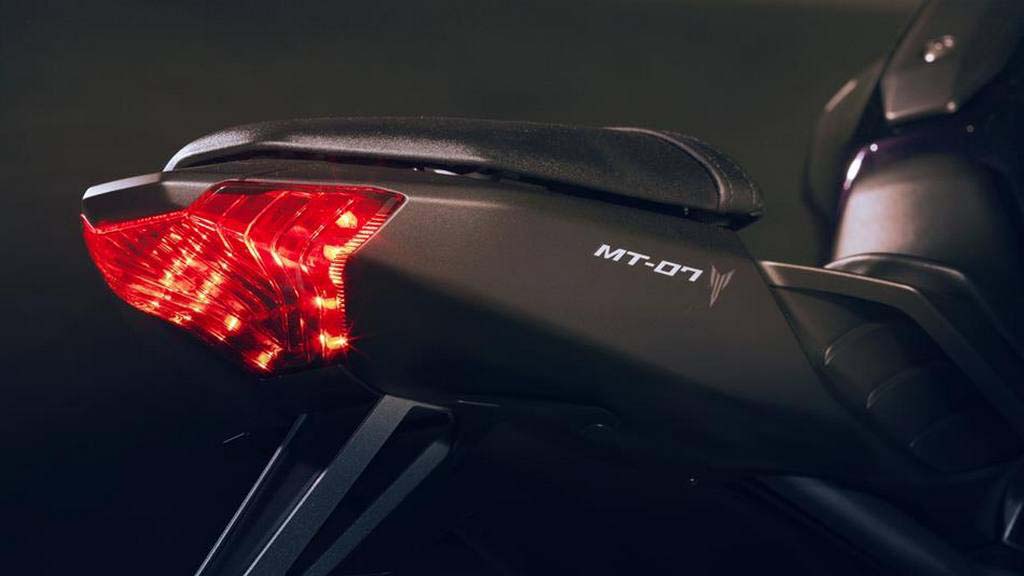

– LED taillight

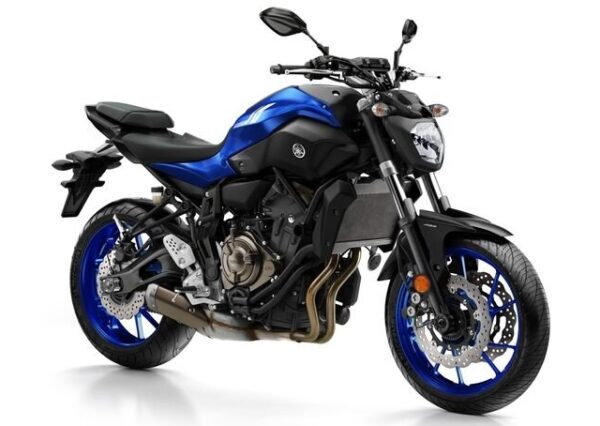

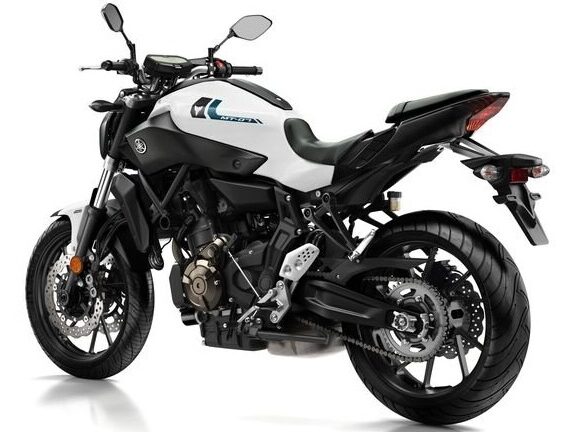

Yamaha MT-07 FZ07 2014 dashboard Yamaha MT-07 FZ07 2017 front Yamaha MT-07 FZ07 2017 back

T-shirts, mugs, stickers and more:

honda monkey red ride tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

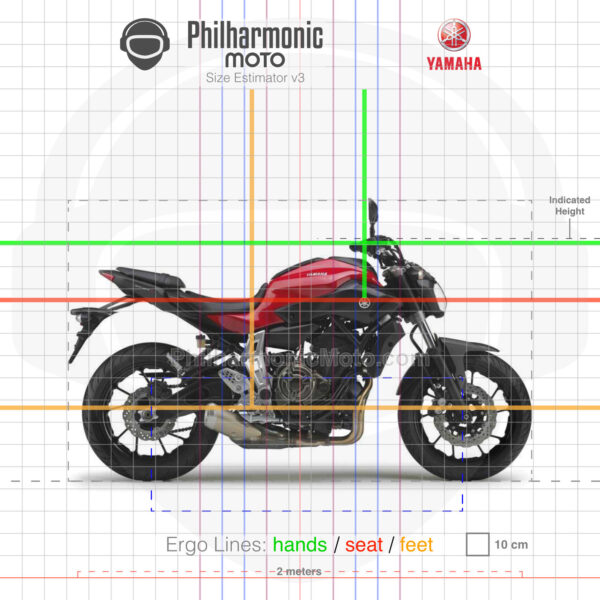

  • Size Estimator (see "About" page to learn more)
