Yamaha R1M (2015-2019)

YZF-R1M


Brand: Style:
Share:

Specifications and Features

Engine

998 cc Inline-4, liquid-cooled

Power

197 hp @ 13500 rpm

Power to weight ratio

98 HP/100kg

Torque

112 Nm @ 11500 rpm

Torque to weight ratio

56 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

17 litres

Length

2055 mm

Width

690 mm

Height

1150 mm

Weight

201 kg wet

Seat Height

855-860 mm

Suspension

– Front: 43 mm Öhlins NPX anti-cavitation gas fork, fully adjustable, 120 mm travel
– Rear: Öhlins mono-shock, fully adjustable, 120 mm travel
– Öhlins electronic suspension

Tyres

– Front: 120/70-17
– Rear: 200/55-17

Brakes

– Front: 320 mm discs, monobloc 4-piston radial calipers
– Rear: 220 mm disc, Nissin 1-piston caliper
– Cornering ABS, UBS (Unified Brake System)

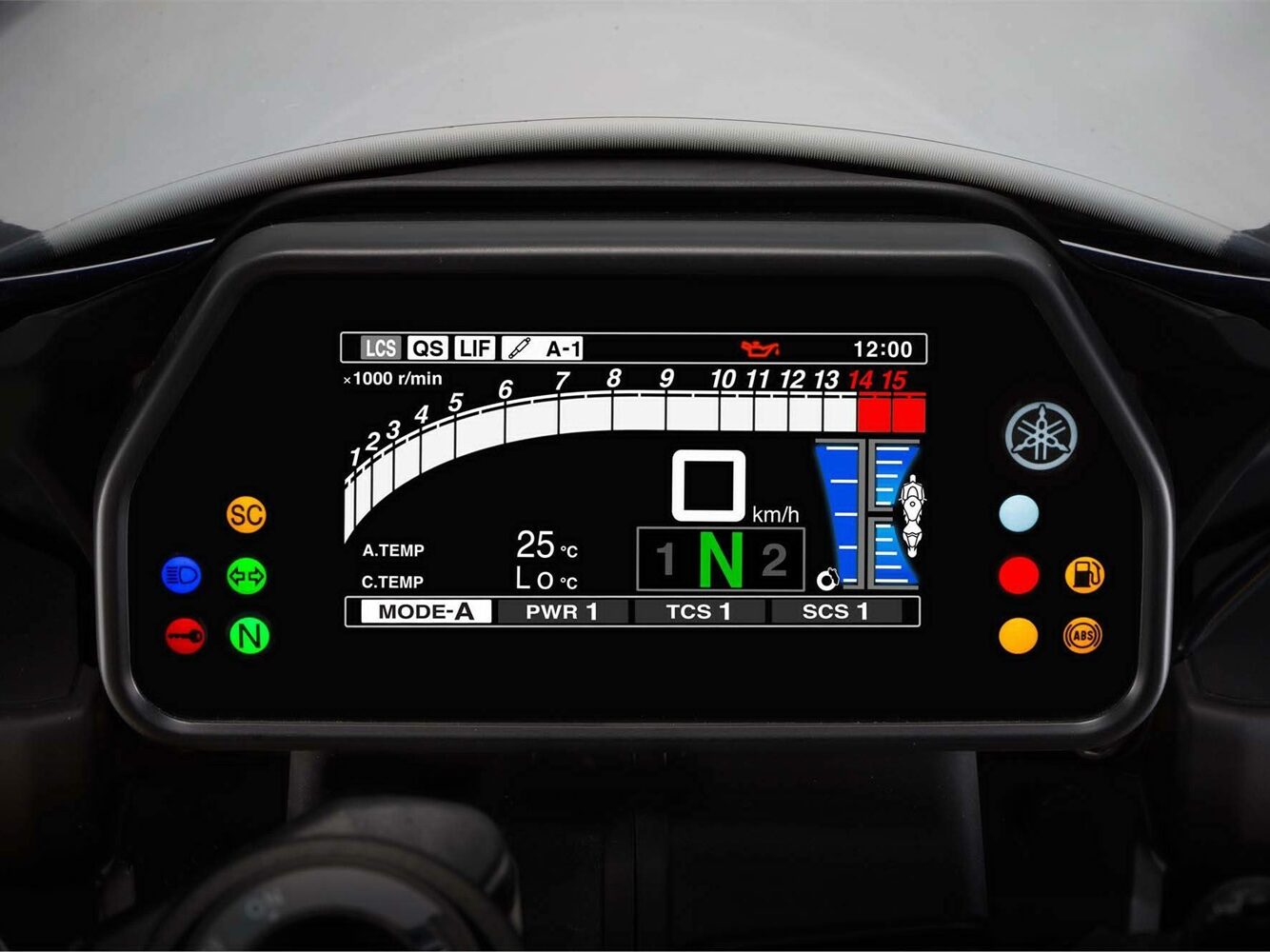

Instruments

– 4.2" TFT display with speedometer, tachometer, odometer, gear indicator, dual trip meters, fuel trip meter, engine and ambient temperature, instant and average consumption, clock, front brake pressure and fore/aft G-force readouts, lap timer
– Smartphone connectivity

Other

– LED lights
– Riding modes, cornering traction control (switchable), power modes, wheelie control, launch control, slide control
– Adjustable brake lever, GPS data logger, carbon fibre fairing

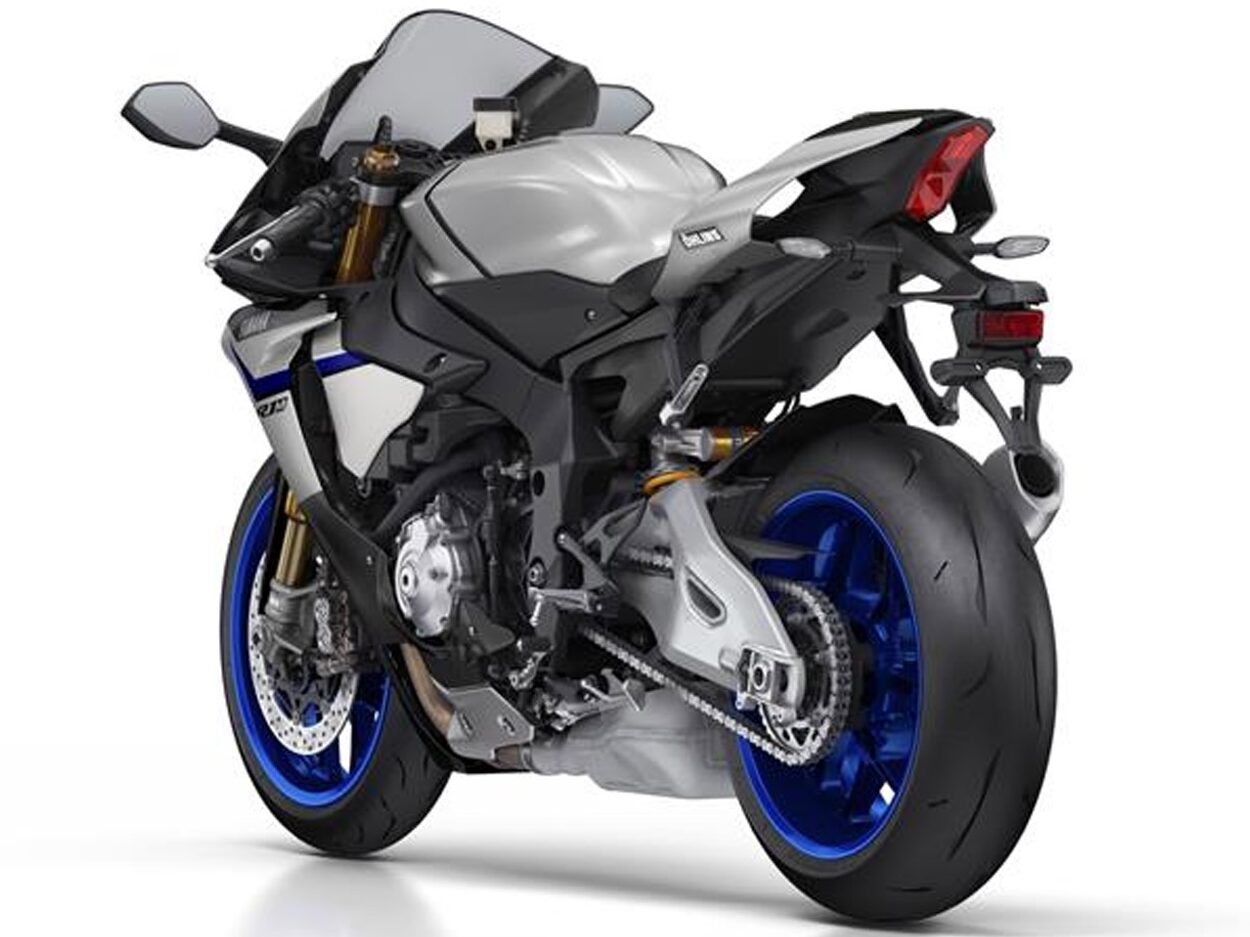

Yamaha YZF-R1 2015 dashboard Yamaha YZF-R1M 2015 front Yamaha YZF-R1M 2015 silver back

T-shirts, mugs, stickers and more:

ATGATT t-shirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

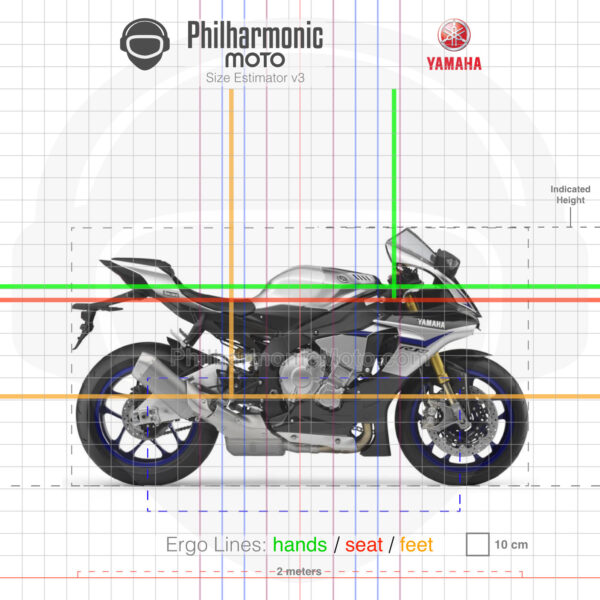

  • Size Estimator (see "About" page to learn more)
