Yamaha R1M (2020+)

YZF-R1M, YZF1000D

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

998 cc Inline-4, liquid-cooled

Power

197 hp @ 13500 rpm

Power to weight ratio

98 HP/100kg

Torque

113 Nm @ 11500 rpm

Torque to weight ratio

56 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

17 litres

Length

2055 mm

Width

690 mm

Height

1165 mm

Weight

– 202 kg wet
– Max load: 185 kg

Seat Height

860 mm

Suspension

– Front: 43 mm Öhlins NPX anti-cavitation gas fork, fully adjustable, 120 mm travel
– Rear: Öhlins mono-shock, fully adjustable, 120 mm travel
– Öhlins electronic suspension

Tyres

– Front: 120/70-17
– Rear: 200/55-17

Brakes

– Front: 320 mm discs, monobloc 4-piston radial calipers
– Rear: 220 mm disc, Nissin 1-piston caliper
– Cornering ABS (adjustable)

Instruments

– 4.2" TFT display with speedometer, tachometer, odometer, gear indicator, dual trip meters, fuel trip meter, engine and ambient temperature, instant and average consumption, clock, front brake pressure and fore/aft G-force readouts, lap timer
– Smartphone connectivity

Other

– LED lights
– Riding modes, cornering traction control (switchable), power modes, engine brake control, wheelie control, launch control, slide control
– Adjustable brake and clutch levers, GPS data logger, carbon fibre fairing

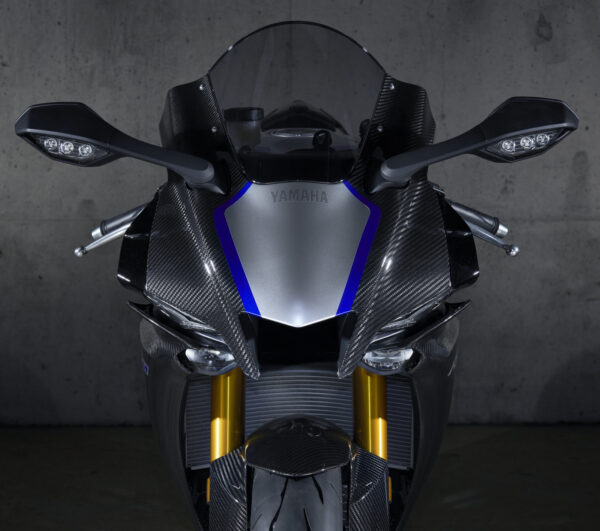

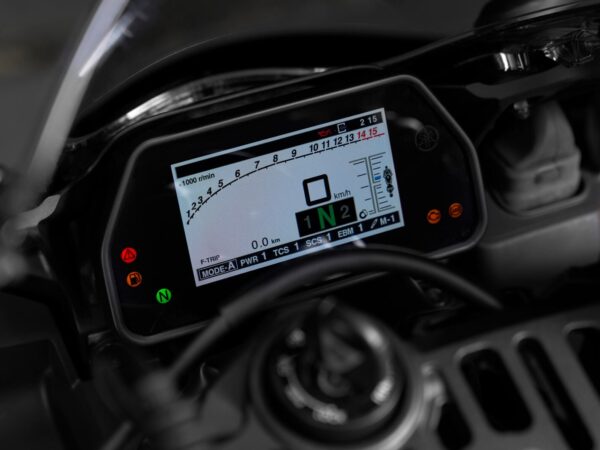

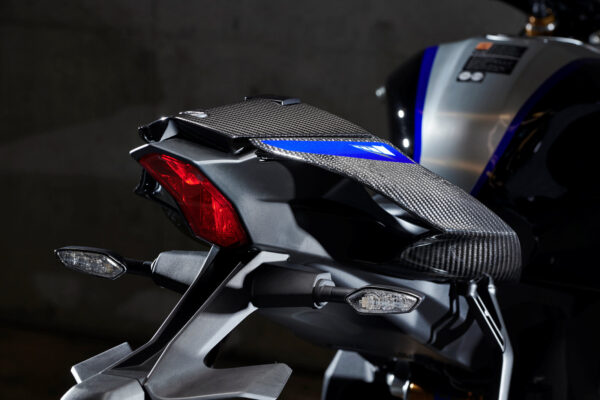

Yamaha YZF-R1M 2023 dashboard Yamaha YZF-R1M 2023 front Yamaha YZF-R1M 2023 back
