Yamaha R6 (2003-2004)

YZF-R6



Updated: 11 April 2025


Brand: Style:
Share:

Specifications and Features

Engine

600 cc Inline-4, liquid-cooled

Power

117 hp @ 13000 rpm (RAM-air: 123)

Power to weight ratio

64 HP/100kg

Torque

69 Nm @ 12000 rpm

Torque to weight ratio

38 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

17 litres

Length

2025 mm

Width

690 mm

Height

1090 mm

Weight

– 182 kg wet
– Max load: 193 kg

Seat Height

820 mm

Suspension

– Front: 43 mm telescopic fork, fully adjustable, 120 mm travel
– Rear: mono-shock, fully adjustable, 120 mm travel

Tyres

– Front: 120/60-17
– Rear: 180/55-17

Brakes

– Front: 298 mm discs, 4-piston calipers
– Rear: 220 mm disc, 1-piston caliper

Instruments

– Analogue tachometer, LCD displays with speedometer, odometer, dual trip meters, reserve trip, engine temperature, shift light, clock

Other

– LED taillight
– Adjustable brake lever

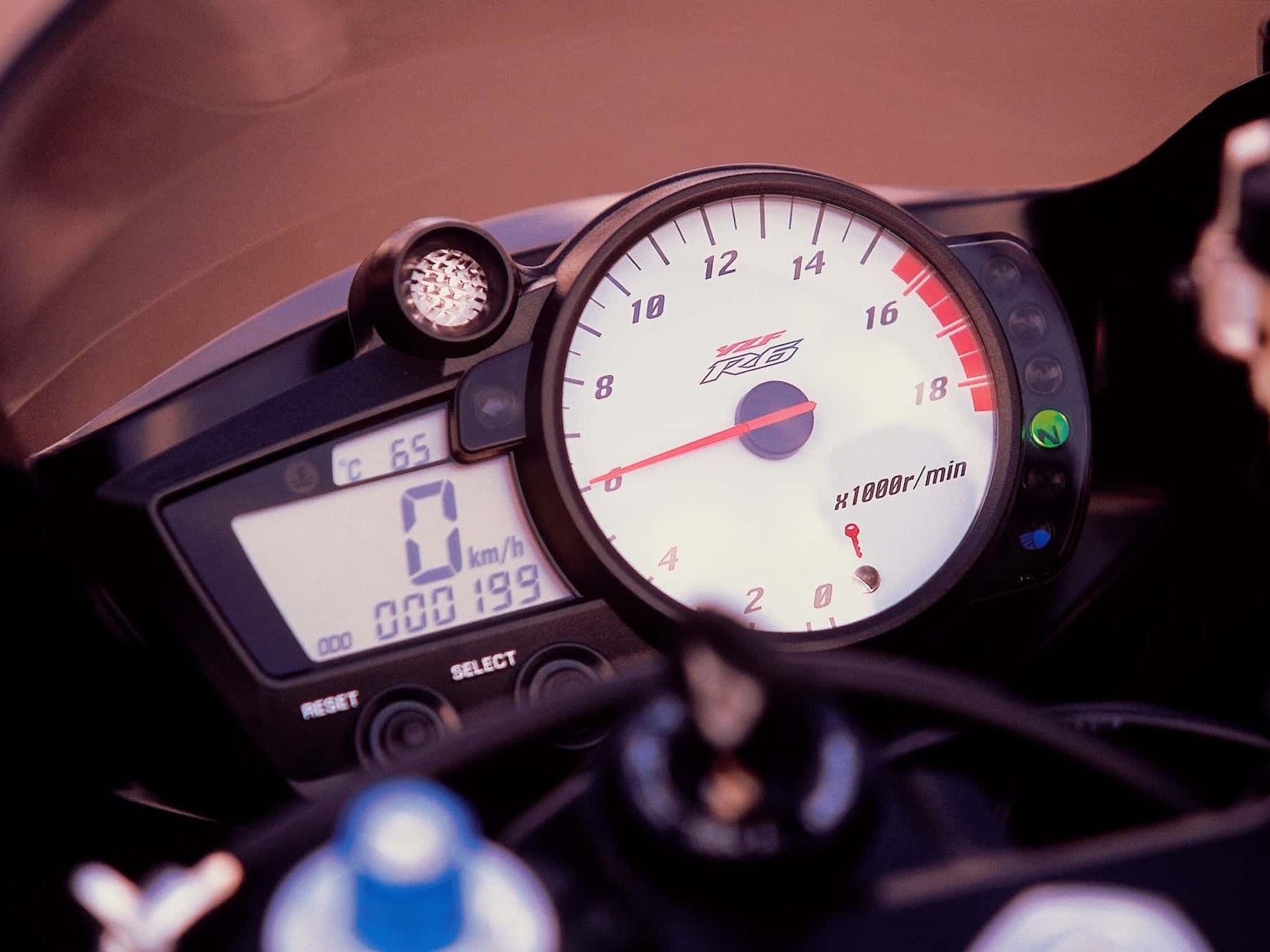

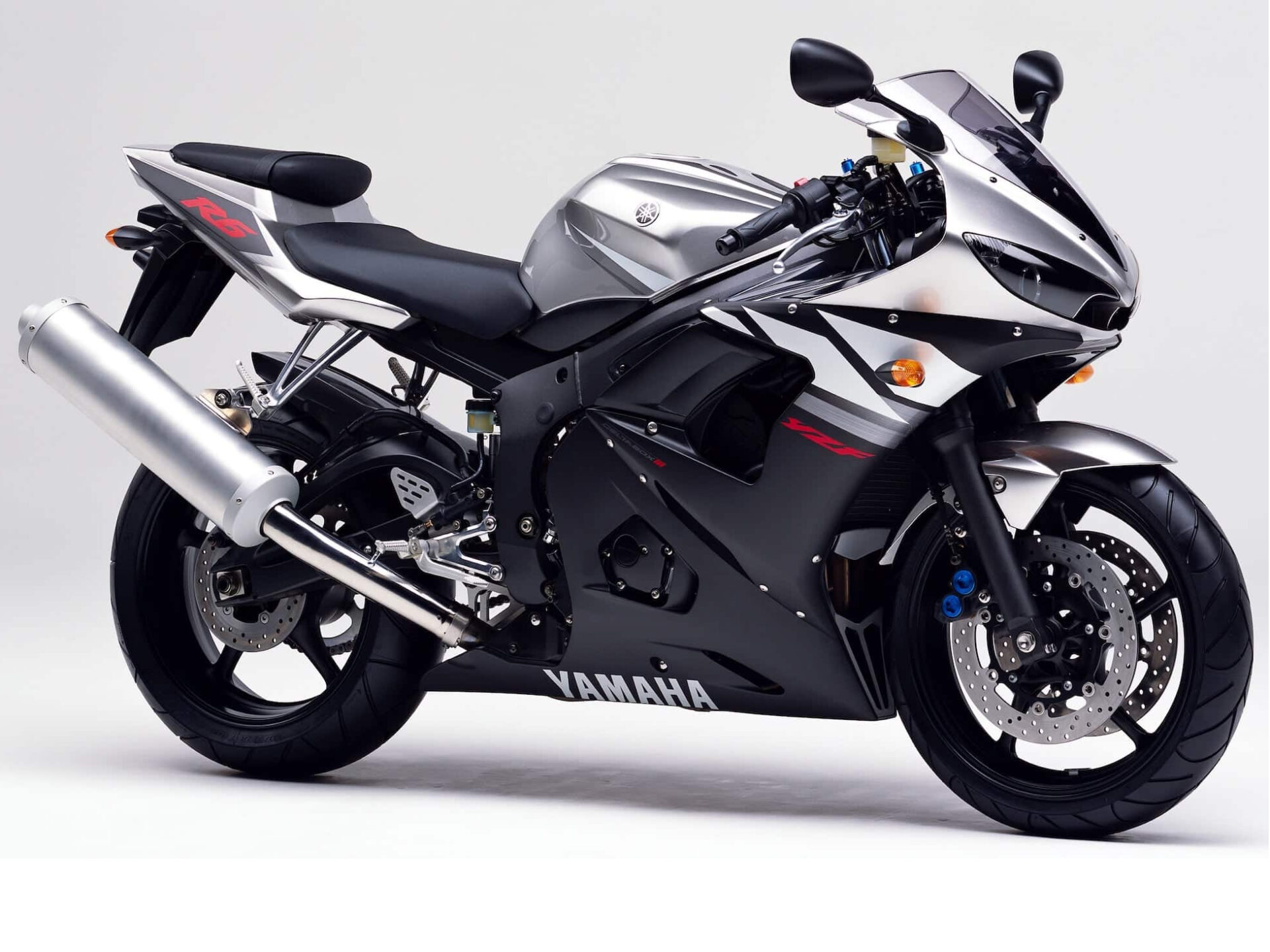

Yamaha YZF-R6 2003 dashboard Yamaha YZF-R6 2003 silver front Yamaha YZF-R6 2003 blue tail
