Yamaha Thundercat (1996-2007)

YZF600R

Updated: 9 April 2025


Brand: Style:
Share:

Specifications and Features

Engine

599 cc Inline-4, liquid-cooled, carbureted

Power

100 hp @ 11500 rpm

Power to weight ratio

47 HP/100kg

Torque

66 Nm @ 9500 rpm

Torque to weight ratio

31 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

19 litres

Length

2060 mm

Width

725 mm

Height

1190 mm

Weight

– 212 kg wet
– Max load: 180 kg

Seat Height

805 mm

Suspension

– Front: 41 mm telescopic fork, fully adjustable, 130 mm travel
– Rear: mono-shock, fully adjustable, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 300 mm discs, 4-piston calipers
– Rear: 245 mm disc, 2-piston caliper

Instruments

– Analogue speedometer, tachometer, odometer, trip meter, engine temperature

Other

– Adjustable brake lever

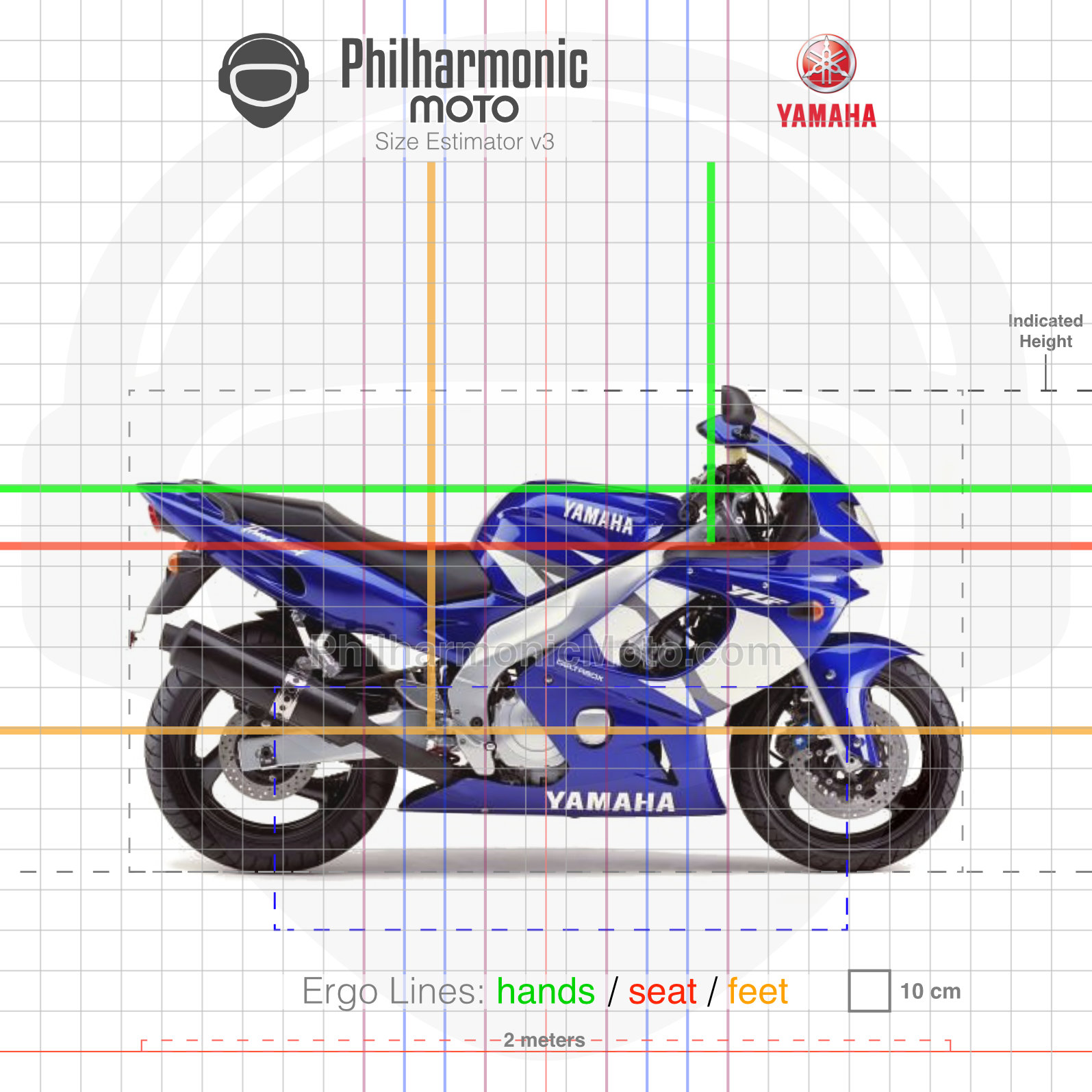

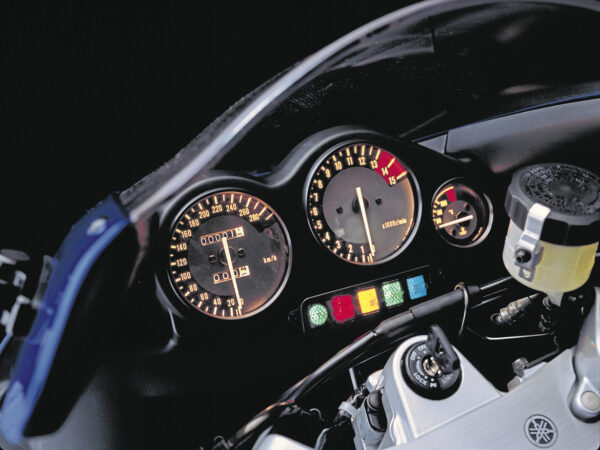

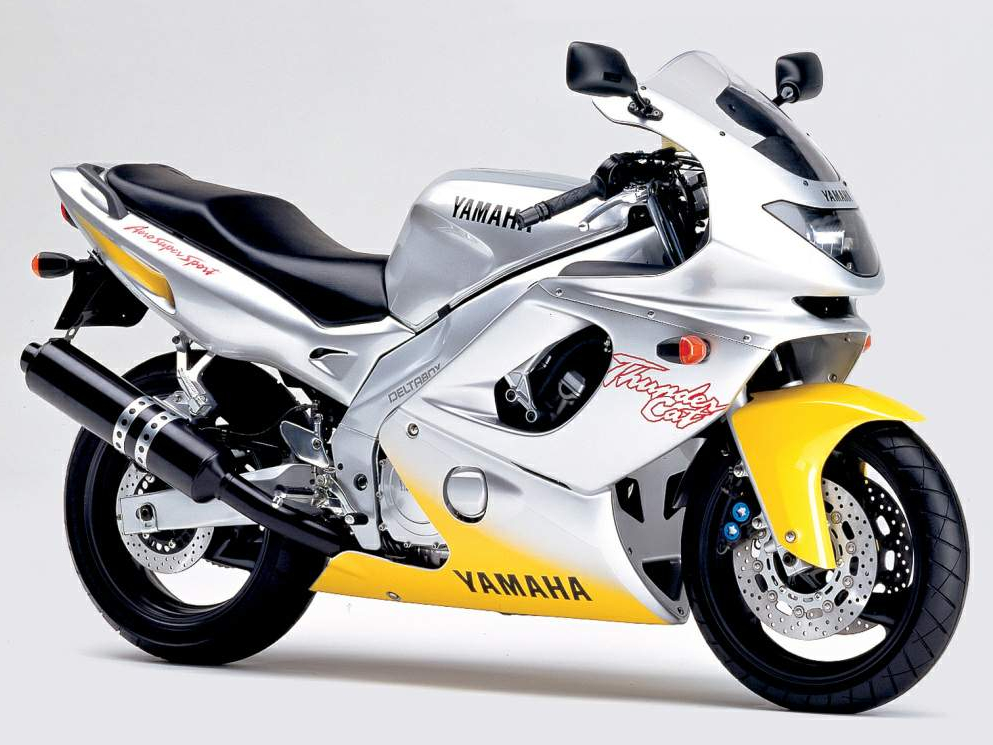

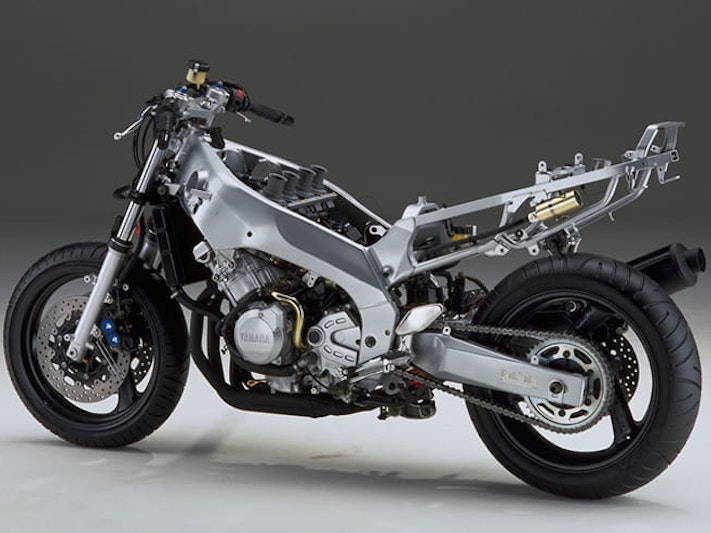

Yamaha YZF600R Thundercat 2002 blue dashboard Yamaha YZF600R Thundercat 1996 silver yellow front Yamaha YZF600R Thundercat 1996 frame
