Yamaha XSR900 (2025+)

XS850

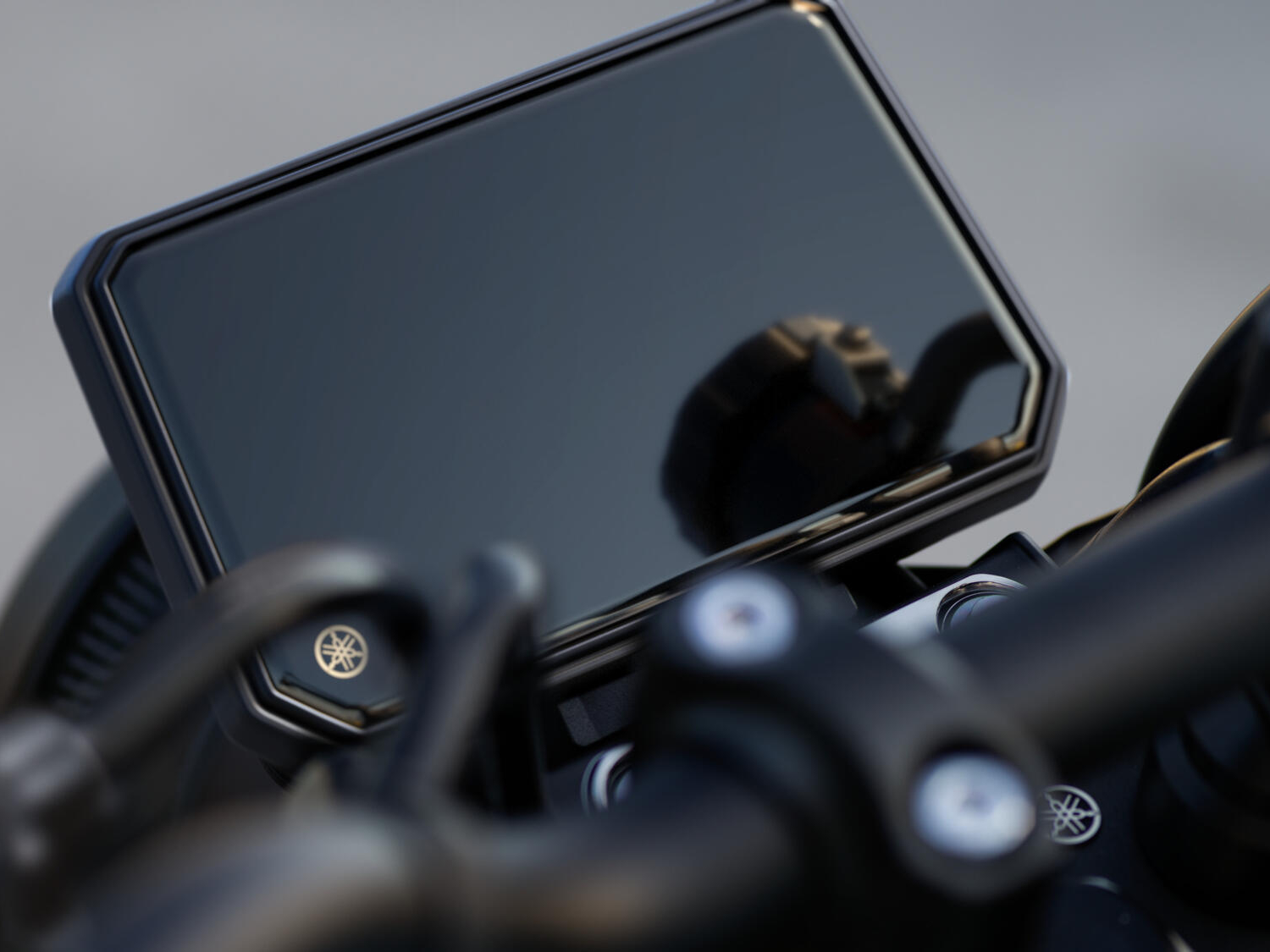

* Dashboard image with artistic rendering of the layout over the official image of a blank display, because Yamaha didn’t provide one with a working one. It’s probably the same display as the XSR900 GP. This is annoying, although it could be a bit of fun if anyone wants to give it a go: grab the blank image and draw your own dashboard. If it’s cool, it might be posted here.

Comparison with previous model.

Updated: 8 November 2024


Brand: Style:
Share:

Specifications and Features

Engine

890 cc Inline-3, liquid-cooled

Power

117 hp @ 10000 rpm

Power to weight ratio

61 HP/100kg

Torque

93 Nm @ 7000 rpm

Torque to weight ratio

48 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

14 litres

Length

2155 mm

Width

860 mm

Height

1155 mm

Weight

– 193 kg wet
– Max load: 221 kg

Seat Height

810 mm

Suspension

– Front: KYB 41 mm inverted fork, fully adjustable, 130 mm travel
– Rear: KYB mono-shock, fully adjustable, 137 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 298 mm discs, 4-piston radial calipers
– Rear: 245 mm disc, 1-piston caliper
– Cornering ABS available (adjustable)

Instruments

– 5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, average consumption, trip meter, ambient and engine temperature, clock
– Smartphone connectivity

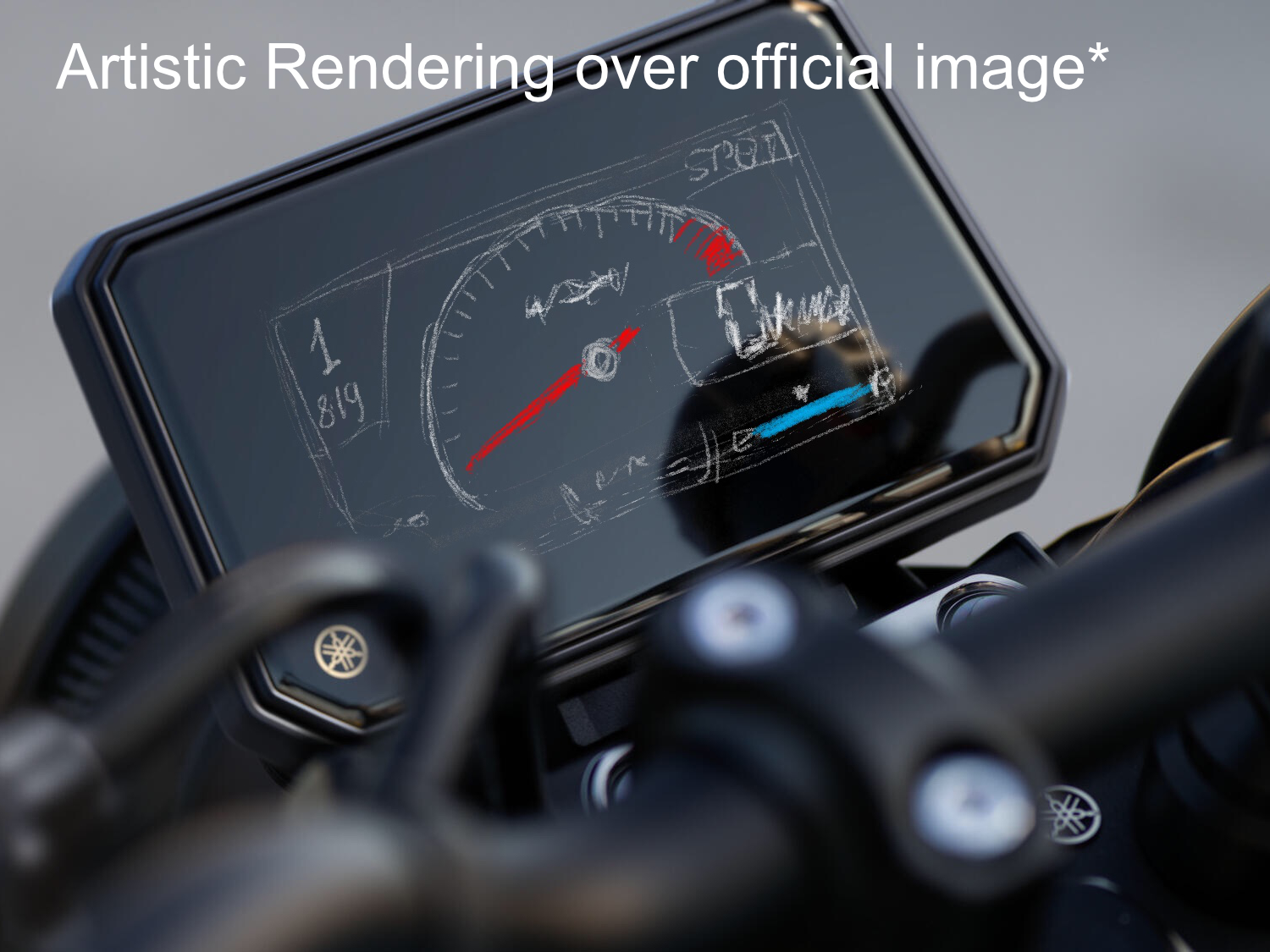

* Dashboard image with artistic rendering of the layout over the official image of a blank display

Other

– LED lights, self-cancelling indicators
– Riding modes, cornering traction control (adjustable), slide control, wheelie control, back slip regulator, speed limiter
– Cruise control, USB-C port on dash, adjustable hand levers and foot pegs (it appears to be in the lower position). Optional: heated grips

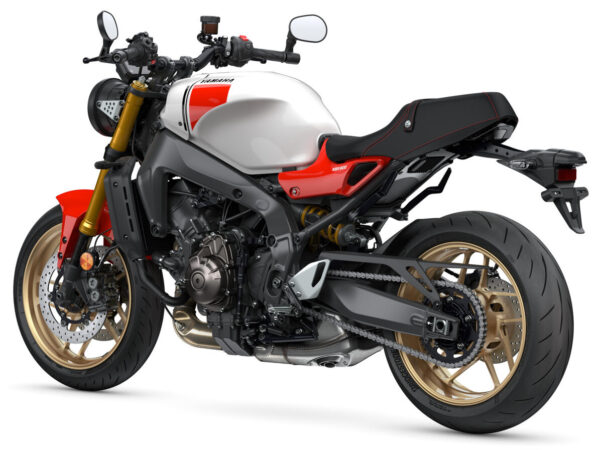

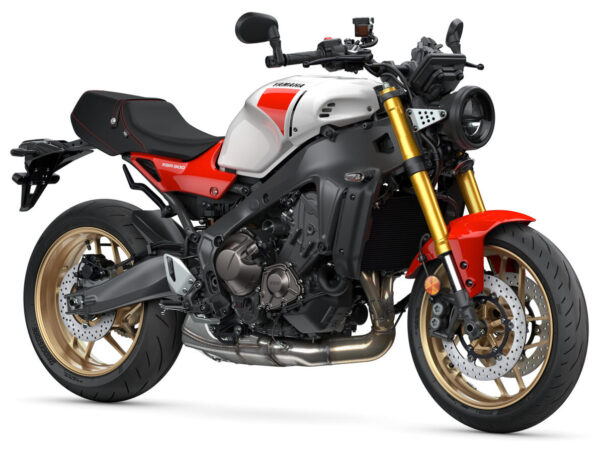

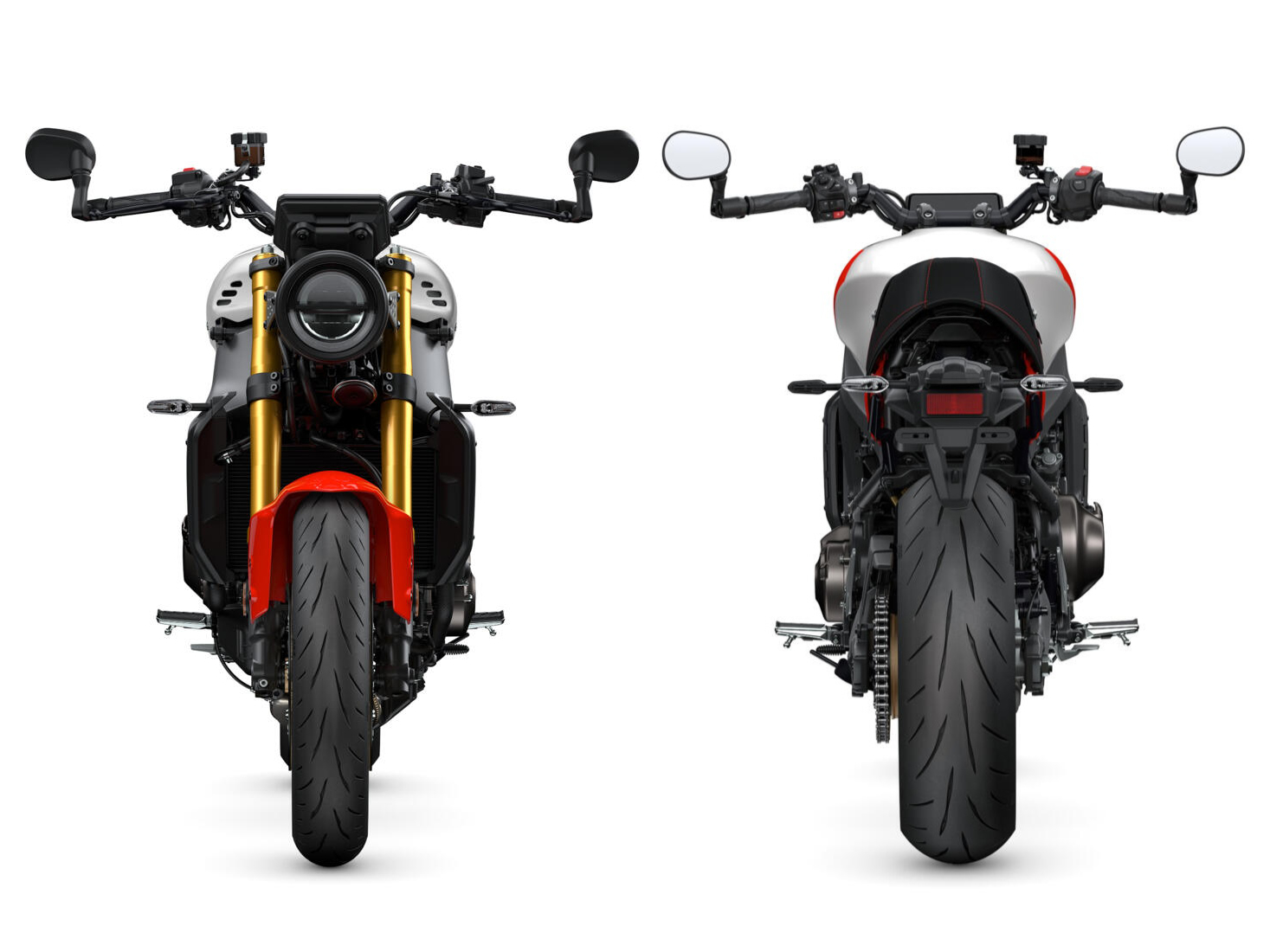

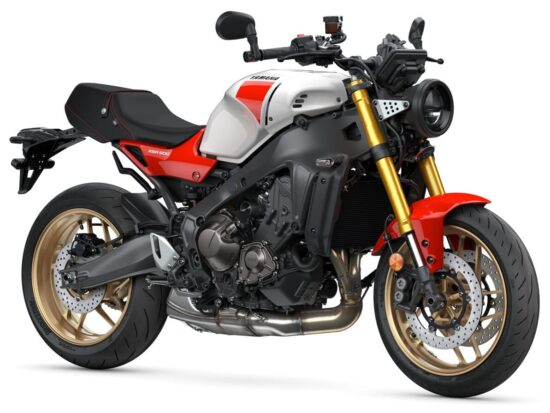

Yamaha XSR900 2025 Legend Red dashboard Yamaha XSR900 2025 Legend Red front Yamaha XSR900 2025 Legend Red back

Motorcycle gifts to celebrate it and support the website:
ride agency black hat
Click here to learn more.


Brand (multi-selection) ( - )

  • 20 Aprilia
  • 16 Benelli
  • 65 BMW
  • 1 BSA
  • 33 CFMoto
  • 59 Ducati
  • 5 Fantic
  • 52 Harley-Davidson
  • 150 Honda
  • 17 Husqvarna
  • 44 Indian
  • 105 Kawasaki
  • 2 Keeway
  • 32 KTM
  • 2 Kymco
  • 16 Moto Guzzi
  • 5 Moto Morini
  • 18 MV Agusta
  • 3 Other
  • 8 Piaggio
  • 17 Royal Enfield
  • 59 Suzuki
  • 65 Triumph
  • 13 Vespa
  • 6 Voge
  • 99 Yamaha

Horsepower

Style (multi-selection) ( - )

  • 126 Adv
  • 58 Adv Sports
  • 58 Classic
  • 108 Cruiser
  • 31 Dual-Sport
  • 227 Naked
  • 77 Scooter
  • 44 Scrambler
  • 133 Sport
  • 38 Sport Touring
  • 18 Supermoto
  • 48 Touring

Features (standard or optional) info Features (standard or optional) multi-selection ( - )

Power to weight ratio (HP/100kg) ( - )

Torque (Nm) ( - )

Torque to weight ratio (Nm/100kg) ( - )

Seat height (mm) ( - )

Weight (Kg) ( - )

Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

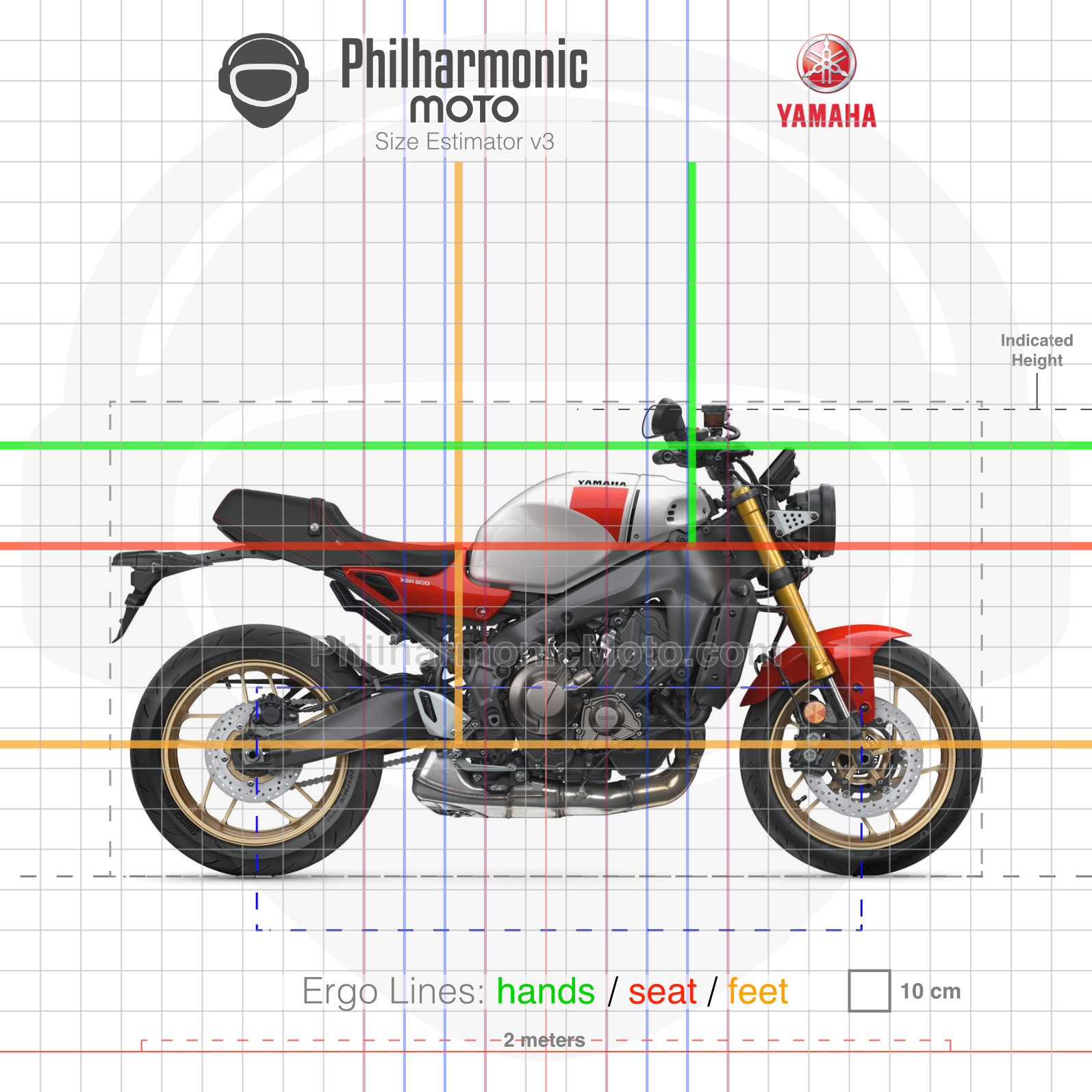

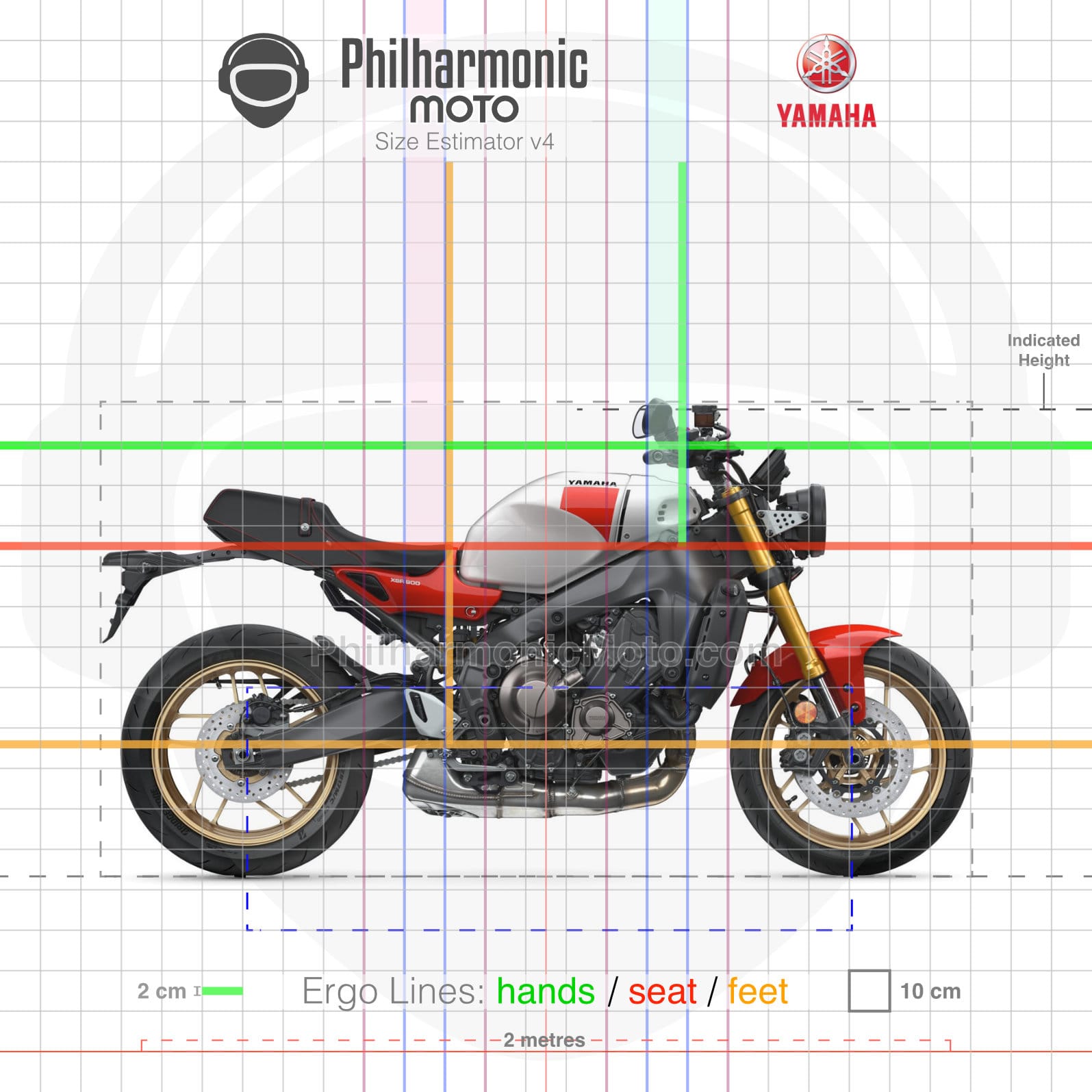

  • Size Estimator (see "About" page to learn more)
