KTM 200 Duke (2020-2023)

I love how KTM is like “The engine is more important and it should come before the model, and I don’t care if nobody will ever say its name right.”

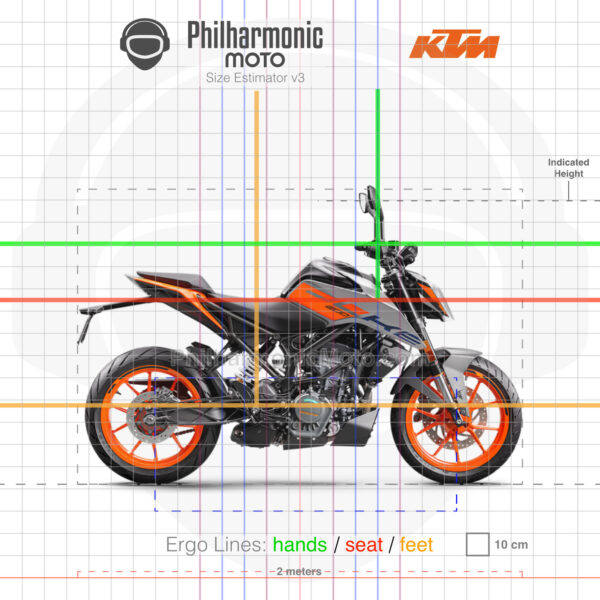

(Some dimensions are estimated based on the wheelbase, since KTM didn’t divulge them)

Brand: Style:
Share:

Specifications and Features

Engine

199,5 cc Single-cylinder, liquid-cooled

Power

25 hp @ 10000 rpm

Power to weight ratio

17 HP/100kg

Torque

19,3 Nm @ 8000 rpm

Torque to weight ratio

13 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

13,4 litres

Length

1961 mm (estimated)

Width

Height

1302 mm (estimated)

Weight

147 kg (estimated wet)

Seat Height

830 mm

Suspension

– Front: 43 mm inverted fork, 142 mm travel
– Rear: mono-shock, adjustable preload, 150 mm travel

Tyres

– Front: 110/70-17
– Rear: 150/60-17

Brakes

– Front: 300 mm disc, 4-piston radial caliper
– Rear: 230 mm disc, 1-piston floating caliper
– ABS available (switchable rear)

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, engine temperature, clock, shift-up indicator

Other

– LED lights

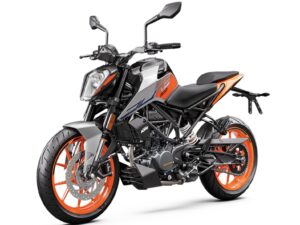

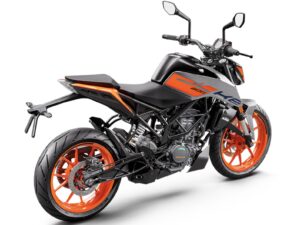

KTM 200 Duke 2023 dashboard KTM 200 Duke 2023 front KTM 200 Duke 2023 back
