Brutale  800 RR


Category: Tag:

Specifications

Engine

798 cc Inline Triple, liquid/oil cooled

Power

140 hp @ 12300 rpm

Torque

87 Nm @ 10250 rpm

Transmission

6-speed, wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive

Fuel Capacity

16,5 liters

Length

2045 mm

Width

875 mm

Height

1121 mm (estimated)

Weight

175 kg dry

Seat Height

830 mm

Suspension

– Front: Marzocchi 43 mm inverted forks, fully adjustable, 125 mm travel
– Rear: Sachs mono-shock, fully adjustable, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 320 mm floating discs, Brembo 4-piston radial calipers
– Rear: 220 mm disc, Brembo 2-piston caliper
– cornering ABS available with rear wheel lift-up mitigation

Instruments

TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock

Other

LED lights, traction control, torque control, cruise control, launch control, mobile connectivity, steering damper

Dashboard / Support us

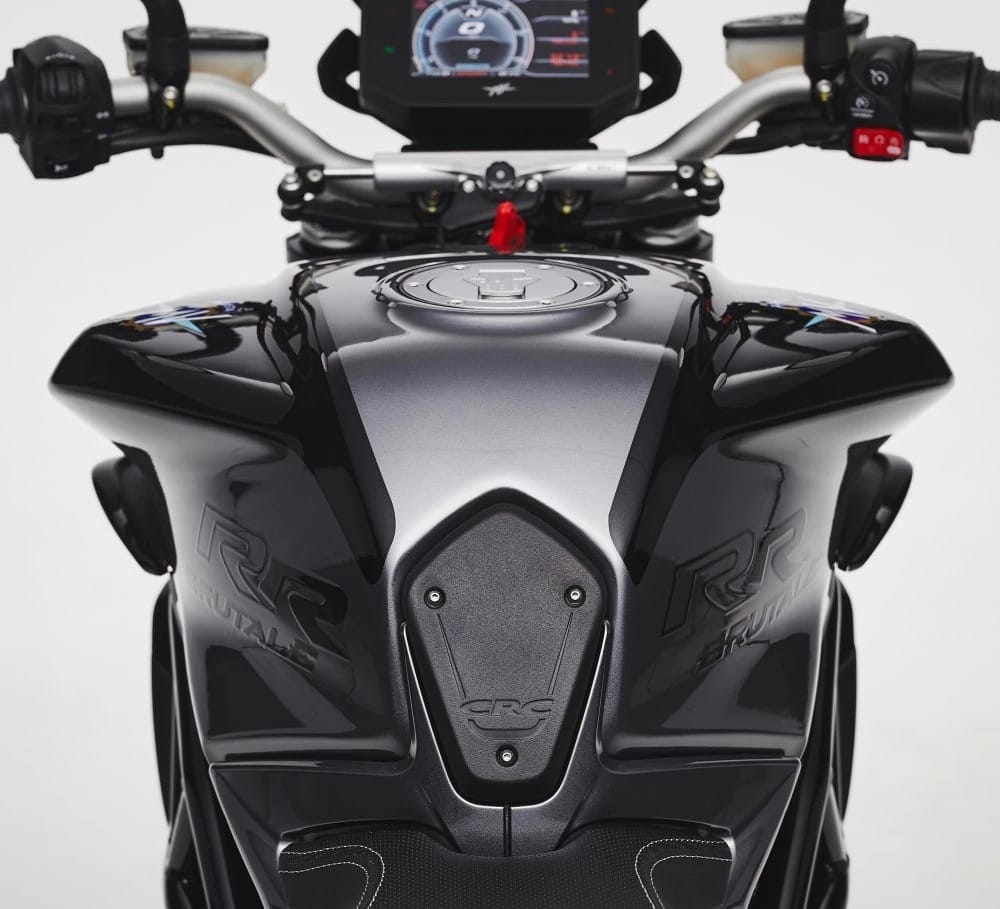

MV Agusta Brutale 800 RR 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsMV Agusta Brutale RR (2021+) removeHonda MSX125 Grom (2021+) removeKawasaki Z900 (2020+) removeHonda CB300F (2015-2021) removeKawasaki Z650 (2020-2022) removeKTM 390 Duke (2021+) remove
NameMV Agusta Brutale RR (2021+) removeHonda MSX125 Grom (2021+) removeKawasaki Z900 (2020+) removeHonda CB300F (2015-2021) removeKawasaki Z650 (2020-2022) removeKTM 390 Duke (2021+) remove
Size Estimator (see "About" page to learn more)MV Agusta Brutale 800 RR 2023 Shock Pearl Red Ago GreyHonda Grom MSX125 2021 Force Metallic SilverKawasaki Z900 2023 EBONY METALLIC MATTE GRAPHENE STEEL GRAYHonda CB300f 2017 silverKawasaki Z650 2021 Pearl Blizzard White Metallic Spark BlackKTM 390 Duke 2022 orange grey
Length2045 mm1760 mm2070 mm2035 mm2055 mm2002 mm
Width875 mm720 mm825 mm720 mm765 mm838 mm
Height1121 mm (estimated)1015 mm1080 mm1120 mm1065 mm1274 mm
Seat Height830 mm761 mm820 mm790 mm790 mm830 mm
Weight175 kg dry103 kg wet212 kg wet158 kg wet187 kg wet171 kg wet
Engine798 cc Inline Triple, liquid/oil cooled125 cc single-cylinder, air-cooled948cc Inline 4, liquid cooled, 16 valve DOHC286cc Single cylinder, Liquid cooled650 cc Parallel Twin, liquid-cooled373cc Single cylinder, liquid-cooled
Power140 hp @ 12300 rpm9,7 hp @ 7250 rpm123 hp @ 9500 rpm26 hp @ 8500 rpm67 hp @ 8000 rpm43 hp @ 9500 rpm
Torque87 Nm @ 10250 rpm10,5 Nm @ 5500 rpm98,6 Nm @ 7700 rpm27 Nm @7250 rpm64 Nm @ 6700 rpm37 Nm @ 7000 rpm
Transmission6-speed, wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive5-speed, wet multi-plate clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, assist/slip clutch, chain final drive
Fuel Capacity16,5 liters6 liters17 liters13 liters15 liters13,4 liters
Suspension- Front: Marzocchi 43 mm inverted forks, fully adjustable, 125 mm travel - Rear: Sachs mono-shock, fully adjustable, 130 mm travel- Front: 31 mm USD fork - Rear: mono-shock- Front: 41 mm inverted forks, rebound damping and preload adjustability - Rear: Horizontal Back-link, rebound damping and preload adjustability- Front: 37 mm telescopic fork, 120 mm travel - Rear: mono-shock, preload adjustable, 103 mm travel- Front: 41 mm telescopic fork, 125 mm travel - Rear: Horizontal Back-link single shock, adjustable preload, 130 mm travel- Front: 43 mm inverted forks, 142 mm travel - Rear: single shock, adjustable preload, 150 mm travel
Tyres- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-12 - Rear: 130/70-12- Front: 120/70-17 - Rear: 180/55-17- Front: 110/70-17 - Rear: 140/70-17- Front: 120/70Z-17 - Rear: 160/60-17- Front: 110/70-17 - Rear: 150/60-17
Brakes- Front: 320 mm floating discs, Brembo 4-piston radial calipers - Rear: 220 mm disc, Brembo 2-piston caliper - cornering ABS available with rear wheel lift-up mitigation- Front: 220 mm disc, 2-piston caliper - Rear: 190 mm disc, 1-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, opposed 4-piston calipers - Rear: 250 mm petal disc, Single-piston caliper- Front: 296 mm disc, 2-piston caliper - Rear: 220 mm disc, single-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, 2-piston calipers - Rear: 220 mm petal disc, 1-piston caliper - ABS available- Front: 320 mm disc, 4-piston caliper - Rear: 230 mm disc, single piston floating caliper - ABS available
InstrumentsTFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockLCD display with speedometer, odometer, tachometer, twin trip meters, gear indicator, fuel gauge average fuel consumption and clockTFT display with speedometer, tachometer, digital odometer, gear indicator, fuel gauge, average fuel, temperature gauge, dual trip meters, clock, mobile phone conectivityLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock
OtherLED lights, traction control, torque control, cruise control, launch control, mobile connectivity, steering damperLED headlight and tail lightLed lighting, traction control, riding modes-LED headlights, smartphone connectivityLED lights, supermoto mode, adjustable brake and clutch levers
