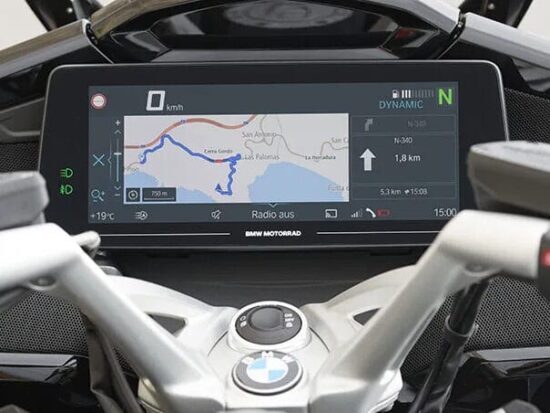

BMW K 1600 B 2022 dashboard

BMW K 1600 Grand America (2022+)

BMW K 1600 Grand America (2022+)

K1600


Category: Tag:

Specifications

Engine

1649 cc, Inline-6, oil/liquid cooled

Power

160 hp @ 6750 rpm

Torque

180 Nm @ 5250 rpm

Transmission

6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive

Fuel Capacity

26,5 liters

Length

2560 mm (over topcase)

Width

1000 mm (including side cases)

Height

1440/1580 mm (at windshield)

Weight

367 kg wet

Seat Height

750 mm

Suspension

– Front: BMW Motorrad Duolever, central spring strut, 115 mm travel
– Rear: BMW Motorrad Paralever, central spring strut, 125 mm travel
– Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 320 mm discs, 4-piston caliper
– Rear: 320 mm disc, 2-piston caliper
– cornering ABS available

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock

Other

LED lights, adaptive headlight, riding modes, traction control, Integral Panniers, smartphone connectivity, USB-C, floor lighting, cruise control, hill-start control, heated grips, heated seat, reversing aid, centre stand

Dashboard / Support us

BMW K 1600 B 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsBMW K 1600 Grand America (2022+) removeBMW F 850 GS (2021+) removeBMW F 850 GS Adventure (2021+) removeBMW S 1000 XR (2020+) removeBMW R 12 nineT (2024+) Preview removeBMW R NineT Scrambler (2021+) remove
NameBMW K 1600 Grand America (2022+) removeBMW F 850 GS (2021+) removeBMW F 850 GS Adventure (2021+) removeBMW S 1000 XR (2020+) removeBMW R 12 nineT (2024+) Preview removeBMW R NineT Scrambler (2021+) remove

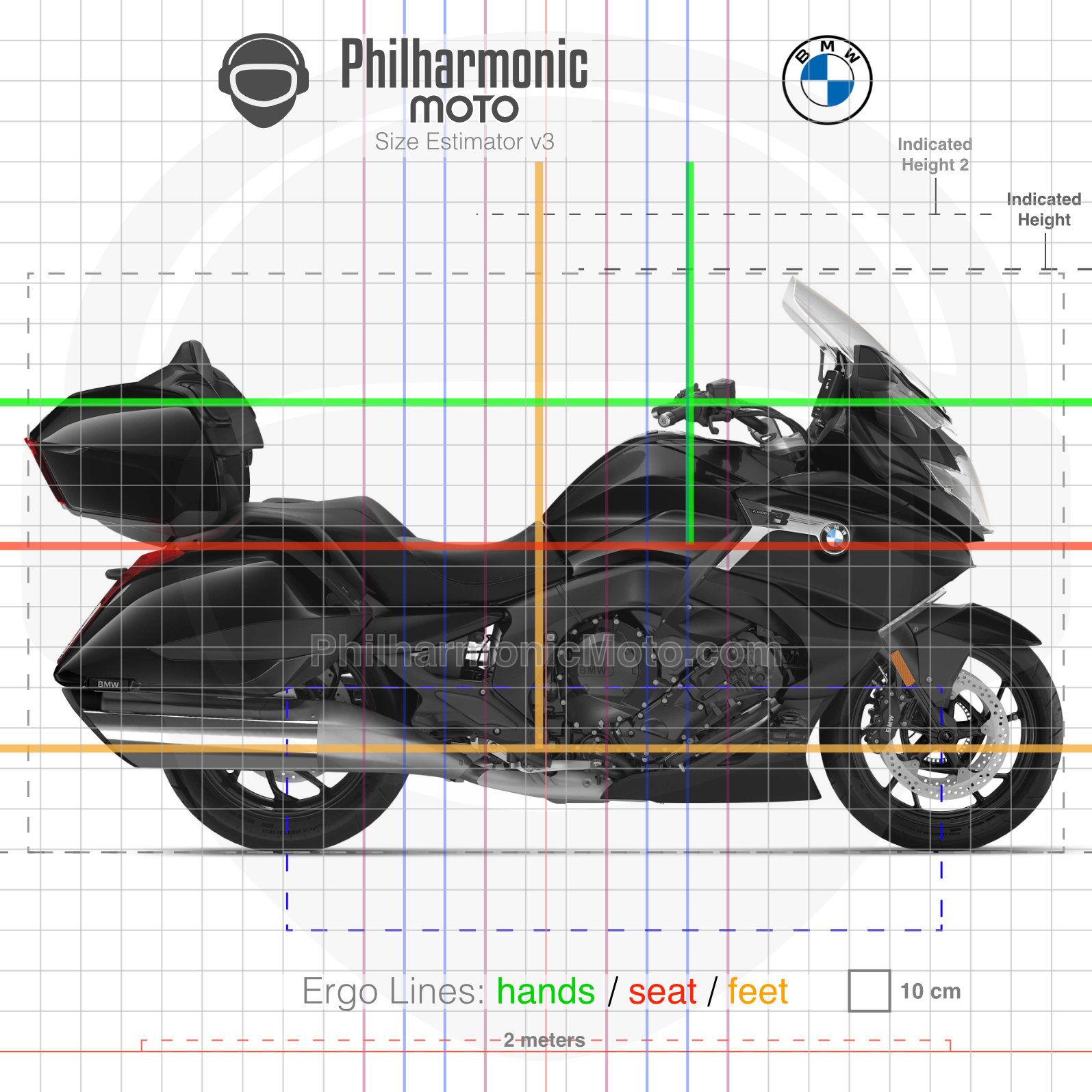

Size Estimator (see "About" page to learn more)BMW K 1600 Grand America Black Storm MetallicBMW F 850 GS 2023. Racing RedBMW F 850 GS Adventure 2021 greyBMW S 1000 XR 2020 Racing RedBMW R 12 nineT 2024 previewBMR R nineT Scrambler 2021 Granite Grey Metallic
Length2560 mm (over topcase)2305 mm2300 mm2162 mm (estimated)-2175 mm
Width1000 mm (including side cases)922 mm939 mm917 mm-865 mm (incl. hand levers)
Height1440/1580 mm (at windshield)1356 mm1437 mm1411 mm (excl. mirrors)-1330 mm (incl. mirrors)
Seat Height750 mm860 mm875 mm (OE suspension lowering kit: 815mm, OE low seat: 835mm, OE double seat: 860mm, OA rallye seat: 890mm)840 mm (seat lowered optional suspension: 790 mm)-820 mm
Weight367 kg wet233 kg wet244 kg wet226 kg wet-223 kg wet
Engine1649 cc, Inline-6, oil/liquid cooled853 cc Parallel-twin, liquid-cooled853 cc Parallel-twin, liquid-cooled999 cc, Inline-4, oil/liquid cooled1170 cc, 2-cylinder boxer, air/oil cooled1170 cc, 2-cylinder boxer, air/oil cooled
Power160 hp @ 6750 rpm90 hp @ 8000 rpm90 hp @ 8000 rpm165 hp @ 11000 rpm-109 hp @ 7250 rpm
Torque180 Nm @ 5250 rpm86 Nm @ 6250 rpm86 Nm @ 6250 rpm114 Nm @ 9250 rpm-116 Nm @ 6000 rpm
Transmission6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final driveShaft final drive6-speed, single dry plate hydraulic clutch, shaft final drive
Fuel Capacity26,5 liters15 liters23 liters20 liters-17 liters
Suspension- Front: BMW Motorrad Duolever, central spring strut, 115 mm travel - Rear: BMW Motorrad Paralever, central spring strut, 125 mm travel - Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation- Front: 43 mm telescopic fork, 230 mm travel - Rear: single shock, adjustable preload and rebound damping, 215 mm travel- Front: 43 mm telescopic fork, 230 mm travel - Rear: single shock, adjustable preload and rebound damping, 215 mm travel- Front: 45 mm inverted fork, electronic self-adjusting rebound/compression damping, 150 mm travel - Rear: mono-shock, electronic preload adjuster, electronic self-adjusting rebound/compression damping, 150 mm travel- Front: inverted fork - Rear: Paralever- Front: 43 mm telescopic fork, 125 mm travel - Rear: BMW Motorrad paralever, central spring strut, adjustable preload (remote), adjustable rebound damping, 140 mm travel
Tyres- Front: 120/70-17 - Rear: 190/55-17- Front: 90/90-21 - Rear: 150/70-17- Front: 90/90-21 - Rear: 150/70-17- Front: 120/70-17 - Rear: 190/55-17- Front: 17 - Rear: 17- Front: 120/70-19 - Rear: 170/60-17
Brakes- Front: 320 mm discs, 4-piston caliper - Rear: 320 mm disc, 2-piston caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 320 mm discs, 4-piston radial caliper - Rear: 265 mm disc, 2-piston floating caliper - cornering ABS available- Front: discs, monobloc radial 4-piston calipers - Rear: disc- Front: 320 mm discs, 4-piston calipers - Rear: 265 mm disc, 2-piston floating caliper - cornering ABS
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockAnalogue speedometer and tachometer, LCD displayAnalogue speedometer, digital odometer
OtherLED lights, adaptive headlight, riding modes, traction control, Integral Panniers, smartphone connectivity, USB-C, floor lighting, cruise control, hill-start control, heated grips, heated seat, reversing aid, centre standLED lights, riding modes, traction control, USB port, mobile phone connectivity, self-canceling indicatorsLED lights, riding modes, traction control, 12v socket, USB port, mobile phone connectivity, self-canceling indicators, enduro footpegs, skid plate, hand guardsLED lights, riding modes, traction control, engine brake control, USB port, smartphone connectivity, hill start control, self-canceling indicatorsLED lightsLED lights, Riding modes, USB, self-cancelling indicators
