Voge 525DSX (2023+)

Valico 525DSX, DS525X


Brand: Style:
Share:

Specifications and Features

Engine

494 cc Parallel-twin, liquid-cooled

Power

48 hp @ 8500 rpm

Power to weight ratio

23 HP/100kg

Torque

45 Nm @ 7000 rpm

Torque to weight ratio

22 Nm/100kg

Transmission

– 6-speed, wet multiplate slip/assist clutch
– Chain final drive

Fuel Capacity

16,5 litres

Length

2215 mm

Width

840 mm

Height

1365 mm

Weight

– 206 kg wet
– Max load: 150 kg

Seat Height

810/830 mm

Suspension

– Front: KYB 41 mm inverted fork, fully adjustable, 150 mm travel
– Rear: mono-shock, adjustable preload, 145 mm travel

Tyres

– Front: 110/80-19
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 298 mm floating discs, Nissin 2-piston calipers
– Rear: 240 mm disc, Nissin 1-piston caliper
– ABS available (switchable)

Instruments

– 7" LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, average consumption, trip meter, ambient and engine temperature, voltmeter, date, clock, navigation
– Smartphone connectivity

Other

– LED lights, auxiliary lights
– Riding modes, traction control (switchable)
– USB port and 12v socket on dash, adjustable brake and clutch levers, centre stand, TPMS, adjustable screen, front camera

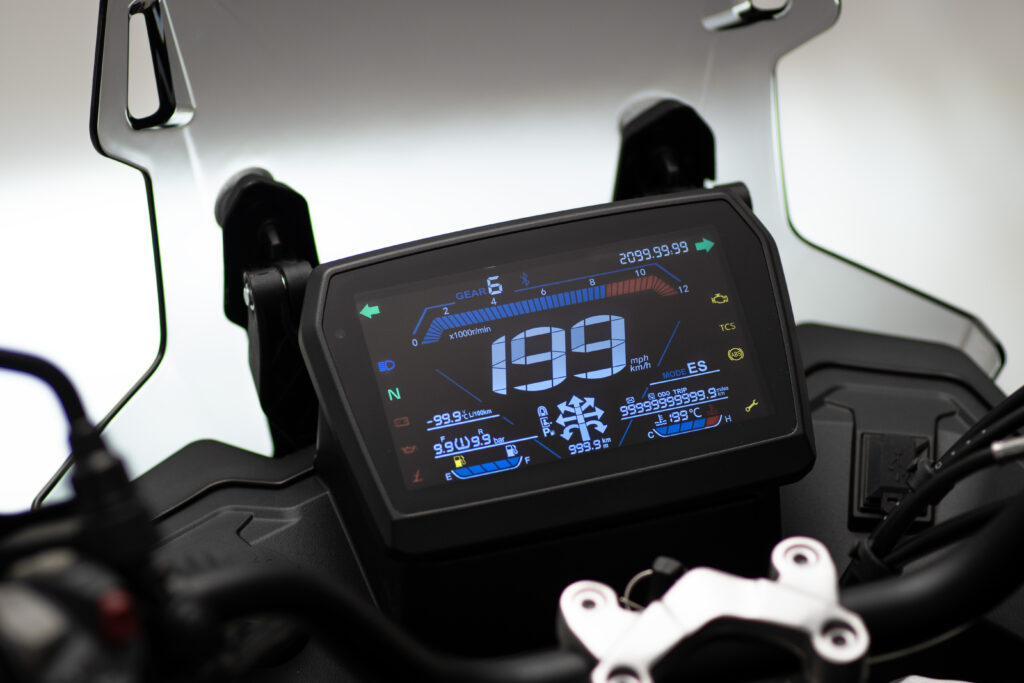

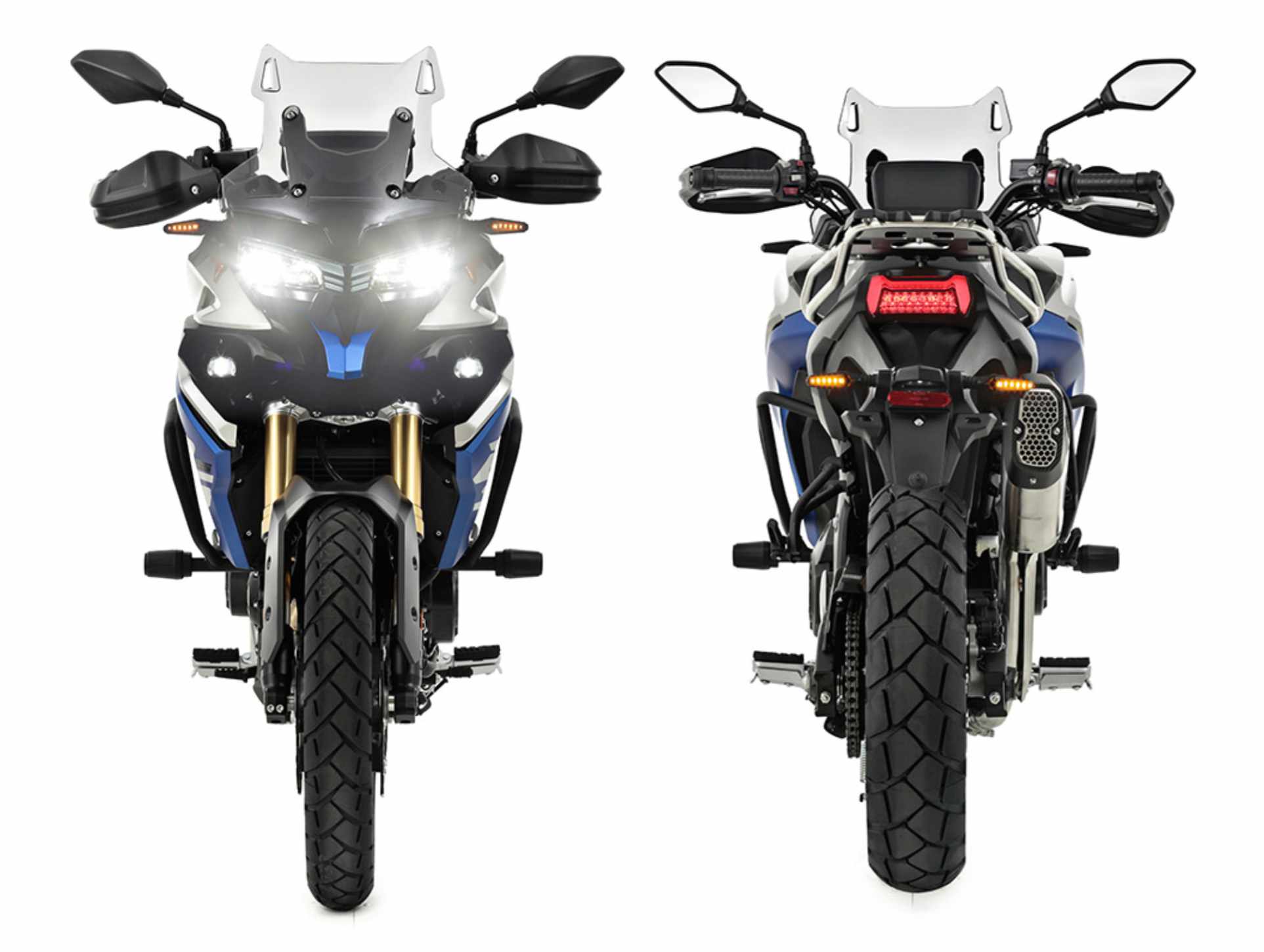

Voge 525DSX 2024 dashboard Voge 525DSX 2024 Sparkling Grey front Voge 525DSX 2024 Black Knight rear
