Yamaha NMAX 155 (2021+)

GPD155-A

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

155 cc Single-cylinder, liquid-cooled

Power

15 hp @ 8000 rpm

Power to weight ratio

12 HP/100kg

Torque

?

Torque to weight ratio

Transmission

– Automatic CVT
– Belt final drive

Fuel Capacity

7,1 litres

Length

1955 mm

Width

740 mm

Height

1115 mm

Weight

– 127 kg wet
– Max load: 167 kg

Seat Height

765 mm

Suspension

– Front: telescopic fork, 100 mm travel
– Rear: twin-shocks, 85 mm travel

Tyres

– Front: 110/70-13
– Rear: 130/70-13

Brakes

– Front: 230 mm disc
– Rear: 230 mm disc
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, fuel gauge, consumption, engine temperature, clock
– smartphone connectivity

Other

– LED headlight and taillight
– Keyless ignition and steering lock, 12v socket, 23 litres under seat storage, front storage, start-stop system

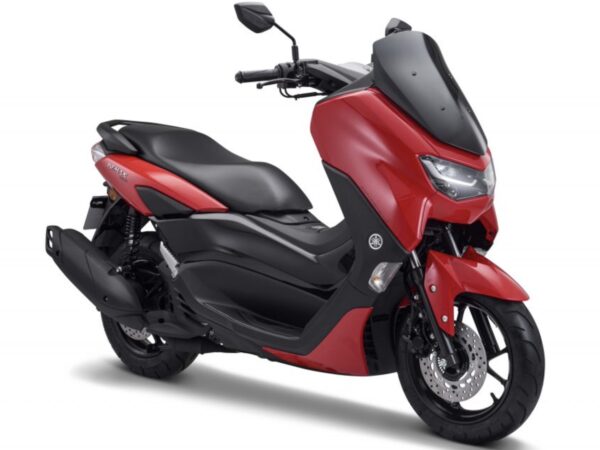

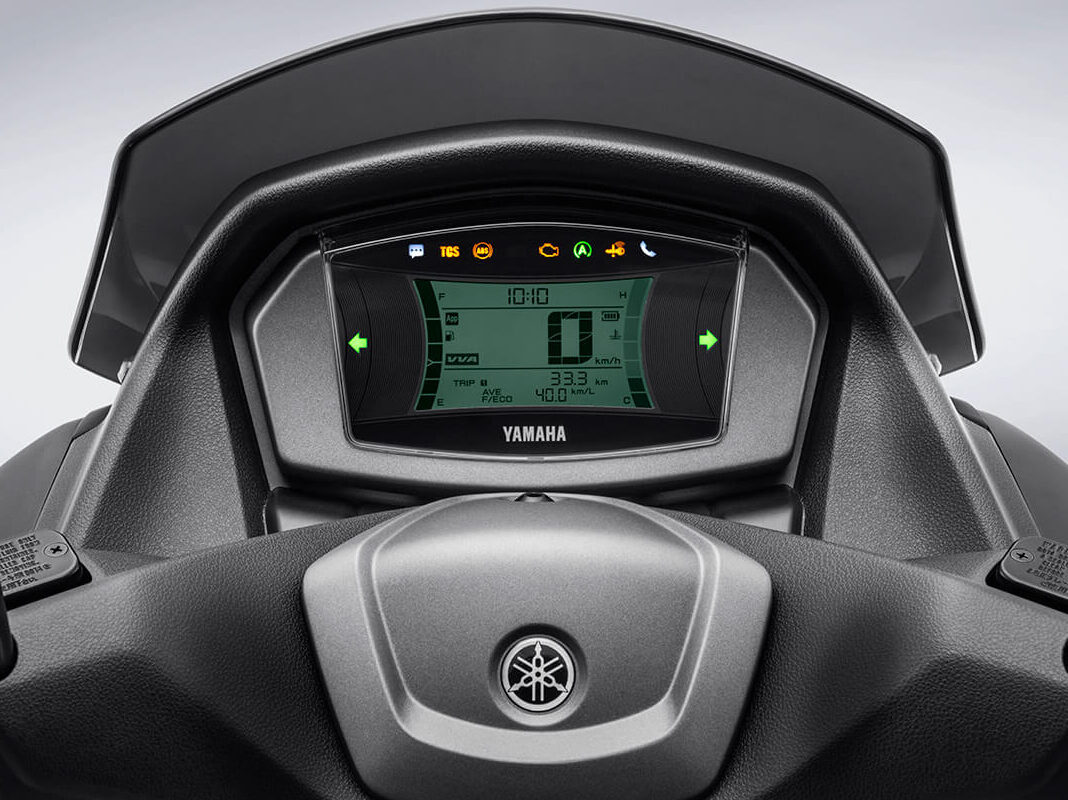

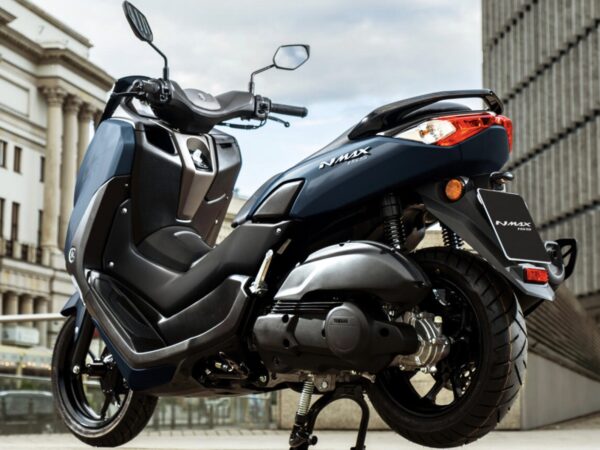

Yamaha NMAX 2023 dashboard Yamaha NMAX 155 2023 front Yamaha NMAX 155 2023 back
