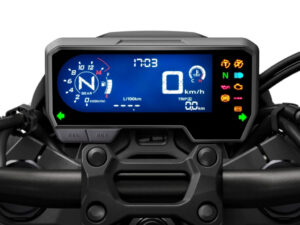

Honda CB650r 2022 dashboard

Honda CB650R (2021+)

Honda CB650R (2021+)

Category: Tag:

Specifications

Engine

649cc Inline 4, liquid cooled, 16 valve DOHC

Power

94 hp @ 12000 rpm

Torque

64 Nm @ 9500 rpm

Transmission

6-speed, Wet multi-plate assist/slip clutch, chain final drive

Fuel Capacity

15,4 liters

Length

2130 mm

Width

780 mm

Height

1075 mm

Weight

202 kg wet

Seat Height

810 mm

Suspension

– Front: 41 mm inverted telescopic fork, 108 mm travel,
– Rear: single shock, adjustable preload, 128 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 2x 310 mm discs
– Rear: 240 mm disc
– ABS available

Instruments

Digital speedometer, odometer, tachometer, gear indicator, fuel gauge, temperature gauge, trip meters, clock

Other

Traction control, LED lights, USB-C under seat

Dashboard / Support us

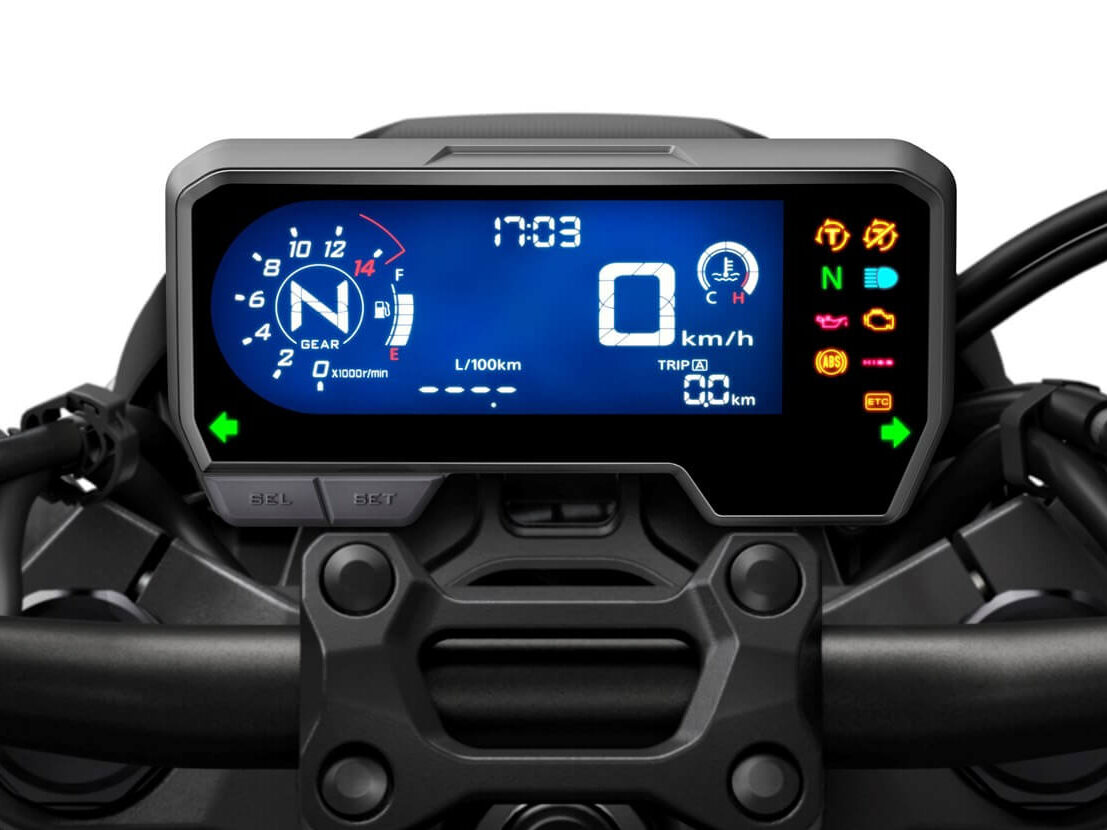

Honda CB650r 2022 dashboard



CB650R t-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CB650R (2021+) removeHonda CB500X (2022+) removeHonda CB250F Twister (2019+) removeHonda Rebel 1100/CMX1100 (2021+) removeHonda MSX125 Grom (2021+) removeHonda Goldwing (2019+) remove
NameHonda CB650R (2021+) removeHonda CB500X (2022+) removeHonda CB250F Twister (2019+) removeHonda Rebel 1100/CMX1100 (2021+) removeHonda MSX125 Grom (2021+) removeHonda Goldwing (2019+) remove

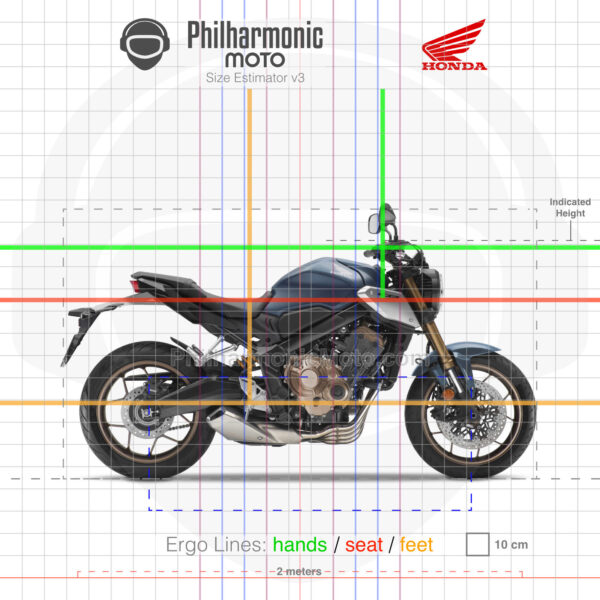

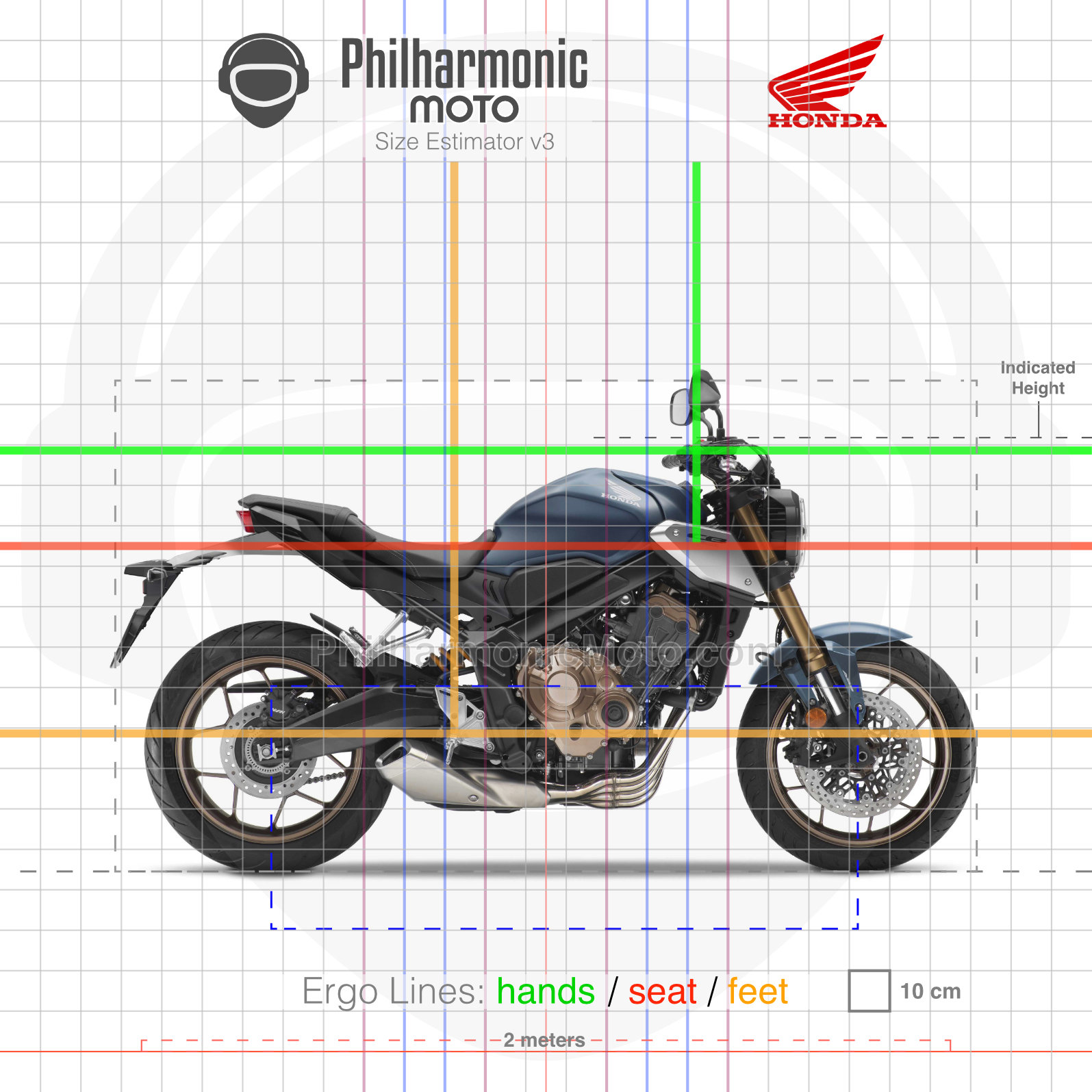

Size Estimator (see "About" page to learn more)Honda CB650R 2021 Matte Jeans Blue MetallicHonda CB500X 2022 Pearl Organic GreenHonda CB250F Twister ABS 2020 YellowHonda Rebel 1100 CMX1100 2022 Bordeaux Red MetallicHonda Grom MSX125 2021 Force Metallic SilverHonda Goldwing 2020 Matte Black Metallic
Length2130 mm2155 mm2065 mm2240 mm1760 mm2475 mm
Width780 mm830 mm753 mm850 mm (830 mm DCT)720 mm925 mm
Height1075 mm1410 mm / 1445 mm (Low/High screen position)1072 mm1115 mm1015 mm1340/1445 mm (low/high screen position)
Seat Height810 mm830 mm784 mm700 mm761 mm745 mm
Weight202 kg wet199 kg wet137 kg wet223 kg wet (233 kg DCT)103 kg wet364 kg wet
Engine649cc Inline 4, liquid cooled, 16 valve DOHC471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank249,5 cc Single-cylinder, air cooled1084cc Parallel Twin, liquid cooled, 270º crank125 cc single-cylinder, air-cooled1833 cc horizontally opposed 6-cylinder, liquid cooled
Power94 hp @ 12000 rpm47 hp @ 8600 rpm22,4 hp @ 7500 rpm87 hp @ 7000 rpm9,7 hp @ 7250 rpm125 hp @ 5500 rpm
Torque64 Nm @ 9500 rpm43 Nm @ 6500 rpm21 Nm @ 6000 rpm98 Nm @ 4750 rpm10,5 Nm @ 5500 rpm169 Nm @ 4500 rpm
Transmission6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed (manual or automatic/DCT), slip/assit clutch, chain final drive5-speed, wet multi-plate, chain final drive6-speed manual + reverse, wet multi-plate clutch, or 7-speed DCT + reverse, shaft final drive
Fuel Capacity15,4 liters17,5 liters16,5 liters13,6 liters6 liters21 liters
Suspension- Front: 41 mm inverted telescopic fork, 108 mm travel, - Rear: single shock, adjustable preload, 128 mm travel- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel- Front: telescopic fork, 130 mm travel - Rear: mono-shock, 108 mm travel- Front: 43 mm telescopic forks, adjustable preload, 122 mm travel - Rear: Dual shocks, adjustable preload, 94 mm travel- Front: 31 mm USD forks - Rear: mono-shock- Front: double wishbone, 110 mm travel - Rear: single shock, electronically adjustable preload, 105 mm travel
Tyres- Front: 120/70-17 - Rear: 180/55-17- Front: 110/80-19 - Rear: 160/60-17- Front: 110/70-17 - Rear: 140/70-17- Front: 130/70B18 M/C - Rear: 180/65B16 M/C- Front: 120/70-12 - Rear: 130/70-12- Front: 130/70-18 - Rear: 180/60-16
Brakes- Front: 2x 310 mm discs - Rear: 240 mm disc - ABS available- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper- Front: 276 mm disc - Rear: 220 mm disc - ABS available- Front: 300 mm floating disc, 4-piston caliper - Rear: 256 mm disc, 2-piston caliper, - ABS available- Front: 220 mm disc, 2-piston caliper - Rear: 190 mm disc, 1-piston caliper - ABS available- Front brake: 320 mm discs, six-piston Nissin calipers - Rear brake: 320 mm rear disc, six-piston Nissin caliper
InstrumentsDigital speedometer, odometer, tachometer, gear indicator, fuel gauge, temperature gauge, trip meters, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockInverted LCD display with speedometer, tachometer, gear-position indicator, a fuel-indicator, engine output mode, torque control level, engine braking modeLCD display with speedometer, tachometer, twin trip meters, gear indicator, fuel gauge average fuel consumption and clockAnalogue speedometer and tachometer, touchscreen with mobile connectivity, LCD displays with fuel gauge, temperature gauge, gear indicator, riding modes
OtherTraction control, LED lights, USB-C under seatLED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"LED indicatorsFull LED lighting, traction control, cruise control, wheelie control (!), USB-C under seat, three-liter underseat storageLED headlight and tail lightAirbag, LED lights, Riding modes, Apple CarPlay, traction control, cruise control, hill start assist, TPMS, seat heater
