Honda CRF300L Rally (2021-2024)

PredecessorSuccessor

Updated: 22 March 2025


Launch decade: Style: Brand:

Specifications and Features

Length

2330 mm

Width

920 mm

Height

1415 mm

Seat Height

885 mm

Weight

– 150 kg wet
– Max load: 148 kg

Engine

286 cc Single-cylinder, liquid-cooled

Power

27 hp @ 8500 rpm

Power to weight ratio

18 HP/100kg

Torque

27 Nm @ 6500 rpm

Torque to weight ratio

18 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

12,8 litres

Suspension

– Front: 43 mm inverted fork, 259 mm travel
– Rear: mono-shock, adjustable preload, 259 mm travel

Tyres

– Front: 80/100-21 (-53 cm)
– Rear: 120/80-18 (-46 cm)

Brakes

– Front: 256 mm disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available (switchable)

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, average speed, stopwatch, clock

Other

– LED headlight

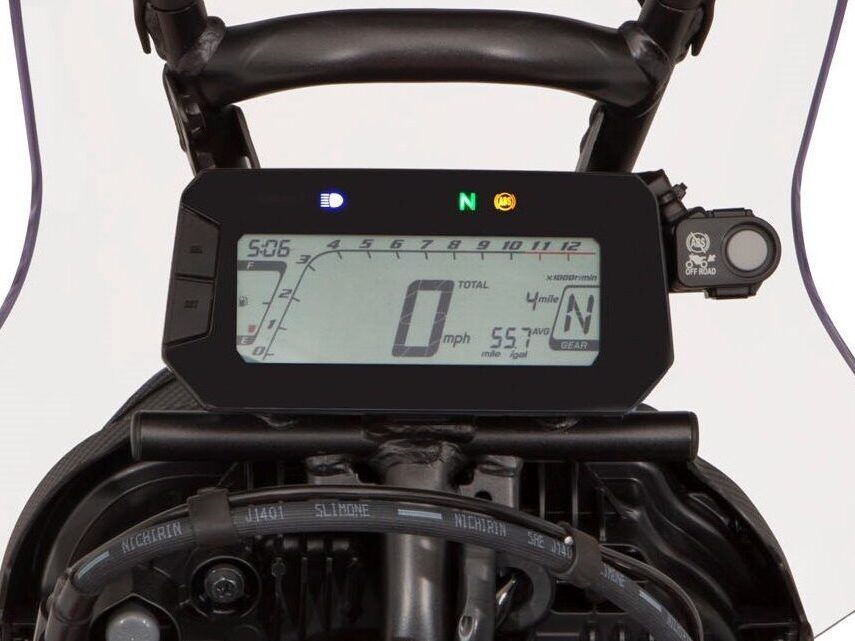

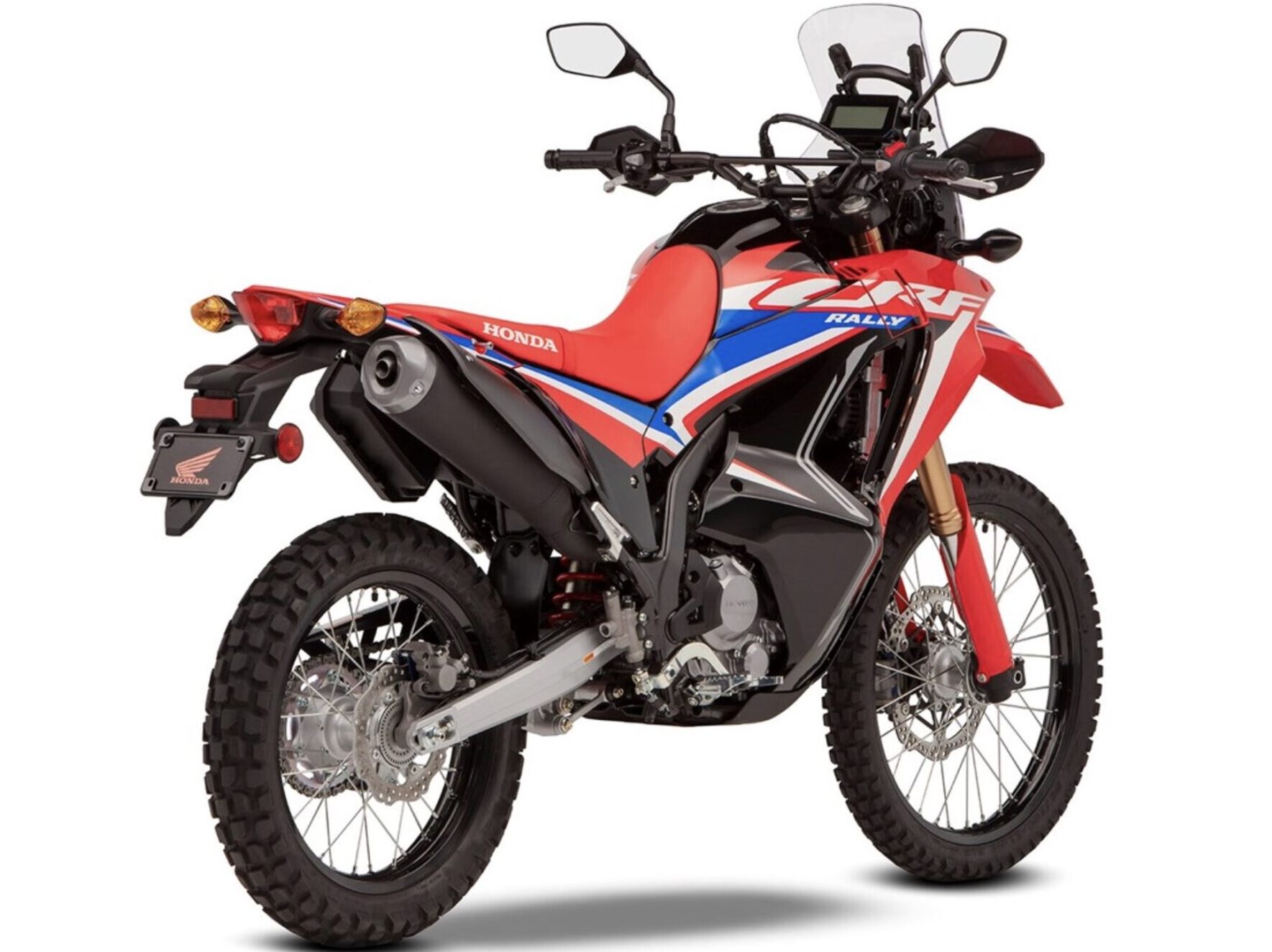

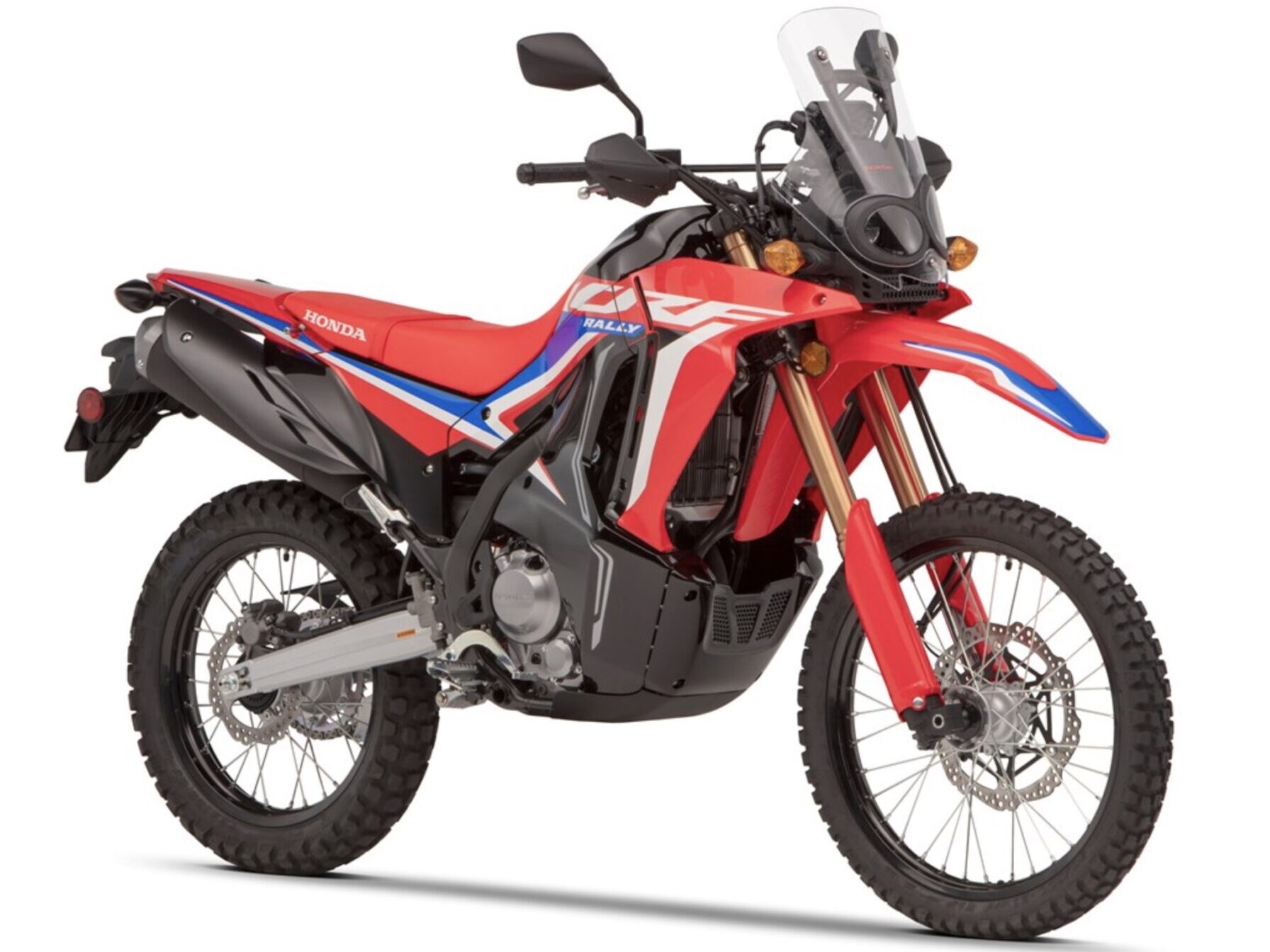

Honda CRF300L Rally 2021 dahsboard Honda CRF300 Rally 2023 front Honda CRF300 Rally 2023 back


32 38
Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

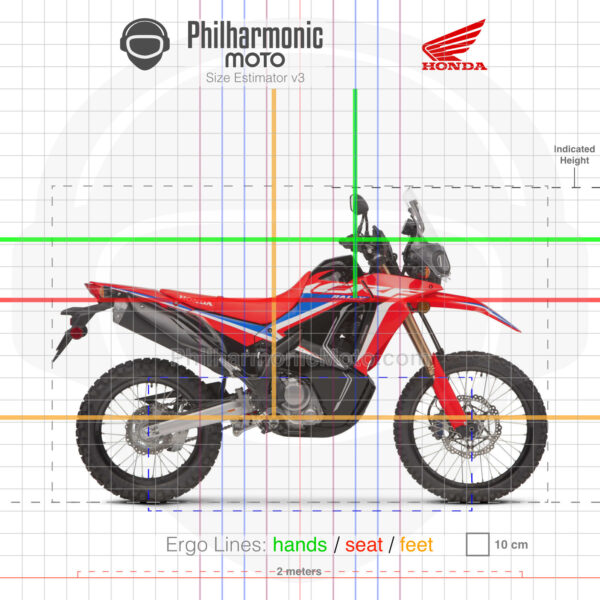

  • Size Estimator (see "About" page to learn more)
