Husqvarna Svartpilen 401 (2020-2023)

Some consider this a modern scrambler. Should we?

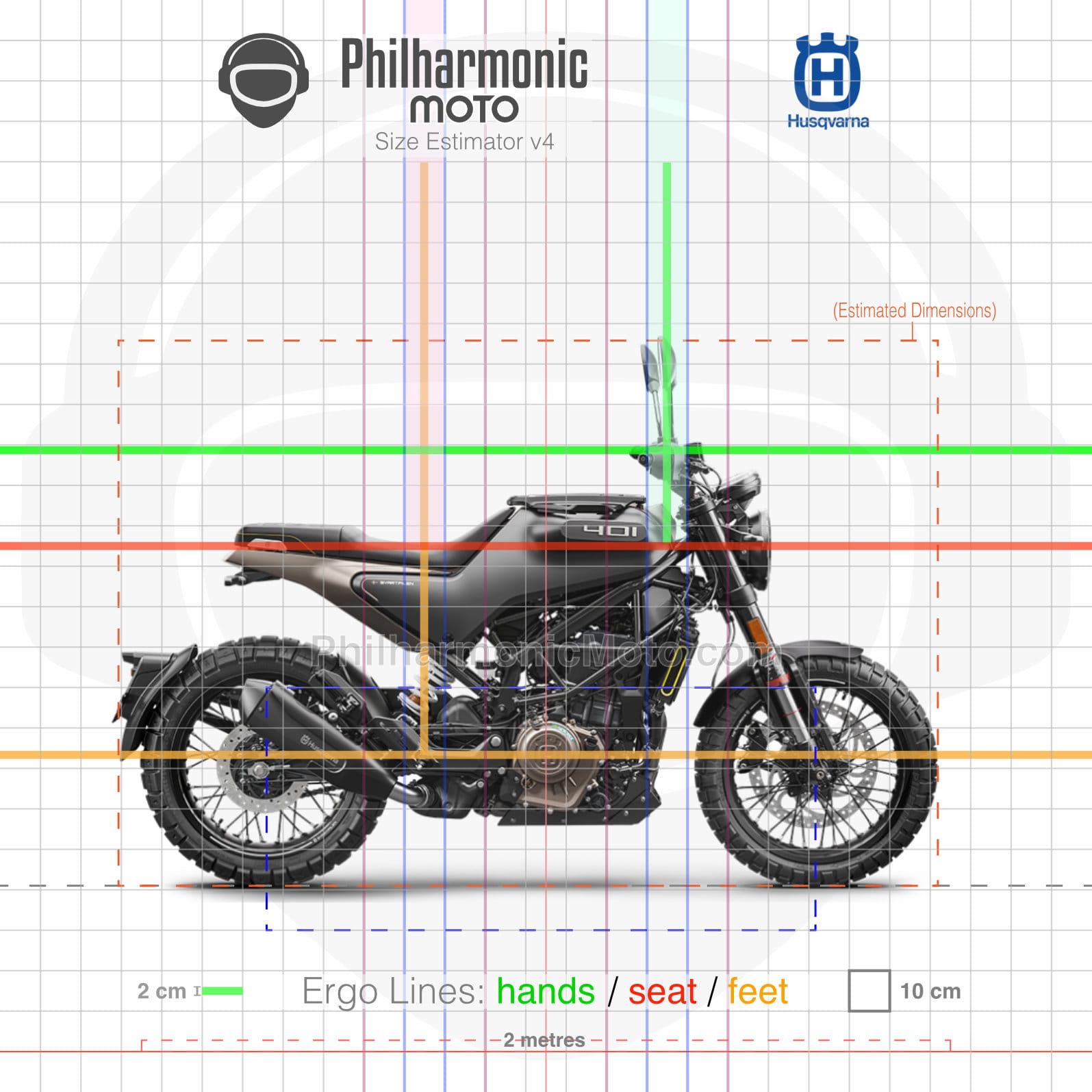

Estimated dimensions based on wheelbase since Husqvarna didn’t divulge them.

Brand: Style:
Share:

Specifications and Features

Engine

373 cc Single-cylinder, liquid-cooled

Power

43 hp @ 9000 rpm

Power to weight ratio

26 HP/100kg

Torque

37 Nm @ 7000 rpm

Torque to weight ratio

22 Nm/100kg

Transmission

– 6-speed, slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

9,5 litres

Length

2025 mm (estimated)

Width

Height

1348 mm (estimated)

Weight

165 kg (estimated wet)

Seat Height

835 mm

Suspension

– Front: 43 mm inverted fork, adjustable rebound and compression, 142 mm travel
– Rear: mono-shock, adjustable preload, 142 mm travel

Tyres

– Front: 110/70-17
– Rear: 150/60-17

Brakes

– Front: 320 mm disc, ByBre 4-piston caliper
– Rear: 230 mm disc, ByBre 1-piston floating caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, clock

Other

– LED lights

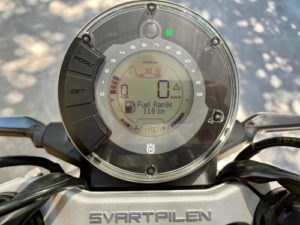

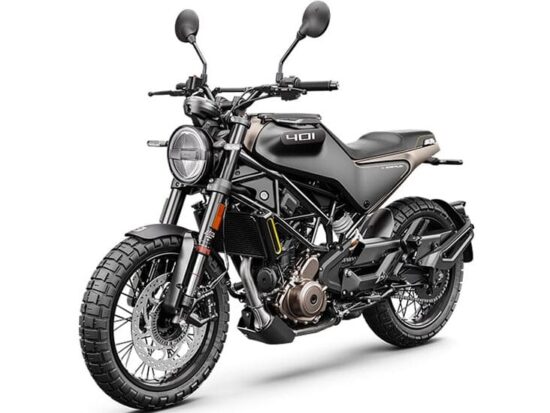

Husqvarna Svartpilen 401 dashboard 2023 Husqvarna Svartpilen 401 front 2023 Husqvarna Svartpilen 401 back
