22YM HONDA CB500X dashboard

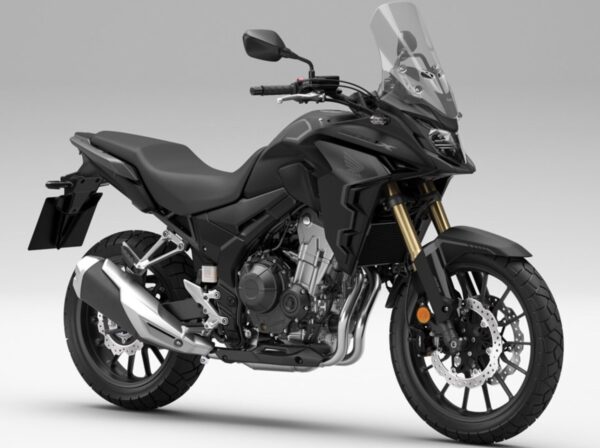

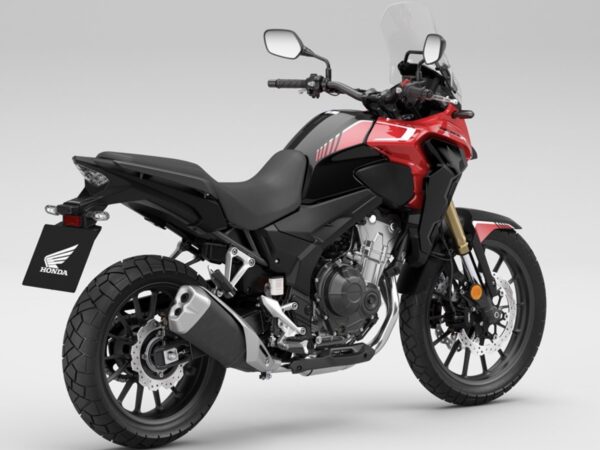

Honda CB500X (2022+)

Honda CB500X (2022+)

Category: Tag:

Specifications

Engine

471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank

Power

47 hp @ 8600 rpm

Torque

43 Nm @ 6500 rpm

Transmission

6-speed, Wet multi-plate assist/slip clutch, chain final drive

Fuel Capacity

17,5 liters

Length

2155 mm

Width

830 mm

Height

1410 mm / 1445 mm (Low/High screen position)

Weight

199 kg wet

Seat Height

830 mm

Suspension

– Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel
– Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel

Tyres

– Front: 110/80-19
– Rear: 160/60-17

Brakes

– Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers
– Rear: 240 mm disc, single-piston caliper

Instruments

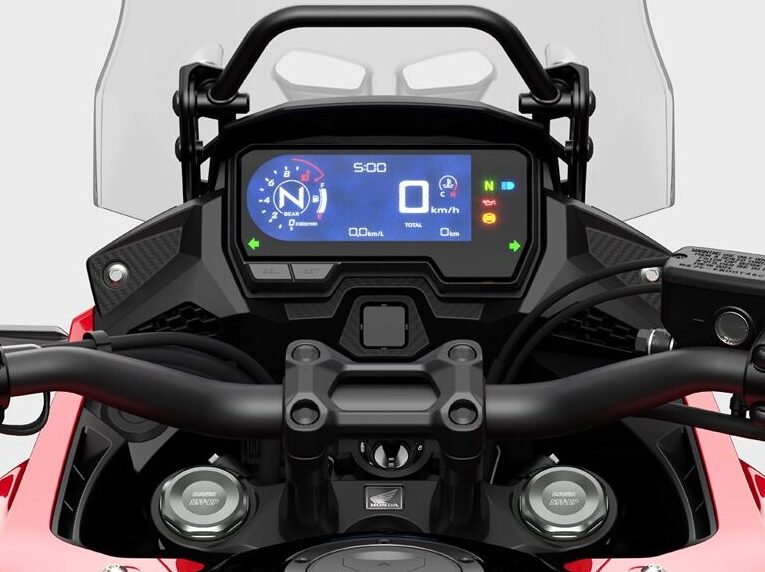

LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator

Other

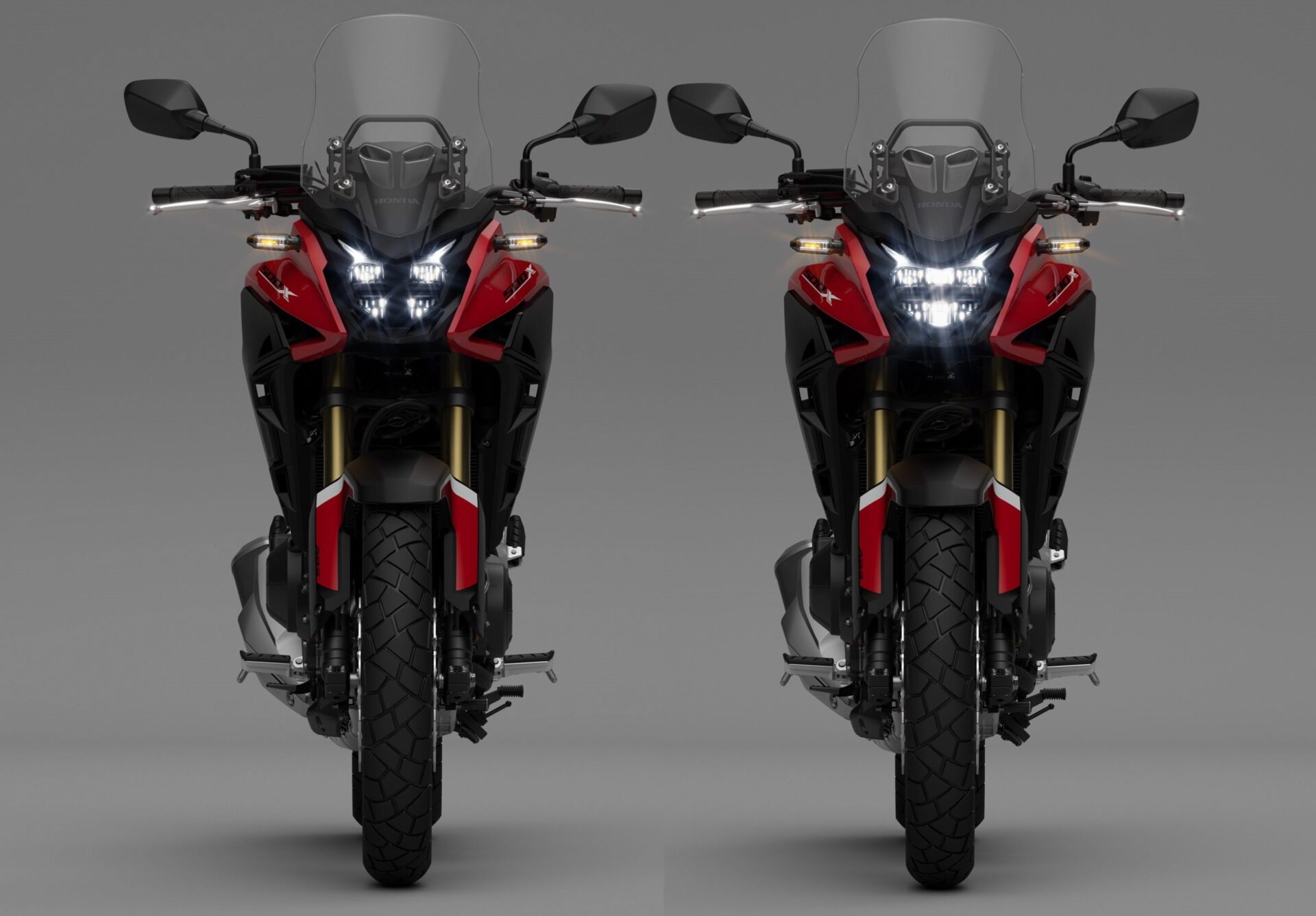

LED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"

Dashboard / Support us

22YM HONDA CB500X dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CB500X (2022+) removeSuzuki V-Strom 800DE (2023+) removeBMW G 310 GS (2021+) removeHarley-Davidson Pan America 1250 (2021+) removeBMW F 750 GS Sport (2018+) removeBMW F 750 GS (2018+) remove
NameHonda CB500X (2022+) removeSuzuki V-Strom 800DE (2023+) removeBMW G 310 GS (2021+) removeHarley-Davidson Pan America 1250 (2021+) removeBMW F 750 GS Sport (2018+) removeBMW F 750 GS (2018+) remove

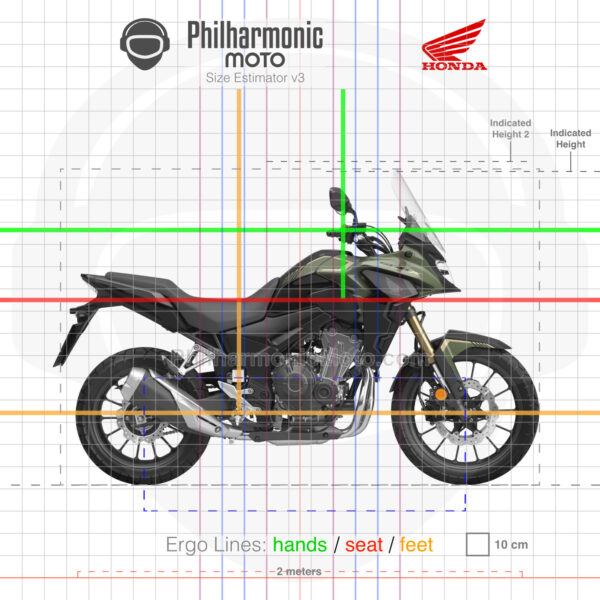

Size Estimator (see "About" page to learn more)Honda CB500X 2022 Pearl Organic GreenSuzuki V-Strom 800DE 2023 Glass Matt Mechanical GreyBMW G 310 GS 2021 Kyanite Blue MetallicHarley-Davidson Pan America 1250 2022 greyBMW F 750 GS Sport 2023 Light White Racing Blue Metallic Racing RedBMW F 750 GS 2023 Light White
Length2155 mm2345 mm2075 mm2270 mm2255 mm2255 mm
Width830 mm975 mm880 mm900 mm922 mm922 mm
Height1410 mm / 1445 mm (Low/High screen position)1310 mm1230 mm1510 mm1225 mm1225 mm
Seat Height830 mm855 mm835 mm850/875 mm (adjustable)815 mm815 mm
Weight199 kg wet230 kg wet175 kg wet245 kg wet227 kg wet227 kg wet
Engine471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank776 cc Parallel Twin, liquid-cooled, 270º crank313cc Single cylinder, liquid-cooled1252 cc V-Twin, liquid cooled853 cc Parallel-twin, liquid-cooled853 cc Parallel-twin, liquid-cooled
Power47 hp @ 8600 rpm84,3 hp @ 8500 rpm34 hp @ 9250 rpm150 hp @ 9000 rpm77 hp @ 7500 rpm77 hp @ 7500 rpm
Torque43 Nm @ 6500 rpm78 Nm @ 6800 rpm28 Nm @ 9250 rpm127 Nm @ 6750 rpm83 Nm @ 6000 rpm83 Nm @ 6000 rpm
Transmission6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, wet multi-plate assist/slip clutch, X-ring chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity17,5 liters20 liters11,5 liters21,2 liters15 liters15 liters
Suspension- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel- Front: Showa 43 mm inverted forks, fully adjustable, 220 mm travel - Rear: Showa mono-shock, fully adjustable, 220 mm travel- Front: 41 mm inverted forks, 180 mm travel - Rear: single shock, adjustable preload, 180 mm travel- Front: 47 mm inverted fork, rebound and spring preload adjustability, 191 mm travel - Rear: piggyback mono-shock, fully adjustable, 191 mm travel- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel
Tyres- Front: 110/80-19 - Rear: 160/60-17- Front: 90/90-21 - Rear: 150/70-17- Front: 110/80 R19 - Rear: 150/70 R17- Front: 120/70-19 - Rear: 170/60-17- Front: 110/80-19 - Rear: 150/70-17- Front: 110/80-19 - Rear: 150/70-17
Brakes- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper- Front: 310 mm discs, 2-piston Nissin calipers - Rear: 260 mm disc, 1-piston Nissin caliper - switchable ABS available- Front: 300 mm disc, 4-piston caliper - Rear: 240 mm disc, single piston floating caliper - ABS available- Front: 320 mm floating discs, monoblock 4-piston radial calipers - Rear: 280 mm disc, 1-piston floating caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available
InstrumentsLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorTFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clockLCD display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockTFT touchscreen with speedometer, tachometer, odometer, fuel gauge, gear indicator, trip meter, mobile phone connectivity, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
OtherLED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"LED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboardLED lights, adjustable brake and clutch leversLED lights, cornering traction control, wheelie control, riding modes, Tire Pressure Monitoring System (TPMS), hill hold, USB-C portLED lights, riding modes, traction control, engine brake control, USB port, mobile phone connectivity, self-canceling indicators, navigation preparation, tire pressure monitor, cruise control, heated grips, luggage rackLED lights, riding modes, traction control, USB port, mobile phone connectivity, self-canceling indicators
