6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive
Fuel Capacity
18,8 liters
Length
2330 mm
Width
960 mm
Height
1395 mm
Weight
226 kg (manual), 236 kg (DCT) wet
Seat Height
850/870 mm
Suspension
– Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel
– Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel
Tyres
– Front: 90/90-21
– Rear: 150/70-18
Brakes
– Front: 310 mm floating discs, 4-piston calipers
– Rear: 256 mm disc, single-piston caliper
– ABS available

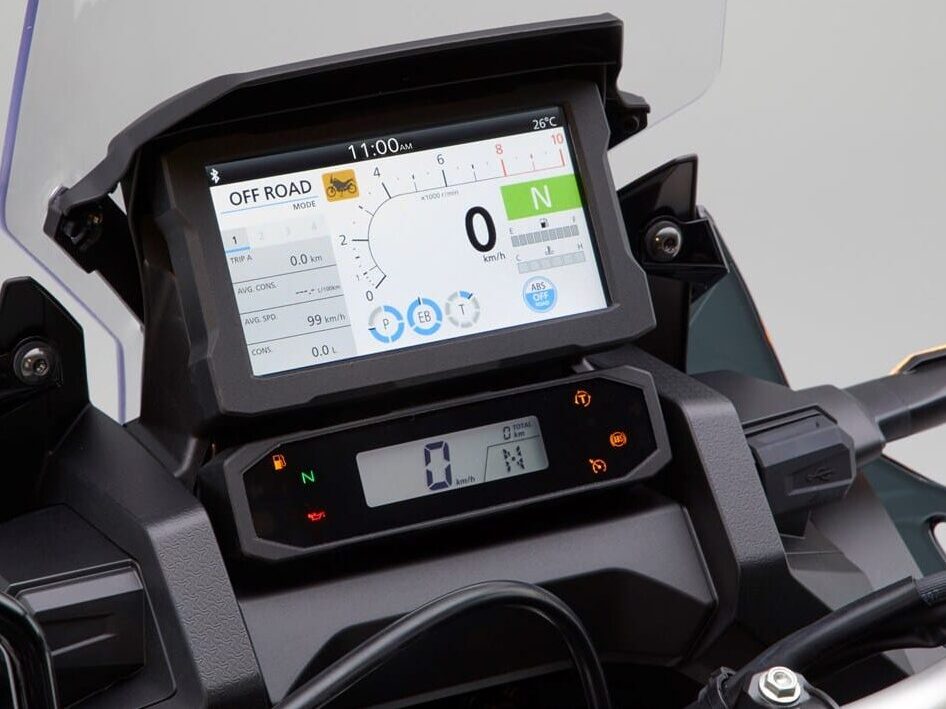

Instruments
– LCD display with speedometer, odometer, gear indicator
– TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android Auto
Other
LED lights, traction control, cruise control, wheelie control, USB socket, self-canceling indicators, riding modes, switchable cornering ABS
6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive
6-speed, Wet multi-plate clutch, chain final drive
5-speed, Wet multi-plate clutch, chain final drive
6-speed, wet multi-plate slip/assist clutch, chain final drive
6-speed, wet multi-plate slip/assist clutch, chain final drive
6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity
18,8 liters
20 liters
23 liters
20 liters
20 liters
20 liters
Suspension
- Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel
- Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel
- Front: 43 mm telescopic forks, adjustable preload, 150 mm travel
- Rear: mono-shock, adjustable preload and rebound, 159 mm travel
- Front: 41 mm telescopic forks, 200 mm travel
- Rear: Uni Trak, single shock, adjustable preload and rebound damping, 202 mm travel
- Front: 45 mm inverted fork, 180 mm travel
- Rear: mono-shock, preload adjustment, 170 mm travel
- Front: 45 mm inverted fork, 180 mm travel
- Rear: mono-shock, preload adjustment, 170 mm travel
- Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel
- Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel
Tyres
- Front: 90/90-21
- Rear: 150/70-18
- Front: 110/80-19
- Rear: 150/70-17
- Front: 90/90-21
- Rear: 130/80-17
- Front: 100/90-19
- Rear: 150/70-17
- Front: 100/90-19
- Rear: 150/70-17
- Front: 90/90-21
- Rear: 150/70-17
- Tubeless
Brakes
- Front: 310 mm floating discs, 4-piston calipers
- Rear: 256 mm disc, single-piston caliper
- ABS available
- Front: 310 mm discs, 2-piston calipers
- Rear: 260 mm disc, single-piston caliper
- ABS available
- Front: 300 mm disc, 2-piston caliper
- Rear: 240 mm disc, 2-piston caliper
- ABS available
- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers
- Rear: 255 mm disc, Brembo 1-piston sliding caliper
- ABS available
- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers
- Rear: 255 mm disc, Brembo 1-piston sliding caliper
- ABS available
- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers
- Rear: 255 mm disc, Brembo 1-piston sliding caliper
- cornering ABS available
Instruments
- LCD display with speedometer, odometer, gear indicator
- TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android Auto
Analogue tachometer, LCD display with odometer, dual trip meter, traction control modes, gear position, coolant and ambient temperature, fuel consumption, fuel gauge, and clock
If Triumph Tigers someday become classic and desirable collectibles, this bike would probably be valuable, since the manufacturer discontinued this basic non-GT, non-Rally model after only one year, replacing it with the Tiger 850 Sport.
