Triumph Tiger 850 Sport 2021 Graphite and Diablo Red

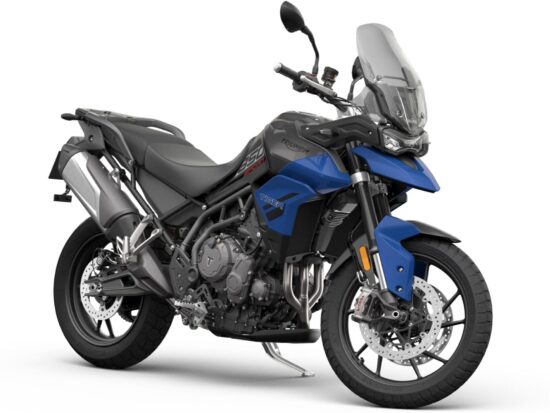

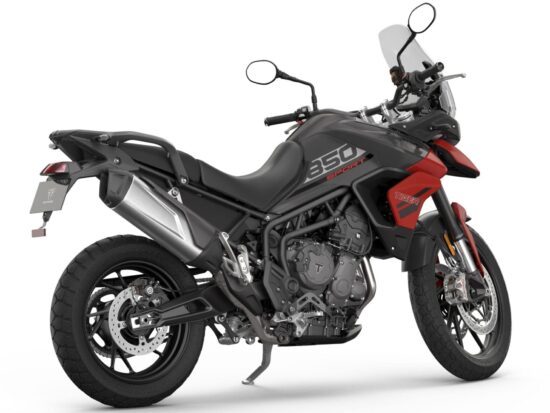

Triumph Tiger 850 Sport (2021+)

Category: Triumph Tag: Adventure

Specifications

Engine	888 cc Inline Triple, liquid-cooled
Power	84 hp @ 8500 rpm
Torque	82 Nm @ 6500 rpm
Transmission	6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity	20 liters
Length	2248 mm
Width	830 mm
Height	1410 mm / 1460 mm (low/high screen position)
Weight	192 kg dry
Seat Height	810-830 mm (adjustable)
Suspension	– Front: 45 mm inverted fork, 180 mm travel – Rear: mono-shock, preload adjustment, 170 mm travel
Tyres	– Front: 100/90-19 – Rear: 150/70-17
Brakes	– Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers – Rear: 255 mm disc, Brembo 1-piston sliding caliper – ABS available

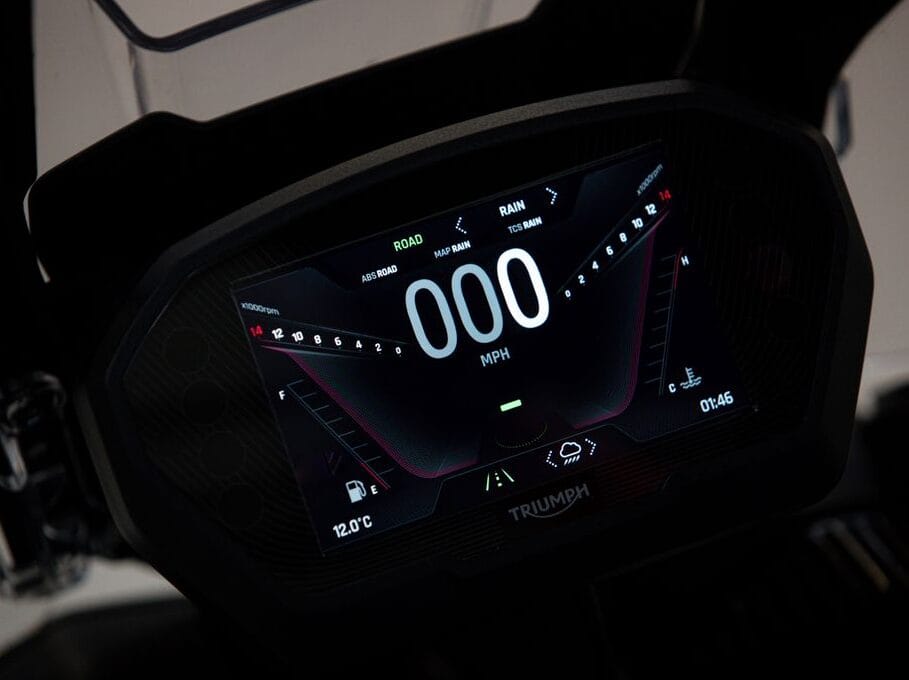

Instruments	5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
Other	LED lights, Riding modes, switchable traction control, 12v power socket

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Triumph Tiger 850 Sport (2021+) remove	Triumph Scrambler 1200 XC (2019+) remove	Triumph Speed Triple 1200 RS (2021+) remove	Triumph Speed Twin (2019-2020) remove	Triumph Street Twin (2019-2022) remove	Triumph Tiger 900 GT Pro (2020+) remove
Name	Triumph Tiger 850 Sport (2021+) remove	Triumph Scrambler 1200 XC (2019+) remove	Triumph Speed Triple 1200 RS (2021+) remove	Triumph Speed Twin (2019-2020) remove	Triumph Street Twin (2019-2022) remove	Triumph Tiger 900 GT Pro (2020+) remove

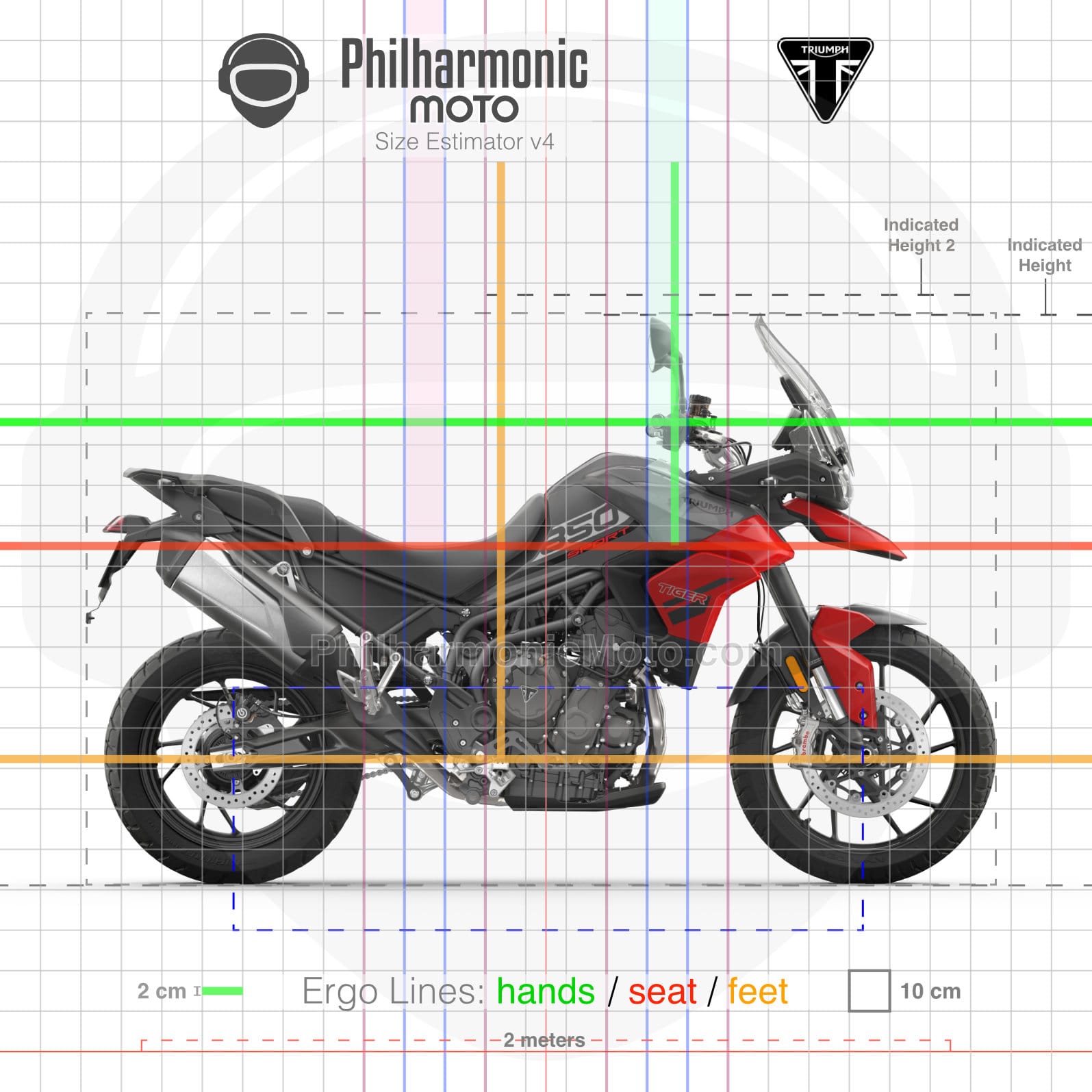

Size Estimator (see "About" page to learn more)
Length	2248 mm	2285 mm	2090 mm	2078 mm (estimated)	2090 mm	2229 mm (estimated)
Width	830 mm	840 mm	792 mm (handlebars)	760 mm (handlebars)	785 mm	930 mm
Height	1410 mm / 1460 mm (low/high screen position)	1200 mm	1089 mm	1110 mm	1114 mm	1410 mm / 1460 mm (low/high screen position)
Seat Height	810-830 mm (adjustable)	840 mm	830 mm	807 mm	760 mm	810-830 mm (adjustable)
Weight	192 kg dry	230 kg wet	198 kg wet	196 kg wet	215 kg wet	198 kg dry
Engine	888 cc Inline Triple, liquid-cooled	1200 cc Parallel-Twin, liquid -cooled, 270º crank	1160 cc Inline Triple, liquid cooled	1200 cc Parallel Twin, liquid-cooled, 270º crank	900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank	888 cc Inline Triple, liquid-cooled
Power	84 hp @ 8500 rpm	89 hp @ 7400 rpm	177,5 hp @ 10750 rpm	96 hp @ 6750 rpm	64 hp @ 7500 rpm	93,9 hp @ 8750 rpm
Torque	82 Nm @ 6500 rpm	110 Nm @ 3950 rpm	125 Nm @ 9000 rpm	112 Nm @ 4950 rpm	80 Nm @ 3800 rpm	87 Nm @ 7250 rpm
Transmission	6-speed, wet multi-plate slip/assist clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	5-speed, Wet multi-plate assist clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive
Fuel Capacity	20 liters	16 liters	15,5 liters	14,5 liters	12 liters	20 liters
Suspension	- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel	- Front: Showa 45 mm fully adjustable USD fork, 200 mm travel - Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 200 mm travel.	- Front: Öhlins 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: Öhlins mono-shock, fully adjustable, 120 mm travel	– Front: 41 mm cartridge forks, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel	- Front: KYB 41mm cartridge forks, 120 mm travel - Rear: KYB twin shocks with adjustable preload, 120 mm travel	- Front: 45 mm inverted fork, manual rebound and compression damping adjustment, 180mm travel - Rear: mono-shock, electronically adjustable preload and rebound damping, 170 mm travel
Tyres	- Front: 100/90-19 - Rear: 150/70-17	- Front: 90/90-21 - Rear: 150/70-17 - Tubeless	- Front: 120/70-17 - Rear: 190/55-17	- Front: 120/70-17 - Rear: 160/60-17	- Front: 100/90-18 - Rear: 150/70-17 - Tubeless	- Front: 100/90-19 - Rear: 150/70-17
Brakes	- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available	- Front: 320 mm discs, Brembo monoblock calipers - Rear: 255 mm disc, Brembo 2-piston floating caliper - switchable ABS available	- Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial monobloc calipers, radial master cylinder with separate reservoir, span & ratio adjustable - Rear: 220 mm disc, Brembo 2-piston caliper, Rear master cylinder with separate reservoir - cornering ABS available	- Front: 305 mm discs, Brembo 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available	- Front: 310mm disc, Brembo 4-piston caliper - Rear: 255mm disc, Nissin 2-piston floating caliper - ABS available	- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available
Instruments	5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock	TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock	TFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock	Analogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption	Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computer	7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
Other	LED lights, Riding modes, switchable traction control, 12v power socket	Led lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, USB under seat	LED lights, Riding modes, switchable cornering traction control, wheelie control, adjustable levers, full keyless system, illuminated switches, cruise control, smartphone connectivity	Led tail light and indicators, switchable traction control, riding modes, USB under seat	LED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socket	LED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre stand
