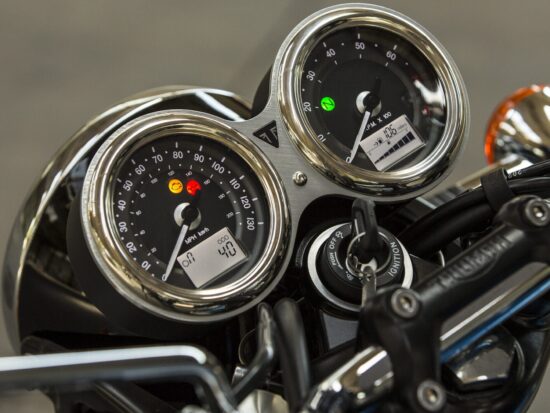

Triumph Bonneville T100 2017 dashboard

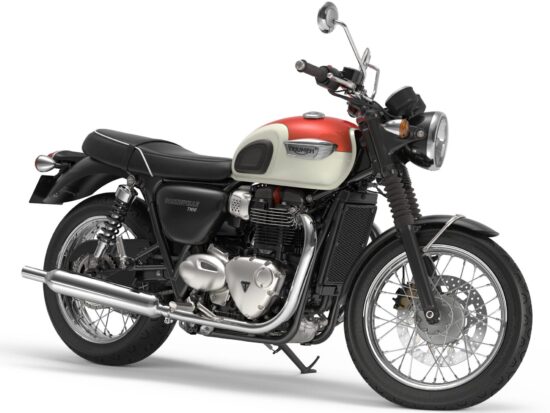

Triumph Bonneville T100 2017 front

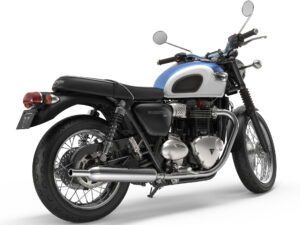

Triumph Bonneville T100 2017 back

Triumph Bonneville T100 (2017-2020)

Triumph Bonneville T100 (2017-2020)

The easiest way to differentiate the T100 from the T120 is to look at the front brakes: T100 has only one disc on the left side, while the T120 has one on each side.

So if you see spokes in front of a brake disc, you’re looking at a T100.

Category: Tags: ,
Share:

Specifications

Engine

900 cc Parallel-twin, liquid-cooled, 270º crank

Power

54 hp @ 5900 rpm

Power to weight

23 HP/Kg x 100

Torque

80 Nm @ 3230 rpm

Torque to weight

34 Nm/Kg x 100

Transmission

5-speed, wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

14,5 liters

Length

2170 mm

Width

780 mm

Height

1100 mm

Weight

232 kg wet

Seat Height

790 mm

Suspension

– Front: KYB 41 mm cartridge fork, 120 mm travel
– Rear: KYB twin-shocks, adjustable preload, 120 mm travel

Tyres

– Front: 100/90-18
– Rear: 150/70-17

Brakes

– Front: 310 mm floating disc, Nissin 2-piston floating caliper
– Rear: 255 mm disc, Nissin 2-piston floating caliper
– ABS available

Instruments

Analogue speedometer and tachometer, LCD displays with odometer, gear indicator, fuel gauge, two trip meters, range, average and current consumption, clock

Other

– LED taillight
– Switchable traction control
– Adjustable brake and clutch levers
