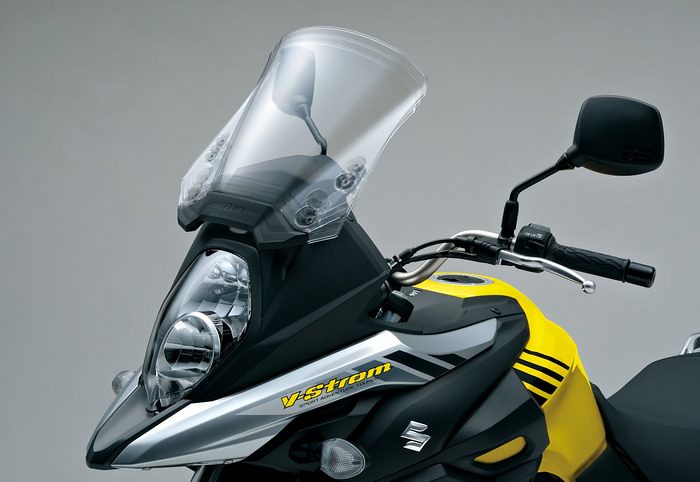

Suzuki V-Strom 650 2017+ dashboard

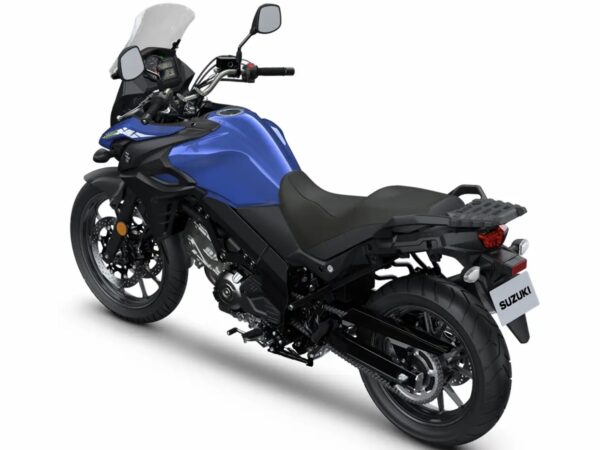

Suzuki V-Strom 650 (2017+)

Suzuki V-Strom 650 (2017+)

Vstrom DL650

Category: Tag:

Specifications

Engine

645 cc V-Twin, liquid-cooled

Power

71 hp @ 8800 rpm

Torque

62 Nm @ 6500 rpm

Transmission

6-speed, Wet multi-plate clutch, chain final drive

Fuel Capacity

20 liters

Length

2275 mm

Width

835 mm

Height

1405 mm

Weight

213 kg wet

Seat Height

830 mm

Suspension

– Front: 43 mm telescopic fork, adjustable preload, 150 mm travel

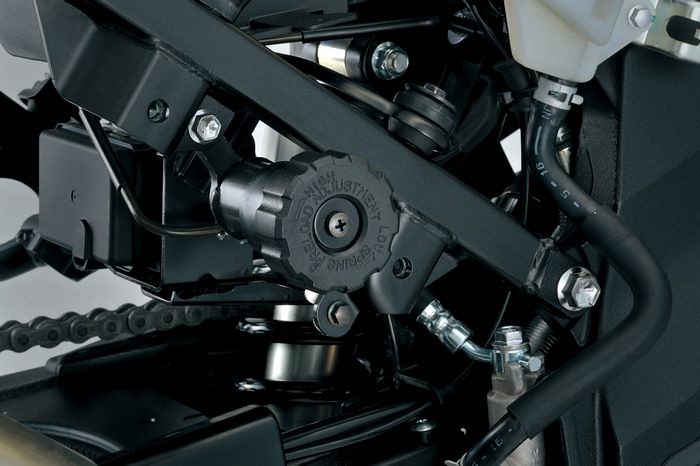

– Rear: mono-shock, adjustable preload and rebound, 159 mm travel

Tyres

– Front: 110/80-19
– Rear: 150/70-17

Brakes

– Front: 310 mm discs, 2-piston calipers
– Rear: 260 mm disc, single-piston caliper
– ABS available

Instruments

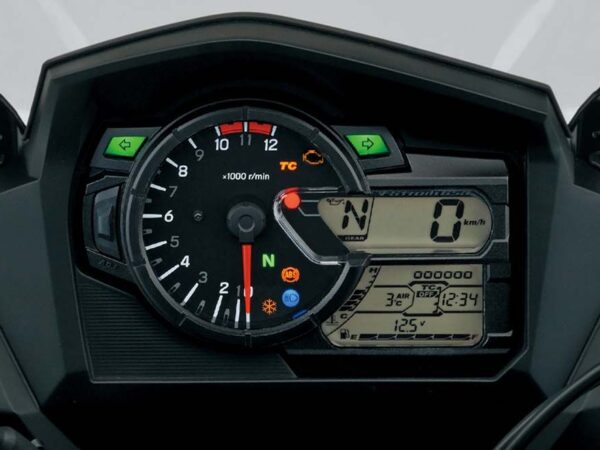

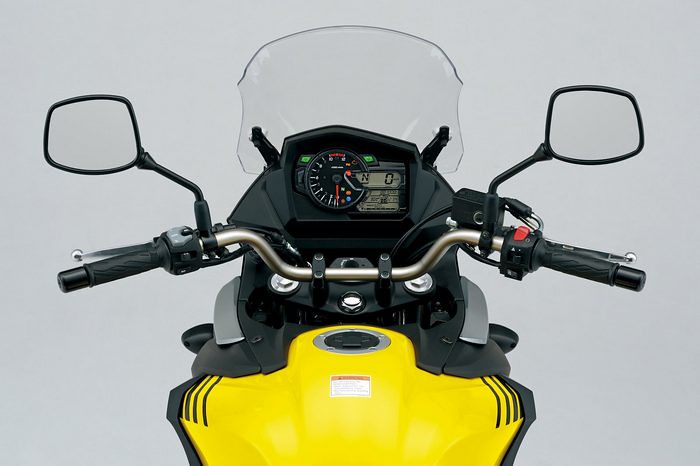

Analogue tachometer, LCD display with odometer, dual trip meter, traction control modes, gear position, coolant and ambient temperature, fuel consumption, fuel gauge, and clock

Other

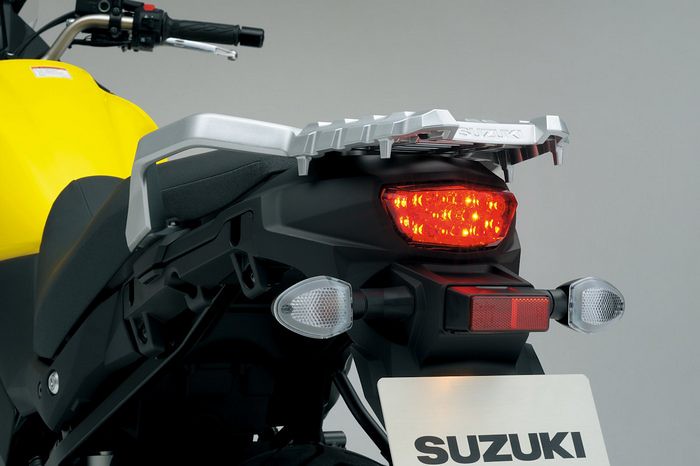

LED tail light, Traction control, easy-start, low rpm assist

Dashboard / Support us

Suzuki V-Strom 650 2017+ dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsSuzuki V-Strom 650 (2017+) removeBMW F 750 GS Sport (2021+) removeYamaha Ténéré 700 (2020-2022) removeHonda Africa Twin (2020+) removeKTM 790 Adventure (2023+) removeTriumph Tiger 900 (2020) remove
NameSuzuki V-Strom 650 (2017+) removeBMW F 750 GS Sport (2021+) removeYamaha Ténéré 700 (2020-2022) removeHonda Africa Twin (2020+) removeKTM 790 Adventure (2023+) removeTriumph Tiger 900 (2020) remove

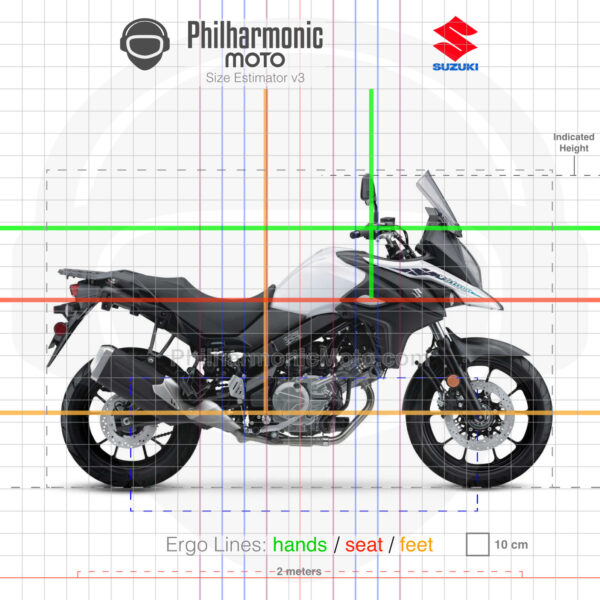

Size Estimator (see "About" page to learn more)Suzuki V-Strom 650 2022 Pearl Brilliant WhiteBMW F 750 GS Sport 2023 Light White Racing Blue Metallic Racing RedYamaha Tenere 700 2022 Icon BlueHonda Africa Twin 2022 Grand Prix RedKTM 790 Adventure 2023 whiteTriumph Tiger 900 2020 Pure White
Length2275 mm2255 mm2365 mm2330 mm2191 mm (estimated)2229 mm (estimated)
Width835 mm922 mm915 mm960 mm-830 mm
Height1405 mm1225 mm1455 mm1395 mm1430 mm (estimated)1410 mm / 1460 mm (low/high screen position)
Seat Height830 mm815 mm880 mm850/870 mm840-860 mm810-830 mm (adjustable)
Weight213 kg wet227 kg wet204 kg wet226 kg (manual), 236 kg (DCT) wet199 kg wet192 kg dry
Engine645 cc V-Twin, liquid-cooled853 cc Parallel-twin, liquid-cooled689cc Parallel Twin, liquid-cooled1084 cc Parallel Twin, liquid cooled799 cc Parallel-twin, liquid-cooled888 cc Inline Triple, liquid-cooled
Power71 hp @ 8800 rpm77 hp @ 7500 rpm73,4 hp @ 9000 rpm100 hp @ 7500 rpm95 hp @ 9000 rpm93,9 hp @ 8750 rpm
Torque62 Nm @ 6500 rpm83 Nm @ 6000 rpm68 Nm @ 6500 rpm105 Nm @ 6250 rpm87 Nm @ 8000 rpm87 Nm @ 7250 rpm
Transmission6-speed, Wet multi-plate clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive6-speed, assist/slip clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity20 liters15 liters16 liters18,8 liters20 liters20 liters
Suspension- Front: 43 mm telescopic fork, adjustable preload, 150 mm travel - Rear: mono-shock, adjustable preload and rebound, 159 mm travel- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel- Front: 43 mm inverted forks, fully adjustable, 210 mm travel - Rear: mono-shock, adjustable preload and rebound damping, 200 mm travel- Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel - Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel- Front: 43 mm inverted fork, 200 mm travel - Rear: single shock, adjustable preload, 200 mm travel- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel
Tyres- Front: 110/80-19 - Rear: 150/70-17- Front: 110/80-19 - Rear: 150/70-17- Front: 90/90-21 - Rear: 150/70-18- Front: 90/90-21 - Rear: 150/70-18- Front: 90/90-21 - Rear: 150/70-18- Front: 100/90-19 - Rear: 150/70-17
Brakes- Front: 310 mm discs, 2-piston calipers - Rear: 260 mm disc, single-piston caliper - ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 282 mm discs, 2-piston calipers - Rear: 245 mm disc, single-piston caliper - switchable ABS available- Front: 310 mm floating discs, 4-piston calipers - Rear: 256 mm disc, single-piston caliper - ABS available- Front: 320 mm discs, 4-piston radial caliper - Rear: 260 mm disc, 2-piston floating caliper - cornering ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available
InstrumentsAnalogue tachometer, LCD display with odometer, dual trip meter, traction control modes, gear position, coolant and ambient temperature, fuel consumption, fuel gauge, and clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockLCD display with digital tachometer, odometer, speedometer, gear indicator, fuel gauge, fuel range, average and instant fuel consumption, dual trip meters, clock- LCD display with speedometer, odometer, gear indicator - TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android AutoTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherLED tail light, Traction control, easy-start, low rpm assistLED lights, riding modes, traction control, engine brake control, USB port, mobile phone connectivity, self-canceling indicators, navigation preparation, tire pressure monitor, cruise control, heated grips, luggage rackLED headlightLED lights, traction control, cruise control, wheelie control, USB socket, self-canceling indicators, riding modes, switchable cornering ABSLED lights, cornering traction control, riding modes, off-road ABS, adjustable brake and clutch levers, steering damper, smartphone connectivityRiding modes, traction control
