Honda CB1100 EX (2017-2021)

CB1100EX


Brand: ,
Share:

Specifications and Features

Engine

1140 cc Inline-4, air/oil cooled

Power

89 hp @ 7500 rpm

Power to weight ratio

35 HP/100kg

Torque

91 Nm @ 5000 rpm

Torque to weight ratio

36 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

16,8 litres

Length

2200 mm

Width

830 mm

Height

1130 mm

Weight

– 255 kg wet
– Max load: 173 kg (US: 159)

Seat Height

790 mm

Suspension

– Front: Showa 41 mm telescopic fork, adjustable preload, 106 mm travel,
– Rear: Showa twin-shocks, adjustable preload, 114 mm travel

Tyres

– Front: 110/80-18
– Rear: 140/70-18

Brakes

– Front: 296 mm floating discs, Nissin 4-piston calipers
– Rear: 256 mm disc, Nissin 1-piston caliper
– ABS available

Instruments

– Analogue speedometer and tachometer, LCD display with odometer, gear indicator, fuel gauge, range, average and instant consumption, engine temperature, trip meters, clock

Other

– LED lights
– Centre stand

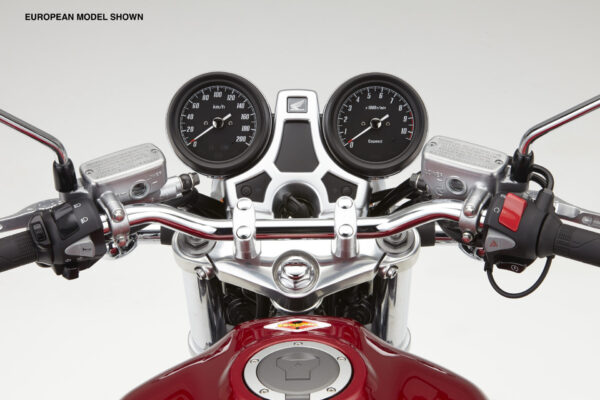

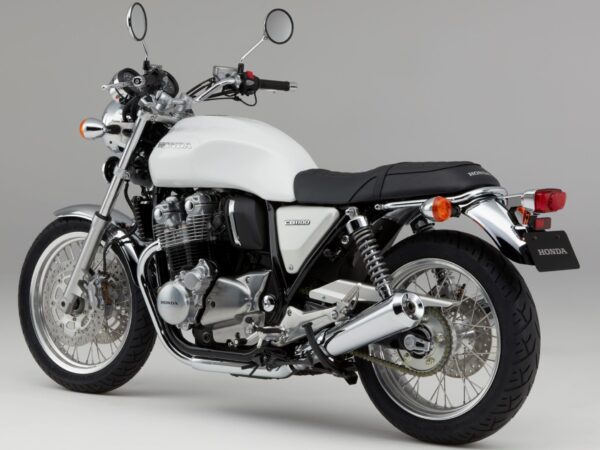

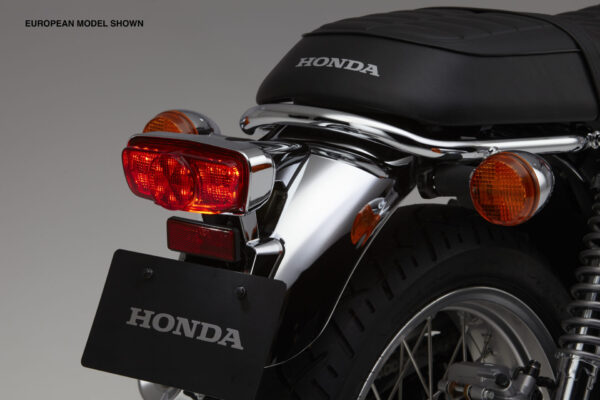

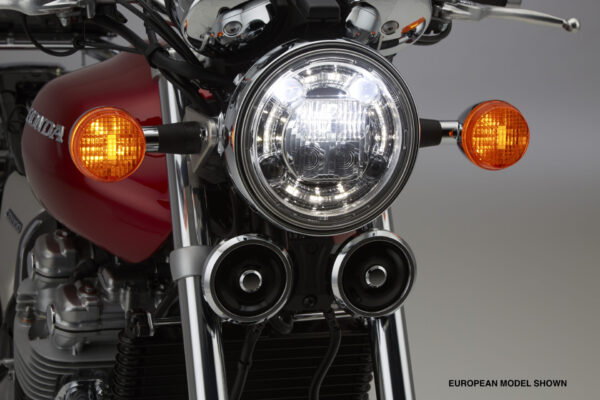

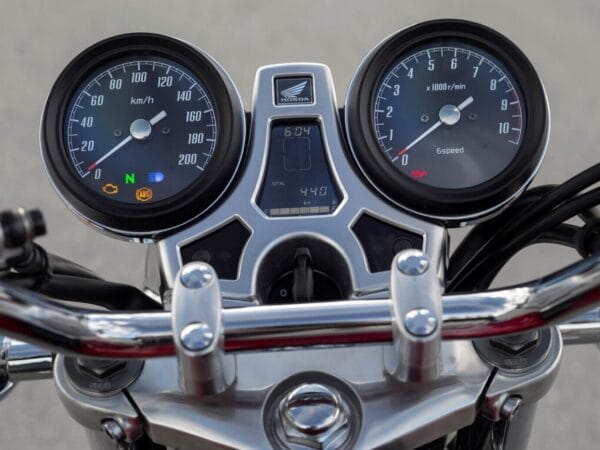

Honda CB1100 EX 2017 dashboard Honda CB1100EX 2017 Candy Prominence Red front Honda CB1100 EX 2017 Pearl Sunbeam White back
