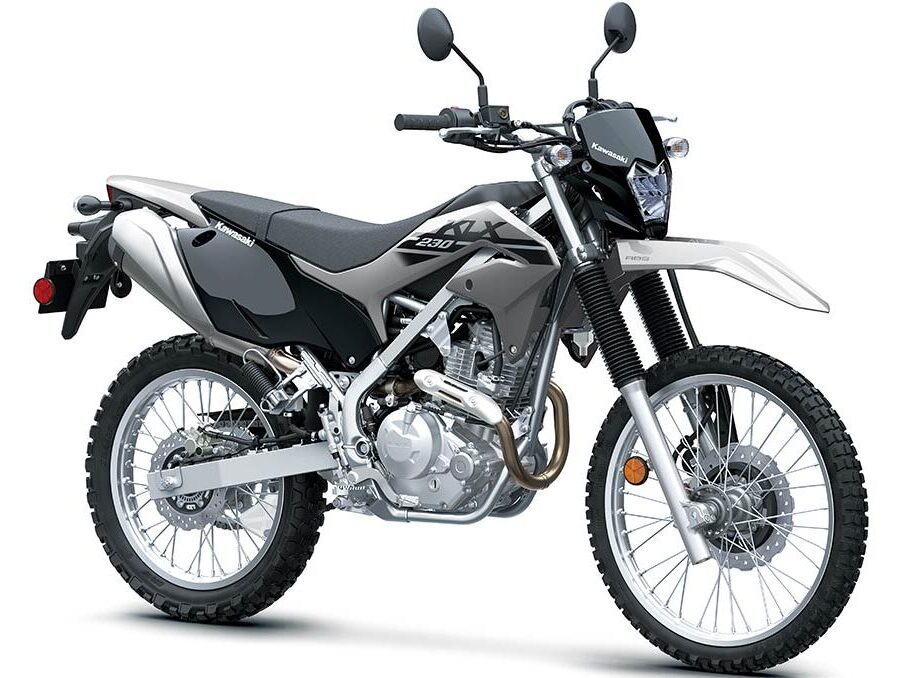

Kawasaki KLX230 (2023+)

Updated: 1 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

233 cc Single-cylinder, air-cooled

Power

19 hp @ 7600 rpm

Power to weight ratio

14 HP/100Kg

Torque

20 Nm @ 6100 rpm

Torque to weight ratio

15 Nm/100Kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

7,5 litres

Length

2106 mm

Width

835 mm

Height

1166 mm

Weight

– 132 kg wet
– Max Load: 181 kg

Seat Height

883 mm

Suspension

– Front: 37 mm telescopic fork, 221 mm travel
– Rear: mono-shock, adjustable preload, 224 mm travel

Tyres

– Front: 2.75-21
– Rear: 4.10-18

Brakes

– Front: 240 mm petal disc, 2-piston caliper
– Rear: 220 mm petal disc, 1-piston caliper
– ABS available (switchable rear)

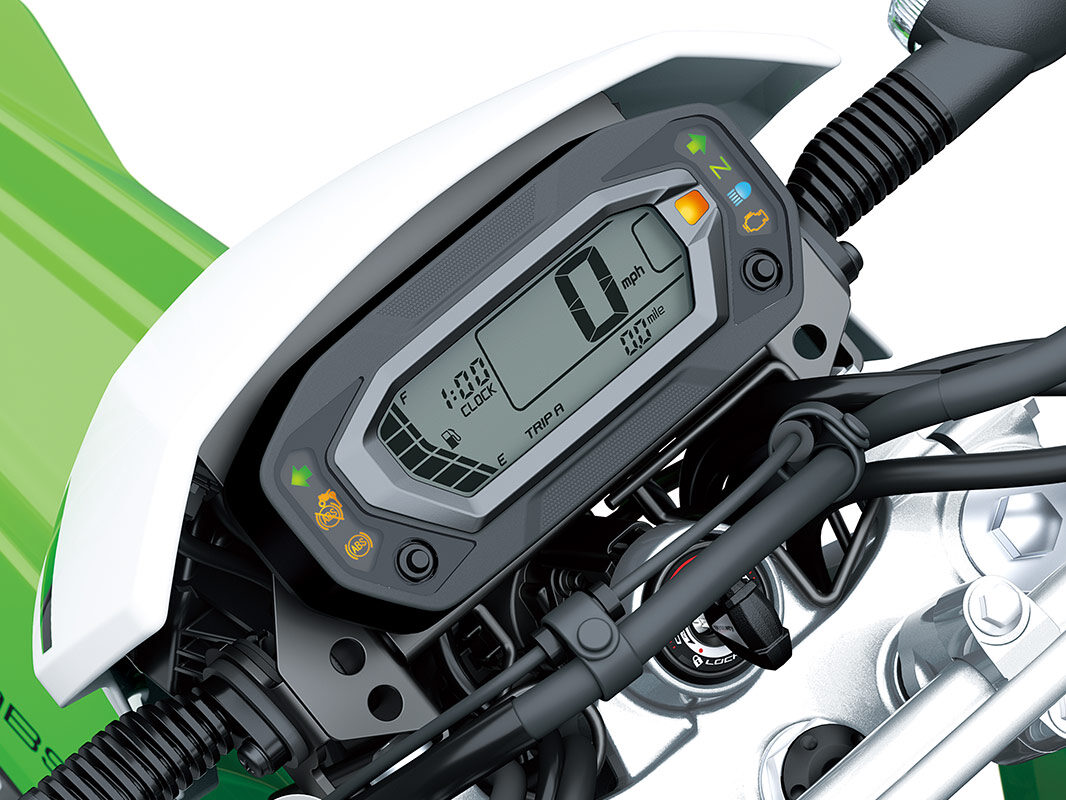

Instruments

– LCD display with speedometer, odometer, fuel gauge, trip meters, clock

Other

– LED headlight
