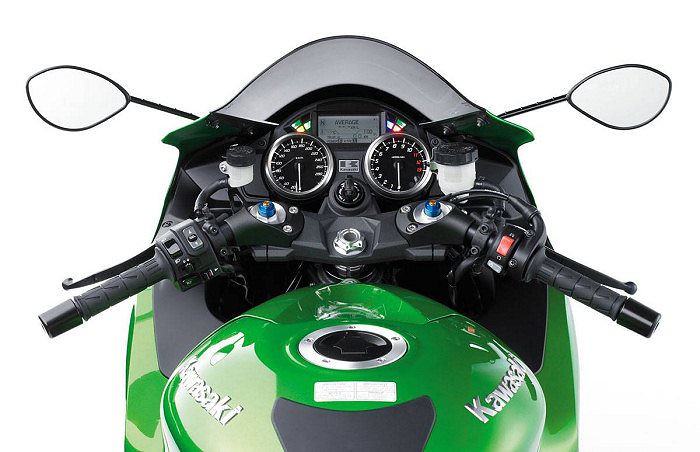

Kawasaki ZX-14R 2023 dashboard
Kawasaki ZZR1400 2015 front

Kawasaki ZZR1400 (2012-2020)

Kawasaki ZZR1400 (2012-2020)




Category: Tags: ,

Specifications

Engine

1441 cc Inline-4, liquid-cooled

Power

200 hp @ 10000 rpm (210 hp with RAM-AIR)

Torque

162,5 Nm @ 7500 rpm

Transmission

6-speed, wet multi-plate slip/assist hydraulic clutch, chain final drive

Fuel Capacity

22 liters

Length

2170 mm

Width

770 mm

Height

1170 mm

Weight

269 kg wet

Seat Height

800 mm

Suspension

– Front: 43 mm inverted fork, fully adjustable, 117 mm travel
– Rear: mono-shock, fully adjustable, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/50-17

Brakes

– Front: 310 mm discs, 4-piston radial calipers
– Rear: 250 mm disc, 2-piston caliper
– ABS available

Instruments

Analogue speedometer and tachometer, LCD display with fuel gauge, air temperature, gear indicator, average consumption, trip meters clock

Other

Traction control, power modes

Dashboard / Support us

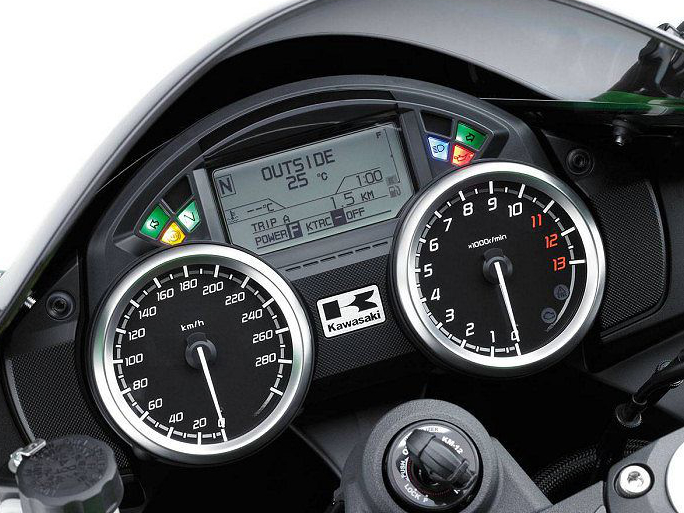

Kawasaki ZX-14R 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsKawasaki ZZR1400 (2012-2020) removeKawasaki Z650 (2020-2022) removeKawasaki Z900 (2020+) removeKawasaki Vulcan S (2015-2016) removeKawasaki Ninja 1000SX (2020+) removeKawasaki Ninja 250R (2008-2012) remove
NameKawasaki ZZR1400 (2012-2020) removeKawasaki Z650 (2020-2022) removeKawasaki Z900 (2020+) removeKawasaki Vulcan S (2015-2016) removeKawasaki Ninja 1000SX (2020+) removeKawasaki Ninja 250R (2008-2012) remove
Size Estimator (see "About" page to learn more)Kawasaki ZZR1400 2015 Golden Blazed Green Metallic Spark BlackKawasaki Z650 2021 Pearl Blizzard White Metallic Spark BlackKawasaki Z900 2023 EBONY METALLIC MATTE GRAPHENE STEEL GRAYKawasaki Vulcan S 2015 Metallic Royal PurpleKawasaki Ninja 1000SX 2023 Emerald Blazed Green Metallic Diablo Black Metallic Graphite GrayKawasaki Ninja 250R 2008 red
Length2170 mm2055 mm2070 mm2310 mm2100 mm2080 mm
Width770 mm765 mm825 mm880 mm825 mm711 mm
Height1170 mm1065 mm1080 mm1100 mm1190 mm / 1225 mm (low/high screen position)1115 mm
Seat Height800 mm790 mm820 mm705 mm835 mm780 mm
Weight269 kg wet187 kg wet212 kg wet225 / 228 kg (ABS)235 kg wet170 kg wet
Engine1441 cc Inline-4, liquid-cooled650 cc Parallel Twin, liquid-cooled948cc Inline 4, liquid cooled, 16 valve DOHC649 cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank1043 cc Inline-4, liquid-cooled249 cc Parallel Twin, liquid-cooled, carburated
Power200 hp @ 10000 rpm (210 hp with RAM-AIR)67 hp @ 8000 rpm123 hp @ 9500 rpm61 hp @ 7500 rpm142 hp @ 10000 rpm30 hp @ 10500 rpm
Torque162,5 Nm @ 7500 rpm64 Nm @ 6700 rpm98,6 Nm @ 7700 rpm62,4 Nm @ 6600 rpm111 Nm @ 8000 rpm21,7 Nm @ 10000 rpm
Transmission6-speed, wet multi-plate slip/assist hydraulic clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate, chain final drive6-speed, slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate clutch, chain final drive
Fuel Capacity22 liters15 liters17 liters14 liters19 liters18,2 liters
Suspension- Front: 43 mm inverted fork, fully adjustable, 117 mm travel - Rear: mono-shock, fully adjustable, 120 mm travel- Front: 41 mm telescopic fork, 125 mm travel - Rear: Horizontal Back-link single shock, adjustable preload, 130 mm travel- Front: 41 mm inverted forks, rebound damping and preload adjustability - Rear: Horizontal Back-link, rebound damping and preload adjustability- Front: 41 mm telescopic fork - Rear: Offset laydown single-shock, linkage equipped, with 7-way adjustable preload- Front: 41 mm inverted forks, rebound and compression damping and spring preload adjustability, 120 mm travel - Rear: gas-charged shock with piggyback reservoir, rebound damping and remote spring preload adjustability, 144 mm travel- Front: 37 mm telescopic fork, 119 mm travel - Rear: mono-shock, adjustable preload, 130 mm travel
Tyres- Front: 120/70-17 - Rear: 190/50-17- Front: 120/70Z-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-18 - Rear: 160/60-17- Front: 120/70-17 - Rear: 190/50-17- Front: 110/70-17 - Rear: 130/70-17
Brakes- Front: 310 mm discs, 4-piston radial calipers - Rear: 250 mm disc, 2-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, 2-piston calipers - Rear: 220 mm petal disc, 1-piston caliper - ABS available- Front: Dual semi-floating 300 mm petal discs, opposed 4-piston calipers - Rear: 250 mm petal disc, Single-piston caliper- Front: 300 mm disc, Dual-piston caliper - Rear: 250 mm disc, Single-piston caliper - ABS available- Front: Dual semi-floating 300 mm discs, Radial-mount, monobloc, opposed 4-piston calipers - Rear: 250 mm disc, single-piston caliper - cornering ABS available- Front: 290 mm petal disc, 2-piston caliper - Rear: 220 mm petal disc, 2-piston caliper - ABS available
InstrumentsAnalogue speedometer and tachometer, LCD display with fuel gauge, air temperature, gear indicator, average consumption, trip meters clockTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockTFT display with speedometer, tachometer, digital odometer, gear indicator, fuel gauge, average fuel, temperature gauge, dual trip meters, clock, mobile phone conectivityAnalogue tachometer, digital speedometer, dual trip meter, fuel gauge, clockTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockAnalogue speedometer and tachometer, odometer, trip meter, fuel gauge
OtherTraction control, power modesLED headlights, smartphone connectivityLed lighting, traction control, riding modesLED headlights, cornering traction control, riding modes, smartphone connectivity, cruise control-
