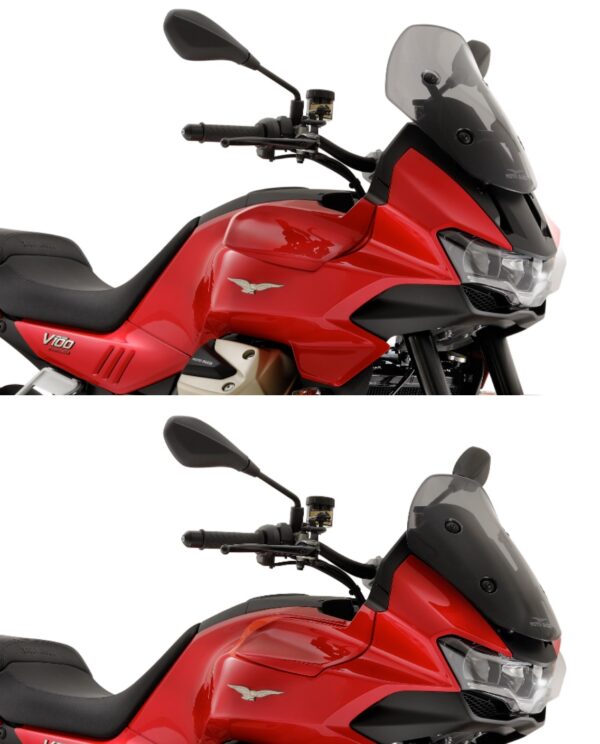

Moto Guzzi V100 Mondello 2023 adaptive aerodynamics side
Moto Guzzi V100 Mondello 2023 adaptive aerodynamics front
Moto Guzzi V100 Mondello 2023 adaptive aerodynamics detail
Moto Guzzi V100 Mandello 2023 front
Moto Guzzi V100 Mondello 2023 back

Moto Guzzi V100 Mandello (2023+)

Moto Guzzi V100 Mandello (2023+)

Dashboard picture of the Mandello S shown, but the display is the same.


Category: Tag:
Share:

Specifications

Engine

1042 cc V-twin, liquid-cooled

Power

115 hp @ 8700 rpm

Power to weight

49 HP/Kg x 100

Torque

105 Nm @ 6750 rpm

Torque to weight

45 Nm/Kg x 100

Transmission

6-speed, wet multi-plate slip/assist clutch, shaft final drive

Fuel Capacity

17 liters

Length

2125 mm

Width

835 mm

Height

1229 mm (estimated)

Weight

233 kg wet

Seat Height

815 mm

Suspension

– Front: Kayaba 41 mm inverted fork, adjustable preload and rebound, 130 mm travel
– Rear: Kayaba mono-shock, adjustable preload (remote) and rebound, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 320 mm floating discs, Brembo 4-piston radial calipers
– Rear: 280 mm disc, 2-piston floating caliper
– cornering ABS available

Instruments

5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, range, instant consumption, engine and ambient temperature, trip meter, clock

Other

LED lights, cornering lights, riding modes, cornering traction control, cruise control, USB port, electric screen, adaptive aerodynamics
