Honda VFR800X Crossrunner 2015 dashboard

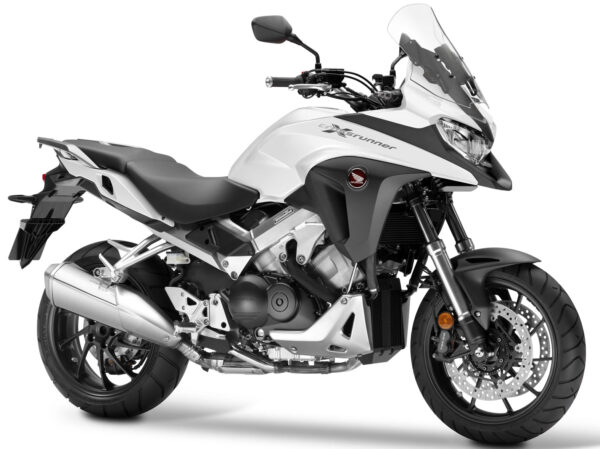

Honda VFR800X Crossrunner (2017-2021)

Honda VFR800X Crossrunner (2017-2021)

Category: Tag:

Specifications

Engine

782 cc V4, liquid-cooled

Power

106 hp @ 10250 rpm

Torque

75 Nm @ 8500 rpm

Transmission

6-speed manual, Wet multi-plate hydraulic clutch, chain final drive

Fuel Capacity

20,8 liters

Length

2190 mm

Width

870 mm

Height

1385 mm

Weight

246 kg wet

Seat Height

815/835 mm (adjustable)

Suspension

– Front: 43 mm telescopic fork, adjustable preload and rebound damping, 145 mm travel
– Rear: Pro-link mono-shock, adjustable preload (remote), 148 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 310 mm discs, 4-piston radial calipers
– Rear: 256 mm disc, 2-piston caliper
– ABS available

Instruments

LCD display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption

Other

LED lights, traction control, heated grips, 12v socket, self-cancelling indicators

Dashboard / Support us

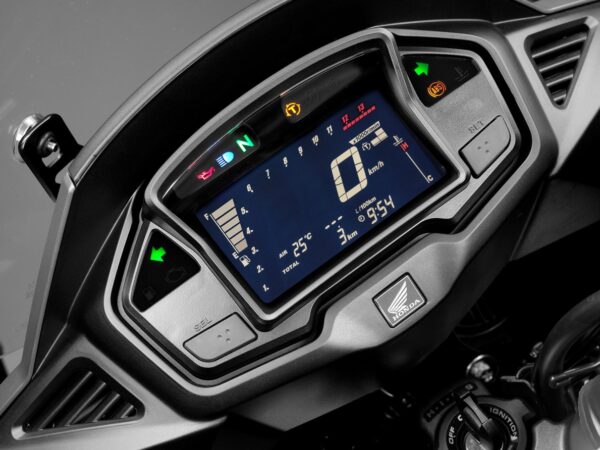

Honda VFR800X Crossrunner 2015 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda VFR800X Crossrunner (2017-2021) removeHonda CBR650R (2021+) removeHonda Goldwing (2019+) removeHonda Africa Twin (2020+) removeHonda CB500X (2022+) removeHonda CB500X (2019-2021) remove
NameHonda VFR800X Crossrunner (2017-2021) removeHonda CBR650R (2021+) removeHonda Goldwing (2019+) removeHonda Africa Twin (2020+) removeHonda CB500X (2022+) removeHonda CB500X (2019-2021) remove

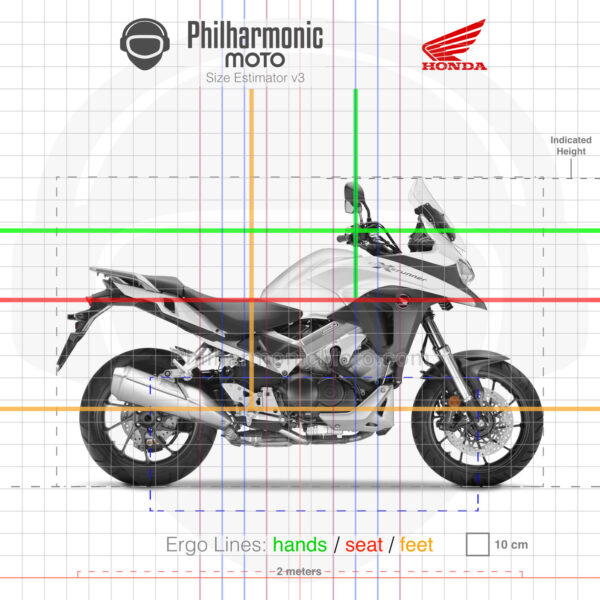

Size Estimator (see "About" page to learn more)Honda VFR800X Crossrunner 2017 whiteHonda CBR650R 2021 Grand Prix Red-01Honda Goldwing 2020 Matte Black MetallicHonda Africa Twin 2022 Grand Prix RedHonda CB500X 2022 Pearl Organic GreenHonda CB500X 2019 Grand Prix Red
Length2190 mm2130 mm2475 mm2330 mm2155 mm2155 mm
Width870 mm750 mm925 mm960 mm830 mm825 mm
Height1385 mm1150 mm1340/1445 mm (low/high screen position)1395 mm1410 mm / 1445 mm (Low/High screen position)1410 mm / 1445 mm (Low/High screen position)
Seat Height815/835 mm (adjustable)810 mm745 mm850/870 mm830 mm830 mm
Weight246 kg wet207 kg wet364 kg wet226 kg (manual), 236 kg (DCT) wet199 kg wet197 kg wet
Engine782 cc V4, liquid-cooled649cc Inline 4, liquid cooled, 16 valve DOHC1833 cc horizontally opposed 6-cylinder, liquid cooled1084 cc Parallel Twin, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank471cc Parallel Twin, liquid cooled
Power106 hp @ 10250 rpm94 hp @ 12000 rpm125 hp @ 5500 rpm100 hp @ 7500 rpm47 hp @ 8600 rpm47 hp @ 8500 rpm
Torque75 Nm @ 8500 rpm64 Nm @ 8500 rpm169 Nm @ 4500 rpm105 Nm @ 6250 rpm43 Nm @ 6500 rpm43 Nm @ 7000 rpm
Transmission6-speed manual, Wet multi-plate hydraulic clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed manual + reverse, wet multi-plate clutch, or 7-speed DCT + reverse, shaft final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slipper clutch, chain final drive
Fuel Capacity20,8 liters15,4 liters21 liters18,8 liters17,5 liters17,5 liters
Suspension- Front: 43 mm telescopic fork, adjustable preload and rebound damping, 145 mm travel - Rear: Pro-link mono-shock, adjustable preload (remote), 148 mm travel- Front: 41mm inverted telescopic fork, 108 mm travel - Rear: single shock, adjustable preload, 128 mm travel- Front: double wishbone, 110 mm travel - Rear: single shock, electronically adjustable preload, 105 mm travel- Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel - Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel
Tyres- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 130/70-18 - Rear: 180/60-16- Front: 90/90-21 - Rear: 150/70-18- Front: 110/80-19 - Rear: 160/60-17- Front: 110/80-19 - Rear: 160/60-17
Brakes- Front: 310 mm discs, 4-piston radial calipers - Rear: 256 mm disc, 2-piston caliper - ABS available- Front: 2x 310mm discs - Rear: 240mm disc - ABS available- Front brake: 320 mm discs, six-piston Nissin calipers - Rear brake: 320 mm rear disc, six-piston Nissin caliper- Front: 310 mm floating discs, 4-piston calipers - Rear: 256 mm disc, single-piston caliper - ABS available- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper
InstrumentsLCD display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumptionLCD display with digital speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clockAnalogue speedometer and tachometer, touchscreen with mobile connectivity, LCD displays with fuel gauge, temperature gauge, gear indicator, riding modes- LCD display with speedometer, odometer, gear indicator - TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android AutoLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator
OtherLED lights, traction control, heated grips, 12v socket, self-cancelling indicatorsLED lights, Traction control, USB-C under seatAirbag, LED lights, Riding modes, Apple CarPlay, traction control, cruise control, hill start assist, TPMS, seat heaterLED lights, traction control, cruise control, wheelie control, USB socket, self-canceling indicators, riding modes, switchable cornering ABSLED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"LED lights, emergency braking blinking lights
