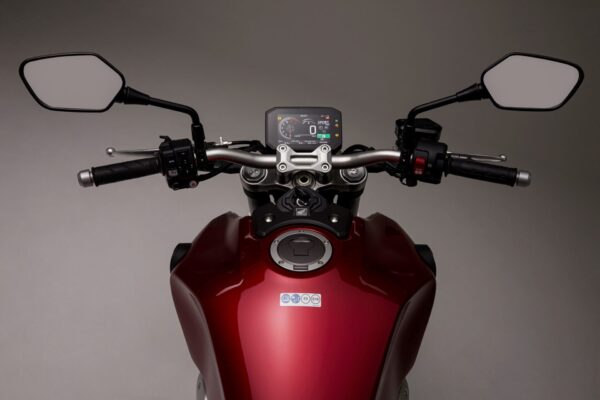

Honda CB1000R 2021 dashboard

Honda CB1000R (2021+)

Honda CB1000R (2021+)

-=-

Category: Tag:

Specifications

Engine

998cc Inline 4, liquid cooled

Power

143 hp @ 10500 rpm

Torque

104 Nm @ 8250 rpm

Transmission

6-speed, Wet multi-plate assist/slip clutch, chain final drive

Fuel Capacity

16,2 liters

Length

2120 mm

Width

789 mm

Height

1090 mm

Weight

212 kg wet

Seat Height

830 mm

Suspension

– Front: 43 mm Showa inverted forks, 120 mm travel
– Rear: single shock, gas-charged HMAS damper featuring 10-step pre-load and stepless rebound damping adjustment, 131 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 2x 310 mm discs
– Rear: 256 mm disc
– ABS available

Instruments

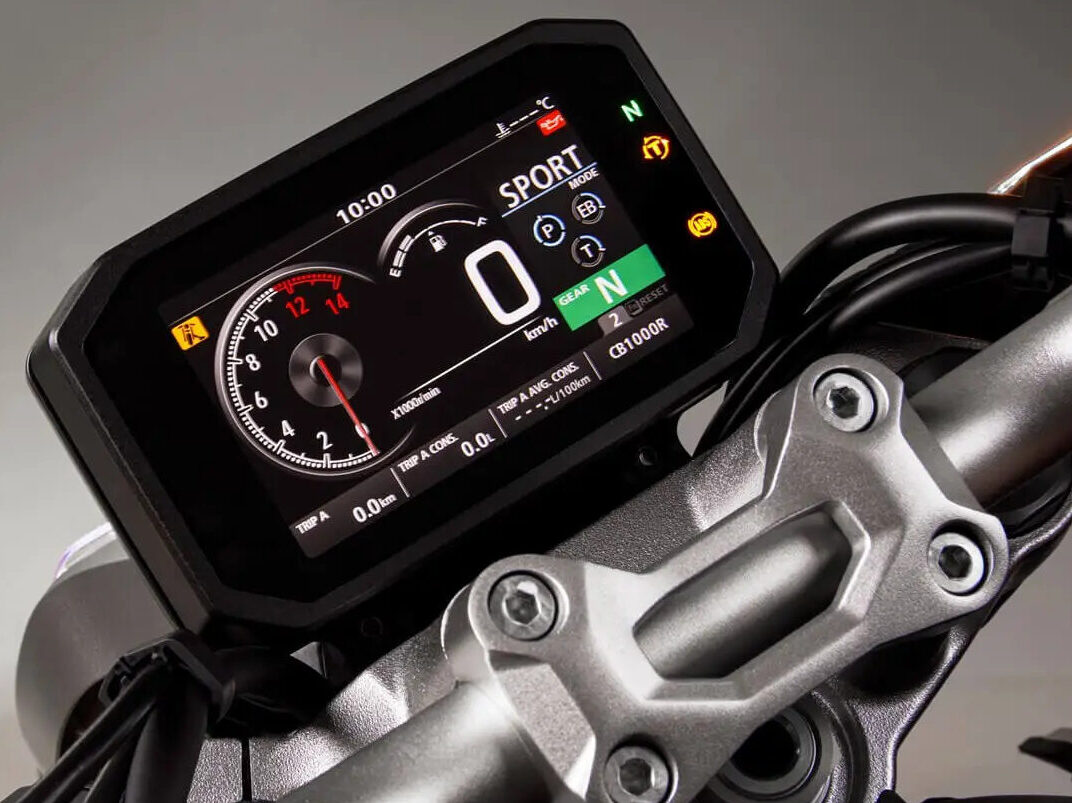

TFT display with speedometer, odometer, gear indicator, fuel gauge, shift up indicator, clock

Other

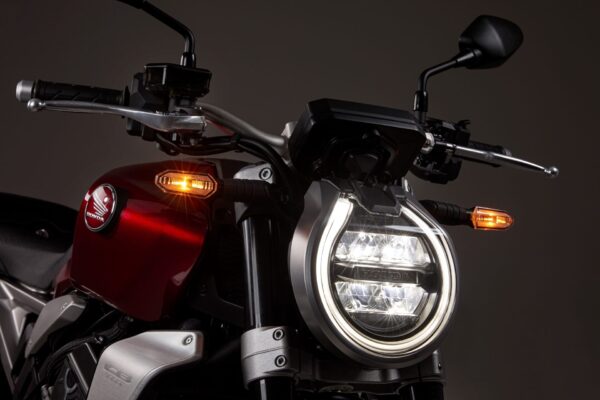

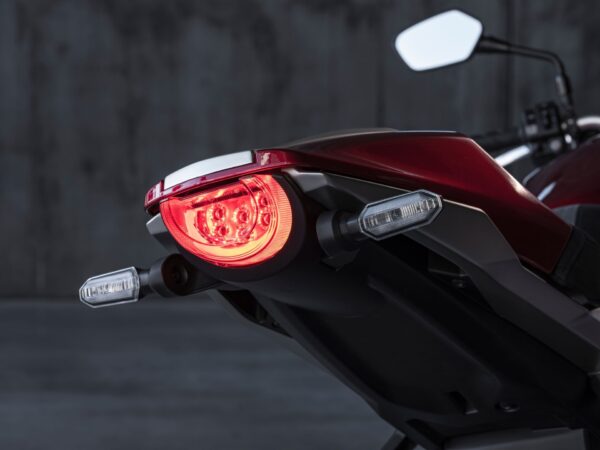

LED lights, Traction control, riding modes, self-cancelling indicators, USB under seat
