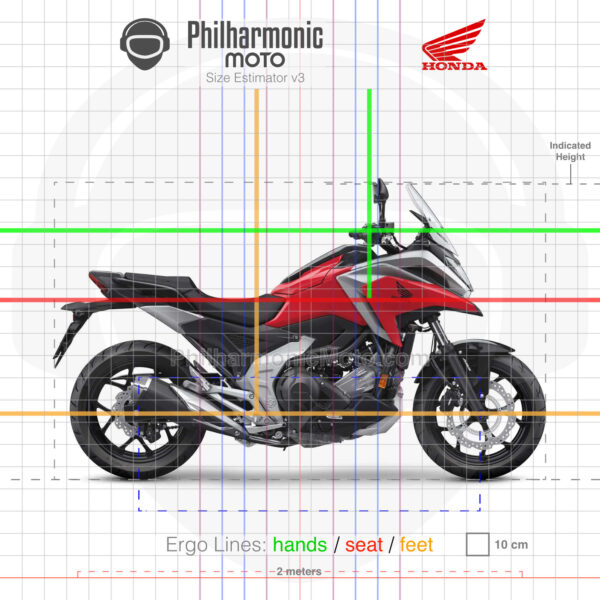

Name Honda NC750X (2021+) remove Honda XL750 Transalp (2023+) remove Honda Rebel 500/CMX500 (2020+) remove Honda CB500X (2019-2021) remove Honda CB750 Hornet (2023+) remove Honda XRE 300 (2019+) remove Size Estimator (see "About" page to learn more) Length 2210 mm 2325 mm 2205 mm 2155 mm 2090 mm 2195 mm Width 846 mm 838 mm 820 mm 825 mm 780 mm 838 mm Height 1330 mm 1450 mm 1090 mm 1410 mm / 1445 mm (Low/High screen position) 1085 mm 1215 mm Seat Height 800 mm 850 mm 690 mm 830 mm 795 mm 860 mm Weight 214 kg (manual), 224 kg (DCT) wet 208 kg wet 191 kg wet 197 kg wet 190 kg wet 148 kg dry Engine 745 cc Parallel Twin, liquid cooled 755cc Parallel Twin, liquid cooled, 270º crank 471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank 471cc Parallel Twin, liquid cooled 755cc Parallel Twin, liquid cooled, 270º crank 291,6 cc Single-cylinder, air cooled Power 58 hp @ 6750 rpm 90,5 hp @ 9500 rpm 47 hp @ 8500 rpm 47 hp @ 8500 rpm 90,5 hp @ 9500 rpm 25,4 hp @ 7500 rpm Torque 69 Nm @ 4750 rpm 75 Nm @ 7250 rpm 45 Nm @ 6000 rpm 43 Nm @ 7000 rpm 75 Nm @ 7250 rpm 27,4 Nm @ 6000 rpm Transmission 6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive 6-speed manual, Wet multi-plate assist/slip clutch, chain final drive 6-speed, slip/assist clutch, chain final drive 6-speed, Wet multi-plate assist/slipper clutch, chain final drive 6-speed manual, Wet multi-plate assist/slip clutch, chain final drive 5-speed, Wet multi-plate clutch, chain final drive Fuel Capacity 14,1 liters 16,9 liters 11,2 liters 17,5 liters 15,2 liters 13,8 liters Suspension - Front: 41 mm telescopic forks, 120 mm travel
- Rear: Pro-link mono shock, pre-load adjustable, 120 mm travel - Front: 43 mm inverted forks, pre-load adjustable, 200 mm travel
- Rear: Pro-link mono shock, pre-load adjustable, 190 mm travel - Front: 41 mm telescopic forks, 121 mm travel
- Rear: Dual shocks with adjustable preload, 96 mm travel - Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel
- Rear: mono-shock with 9 stage preload adjuster, 135 mm travel - Front: 43 mm inverted forks, pre-load adjustable, 130 mm travel
- Rear: Pro-link mono shock, pre-load adjustable, 150 mm travel - Front: telescopic fork, 245 mm travel
- Rear: mono-shock, 225 mm travel Tyres - Front: 120/70-17
- Rear: 160/60-17 - Front: 90/90-21
- Rear: 150/70-18 - Front: 130/90-16
- Rear: 150/80-16 - Front: 110/80-19
- Rear: 160/60-17 - Front: 120/70-17
- Rear: 160/60-17 - Front: 90/90-21
- Rear: 120/80-18 Brakes - Front: 320 mm disc, two-piston caliper
- Rear: 240 mm disc, single-piston caliper
- ABS available - Front: 310 mm discs, two-piston caliper
- Rear: 256 mm disc, single-piston caliper
- ABS available - Front: 296mm disc, 2-piston caliper
- Rear: 240mm disc, single-piston caliper
- ABS available - Front: 310 mm wavy disc, 2-piston caliper
- Rear: 240 mm wavy disc, single-piston caliper - Front: 296 mm discs, 4-piston caliper
- Rear: 240 mm disc, single-piston caliper
- ABS available - Front: 256 mm disc
- Rear: 220 mm disc

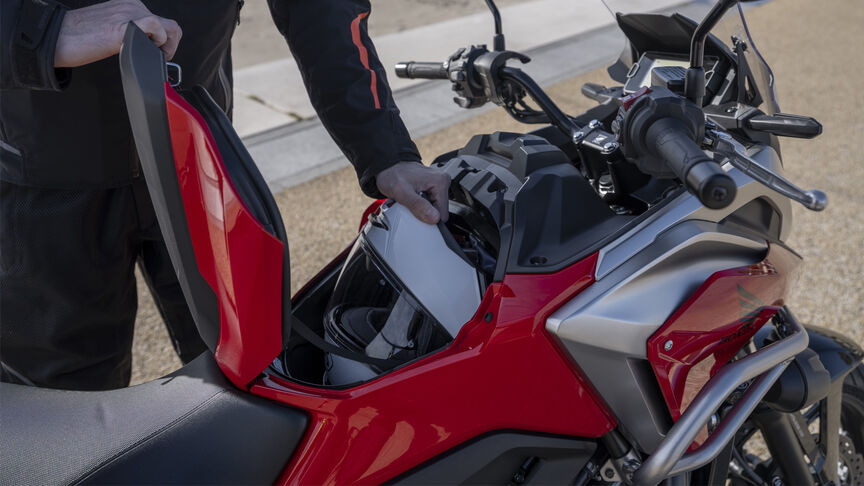

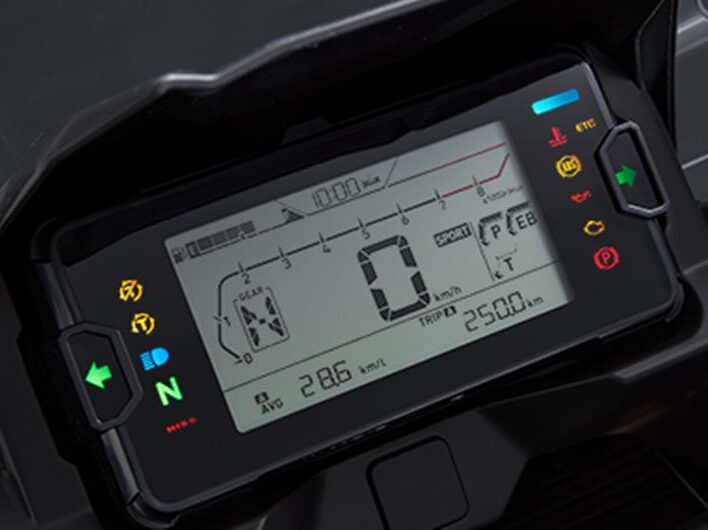

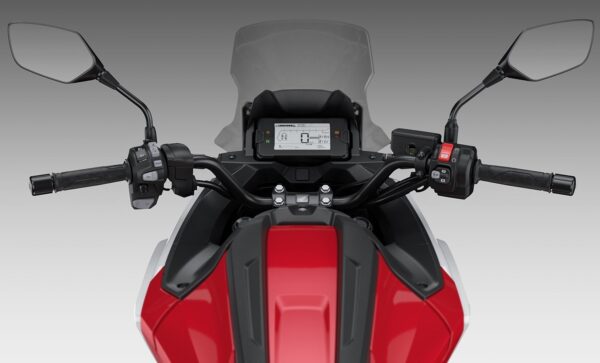

- ABS available Instruments LCD display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes LCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gauge LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes LCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clock Other LED lights, riding modes, traction control, engine brake control, engine power control, emergency stop blinking lights, 23-liter utility compartment LED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB socket, self-canceling indicators, switchable rear ABS, smartphone voice control Full LED lighting LED lights, emergency braking blinking lights LED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB-C socket, self-canceling indicators, smartphone voice control LED lights Dashboard / Support us
