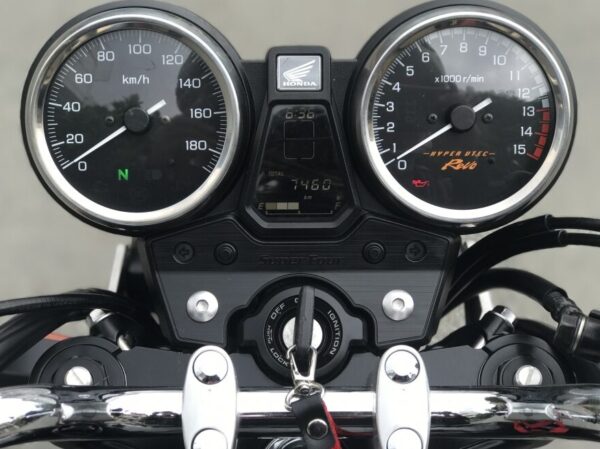

Honda CB400 Super Four 2014 dashboard

Honda CB400 Super Four (2014-2017)

Honda CB400 Super Four (2014-2017)

Category: Tag:

Specifications

Engine

399cc Inline-4, liquid-cooled, 16 valve DOHC

Power

53 hp @ 10500 rpm

Torque

38 Nm @ 9500 rpm

Transmission

6-speed, chain final drive

Fuel Capacity

18 liters

Length

2040 mm

Width

725 mm

Height

1070 mm

Weight

197 kg wet

Seat Height

755 mm

Suspension

– Front: 43mm telescopic forks, 120 mm travel
– Rear: twin shock, adjustable preload, 110 mm travel

Tyres

– Front: 120/60-17
– Rear: 160/60-17

Brakes

– Front: Dual 296 mm floating discs, 4-piston calipers
– Rear: Single 256 mm disc, single piston caliper
– ABS available

Instruments

Analogue tachometer and speedometer, central LCD screen with gear position, fuel consumption, thermometer, odometer, fuel gauge

Other

LED tail light

Dashboard / Support us

Honda CB400 Super Four 2014 dashboard



CB400SF t-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CB400 Super Four (2014-2017) removeHonda Rebel 1100/CMX1100 (2021+) removeHonda CB500F (2022+) removeHonda Rebel 500/CMX500 (2017-2019) removeHonda Rebel 500/CMX500 (2020+) removeHonda CB300R (2018-2022) remove
NameHonda CB400 Super Four (2014-2017) removeHonda Rebel 1100/CMX1100 (2021+) removeHonda CB500F (2022+) removeHonda Rebel 500/CMX500 (2017-2019) removeHonda Rebel 500/CMX500 (2020+) removeHonda CB300R (2018-2022) remove
Size Estimator (see "About" page to learn more)Honda CB400SF Super Four 2014 white redHonda Rebel 1100 CMX1100 2022 Bordeaux Red MetallicHonda CB500F 2022 Matte Grey MetallicHonda Rebel 500 cmx500 2017 Matte Armored Silver Metallic-01Honda Rebel 500 cmx500 2020 Matte Axis Grey MetallicHonda CB300R 2022 Matte Pearl Blue
Length2040 mm2240 mm2080 mm2188 mm2205 mm2020 mm
Width725 mm850 mm (830 mm DCT)800 mm820 mm820 mm805 mm
Height1070 mm1115 mm1060 mm1094 mm1090 mm1050 mm
Seat Height755 mm700 mm789 mm690 mm690 mm799 mm
Weight197 kg wet223 kg wet (233 kg DCT)189 kg wet190 kg wet191 kg wet145 kg wet
Engine399cc Inline-4, liquid-cooled, 16 valve DOHC1084cc Parallel Twin, liquid cooled, 270º crank471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank471 cc Parallel Twin, liquid cooled, 180º crank471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank286cc Single-cylinder, liquid cooled
Power53 hp @ 10500 rpm87 hp @ 7000 rpm47 hp @ 8600 rpm45 hp @ 8500 rpm47 hp @ 8500 rpm31 hp @ 8500 rpm
Torque38 Nm @ 9500 rpm98 Nm @ 4750 rpm43 Nm @ 6500 rpm45 Nm @ 6000 rpm45 Nm @ 6000 rpm27,5 Nm @ 7250 rpm
Transmission6-speed, chain final drive6-speed (manual or automatic/DCT), slip/assit clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, slip/assist clutch, chain final drive6-speed, wet multi-plate clutch, chain final drive
Fuel Capacity18 liters13,6 liters17,1 liters11,2 liters11,2 liters10,1 liters
Suspension- Front: 43mm telescopic forks, 120 mm travel - Rear: twin shock, adjustable preload, 110 mm travel- Front: 43 mm telescopic forks, adjustable preload, 122 mm travel - Rear: Dual shocks, adjustable preload, 94 mm travel- Front: Showa 41mm SFF-BP USD forks, preload adjustable, 110 mm travel, - Rear: Prolink mono with 5 stage preload adjuster, 120 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 41 mm inverted forks, 130 mm travel - Rear: mono-shock, adjustable preload, 107 mm travel
Tyres- Front: 120/60-17 - Rear: 160/60-17- Front: 130/70B18 M/C - Rear: 180/65B16 M/C- Front: 120/70-17 - Rear: 160/60-17- Front: 130/90-16 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 110/70-17 - Rear: 150/60-17
Brakes- Front: Dual 296 mm floating discs, 4-piston calipers - Rear: Single 256 mm disc, single piston caliper - ABS available- Front: 300 mm floating disc, 4-piston caliper - Rear: 256 mm disc, 2-piston caliper, - ABS available- Front: Dual 296mm discs, Nissin radial-mount two piston calipers - Rear: 240mm disc, single piston caliper - ABS available- Front: 296 mm disc, 2-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 296mm disc, 4-piston caliper - Rear: 220mm disc, single-piston caliper - ABS available
InstrumentsAnalogue tachometer and speedometer, central LCD screen with gear position, fuel consumption, thermometer, odometer, fuel gaugeInverted LCD display with speedometer, tachometer, gear-position indicator, a fuel-indicator, engine output mode, torque control level, engine braking modeLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorDigital speedometer, odometer, fuel gauge, clockLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gauge
OtherLED tail lightFull LED lighting, traction control, cruise control, wheelie control (!), USB-C under seat, three-liter underseat storageLED lights-Full LED lightingFull LED lighting
