Triumph Scrambler 1200 X (2024+)

Triumph Scrambler 1200X

Updated: 10 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

1200 cc Parallel-twin, liquid-cooled, 270º crank

Power

89 hp @ 7000 rpm

Power to weight ratio

39 HP/100kg

Torque

110 Nm @ 4250 rpm

Torque to weight ratio

48 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

15 litres

Length

2273 mm

Width

834 mm

Height

1185 mm

Weight

– 228 kg wet
– Max load: 210 kg

Seat Height

820 mm (optional: 795)

Suspension

– Front: Marzocchi 45 mm fork, 170 mm travel
– Rear: Marzocchi twin-shocks, adjustable preload, 170 mm travel.

Tyres

– Front: 90/90-21
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 310 mm floating discs, Nissin 2-piston calipers
– Rear: 255 mm disc, Nissin 1-piston floating caliper
– Cornering ABS available

Instruments

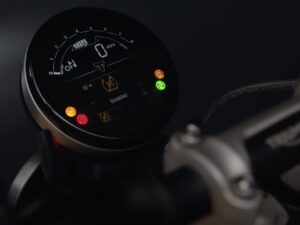

– LCD display with speedometer, tachometer, gear indicator, fuel gauge, TFT display with odometer, clock
– Optional: smartphone connectivity

Other

– LED lights
– Riding modes, cornering traction control (switchable)
– USB under seat, adjustable brake and clutch levers. Optional: centre stand, heated grips, TPMS

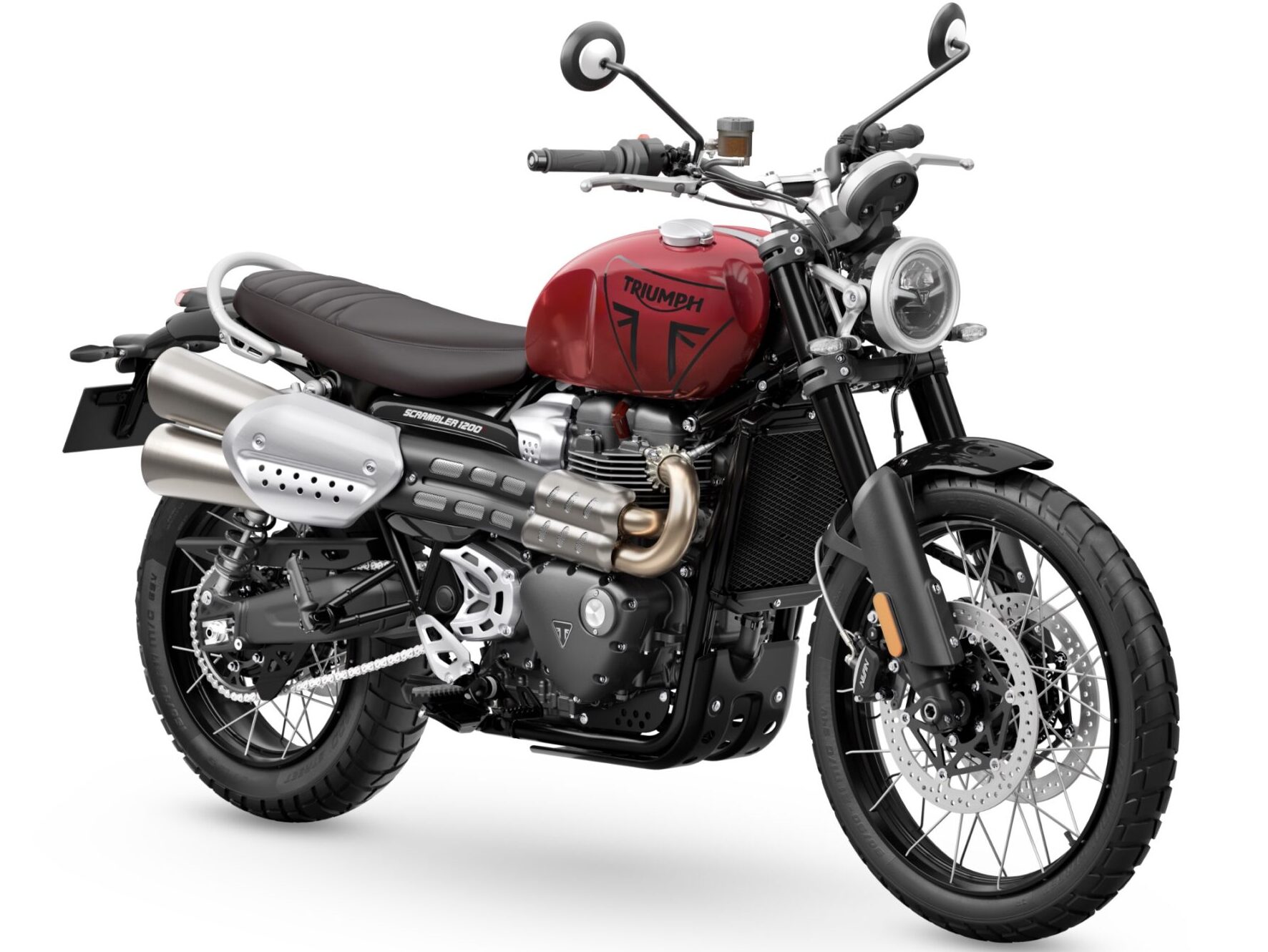

Triumph Scrambler 1200 X 2024 dashboard Triumph Scrambler 1200 X 2024 front Triumph Scrambler 1200 X 2024 back

T-shirts, mugs, stickers and more:

ducati multistrada v2 cyber tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

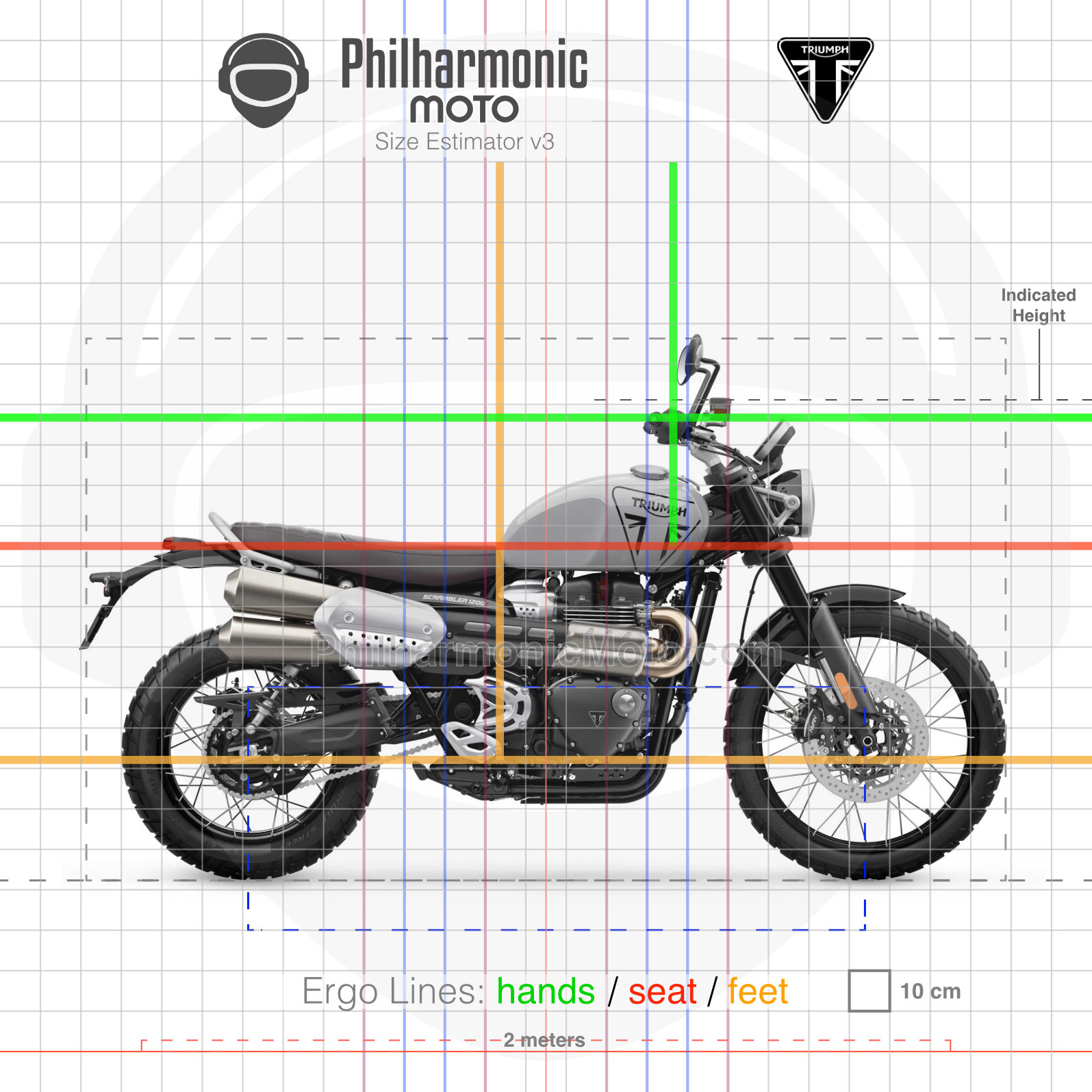

  • Size Estimator (see "About" page to learn more)
