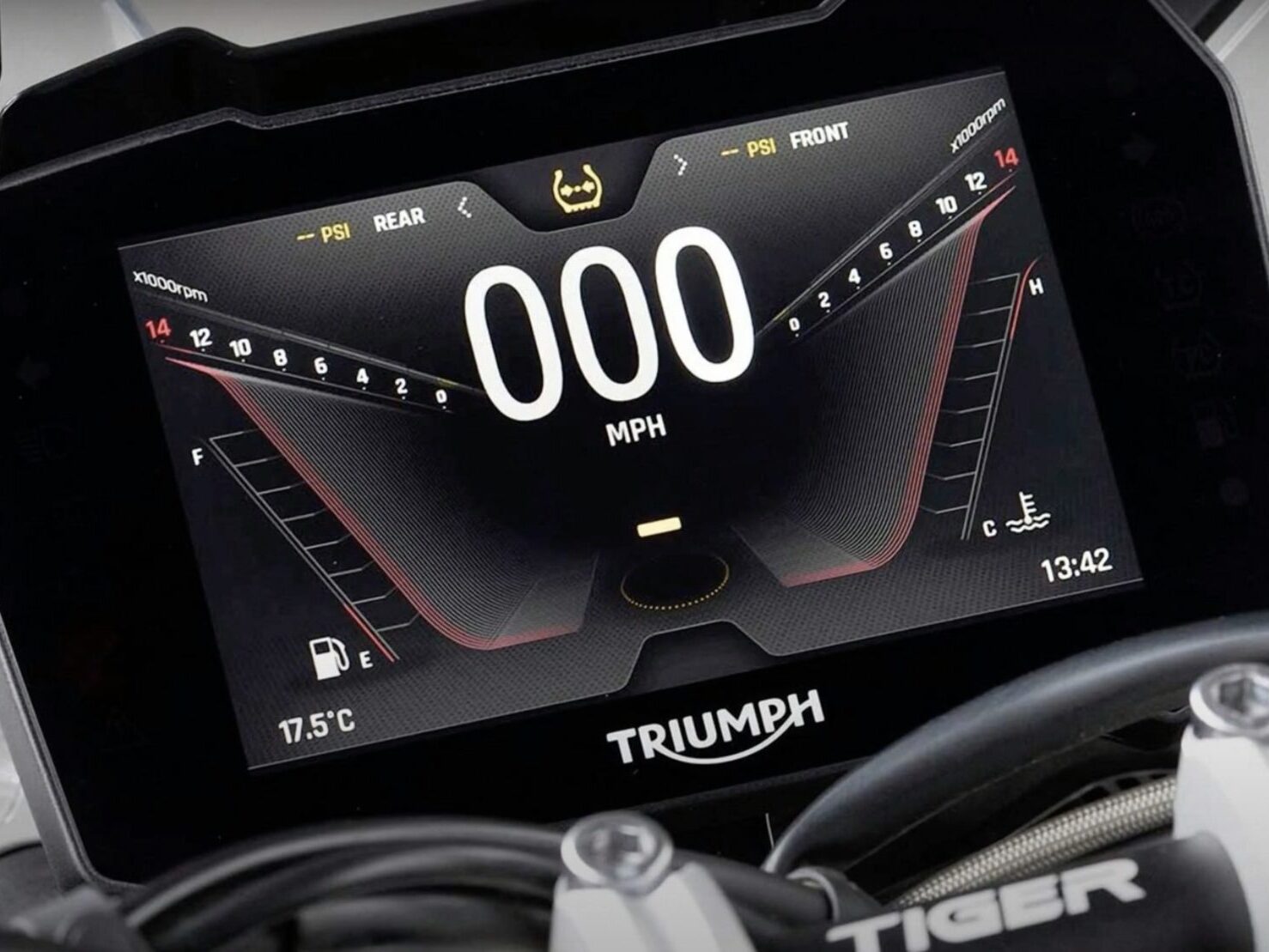

Triumph Tiger 900 2020 dashboard

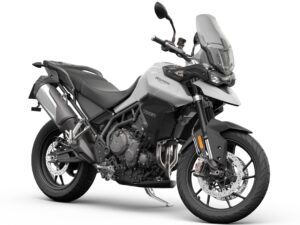

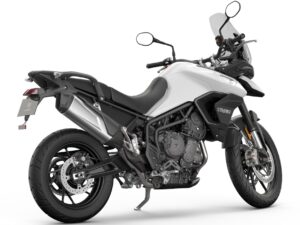

Triumph Tiger 900 (2020)

Triumph Tiger 900 (2020)

If Triumph Tigers someday become classic and desirable collectibles, this bike would probably be valuable, since the manufacturer discontinued this basic non-GT, non-Rally model after only one year, replacing it with the Tiger 850 Sport.


Category: Tag:

Specifications

Engine

888 cc Inline Triple, liquid-cooled

Power

93,9 hp @ 8750 rpm

Torque

87 Nm @ 7250 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

20 liters

Length

2229 mm (estimated)

Width

830 mm

Height

1410 mm / 1460 mm (low/high screen position)

Weight

192 kg dry

Seat Height

810-830 mm (adjustable)

Suspension

– Front: 45 mm inverted fork, 180 mm travel
– Rear: mono-shock, preload adjustment, 170 mm travel

Tyres

– Front: 100/90-19
– Rear: 150/70-17

Brakes

– Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers
– Rear: 255 mm disc, Brembo 1-piston sliding caliper
– ABS available

Instruments

5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock

Other

Riding modes, traction control

Dashboard / Support us

Triumph Tiger 900 2020 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Tiger 900 (2020) removeTriumph Tiger 900 Rally Pro (2020+) removeTriumph Scrambler 1200 XE (2019+) removeTriumph Street Twin (2016-2018) removeTriumph Tiger Sport 660 (2022+) removeTriumph Speed Triple 1200 RR (2022+) remove
NameTriumph Tiger 900 (2020) removeTriumph Tiger 900 Rally Pro (2020+) removeTriumph Scrambler 1200 XE (2019+) removeTriumph Street Twin (2016-2018) removeTriumph Tiger Sport 660 (2022+) removeTriumph Speed Triple 1200 RR (2022+) remove

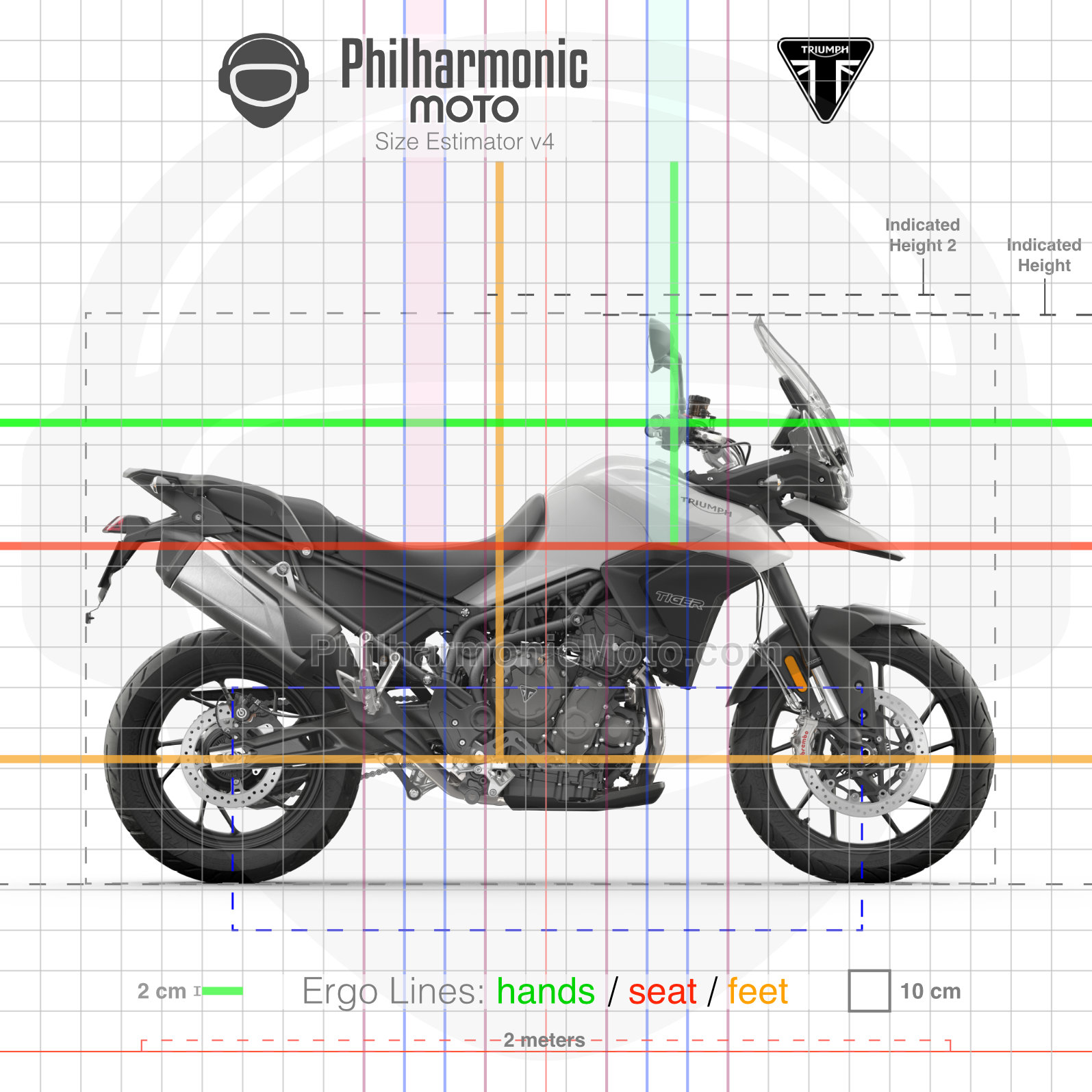

Size Estimator (see "About" page to learn more)Triumph Tiger 900 2020 Pure WhiteTriumph Tiger 900 Rally Pro 2020 Matt KhakiTriumph Scrambler 1200 XE 2019 Cobalt Blue and Jet BlackTriumph Street Twin 2016 Cranberry Red-01Triumph Tiger Sport 660 2022 Korosi Red GraphiteTriumph Speed Triple 1200 RR 2022 Red Hopper and Storm Grey
Length2229 mm (estimated)2254 mm (estimated)2325 mm2090 mm2071 mm2085 mm
Width830 mm935 mm905 mm785 mm834 mm758 mm (handlebars)
Height1410 mm / 1460 mm (low/high screen position)1452 mm / 1502 mm (low/high screen position)1250 mm1114 mm without mirrors1315 mm / 1398 mm (low/high screen position)1120 mm
Seat Height810-830 mm (adjustable)850-870 mm (adjustable)870 mm750 mm835 mm830 mm
Weight192 kg dry201 kg dry230 kg wet215 kg wet206 kg wet199 kg wet
Engine888 cc Inline Triple, liquid-cooled888 cc Inline Triple, liquid-cooled1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank660cc Inline Triple, liquid cooled, 12 valve DOHC, 240º crank angle1160 cc Inline Triple, liquid cooled
Power93,9 hp @ 8750 rpm93,9 hp @ 8750 rpm89 hp @ 7400 rpm54 hp @ 5900 rpm80 hp @ 10250 rpm177,6 hp @ 10750 rpm
Torque87 Nm @ 7250 rpm87 Nm @ 7250 rpm110 Nm @ 3950 rpm80 Nm @ 3230 rpm64 Nm @ 6250 rpm125 Nm @ 9000 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive5-speed, Wet multi-plate assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, X-ring chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive
Fuel Capacity20 liters20 liters16 liters12 liters17,2 liters15,5 liters
Suspension- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel– Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel – Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel- Front: Showa 47 mm fully adjustable USD forks, 250 mm travel - Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 250 mm travel.- Front: KYB 41mm cartridge forks, 120 mm travel - Rear: KYB twin shocks with adjustable preload, 120 mm travel- Front: Showa 41mm upside down separate function cartridge forks, 150mm travel - Rear: Showa mono-shock RSU, with remote hydraulic preload adjustment, 150mm travel- Front: Öhlins 43 mm inverted USD forks, fully adjustable, S-EC 2.0 OBTi system electronic compression/rebound damping, 120 mm travel - Rear: Öhlins mono-shock RSU, Öhlins S-EC 2.0 OBTi system electronic compression/rebound damping, 120 mm travel - "semi-active suspension"
Tyres- Front: 100/90-19 - Rear: 150/70-17– Front: 90/90-21 – Rear: 150/70-17 – Tubeless- Front: 90/90-21 - Rear: 150/70-17 - Tubeless- Front: 100/90-18 - Rear: 150/70-17 - Tubeless- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 190/55-17
Brakes- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 320 mm discs, Brembo monoblock calipers - Rear: 255 mm disc, Brembo 2-piston floating caliper - switchable cornering ABS available- Front: 310mm disc, Nissin 2-piston floating caliper - Rear: 255mm disc, Nissin 2-piston floating caliper - ABS available- Front: twin 310mm discs, Nissin two-piston sliding calipers - Rear: 255mm disc, Nissin single-piston sliding caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial monobloc calipers, radial master cylinder with separate reservoir, span & ratio adjustable - Rear: 220 mm disc, Brembo 2-piston caliper, Rear master cylinder with separate reservoir - cornering ABS available
Instruments5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computerTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
OtherRiding modes, traction controlLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre standLed lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, Brembo MCS lever, heated grips, USB under seatLED brake light, switchable Traction Control, riding modes, Immobiliser, USB socketLED lights, Riding modes, traction controlLED lights, Riding modes, switchable cornering traction control, wheelie control, adjustable levers, full keyless system, illuminated switches, cruise control, smartphone connectivity
Dashboard / Support usTriumph Tiger 900 2020 dashboard   T-shirts, mugs, stickers and more: Triumph Tiger 900 Rally 2020 dashboard   T-shirts, mugs, stickers and more: Triumph Scrambler 1200 XE dashboard   Scrambler 1200 t-shirts, mugs, stickers and more: Triumph Street Twin 2016 dashboard   T-shirts, mugs, stickers and more: Triumph Tiger Sport 660 dashboard   Tiger Sport 660 t-shirts, mugs, stickers and more: Triumph Speed Triple 1200 RR 2022 dashboard   T-shirts, mugs, stickers and more:
