Yamaha XT250 (2019+)

XT250K1

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

249 cc Single-cylinder, air-cooled

Power

19 hp @ 7500 rpm

Power to weight ratio

14 HP/100kg

Torque

20 Nm @ 6000 rpm

Torque to weight ratio

15 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

9,8 litres

Length

2150 mm

Width

805 mm

Height

1160 mm

Weight

– 133 kg wet
– Max load: 186 kg

Seat Height

810 mm

Suspension

– Front: 35 mm telescopic fork, 225 mm travel
– Rear: mono-shock, adjustable preload and rebound, 180 mm travel

Tyres

– Front: 2.75-21
– Rear: 120/80-18

Brakes

– Front: 245 mm disc, 2-piston caliper
– Rear: 203 mm disc, 1-piston caliper

Instruments

– LCD display with speedometer, odometer, trip meter, clock

Other

– "Modern Fuel Injection … Convenient Electric Start"

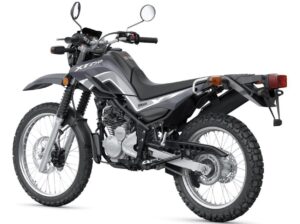

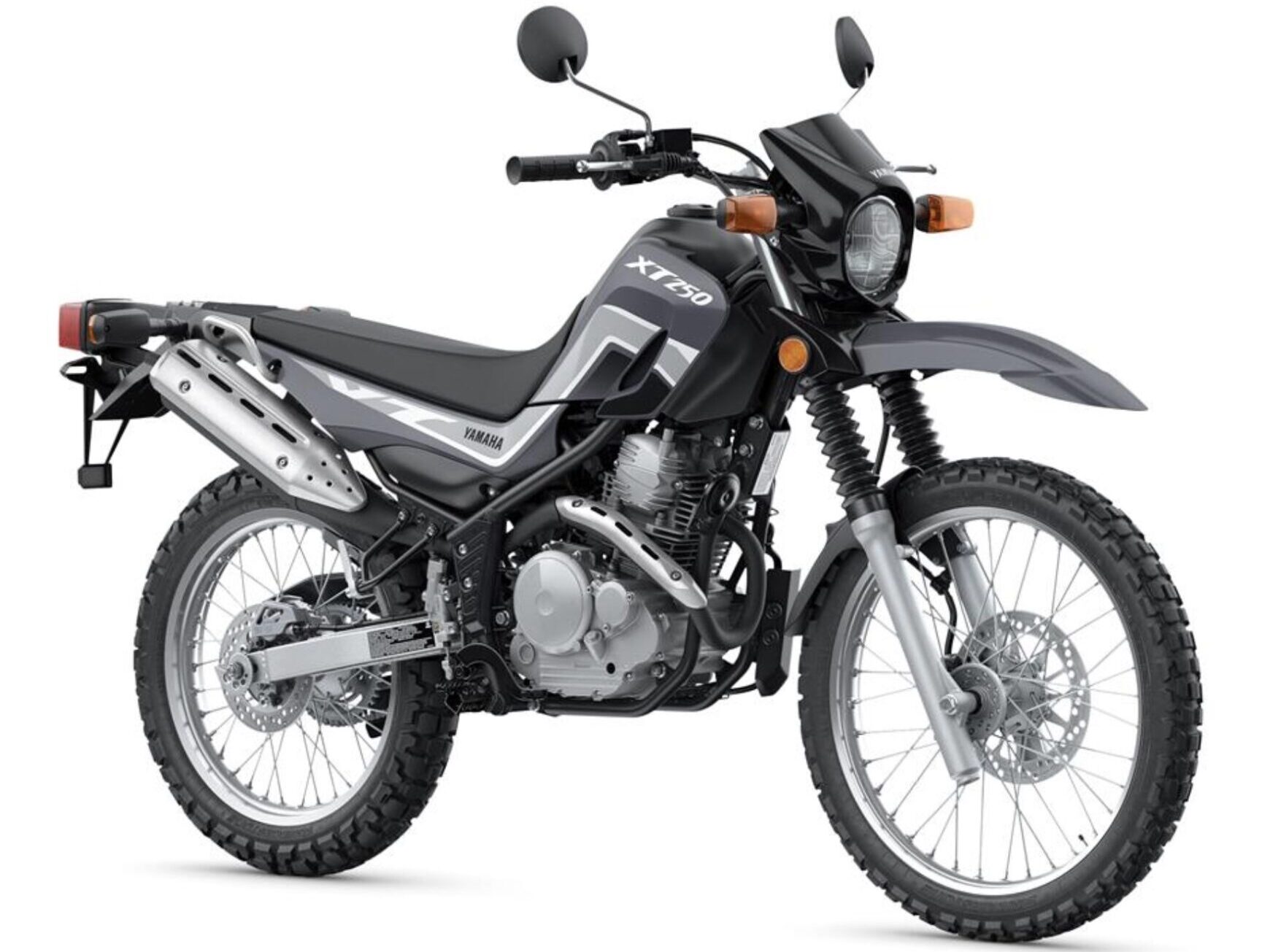

Yamaha XT250 2019 dashboard Yamaha XT250 2023 front Yamaha XT250 2023 back
