1430 mm (over adjustable windshield, but they don't say at what position)
815 mm (excl. mirror)
1170 mm
Seat Height
820 mm (seat low: 760 mm; seat sport: 840 mm)
800 mm
820 mm (seat low: 760 mm; seat sport: 840 mm)
850-870 mm (800-820 mm with low suspension option)
815 mm
800 mm
Weight
243 kg wet
269 kg wet
239 kg wet
249 kg wet
211 kg wet
269 kg wet
Engine
1254 cc Boxer twin, air/liquid cooled
1441 cc Inline-4, liquid-cooled
1254 cc Boxer twin, air-liquid-cooled
1254 cc Boxer twin, air-liquid-cooled
895 cc Parallel-Twin, liquid-cooled, 270º crank
1441 cc Inline-4, liquid-cooled
Power
136 hp @ 7750 rpm
200 hp @ 10000 rpm (210 hp with RAM-AIR)
136 hp @ 7750 rpm
136 hp @ 7750 rpm
99 hp @ 8500 rpm
200 hp @ 10000 rpm (210 hp with RAM-AIR)
Torque
143 Nm @ 6250 rpm
162,5 Nm @ 7500 rpm
143 Nm @ 6250 rpm
143 Nm @ 6250 rpm
88 Nm @ 6750 rpm
162,5 Nm @ 7500 rpm
Transmission
6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive
6-speed, wet multi-plate slip/assist hydraulic clutch, chain final drive
6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive
6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive
6-speed, wet multi-plate slip/assist clutch, chain final drive
6-speed, wet multi-plate slip/assist hydraulic clutch, chain final drive
Fuel Capacity
18 liters
22 liters
18 liters
20 liters
13 liters
22 liters
Suspension
- Front: inverted fork, 140 mm travel
- Rear: mono-shock, adjustable hydraulic preload and rebound damping, 140 mm travel
- Front: 43 mm inverted fork, fully adjustable, 117 mm travel
- Rear: Öhlins TTX39 mono-shock, fully adjustable, 120 mm travel
- Front: inverted fork, 140 mm travel
- Rear: mono-shock, adjustable hydraulic preload and rebound damping, 140 mm travel
- Front: 37 mm telelever central spring strut, 190 mm travel
- Rear: BMW Motorrad Paralever, adjustable hydraulic preload and rebound damping, 200 mm travel
- Front: 43 mm inverted fork, 135 mm travel
- Rear: mono-shock, adjustable hydraulic preload and rebound damping, 142 mm travel
- Front: 43 mm inverted fork, fully adjustable, 117 mm travel
- Rear: mono-shock, fully adjustable, 120 mm travel (Öhlins TTX39 in some markets)
Tyres
- Front: 120/70-17
- Rear: 180/55-17
- Front: 120/70-17
- Rear: 190/50-17
- Front: 120/70-17
- Rear: 180/55-17
- Front: 120/70-19
- Rear: 170/60-17
- Front: 120/70-17
- Rear: 180/55-17
- Front: 120/70-17
- Rear: 190/50-17
Brakes
- Front: 320 mm floating discs, 4-piston radial caliper
- Rear: 276 mm disc, 2-piston floating caliper
- cornering ABS available
- Front: 310 mm discs, Brembo M50 Monobloc 4-piston radial calipers
- Rear: 250 mm disc, 2-piston caliper
- ABS available
- Front: 320 mm floating discs, 4-piston radial caliper
- Rear: 276 mm disc, 2-piston floating caliper
- cornering ABS available
- Front: 305 mm floating discs, 4-piston radial caliper
- Rear: 276 mm disc, 2-piston floating caliper
- cornering ABS available
- Front: 320 mm floating discs, 4-piston radial caliper
- Rear: 265 mm disc, 1-piston floating caliper
- ABS available
- Front: 310 mm discs, Brembo M50 Monobloc 4-piston radial calipers
- Rear: 250 mm disc, 2-piston caliper
- ABS available
Instruments

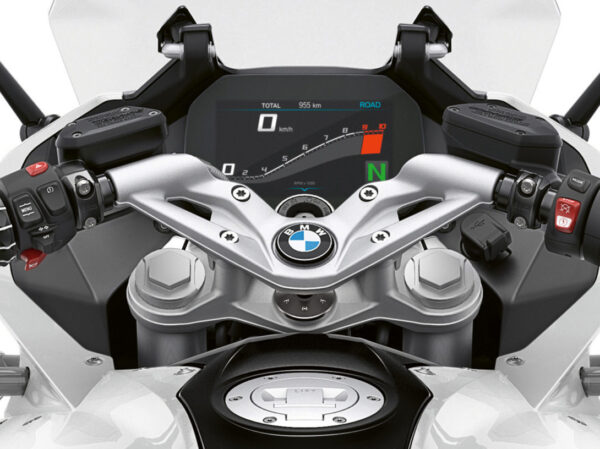

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
Analogue speedometer and tachometer, LCD display with fuel gauge, air temperature, gear indicator, average consumption, trip meters clock
TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
Analogue speedometer and tachometer, LCD display with fuel gauge, air temperature, gear indicator, average consumption, trip meters clock
Other
LED lights, riding modes, traction control, USB port, smartphone connectivity, self-canceling indicators
Traction control, power modes, Akrapovic exhaust, bubble screen, "Front fork top caps, new seat pattern, premium cockpit (Special edition black meter rings are used instead of the standard pressed stainless steel rings.)"
LED headlight and taillight, riding modes, traction control, USB port, smartphone connectivity, hill start control, self-canceling indicators
LED lights, riding modes, traction control, USB port, 12v socket, mobile phone connectivity, centre stand, hill start control, self-canceling indicators
