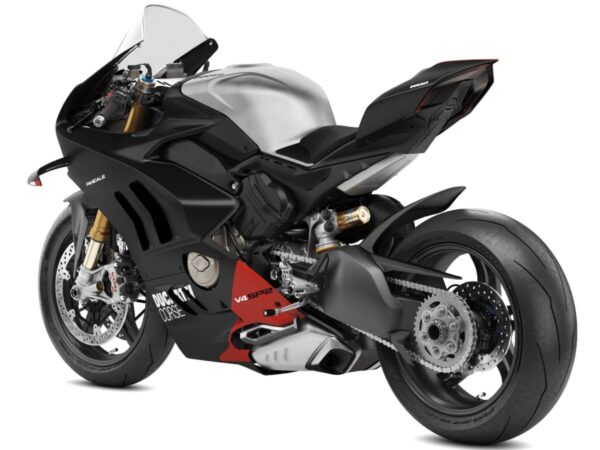

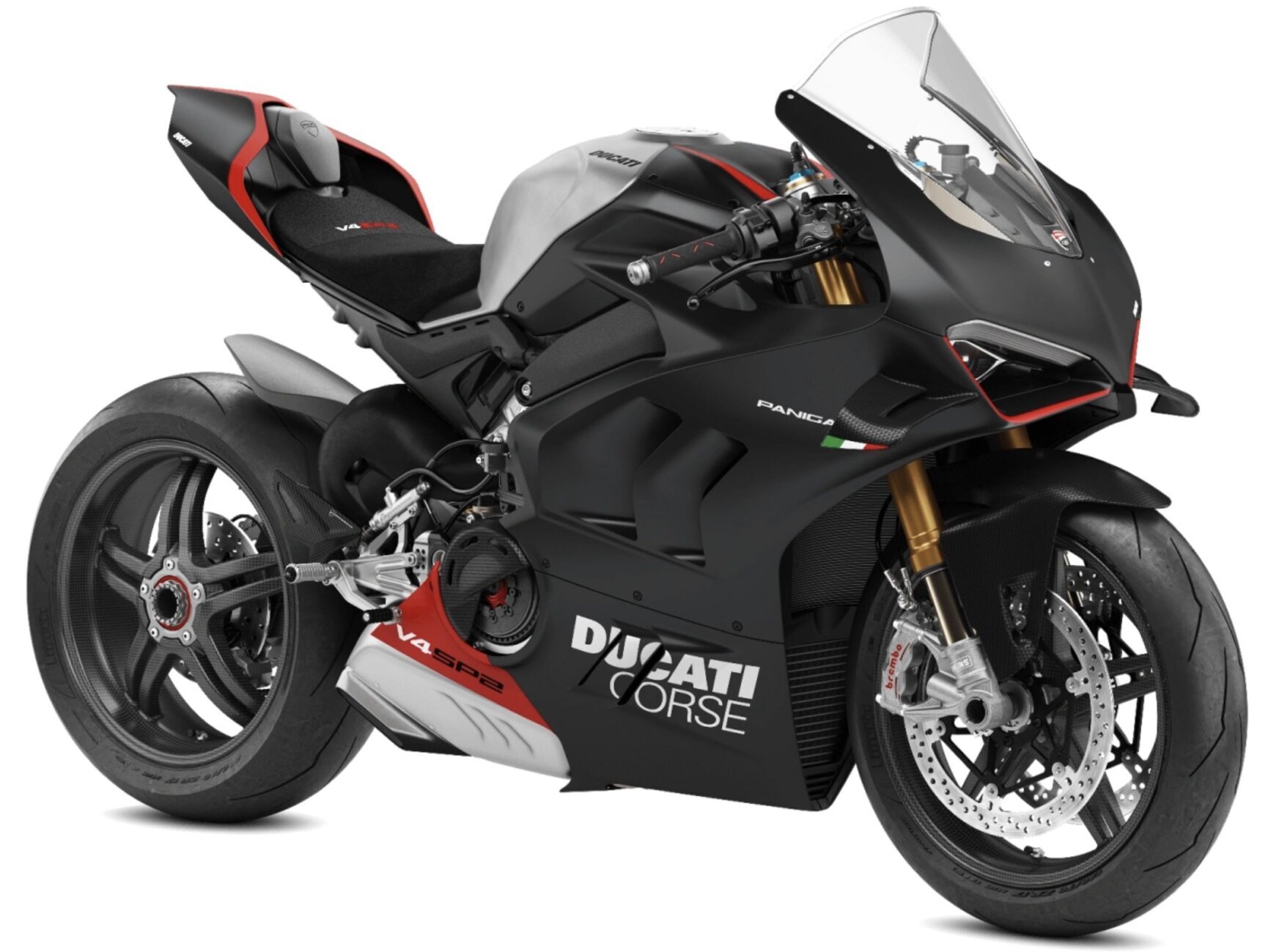

Ducati Panigale V4 SP2 (2022+)

Ducati Panigale V4 SP2 (2022+)

V4SP2


Category: Tag:

Specifications

Engine

1103 cc V4, liquid-cooled

Power

215,5 hp @ 13000 rpm

Torque

123,6 Nm @ 9500 rpm

Transmission

6-speed, STM-EVO SBK 9-discs dry clutch, quick-shifter, chain final drive

Fuel Capacity

17 liters

Length

2105 mm

Width

734/805 mm (handlebars/mirrors)

Height

1170 mm

Weight

194,5 kg wet

Seat Height

850 mm

Suspension

– Front: Öhlins 43 mm inverted forks, electronically fully adjustable, 120 mm travel
– Rear: Öhlins shock, electronically fully adjustable, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 200/60-17

Brakes

– Front: 330 mm semi-floating discs, Brembo Stylema R radial 4-piston caliper
– Rear: 245 mm disc, 2-piston caliper
– cornering ABS available

Instruments

TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock

Other

LED lights, Öhlins steering damper, self-cancelling indicators, riding modes, power modes, traction control, wheelie control, slide control, engine brake control, launch control, auto tyre calibration, racing style hand grips, lithium ion battery
– Machined brake and clutch levers to reduce drag,
Adjustable rider foot-pegs in billet aluminium by Rizoma with heel guards in carbon fibre, Billet aluminium steering stem with bike name and number, Brushed aluminium fuel tank, Rider seat with dedicated material and “V4 SP2” logo, Wings in carbon fibre, Front mudguard in carbon fibre

Dashboard / Support us

Ducati Panigale V4 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsDucati Panigale V4 SP2 (2022+) removeKawasaki Ninja ZX-10R (2021+) removeYamaha R6 (2017-2021) removeYamaha R3 (2019+) removeKawasaki Ninja 300 (2012-2018) removeDucati Supersport 950 (2021+) remove
NameDucati Panigale V4 SP2 (2022+) removeKawasaki Ninja ZX-10R (2021+) removeYamaha R6 (2017-2021) removeYamaha R3 (2019+) removeKawasaki Ninja 300 (2012-2018) removeDucati Supersport 950 (2021+) remove
Size Estimator (see "About" page to learn more)Ducati Panigale V4 SP2 2023 Winter Test LiveryKawasaki ninja ZX-10R 2023 Pearl Robotic White Metallic Diablo BlackYamaha YZF-R6 2020 blue-01Yamaha YZF-R3 2021 Electric Teal-01-01Kawasaki Ninja 300 2017 whiteDucati Supersport 950 2022 ducati red
Length2105 mm2085 mm2040 mm2090 mm2015 mm2140 mm
Width734/805 mm (handlebars/mirrors)750 mm700 mm730 mm715 mm750 mm (handlebars)
Height1170 mm1185 mm1150 mm1140 mm1110 mm1150/1186 mm (low/high screen position)
Seat Height850 mm835 mm850 mm780 mm785 mm810 mm
Weight194,5 kg wet207 kg wet190 kg167 kg wet174 kg wet210 kg wet
Engine1103 cc V4, liquid-cooled998 cc Inline-4, liquid-cooled599 cc Inline-4, liquid-cooled321 cc Parallel Twin, liquid-cooled296 cc Parallel-Twin, liquid-cooled937 cc L-Twin, liquid-cooled, 90º crank
Power215,5 hp @ 13000 rpm200 hp @ 13200 rpm116,8 hp @ 14500 rpm41,4 hp @ 10750 rpm39 hp @ 11.000 rpm111 hp @ 9000 rpm
Torque123,6 Nm @ 9500 rpm114,9 Nm @ 11400 rpm61,7 Nm @ 10500 rpm29,6 Nm @ 9000 rpm27 Nm @ 10.000 rpm93 Nm @ 6500 rpm
Transmission6-speed, STM-EVO SBK 9-discs dry clutch, quick-shifter, chain final drive6-speed, wet multi-plate clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist clutch, quick upshift, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive
Fuel Capacity17 liters17 liters17 liters14 liters17 liters16 liters
Suspension- Front: Öhlins 43 mm inverted forks, electronically fully adjustable, 120 mm travel - Rear: Öhlins shock, electronically fully adjustable, 130 mm travel- Front: 43 mm inverted fork (BFF) with external compression chamber, compression and rebound damping and spring preload adjustability, and top-out springs, 120 mm travel - Rear: Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping and spring preload adjustability, and top-out spring, 115 mm travel- Front: 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: mono-shock, fully adjustable, 120 mm travel- Front: 37 mm inverted forks, 130 mm travel - Rear: mono-shock, adjustable preload, 125 mm travel- Front: 37 mm telescopic fork, 120 mm travel - Rear: Uni Trak, mono-shock, adjustable preload, 132 mm travel- Front: 43 mm inverted fork, fully adjustable, 130 mm travel - Rear: mono-shock, adjustable preload, 144 mm travel
Tyres- Front: 120/70-17 - Rear: 200/60-17- Front: 120/70-17 - Rear: 190/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 110/70-17 - Rear: 140/70-17- Front: 110/70-17 - Rear: 140/70-17- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 330 mm semi-floating discs, Brembo Stylema R radial 4-piston caliper - Rear: 245 mm disc, 2-piston caliper - cornering ABS available- Front: Dual semi-floating 330 mm Brembo discs, Radial-mount, Brembo M50 monobloc, opposed 4-piston calipers - Rear: 220 mm disc, single-bore pin-slide caliper - cornering ABS available- Front: 2x320 mm discs, 4-piston calipers - Rear: 220 mm disc, single-piston caliper - ABS available- Front: 298 mm disc, 2-piston caliper - Rear: 220 mm disc, single-piston caliper - ABS available- Front: 290 mm petal disc, 2-piston caliper - Rear: 220 mm petal disc, 2-piston caliper - ABS available- Front: 320 mm radial semi-floating discs, Brembo 4-piston calipers - Rear: 245 mm disc, 2-piston caliper - cornering ABS available
InstrumentsTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockTFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clockAnalogue tachometer, digital speedometer, dual trip meters, gear indicator, low fuel warning light, fuel trip meter, clock, stop watch, D-mode and traction control indicator, temperature gauge, air temperature, instant and average fuelDigital tachometer, odometer, speedometer, gear indicator, fuel gauge, real time and average fuel consumption, temperature gauge, clockAnalogue tachometer, digital speedometer, dual trip meter, fuel gauge, clockTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock
OtherLED lights, Öhlins steering damper, self-cancelling indicators, riding modes, power modes, traction control, wheelie control, slide control, engine brake control, launch control, auto tyre calibration, racing style hand grips, lithium ion battery - Machined brake and clutch levers to reduce drag, Adjustable rider foot-pegs in billet aluminium by Rizoma with heel guards in carbon fibre, Billet aluminium steering stem with bike name and number, Brushed aluminium fuel tank, Rider seat with dedicated material and “V4 SP2” logo, Wings in carbon fibre, Front mudguard in carbon fibreLED lights, cornering traction control, riding modes, engine brake control, smartphone connectivity, cruise controlLED lights, Riding modes, switchable traction control, "16 titanium valves"LED headlight and taillightLED lights, riding modes, power modes, cornering traction control, wheelie control
